Характеристики
Products Description

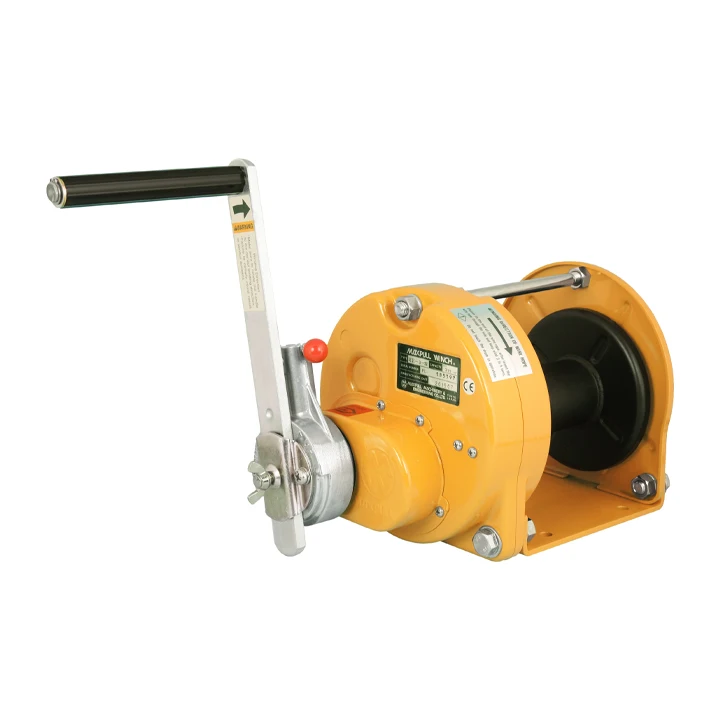

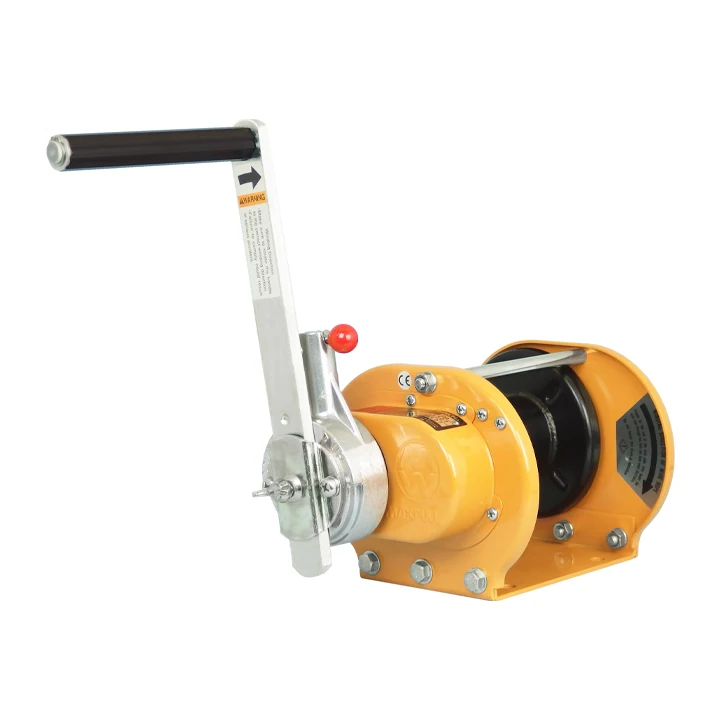

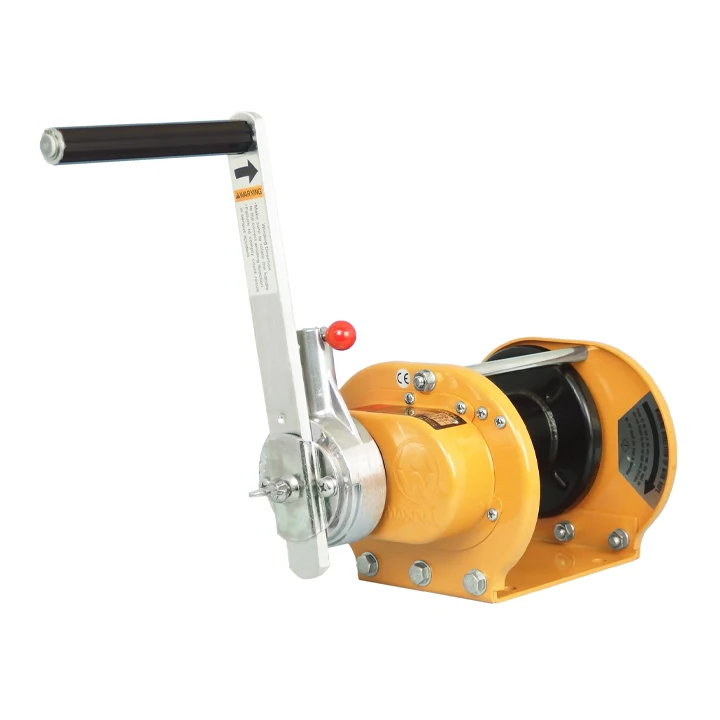

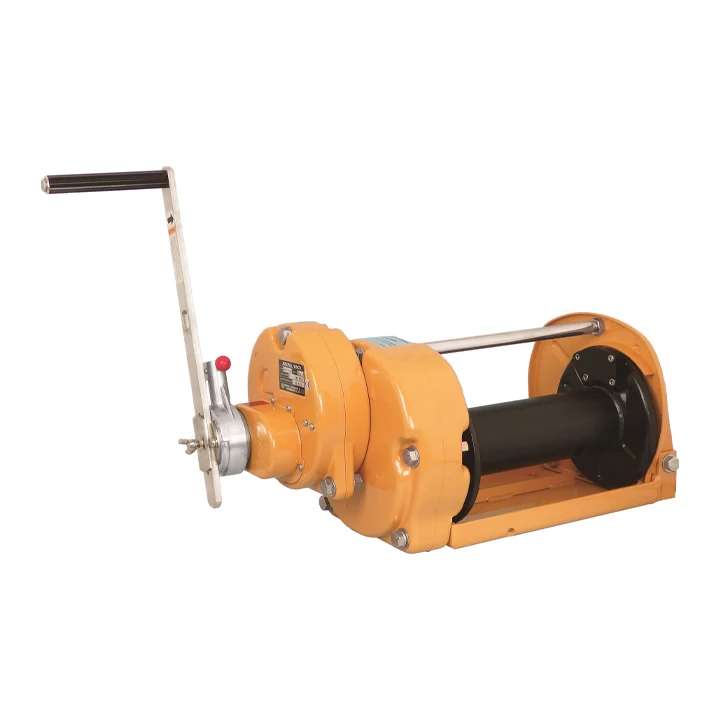

Steel Ratchet Hand Winches: Model MR (Type-SI)
With a ratchet handle, the model MR hand winches can be hoisted and unwound with left and right reciprocating motion. You can work directly on the wall or floor even in a narrow space where you cannot rotate the handle. This model can also be used as a rotating winch like the model GM.
This type is fit for schools, public facilities, places accessible to unidentified numbers of people, or other places where the winch may malfunction if its stopper arm, which is able to release the brakes, protrudes from the system itself.
With the stopper mechanism contained in a hermetically enclosed special clutch cover, you can work to wind up and down the target equipment without the risk of malfunction.
The Type-SI can be manufactured for all stainless steel and all steel hand winch models.
When ordering, please specify, for example, MR-5-SI, ERSB-5-SI.
With a ratchet handle, the model MR hand winches can be hoisted and unwound with left and right reciprocating motion. You can work directly on the wall or floor even in a narrow space where you cannot rotate the handle. This model can also be used as a rotating winch like the model GM.
This type is fit for schools, public facilities, places accessible to unidentified numbers of people, or other places where the winch may malfunction if its stopper arm, which is able to release the brakes, protrudes from the system itself.
With the stopper mechanism contained in a hermetically enclosed special clutch cover, you can work to wind up and down the target equipment without the risk of malfunction.
The Type-SI can be manufactured for all stainless steel and all steel hand winch models.
When ordering, please specify, for example, MR-5-SI, ERSB-5-SI.
Model | MR-1-SI |
Standard layer | 4th Layer |
Load Rating Wire Rope Tension | 100kg (220lbs) |
Wire Rope Diameter | φ5mm (6x19) or 3/16inch (7x19) |
Drum Capacity | 6-Layer Windings φ5mm x 35m (3/16inch x 114ft) |
Gear Ratio | 1:1 |
Effective Handle Length | 250mm (9.84inch) |
Handle Force | 21.2kg (46.7lbs) |
Weight (Winch+Handle) | 8.1kg (17.9lbs) |
Dimensions per package | W23 x L31 x H22(cm) |
Gross Weight | 9.1kg (20.1lbs) |
Model | MR-3-SI |
Standard layer | 5th Layer |
Load Rating Wire Rope Tension | 300kg (660lbs) |
Wire Rope Diameter | φ6mm (6x37) or 1/4inch (6x36) |
Drum Capacity | 6-Layer Windings φ6mm x 32m (1/4inch x 104ft) |
Gear Ratio | 6.25:1 |
Effective Handle Length | 250mm (9.84inch) |
Handle Force | 13.3kg (29.3lbs) |
Weight (Winch+Handle) | 15.0kg (33.1lbs) |
Dimensions per package | W27 x L41 x H28(cm) |
Gross Weight | 16.5kg (36.4lbs) |
Model | MR-5-SI |
Standard layer | 5th Layer |
Load Rating Wire Rope Tension | 500kg (1,100lbs) |
Wire Rope Diameter | φ6mm (6x37) or 1/4inch (6x36) |
Drum Capacity | 6-Layer Windings φ6mm x 40m (1/4inch x 131ft) |
Gear Ratio | 8.9:1 |
Effective Handle Length | 250mm (9.84inch) |
Handle Force | 17.7kg (39.0lbs) |
Weight (Winch+Handle) | 16.3kg (35.9lbs) |
Dimensions per package | W27 x L41 x H28(cm) |
Gross Weight | 17.8kg (39.2lbs) |
Model | MR-10-SI |
Standard layer | 3rd Layer |
Load Rating Wire Rope Tension | 1,000kg (2,200lbs) |
Wire Rope Diameter | φ8mm (6x37) or 5/16inch (6x36) |
Drum Capacity | 5-Layer Windings φ8mm x 35m (5/16inch x 114ft) |
Gear Ratio | 12.6:1 |
Effective Handle Length | 300mm (11.81inch) |
Handle Force | 18.5kg (40.8lbs) |
Weight (Winch+Handle) | 17.3kg (38.1lbs) |
Dimensions per package | W27 x L44 x H26(cm) |
Gross Weight | 18.8kg (41.5lbs) |
Model | MR-20-SI |
Standard layer | 3rd Layer |
Load Rating Wire Rope Tension | 2,000kg (4,400lbs) |
Wire Rope Diameter | φ9mm (6x37) or 3/8inch (6x36) |
Drum Capacity | 5-Layer Windings φ9mm x 38m (3/8inch x 124ft) |
Gear Ratio | 20:1 |
Effective Handle Length | 370mm (14.57inch) |
Handle Force | 21.8kg (48.1lbs) |
Weight (Winch+Handle) | 29.1kg (64.2lbs) |
Dimensions per package | W34 x L49 x H31(cm) |
Gross Weight | 31.6kg (70.0lbs) |
Model | MR-30-SI |
Standard layer | 3rd Layer |
Load Rating Wire Rope Tension | 3,000kg (6,600lbs) |
Wire Rope Diameter | φ12mm (6x37) or 7/16inch (6x36) |
Drum Capacity | 4-Layer Windings φ12mm x 35m (7/16inch x 114ft) |
Gear Ratio | 35.5:1 |
Effective Handle Length | 370mm (14.57inch) |
Handle Force | 20.5kg (45.2lbs) |
Weight (Winch+Handle) | 38.6kg (85.1lbs) |
Dimensions per package | W34 x L65 x H34(cm) |
Gross Weight | 41.6kg (91.7lbs) |
WHY MAXPULL
* Ease of operation
If you compare our product with others, the handle force during operation is very small and work is easy because of its high-level mechanical efficiency. This winch is light and very convenient to carry for the compact design. Users can install the winch easily using the prescribed bolts. In addition, the each part is made by press work and the whole of winch is assembled with bolts, so it is easily disassembled. Anyone can repair and assemble this winch by just purchasing necessary replacing parts and installing them according to the instructions in the manual.
* Outstanding durability
Ball bearings only from leading manufacturers are used for all bearings. The bearing allows smooth lifting and offers outstanding resistance against wear. Our unique profile shifted gear that performed special heat treatment is used for the gear reducer, and it allow you to work securely.
If you compare our product with others, the handle force during operation is very small and work is easy because of its high-level mechanical efficiency. This winch is light and very convenient to carry for the compact design. Users can install the winch easily using the prescribed bolts. In addition, the each part is made by press work and the whole of winch is assembled with bolts, so it is easily disassembled. Anyone can repair and assemble this winch by just purchasing necessary replacing parts and installing them according to the instructions in the manual.
* Outstanding durability
Ball bearings only from leading manufacturers are used for all bearings. The bearing allows smooth lifting and offers outstanding resistance against wear. Our unique profile shifted gear that performed special heat treatment is used for the gear reducer, and it allow you to work securely.
The automatic brake has outstanding durability because it has the mechanism that can adjust the gap as desired. Baking finish performed on the surface is resistant to rust. It is strong and can be used in any location.
* Reliable safety
Carefully selected materials as well as advanced design and technology provide the extremely high safety. We have enhanced the strength of the portions where load is intensively applied by combining a precision press-processing rib or double plate. A fail-safe mechanism is employed for the mechanical brake. The method of anchoring the wire rope to the drums is a fail-safe structure with a special drum that an extra maintenance winding is maintained. Users can easily and surely anchor the end of a wire rope to the drum by using the attached hex wrench. The above features are all enabled thanks to our unique reliable safety design.
* Reliable safety
Carefully selected materials as well as advanced design and technology provide the extremely high safety. We have enhanced the strength of the portions where load is intensively applied by combining a precision press-processing rib or double plate. A fail-safe mechanism is employed for the mechanical brake. The method of anchoring the wire rope to the drums is a fail-safe structure with a special drum that an extra maintenance winding is maintained. Users can easily and surely anchor the end of a wire rope to the drum by using the attached hex wrench. The above features are all enabled thanks to our unique reliable safety design.
* Stopper Armless (SI) Type
This type is fit for schools, public facilities, places accessible to unidentified numbers of people, or other places where the winch may malfunction if its stopper arm, which is able to release the brakes, protrudes from the system itself.
With the stopper mechanism contained in a hermetically enclosed special clutch cover, you can work to wind up and down the target equipment without the risk of malfunction.
This type is fit for schools, public facilities, places accessible to unidentified numbers of people, or other places where the winch may malfunction if its stopper arm, which is able to release the brakes, protrudes from the system itself.
With the stopper mechanism contained in a hermetically enclosed special clutch cover, you can work to wind up and down the target equipment without the risk of malfunction.
If you wish to release the brake by disengaging the stopper during a no load condition, please choose the releasable brake type.
These releasable brake units can be mounted to all models of stainless steel and steel.
When ordering, please specify the models such as GM-5 or ESB-5.
When ordering, please specify the models such as GM-5 or ESB-5.
Where is MAXPULL used?
A winch is a with a <power source> high degree of freedom. By changing the vector of the wire rope drawn from the winch with a pulley, etc., the force can be transmitted to the work (the object you want to move) from any direction 360 degrees. In addition, the structure is simple and no other incidental equipment is required, so it is possible to realize a system that keeps costs down.
The greatest strength of MAXPULL is that we can propose the best solutions and equipment for the customer's site.
Company Description
We specialize in the manufacture of winches, which is a rare industry in the world. We hold about 70% of the domestic market for winches. The greatest strength of Maxpull Machinery & Engineering is that we make the best use of the techniques and know-how we have built up and can advise the most suitable handling of wire ropes for our customers’ sites. As a specialist for hoisting and pulling, we are striving to create more compact winches, which will provide a higher level of performance, greater safety and more durability.
