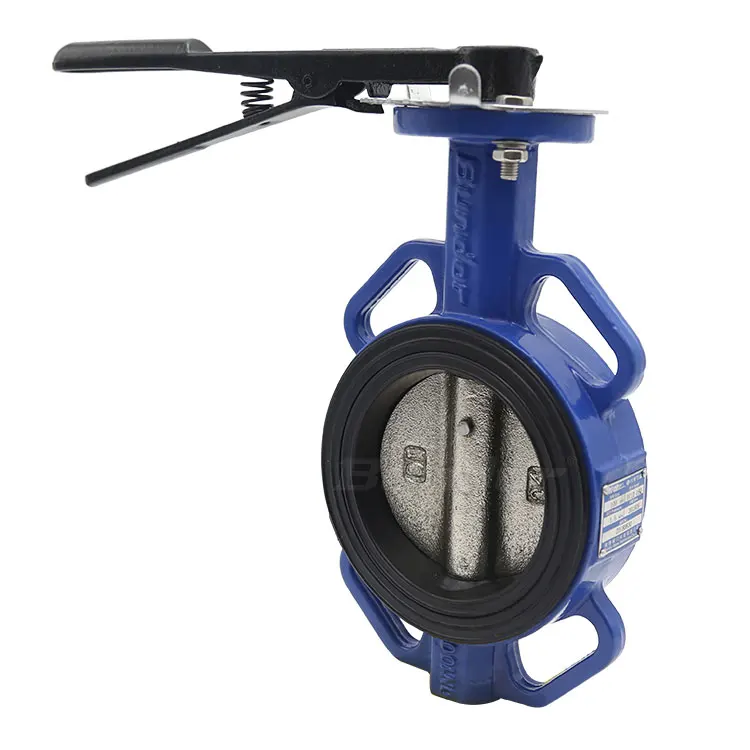

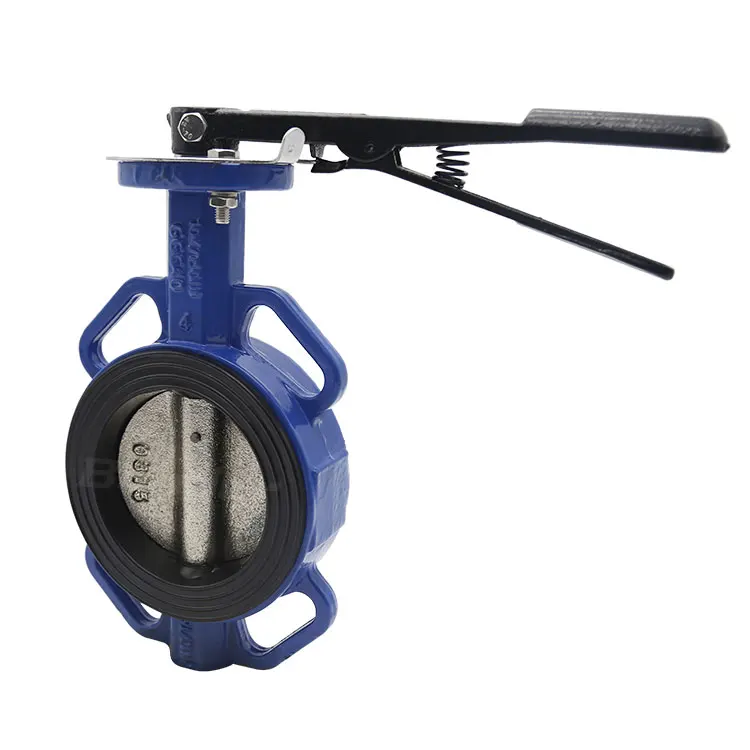

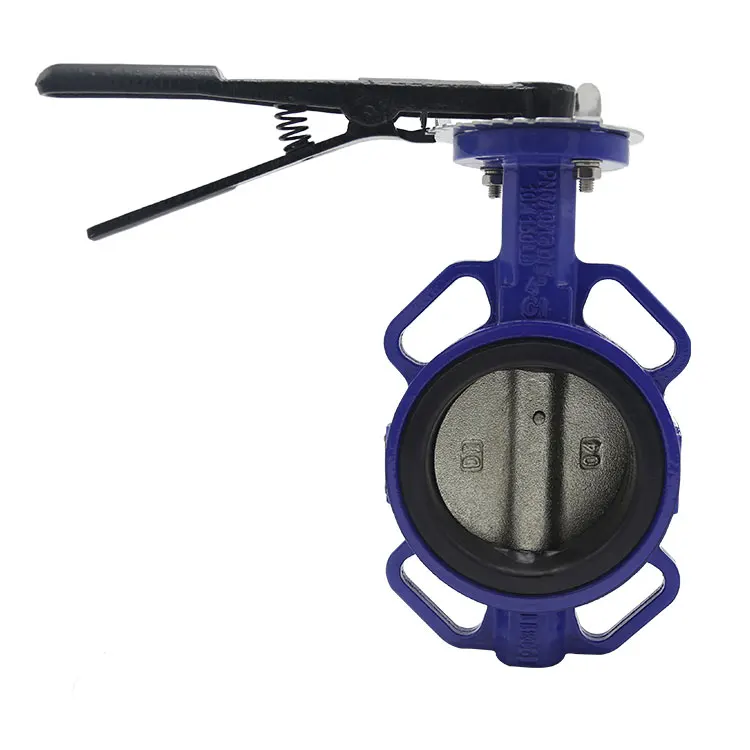

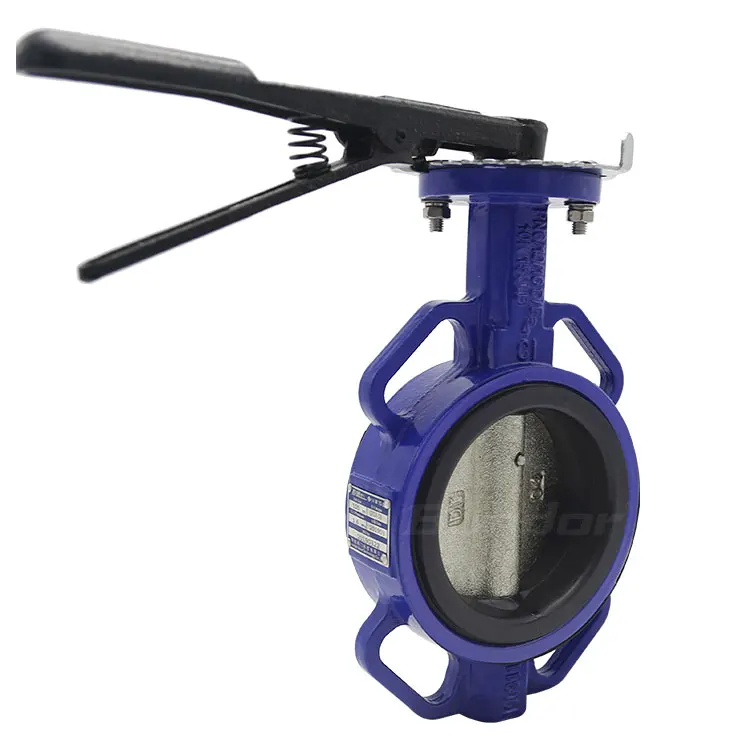

Клапан-бабочка из ковкого чугуна ANSI PN16 DN200
- Категория: Butterfly Valves >>>
- Поставщик: Bundor,Valve,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 42.19 $* | 43.1 $* |
| Jul-16-2025 | 34.25 $* | 35.12 $* |
| Jun-16-2025 | 41.36 $* | 42.53 $* |
| May-16-2025 | 41.32 $* | 42.33 $* |
| Apr-16-2025 | 33.38 $* | 34.57 $* |
| Mar-16-2025 | 40.12 $* | 41.34 $* |
| Feb-16-2025 | 40.15 $* | 41.85 $* |
| Jan-16-2025 | 40.30 $* | 41.23 $* |
Характеристики
Products Description
Parts | 1 | 2 | 3 | 4 | 5 | 6 |
Name | Body | Seat | Disc | Stem | O-rings | Handle |
Material | DI | EPDM | DI | SS304 | EPDM/NBR | Iron |
NPS | DN | L | D1 | D2 | L1 | L2 | L3 | L4 | B |
ISO 5211 Top Flange | 2″ | DN50 | 48 | 86 | 92.3 | 75 | 129 | 24 | 240 |
9 | F05 | 2.5″ | DN65 | 52 | 101 | 107 | 82 | 136 | 24 |
240 | 9 | F05 | 3″ | DN80 | 53 | 116 | 122 | 99 | 153 |
24 | 240 | 9 | F05 | 4″ | DN100 | 58 | 148 | 153 | 110 |
167 | 24 | 270 | 11 | F07 | 5″ | DN125 | 62 | 174 | 179 |
125 | 193 | 24 | 320 | 14 | F07 | 6″ | DN150 | 62 | 204 |
208.4 | 145 | 209 | 24 | 320 | 14 | F07 | 8″ | DN200 | 65 |
Recommend Products
Company Profile
Certifications
Exhibition
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Where is your nearest loading port?
A: Tianjin, Shanghai or Qingdao, China.
Q: How can you guarantee the quality or any warranty?
A: Bundor Valve two pressure tests before delivery, and two years warranty pay two back if one bad.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
