Product Description

Technical parameters:

1,external size:6058×2438×2591mm

2,tank geometric volume:25m3

3,design pressure:0.4Mpa

4,medium:chemicals oil, oleins, vegetable oil,etc

5,heating type:steam pipe heating

6,tank material: 316L stainless steel

7,wall thickness: tank body: 4.4mm; shell cover head: 5mm

8,insulation type:50mm thickness insulation layer

9,loading and unloading type:load at top and unload at bottom

10,weight:around 3780Kg

11,maximum operation weight:35000Kg

12,valve unit:imported high quality

Provided files when delivery:

1,product quality certificate; build drawing(general drawing, tank body drawing); user’s manual; strength calculation.

2,BV/LR certificate

Packaging & Shipping

package: nude packing

Delivery time: immediately after your deposite

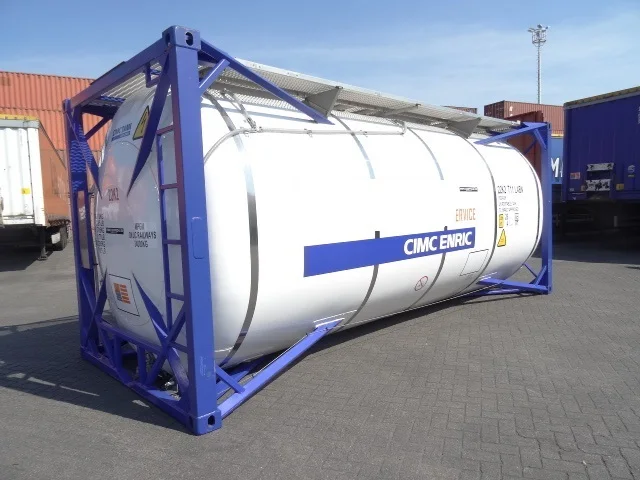

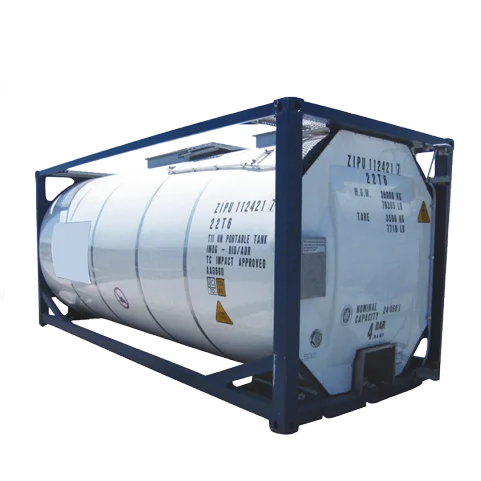

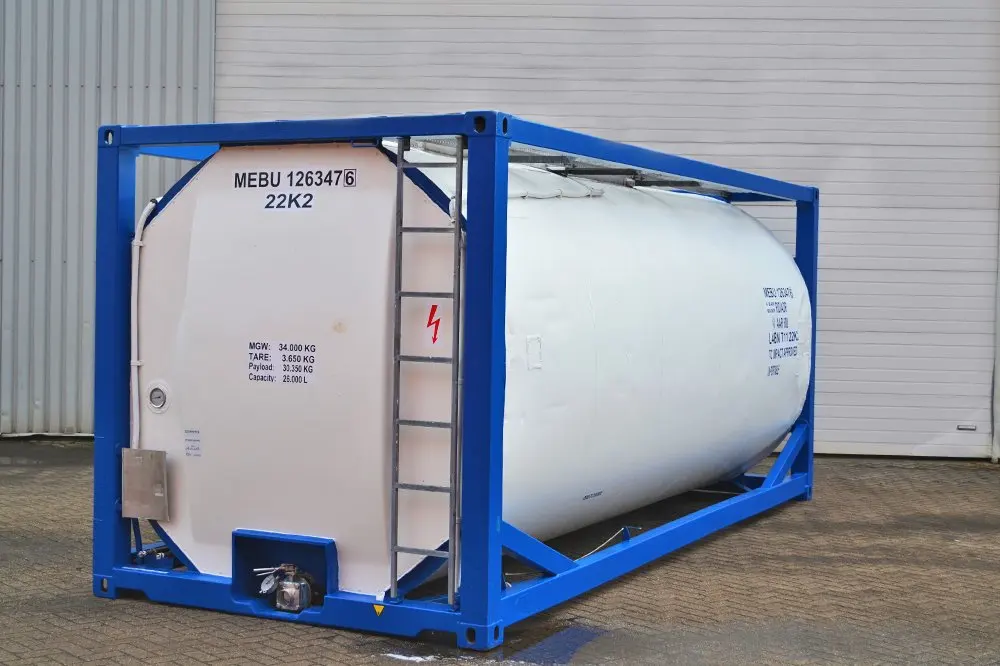

Tank Type	20’ ISO full frame collar tank, Type UN Portable Tank T11, without insulation, top side rails fitted
Frame Dimensions	20’ x 8’ x 8’6”
Capacity	26,000 Litres (+0 /- 1%)
M.G.W.	36,000 kg
Tare (est.)	3,250 kg +/- 3%
Max Payload	32,750 kg
Working Pressure	4 Bar
Test Pressure	6 Bar
Design Temp	-40℃ to +130℃
Vessel Material	SANS 50028-7 WNr 1.4402/14404 (C<0.03%), equivalent to 316L
Shell Material	Cold Rolled 2B finish
Ends Material	Hot rolled or Cold Rolled, polished internally to 1.2 Micron CLA
Shell Thickness	4.4 nominal
Ends Thickness(B.F)	4.6 mm nominal
Corrosion Allowance	0.2mm
Frame Material	GB/T 1591-Q345D or SPA-H (or equivalent)
Frame to Shell	304 stainless steel
Corner castings	ISO 1161 - 8 off
Vessel Design Code	ASME VIII Div 1 where applicable
Inspection Agency	LR or BV
Cargo carried	See dangerous cargo lists for UN Portable T11 tank

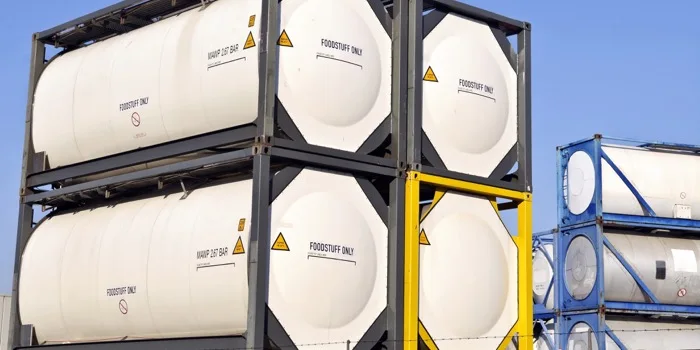

Stacking	Each container approved for 10 high stacking
Design Approvals	IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
