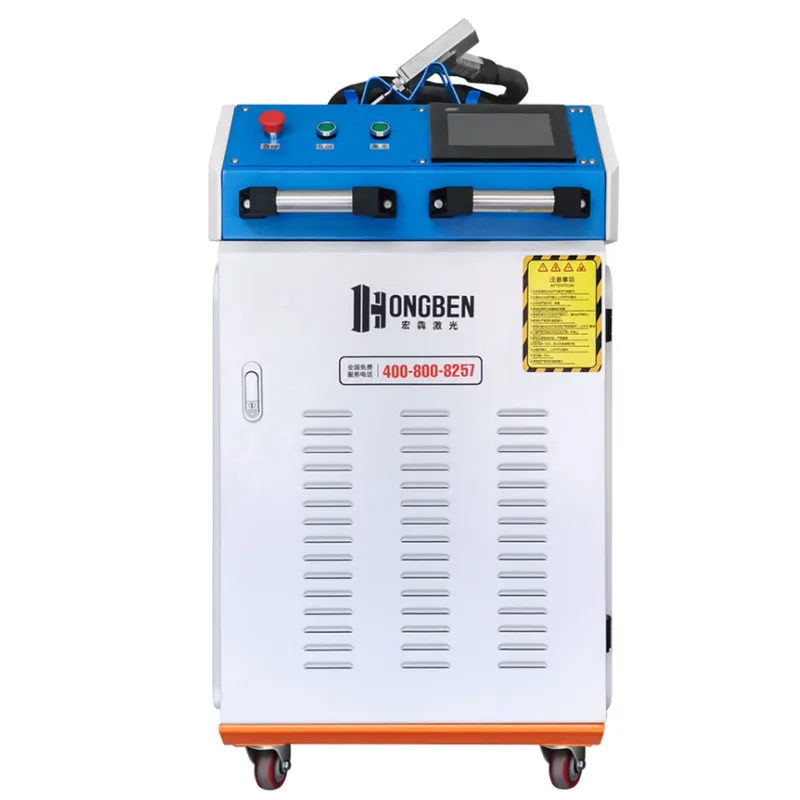

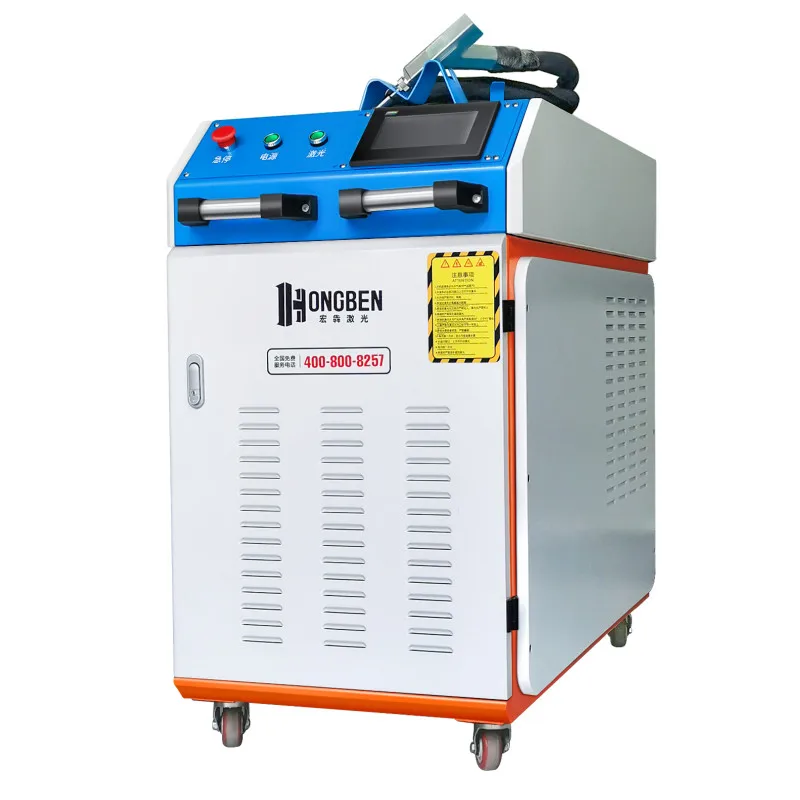

Новое поступление портативный аппарат для волоконной лазерной сварки 1000 Вт 1500
- Категория: Laser Welders >>>
- Поставщик: Shanghai,Xindun,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 10115.1 $* | 10621.94 $* |
| Aug-15-2025 | 10030.43 $* | 10532.55 $* |
| Jul-15-2025 | 8415.97 $* | 8836.55 $* |
| Jun-15-2025 | 9860.18 $* | 10353.6 $* |
| May-15-2025 | 8585.95 $* | 9014.84 $* |
| Apr-15-2025 | 9690.1 $* | 10175.53 $* |
| Mar-15-2025 | 9605.35 $* | 10085.67 $* |
| Feb-15-2025 | 9520.25 $* | 9996.1 $* |
| Jan-15-2025 | 9435.8 $* | 9907.46 $* |
Характеристики
Product Description

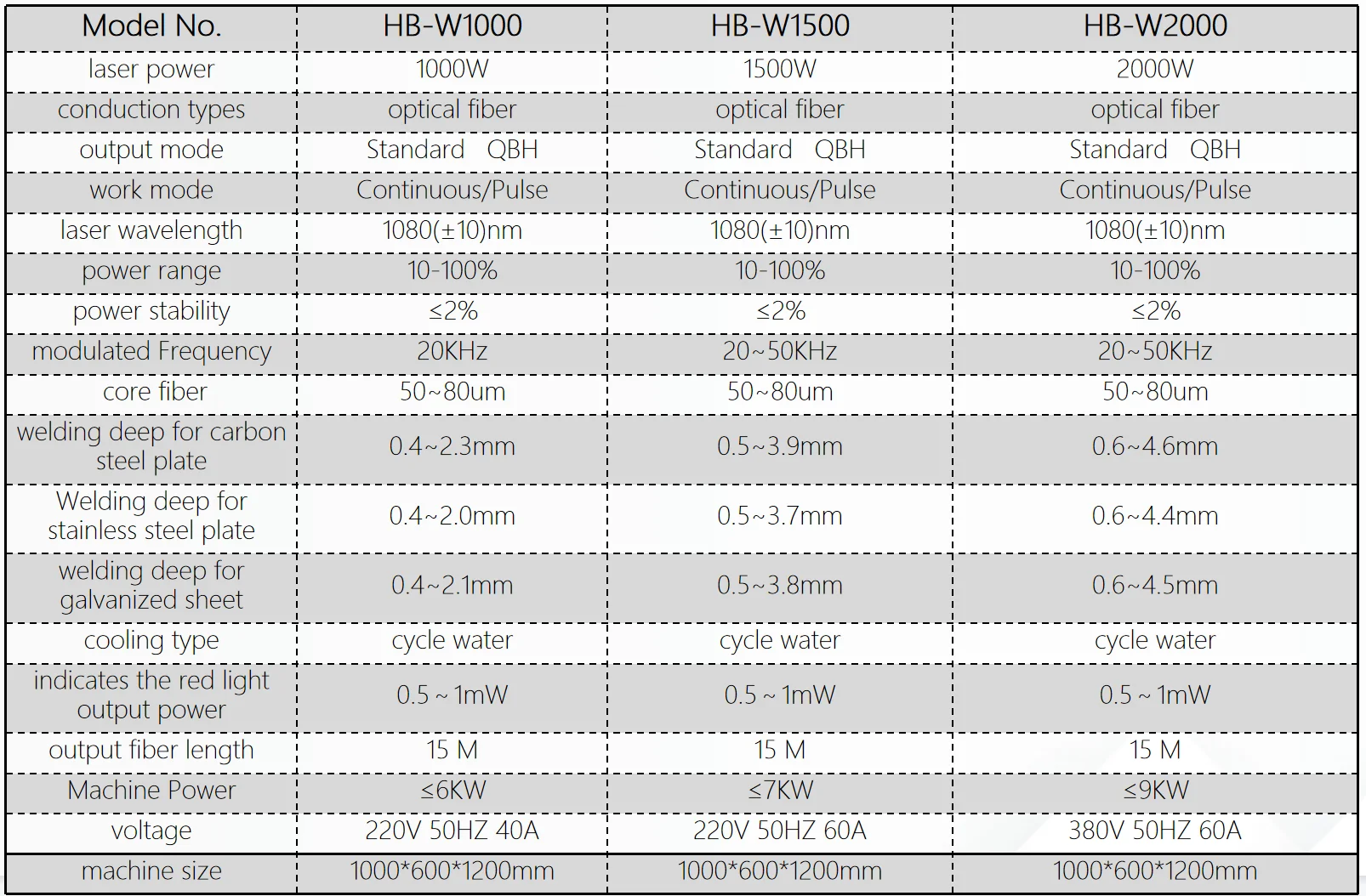

Model No. | HB-W1000 | HB-W1500 | HB-W2000 |
laser power | 1000W | 1500W | 2000W |
conduction types | optical fiber | optical fiber | optical fiber |
output mode | Standard QBH | Standard QBH | Standard QBH |
work mode | Continuous/Pulse | Continuous/Pulse | Continuous/Pulse |
laser wavelength | 1080(±10)nm | 1080(±10)nm | 1080(±10)nm |
power range | 10-100% | 10-100% | 10-100% |
power stability | ≤2% | ≤2% | ≤2% |
modulated Frequency | 20KHz | 20~50KHz | 20~50KHz |
core fiber | 50~80um | 50~80um | 50~80um |
welding deep for carbon steel plate | 0.4~2.3mm | 0.5~3.9mm | 0.6~4.6mm |
Welding deep for stainless steel plate | 0.4~2.0mm | 0.5~3.7mm | 0.6~4.4mm |
welding deep for galvanized sheet | 0.4~2.1mm | 0.5~3.8mm | 0.6~4.5mm |
cooling type | cycle water | cycle water | cycle water |
indicates the red light output power | 0.5~1mW | 0.5~1mW | 0.5~1mW |
output fiber length | 15 M | 15 M | 15 M |
Machine Power | ≤6KW | ≤7KW | ≤9KW |
voltage | 220V 50HZ 40A | 220V 50HZ 60A | 380V 50HZ 60A |
machine size | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
