Product Description
This SPD is applied to provide fine over voltage protection of electronic equipment whose power is supplied by direct current power supply.It is D level over voltage protection device,is design according to IEC and GB standard,it is available in a variety of different power supply voltage and selector corresponding specifications.
Features:
1. The product is use for lightning protection zone: LPZ3 (D class) power lines of the lightning surge protection.
2. It uses high temperature resistant plastic with excellent tightness, and easy to install wiring.
3. Adopt temperature control circuit technology which has built-in over current breakers and thermal fuse circuit breakers,
automatically trip because of deterioration.
4. This unit is modular deterioration instructions and flame-retardant shell.
5. It has dustproof, anticorrosion and other functions.
6. It is used in a relatively harsh environment staying a long-term stability.
7. It is widely used in the lightning protection of telecommunications room DC bus, the DC bus bar microwave communications room,closing the substation bus, control bus.
8. 8. This product can customized according to your require voltage.
Features:
1. The product is use for lightning protection zone: LPZ3 (D class) power lines of the lightning surge protection.
2. It uses high temperature resistant plastic with excellent tightness, and easy to install wiring.
3. Adopt temperature control circuit technology which has built-in over current breakers and thermal fuse circuit breakers,
automatically trip because of deterioration.
4. This unit is modular deterioration instructions and flame-retardant shell.
5. It has dustproof, anticorrosion and other functions.
6. It is used in a relatively harsh environment staying a long-term stability.
7. It is widely used in the lightning protection of telecommunications room DC bus, the DC bus bar microwave communications room,closing the substation bus, control bus.
8. 8. This product can customized according to your require voltage.
Specification

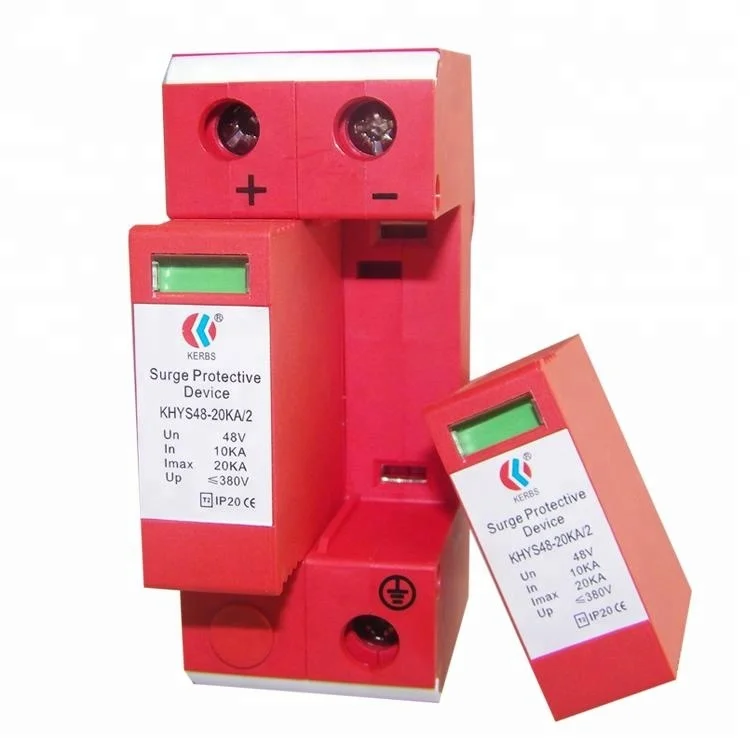

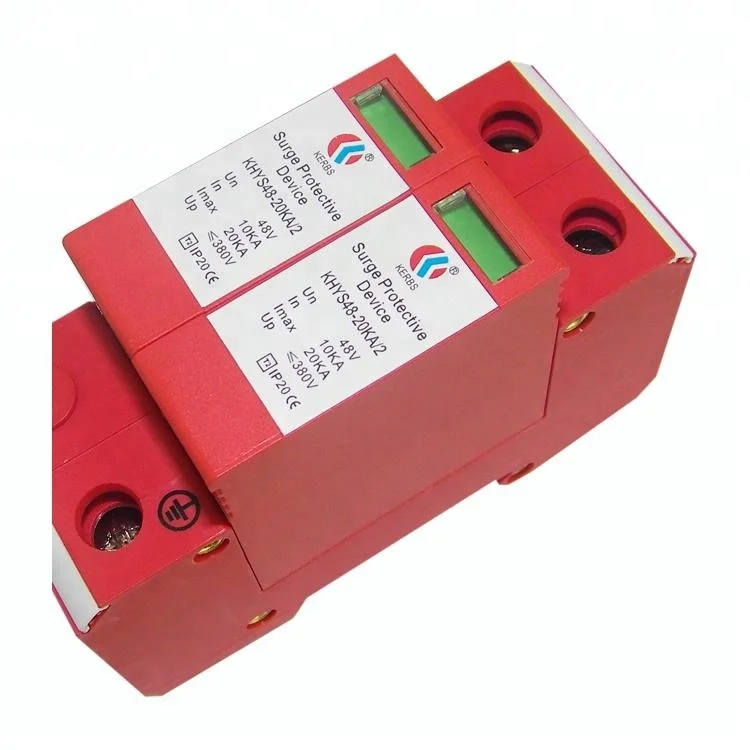

Model | KHYS48-20KA/2 |
Protection Class IEC61643-1 | D |
Operating Voltage (Un) | DC48V |
Max. Continuous Operating Voltage (Uc) | DC65V |
Nominal Discharge Current(8/20μs) (In) | 10KA |
Max. Discharge Current(8/20μs) (Imax ) | 20KA |
Voltage Protection Level( Up) | ≤380V |
Nominal Load Current | 60A |
Response Time | <25ns |
Leakage current | ≤20µA |
Material of Outer Shell | PBT UL94V-0 |
Waterproof grade | IP20 |
Protection Mode | +/PE,-/PE |
Working Environment | Temperature -40°C ~+80°C;Relative humidity<95% |
Material of Outer Shell | Flame retardant materials |
Dimension(L×W×H) | 90×36×65mm |
Weight | 0. 21kg |
