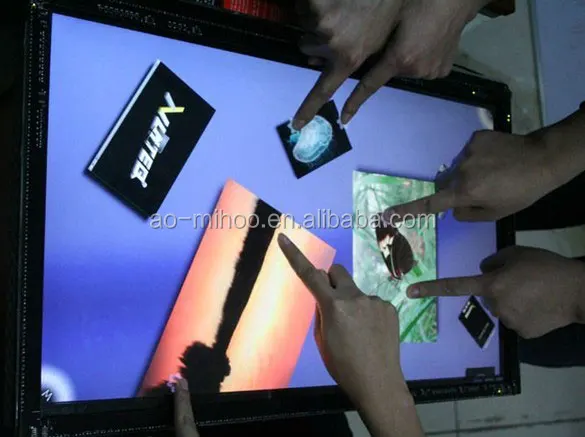

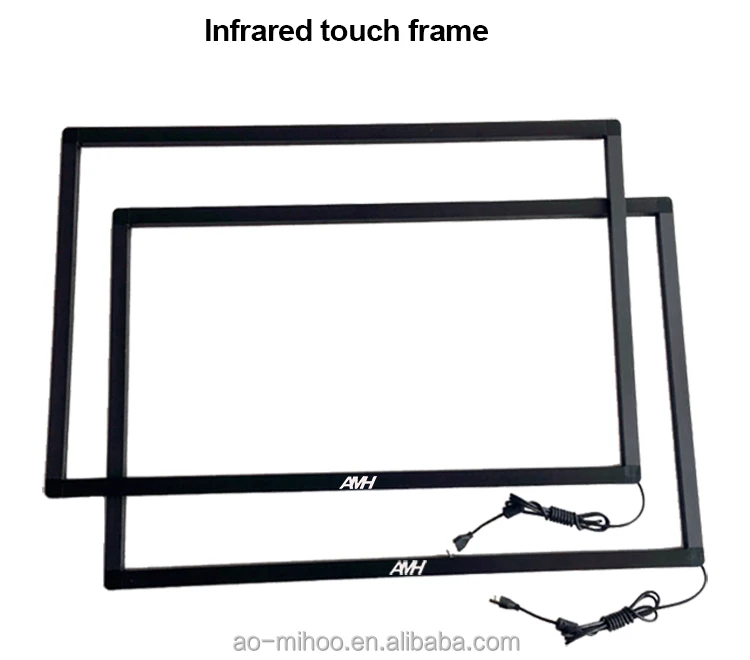

10 points 65 inch multi infrared touch screen



  HOT SALE PRODUCT INFORMATION, don't miss !!



 Features

• Dust and water proofing, anti-vandal;


• Stable and no drift;


• No light spots;


• High durability and quick response to touch of any opaque object;


• Wide range of temperature;


• Transparency and high-resolution;


• ROHS, CE,FCC compatible



Advantages

• Multi-point write with peace,precise multi-point touching.


• USB interface, Intelligent automatic calibration, drive-free and maintenance-free.


• Longevity of service , maintenance free.

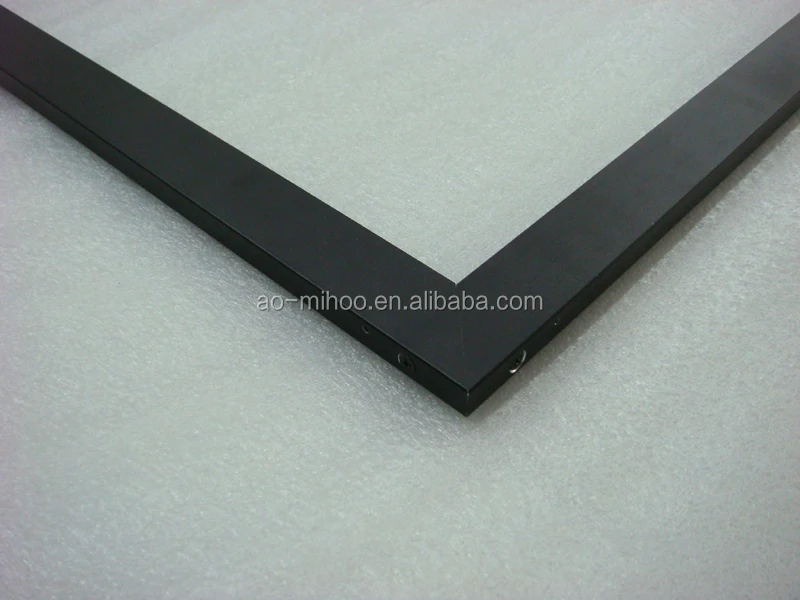

• Aluminum alloy shell with strong stability.


• Tempered glass with high light transmittance and true color rendition.


• Without driver ,supporting plug and play.


• Adapt to internal and external linked environment


• No touching tools,no special touching pen is required, only your finger.


• Fast response(less than 16 ms), no blind area,breakpoints, jump points, pause and other


• undesirable phenomena.


• Compatiblewith multiple systems

Specification:



Size
General Size	15 inch to 200 inch
Fit in with	Panel display device
Performance
Touch mode	Single-point touch,Multi-touch, drag, draw-line, rotate, zoom in/out
Linearity Error	<1.5mm
Response Speed	<15ms
Vandaproof	Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
Scanning Speed	50scans/s
Mechanical
Input Method	Finger or gloved hand (rubber, cloth or leather)
Touch Activation Force	No minimum touch activation force is required
Touch Times	Over 6,000,000 Single Point Touch
Minimum Touch Object	>3mm
Vandal-proof	No break by 1-pound steel ball dropping from 130 cm high
Surface Durability	Surface durability is that of glass,Mohs\\' hardness rating of 7
Environmental
Environmental Temperature	Operating: -20°C ~ 70°C
	Storage:    -40°C ~ 85°C
Relative Humidity	Operating Range:0%~90% RH (no dew falls)
	Storage Range: 0% to 95% RH (no dew falls)
Altitude	Up to 3,000m
Ambient Light	Direct sunlight 90°to  30°to the display surface Touch detection operational
	Direct sunlight all angles to display surface Free of false touch reports
Electrical
Power Supply	Size under 82”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms
	Size above 82”(82” not included): external AC-DC power adaptor
Interface	Full Duplex USB 2.0 (Full Speed) Plug and play compatible
	Serial RS-232. Baud Rate: 9600, 8 Data Bits,1 Stop Bit, No Parity
Current	Typical 150MA@+5VDC;350mA, maximum
Power	<2W, operating current<300mA
Electrostatic Protection	15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
Controller	Integration inside touch panel
Life time	7 Years
Operating System
Support System	Windows2000\\XP\\2003\\vista\\7\\CE\\Linux\\Windows 8\\Linux\\Android
Support Software	Offer SDK.





 1.supply oem&odm order,independent  Q.C department ,3 times of quality checking,

 2.100% percent of pass  before shipping

 3.one year of warranty

 4.CE,FCC,RoHs certification
