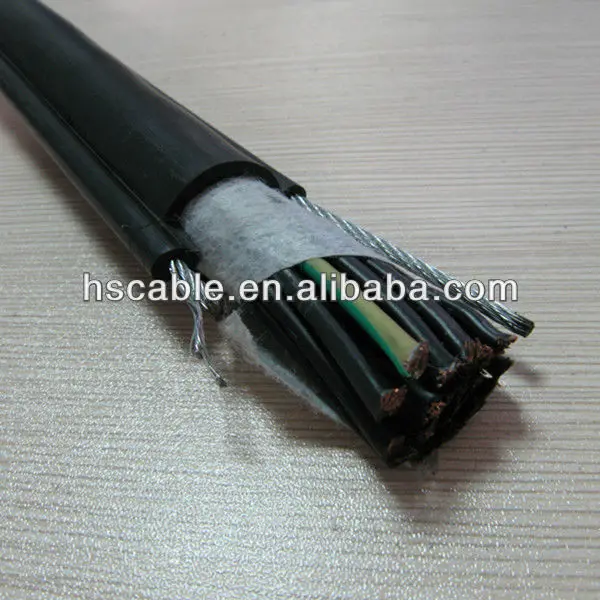

S05VVD7-F 20G1.5mm2 Flexible Pendent Cable with Steel Wire



1. Applicaton for Pendent Cable S05VVD7-F

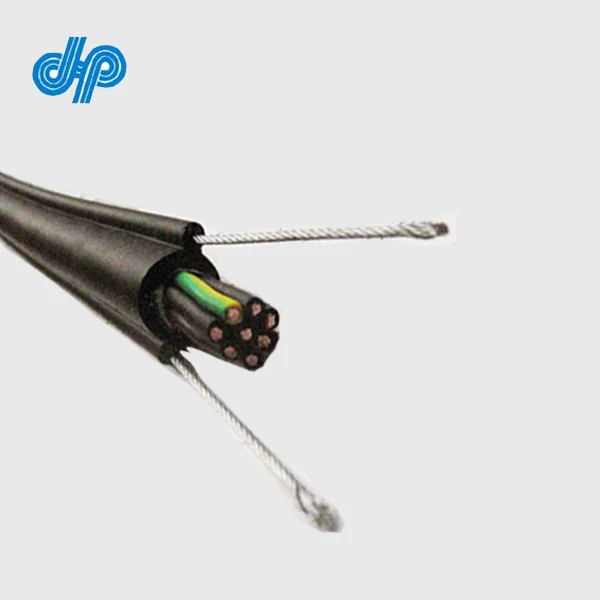

Made for heavy duty applications in particular for pendent push button sations and moving electromechanical components. the two steel wire ropes are embedded, diametrically opposed to PVC sheathing.

The Rope cut into lengths and just hooked the steering control to avoid any stress on the cable.



2. Features for Pendent Cable S05VVD7-F



Comply with CEI20-22 FALME RESISTANT

Insulation                  class2/3

Operating Voltage  300/500V

Sheathing Color    Black or Blue

Internal Conductors with flexible PVC Sheathing progressively numbered, plus earth conductor( yellow/green).

Operating temperture  -5+70

Steel Wire Diameter 2mm

Breaking point          60kg/mmq



3. Technical Specification

Section	Cable dimension	Wire Rope Dimension	Strand no./mm	Approx Weight gr/m	Total Cross Section mm2
8G1.5	11.6	23.6	30/0.25	225	12
12G1.5	14.4	26.4	30/0.25	315	18
16G1.5	16	28	30/0.25	415	24
18G1.5	17	29	30/0.25	470	27
20G1.5	18	30	30/0.25	525	30
24G1.5	21	33	30/0.25	620	36











...
