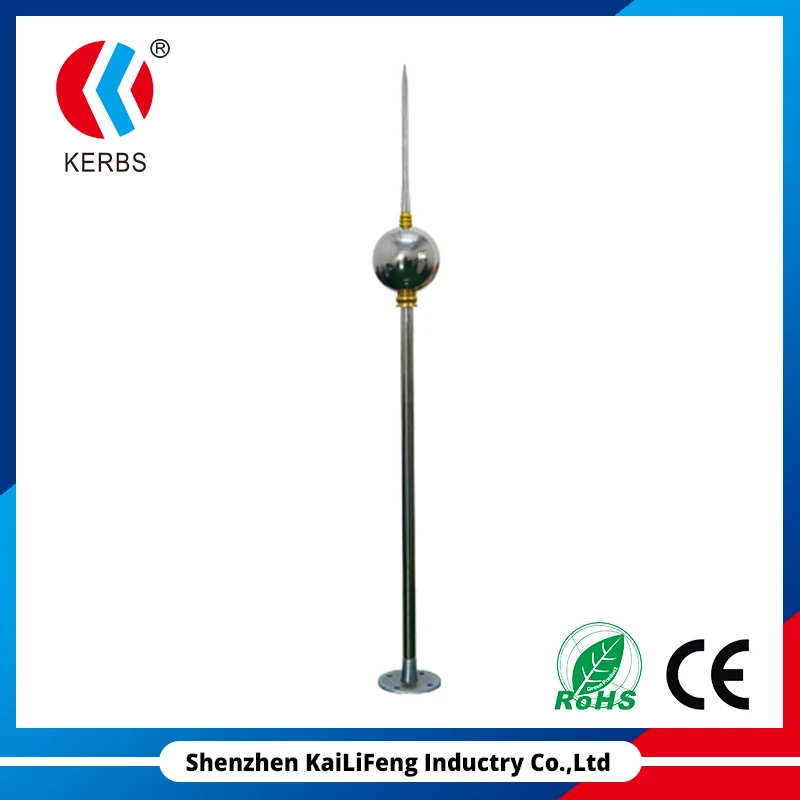

Lightning arresters specifications/lightning arrester price



1.Application:

It is applied to mobile communication base stations, buildings, depots, warehouses; oil tanks pump stations, satellite station, airport equipment, weather stations, gas stations, military bases, and communication base stations and so on.



2.Product feature:

l         Non-inductive, low impedance

l         Avoid building or tower live and eliminate flashover.

l         Big coverage area and strong lightning discharge



3.Production parameter



Type:	KLF-B01-15	KLF-B01-25	KLF-B01-30
Max. discharge current (KA):	300	300	300
Wind strength:(m/s)	40	40	40
Needle size, Needle long, Pin number (φ*M*P)	1*1.5*1	1*2.5*1	1*3.0*1
Main pin number:	1	1	1
Weight(KG):	4	8	12
The biggest perch thick(mm):	35	40	45
Whole high(m):	1.5	2.5	3
Ball diameter (mm):	250	300	300
Materials:	Stainless steel



 4. Our advantage (WHY SELECT US)

 Certification:  CE TUV

Trade Terms:

1. M.O.Q: 5PCS

2. Production lead time: 3-5 days for sample, 7-10 days for mass order.

3. Shipping Port: Shenzhen, China

4. Shipping way: by sea, by air, by express (DHL/UPS/TNT/FedEx/EMS etc.)

5. Shipping freight will be quoted as per your request.

6. Payment terms: T/T, 30% deposit; L/C; Western Union

Our service:

1. ur inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, any your customized lightings we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information.

Rich Experience: Our factory was founded in 2004, have a long history in manufacturing and selling of a complete range of surge arresters. We firmly promise to top quality, competitive price, quick delivery and good before/after sales services.   OEM service is welcomed.

Quality warranty: one year replacement, five years warranty.

Main Products: Lightning rod , Power surge protector, Signal surge protector, CCTV surge protector, Earth rod and so on.

Certification:

Full range of SPD products which has CE, RoHS,TUV certification.The company implements ISO9001 quality mangement system.

Application:

KLF has developed a wide range of products,cover in the area of low voltage lightning protection, such as SPD for power system,signal system,PV system and so on. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
