Высококачественная нейлоновая Натяжная кабельная втулка со спиральным
- Категория: Cable Glands >>>
- Поставщик: Beisit,Electric,Tech,(Hangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.99 $* | 0.92 $* |
| Aug-18-2025 | 0.84 $* | 0.32 $* |
| Jul-18-2025 | 0.58 $* | 0.7 $* |
| Jun-18-2025 | 0.35 $* | 0.53 $* |
| May-18-2025 | 0.75 $* | 0.80 $* |
| Apr-18-2025 | 0.72 $* | 0.64 $* |
| Mar-18-2025 | 0.74 $* | 0.1 $* |
| Feb-18-2025 | 0.70 $* | 0.93 $* |
| Jan-18-2025 | 0.94 $* | 0.54 $* |
Характеристики

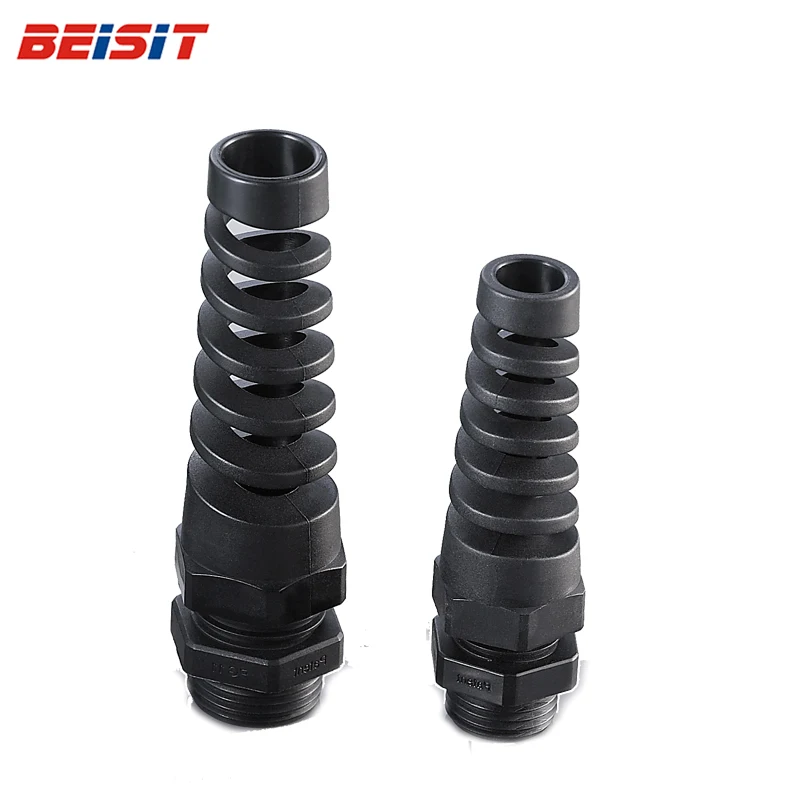

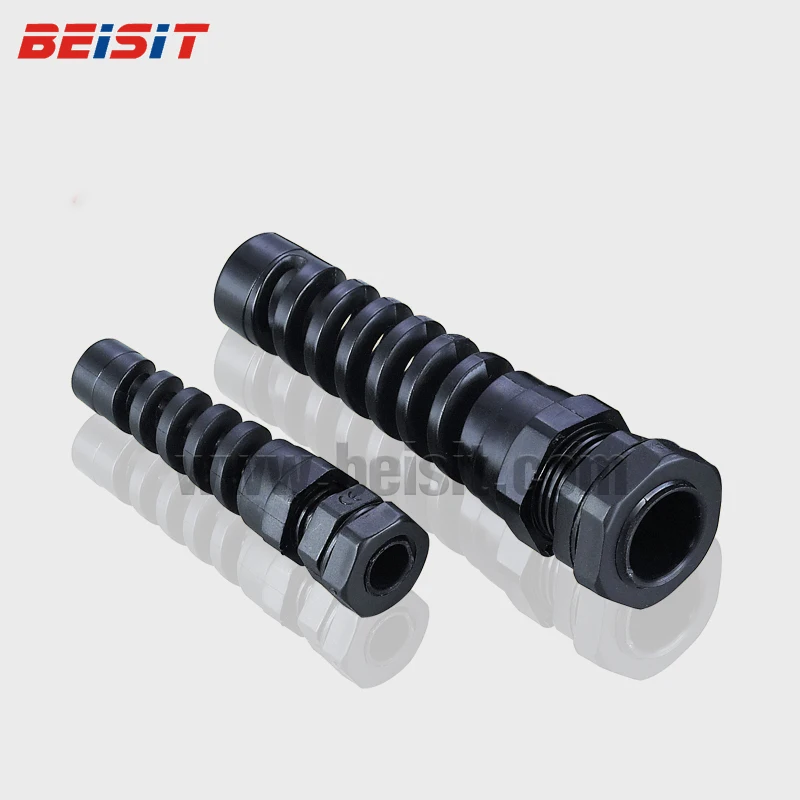

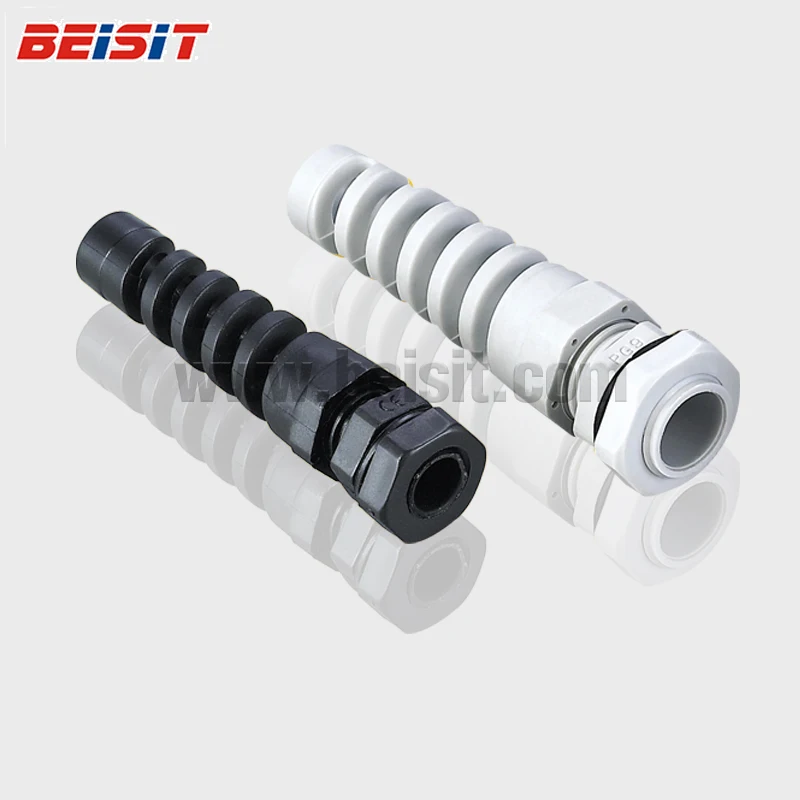

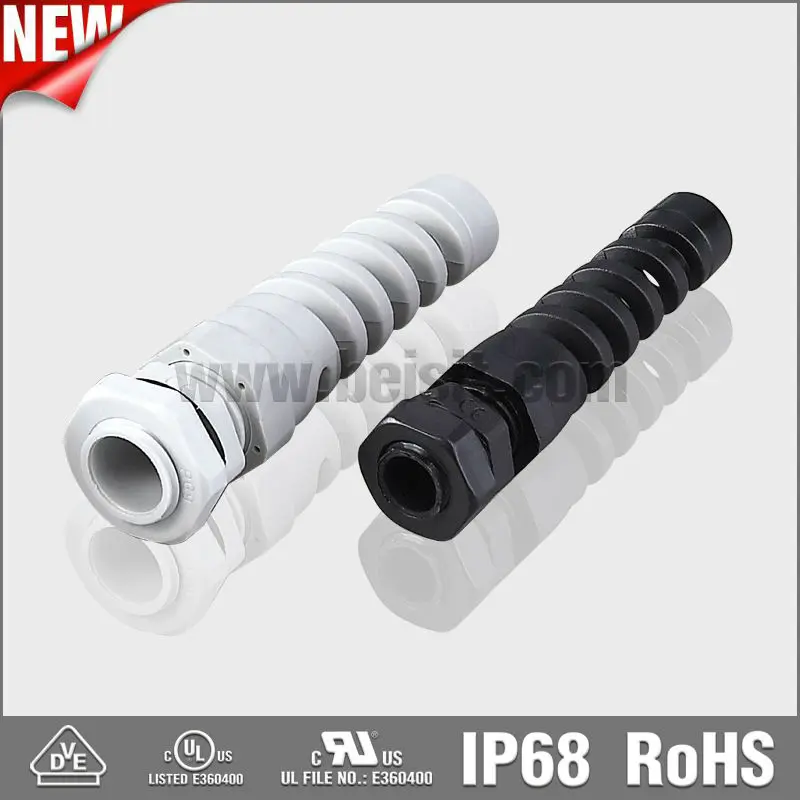

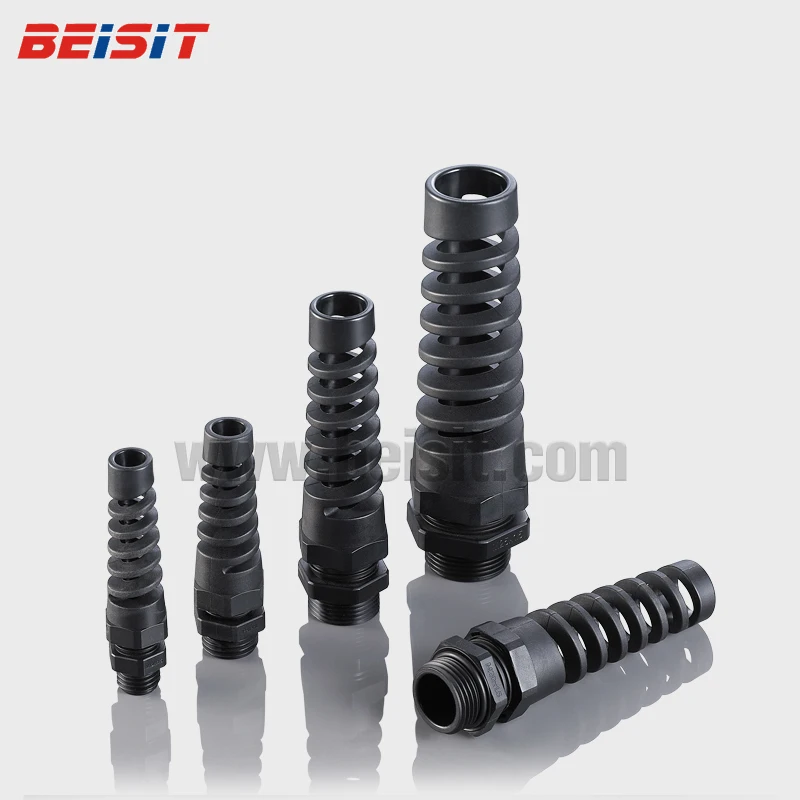

Product Description
 | M Nylon Cable Gland with Strain ReliefMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: NBR O-Ring: EPDM Working Temperature: -40℃ to 100℃
Other material upon request. All O ring are pre-assembled as standard. |
Size Chart of M Nylon Cable Gland with Strain Relief
| Thread ΦD1 | Cable Range mm | H mm | GL mm | d mm | Spanner Size | Beisit No. | Beisit No. |
| M 12 x 1,5 | 3-6,5 | 54 | 8 | 7 | 16.5/15 | M1207SR | M1207SRB |
| M 12 x 1,5 | 2-5 | 54 | 8 | 7 | 16.5/15 | M1205SR | M1205SRB |
| M 16 x 1,5 | 4-8 | 63 | 8 | 8,5 | 19 | M1608SR | M1608SRB |
| M 16 x 1,5 | 2-6 | 63 | 8 | 8,5 | 19 | M1606SR | M1606SRB |
| M 16 x 1,5 | 5-10 | 78 | 8 | 10,5 | 22 | M1610SR | M1610SRB |
| M 16 x 1,5 | 3-7 | 78 | 8 | 10,5 | 22 | M1607SR | M1607SRB |
| M20x 1,5 | 6-12 | 90 | 9 | 13 | 24 | M2012SR | M2012SRB |
| M20x 1,5 | 5-9 | 90 | 9 | 13 | 24 | M2009SR | M2009SRB |
| M20x 1,5 | 10-14 | 100 | 9 | 15,5 | 27 | M2014SR | M2014SRB |
| M25x 1,5 | 13-18 | 114 | 11 | 20 | 33 | M2518SR | M2518SRB |
| M 25 x 1,5 | 9-16 | 114 | 11 | 20 | 33 | M2516SR | M2516SRB |
Size Chart of M-Length Nylon Cable Gland with Strain Relief
| Thread ΦD1 | Cable Range mm | H mm | GL mm | d mm | Spanner Size | Beisit No. | Beisit No. |
| M 12 x 1,5 | 3-6,5 | 54 | 15 | 7 | 16.5/15 | M1207SRL | M1207SRBL |
| M 12 x 1,5 | 2-5 | 54 | 15 | 7 | 16.5/15 | M1205SRL | M1205SRBL |
| M 16 x 1,5 | 4-8 | 63 | 15 | 8,5 | 19 | M1608SRL | M1608SRBL |
| M 16 x 1,5 | 2-6 | 63 | 15 | 8,5 | 19 | M1606SRL | M1606SRBL |
| M 16 x 1,5 | 5-10 | 78 | 15 | 10,5 | 22 | M1610SRL | M1610SRBL |
| M 16 x 1,5 | 3-7 | 78 | 15 | 10,5 | 22 | M1607SRL | M1607SRBL |
| M20x 1,5 | 6-12 | 90 | 15 | 13 | 24 | M2012SRL | M2012SRBL |
| M20x 1,5 | 5-9 | 90 | 15 | 13 | 24 | M2009SRL | M2009SRBL |
| M20x 1,5 | 10-14 | 100 | 15 | 15,5 | 27 | M2014SRL | M2014SRBL |
| M25x 1,5 | 13-18 | 114 | 15 | 20 | 33 | M2518SRL | M2518SRBL |
| M 25 x 1,5 | 9-16 | 114 | 15 | 20 | 33 | M2516SRL | M2516SRBL |
Application of Cable Gland
Company Information
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
1.Entered the filed of wiring accessories more than 12 years.
2.Fast delivery, 20 Working days / 40' feet container.
3.OEM and Special packing, like Blister, Tube Box, Header card, PDQ are all available.
4.5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC. 6-sigma Quality Management System guaranteed.
5.12 years experience, 18500mm2 BV, TUV, BSCI, ISO9001 certified workshop.
6.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
7.Material was sourced from famous brand "Shenma" in China, also US Dupont & Japan Leona material is available.
8.Products catch UL, VDE, IP68, RoHS, REACH and CE ,GE, Mitsubishi, Auchan, B&Q rely on us continuously.
9.Main Products:
Cable Glands,Cable ties, Terminals and Terminal Blocks, Insulation Piercing Connectors ,Other Wiring Accessories
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
Packaging & Shipping
Package
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Contact US
Contact Infomation
Tel: 86-571-89362888 Fax: 86-571-89362999
|
