81.25902.0459 реле 24 В для грузовика
- Категория: Другие запчасти для грузовиков >>>
- Поставщик: Zhejiang,Xingpu,Auto,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.16 $* | 0.74 $* |
| Aug-20-2025 | 0.62 $* | 0.76 $* |
| Jul-20-2025 | 0.62 $* | 0.55 $* |
| Jun-20-2025 | 0.96 $* | 0.62 $* |
| May-20-2025 | 0.94 $* | 0.88 $* |
| Apr-20-2025 | 0.11 $* | 0.69 $* |
| Mar-20-2025 | 0.2 $* | 0.32 $* |
| Feb-20-2025 | 0.7 $* | 0.82 $* |
| Jan-20-2025 | 0.1 $* | 0.44 $* |
Характеристики
81.25902.0459 OEM MAN truck 24v relay
Product Description
1.Relay Specification:
Relay Electrical Characteristics
Rated Voltage | 24VDC |
Operating Voltage | 18-32VDC |
Pull-in voltage | 17VDC Max |
Release voltage | 3.0VDC Min |
Coil Power Consumption | 1.8W |
Coil resistance(Ω+/- 10) | 320Ω |
Electrical life | 100,000 cycles |
Mechanical life | 1,000,000 cycles |
Rated Switching Current | 40A @24VDC |
Insulation resistance | 100MΩ (500VDC) |
Relay Mechanical Data
| Contact material | silver alloy |
| Fixed contact | silver alloy |
| Moving contact | silver alloy |
| Contact arrangement | 2A |
| Ambient temperature | -40°C~+125°C |
| Operate time Max | 10ms |
Release time Max | 10ms |
| Vibration resistance | 10Hz-40Hz, 1.5mm |
| Shock resistance | 147m/s2, 11ms |
| Cover retention | 245N |
| Terminal retention | 100N |
| Terminal retention to bending | 10N |
| Terminals | Brass, 6.3x0.8mm |
| Coil | Oxygen Free Copper |
| Base plate | Nylon PA66 |
| Cap | Nylon PA66 |
2. Relay Wiring Diagram

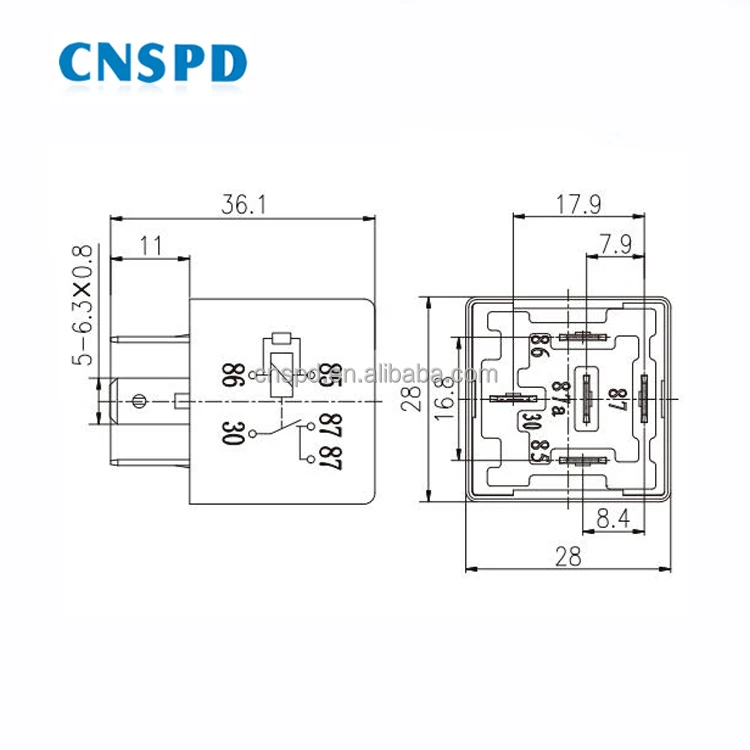

3. Relay Outline Dimension Diagram
4. Relay OEM numbers:
| IVECO | 5 0415 8565 |
| 504158565 | |
| MAN | 81259020459 |
| 85259020439 | |
| 85200011380 | |
| 81259020439 | |
| 81259020473 | |
| 85.20001.1380 | |
| 81.25902.0459 | |
| 81.25902.0439 | |
| 81.25902.0473 |
5. Reference numbers:
| BOSCH | 0 332 019 204 |
| 0 332 019 214 | |
| 0 332 019 213 | |
| 0332019204 | |
| 0332019214 | |
| 0332019213 |

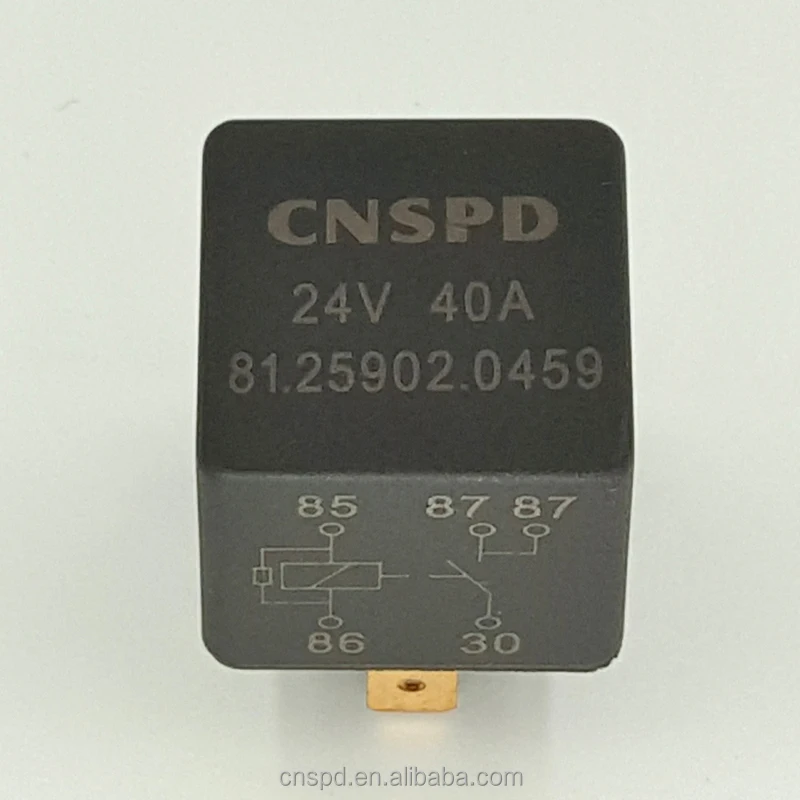

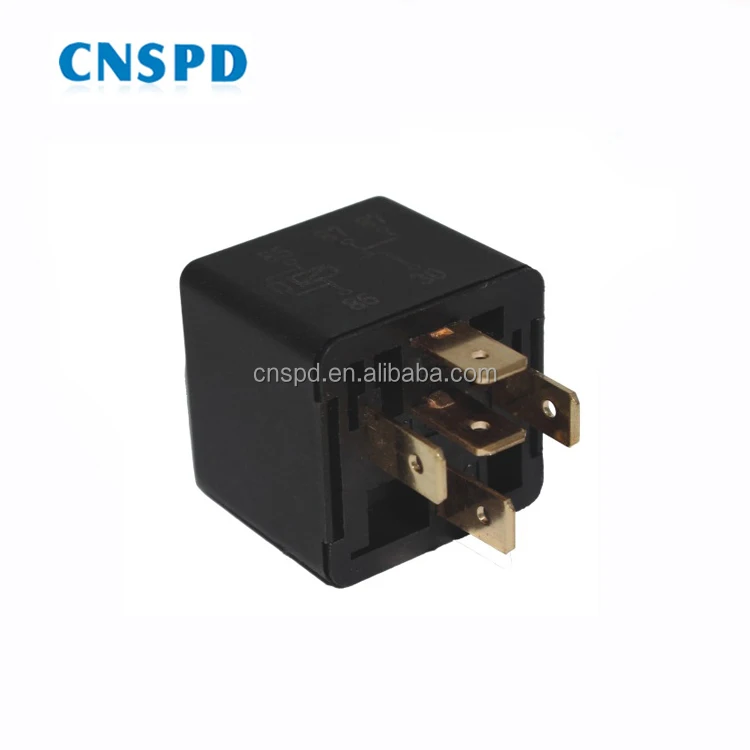

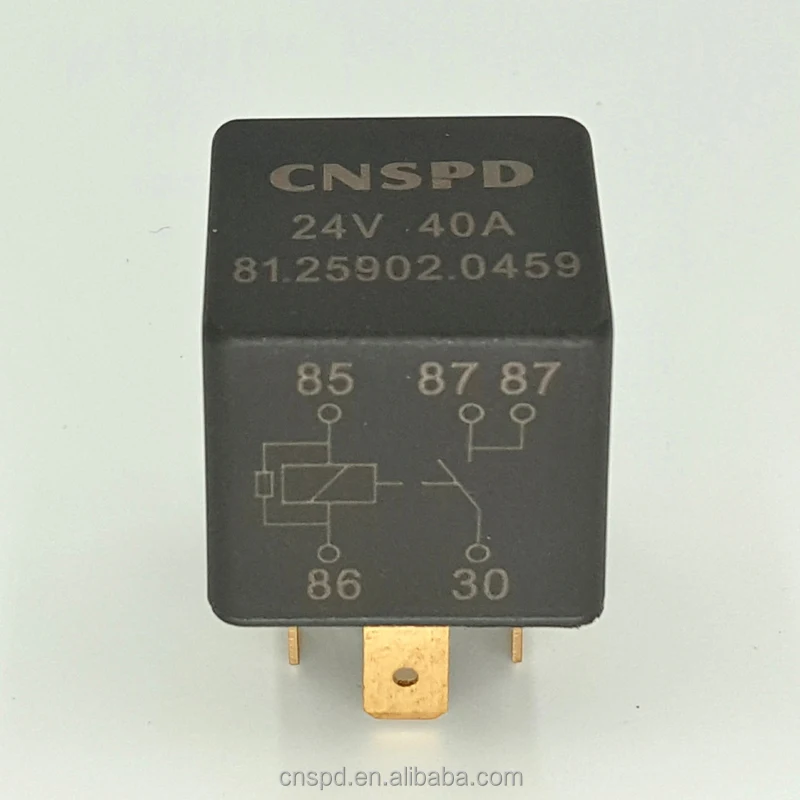

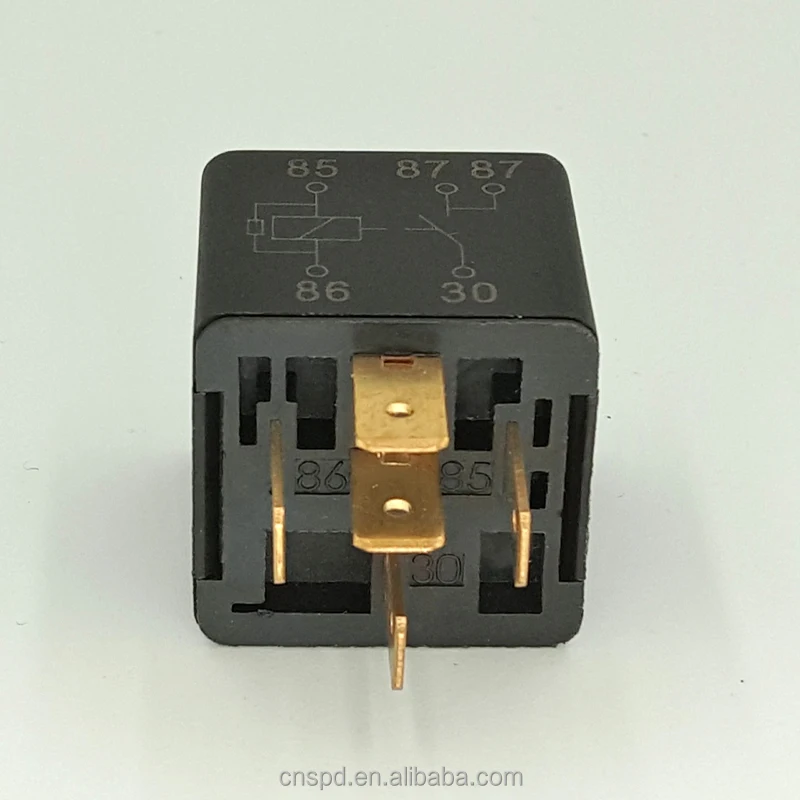

6. Real Product Pictures:
Packaging & Shipping
Company Information
FAQ
1.Could i put my own logo on the product i purchased?
> Yes, customers' logo can be printed by laser printing, transfer printing, silk printing and carving for free.
2.Could i buy 1pc sample for evaluation ?
> Yes, we can provide free samples for your testing.
3.How long is the sample making?
> 7 days in general, customerized product is about 30 days.
4.May i have your product catalog and price list ?
> Yes, please send an email to our sales team for product catalog and price list.
5.What kind of shipping methods can i choose?
> 1).By express, through DHL, TNT,UPS, FEDEX, EMS, usually for small orders, regular orders or urgent orders.
> 2).By sea, for bulk orders.
> 3).By air.
