Product Description
Adjustable Earthing clamp as per BS 951 APPROVED EC 14, 15, 16 detailed as under: --
Ec 14-1, 15-1 & 16-1 applicable to dia 12-32mm
Ec 14-2, 15-2 & 16-2 applicable to dia 32-50mm
Ec 14-3, 15-3 & 16-3 applicable to dia 50-75mm
Series: 14 series is suitable for clean dry atmosphere & 15 & 16 series are suitable for all environments.
Terminal size: A-d is ment for 2. 5mm2 to 10mm2 conductor & a-e is ment for 2. 5mm2 to 16mm2 conductor. (adapted to conductor sizes upto 50mm2)
Customised clamps & large bends available as per drawings or samples or as per pipe dia.
- TENBY TYPE RAPID CLAMP OR PIPE CLAMP OR EARTH CLAMP TO BS 951 TEC14 & 15
- RADIATOR EARTH CLAMP WITH SPANNER TO BS 951 PHILEX OR SELECT TYPE USED WHILE PLUMBING APLICATION OR HEATERS.

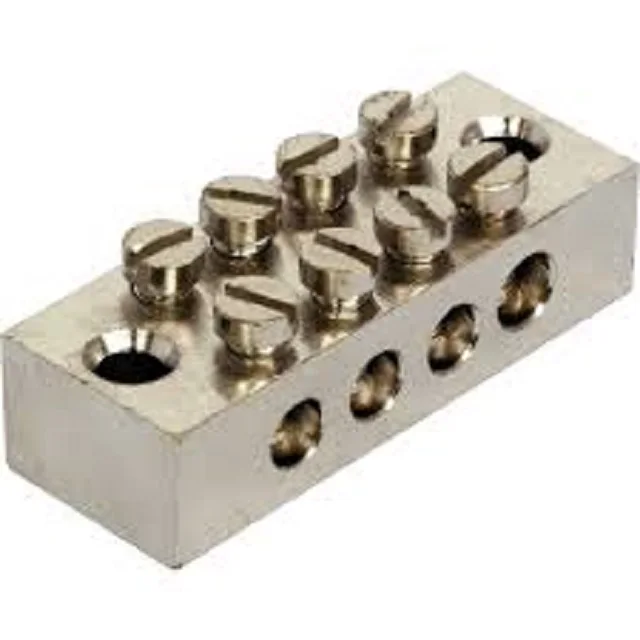

EARTH TERMINAL BLOCK BS 2874 :-
- 4 WAY EARTH TERMINAL BLOCK: CONDUCTOR 1 X 25MM2 & 3 X 16MM2
- 6 WAY EARTH TERMINAL BLOCK: CONDUCTOR 1 X 25MM2 & 5 X 16MM2
- 8 WAY EARTH TERMINAL BLOCK: CONDUCTOR 2 X 25MM2 & 6 X 16MM2
PORCELAIN CABLE CONNECTORS AS PER RIKOO EU :-
- 5 AMP X 3 WAY SMALL.
- 30 AMP X 3 WAY LARGE.
- Range available from 5 Amp to 60 Amp 1, 2 & 3 & Customised
n Crimping type Copper Tubular Cable Terminal Bell Mouth Entry (cable lug with inspection hole Flared End) From 1. 5mm2 to 1000mm2
n Earthing Crimp Lugs Bright electro Tin Plated to BS 1872 Material High Conductivity Copper to
BS2871 Cable Dia 1.5mm2 to 1000mm2 for Earthing Terminal Application.
n Copper Ferrules & End Sealing Ferrules OR In Line Connectors.
Above Lugs / Connectors available as per BS, DIN & AWG Standard.
n Bi Metallic Termianl, Reducer Connectors, Stud Connectors Range
n Earthing Rod with Split Connector Clamp
n EARTH CONNECTING CLIP – SIZE : 15MM, 22MM, 25MM & CUSTOMIZED AS REQUIRED

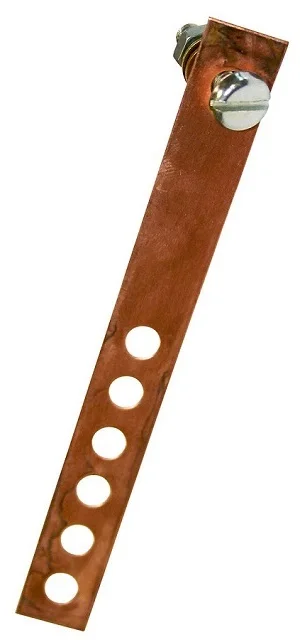

n ADJUSTABLE EARTHING CONNECTION STRAP SIZE : 105 X 10 & CUSETOMIZED AS REQUIRED.
n DICONNECTING LINK HEAVY DUTY & ECONOMY MODEL
n STANDARD EARTH BAR AVAILABLE WITH SINGLE & TWIN DISCONNECTING LINK HEAVY DUTY SIZE AVAILABLE FROM 6WAY TO 30WAY & CUSTOMIZED AS PER DRAWING.
n COPPER ONE HOLE CABLE CLIP SIZE : 10MM TO 120MM & CUSTOMIZED AS PER DRAWING.
n SPLIT BOLT CONNECTORS – LINE TAPE
SIZE : 10MM2 TO 500MM2 & AWG RANGE UPTO 500MCM FOR CU/CU CONDUCTOR & CU/AL CONDUCTOR & CUSTOMIZED CONNECTORS AVAILABLE AS PER DRAWING
Our Services
We can Develop / Manufacture Below mentioned Customized Range as per Drawing : -
Precision turned components,Terminals, Casting, Forging, Machining, Sheet Metal Parts as per Drawings without any Development Cost if its On Going / Regular Requirement.
Above Parts / Component / Finished Products available From BRASS, NAVAL BRASS, GUN METAL, SIL.BRONZE, PH BRONZE, COPPER, ALUMINIUM, MILD STEEL & SS.
OEM & ODM Facility : Available
Samples : Available for approval free
We assure best quality at most Competitive Price.
At your service 24 x 365.
