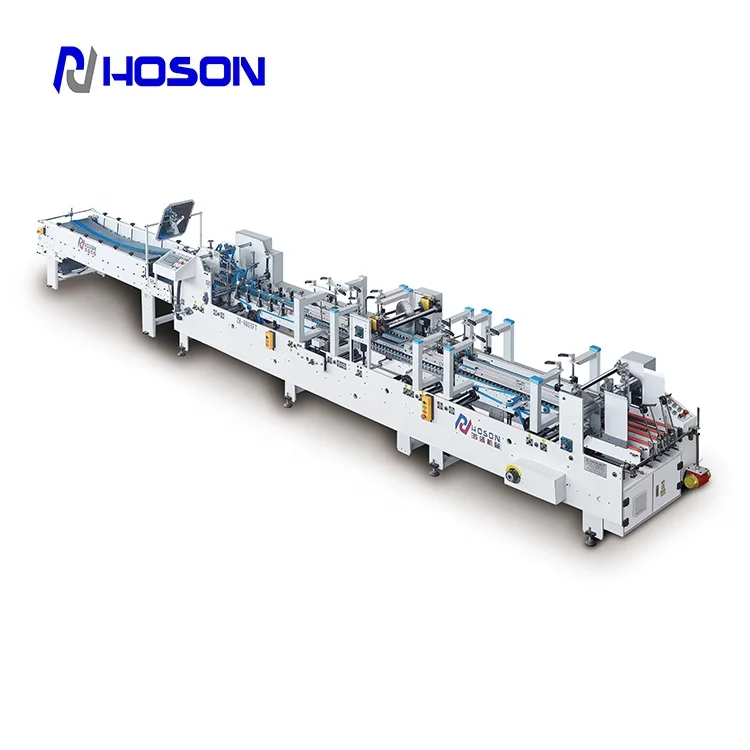

ZH-880BFT CD DVD Packaging Folder Gluer  Machine

It's designed for straight line box, double wall box and bottom lock boxes.





Main Technical Parameters:

1	Line speed	0-180m/min , Continuous adjustment
2	Usage paper	250-500 g/ms, paperboard
3	Box forming	Bottom-lock, straight line box, double walls box
4	Fold method	1st & 3rd folds 90°, 2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	5.5 kw
7	Dimension	9.2*1.2*1.5m
8	Weight	2300kg
9	Condition	New





Box Type	Picture	A  Max	A Min	B Max	B Min	C Max	C Min	D Max	D Min
Crash-lock Bottom Box		520-210mm		580-220mm		120mm		30mm
Straight Line box		580-110mm		580-90mm
Double Walls Box		380mm		500mm		100mm		300mm

 Feature:

**The machine is able to make 2-fold or 4-fold crash bottom boxes. In the pre-folding part, the 1st&3rd can be at 180° and 90°. The 2nd&4th fold are molded at 180°

**Small box like out-put size at 30mm is able to be done after design according to customer.

**Two sets of gluing system in this machine---top glue system and side glue system. Space adjustment is through the tooth rods.

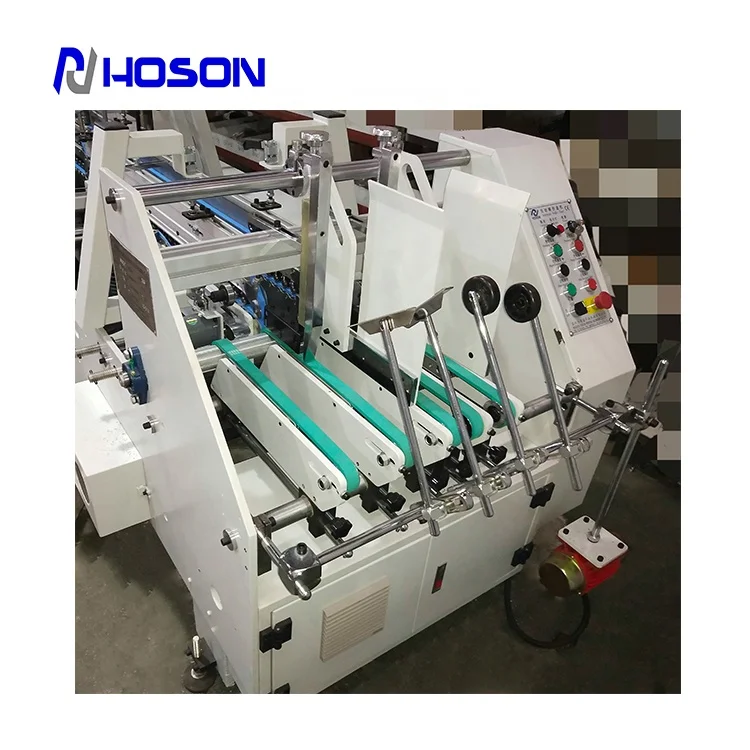

**Feeding is continuous ,exact and automatic uder the help of vibration motor and several thick belts

**The machine is running steady, also it is easy for maintenance.
