Охлаждающий водяной охладитель 40STD/Водяной винтового

Охлаждающий водяной охладитель 40STD/Водяной винтового

Категория: Охлаждающее оборудование >>>
Поставщик: H.Stars,(Guangzhou),Refrigerating,Equipment,Group,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.94 $*	0.74 $*
Aug-15-2025	0.36 $*	0.66 $*
Jul-15-2025	0.15 $*	0.80 $*
Jun-15-2025	0.74 $*	0.51 $*
May-15-2025	0.61 $*	0.55 $*
Apr-15-2025	0.23 $*	0.89 $*
Mar-15-2025	0.36 $*	0.87 $*
Feb-15-2025	0.39 $*	0.6 $*
Jan-15-2025	0.1 $*	0.12 $*

Характеристики

Product Uses

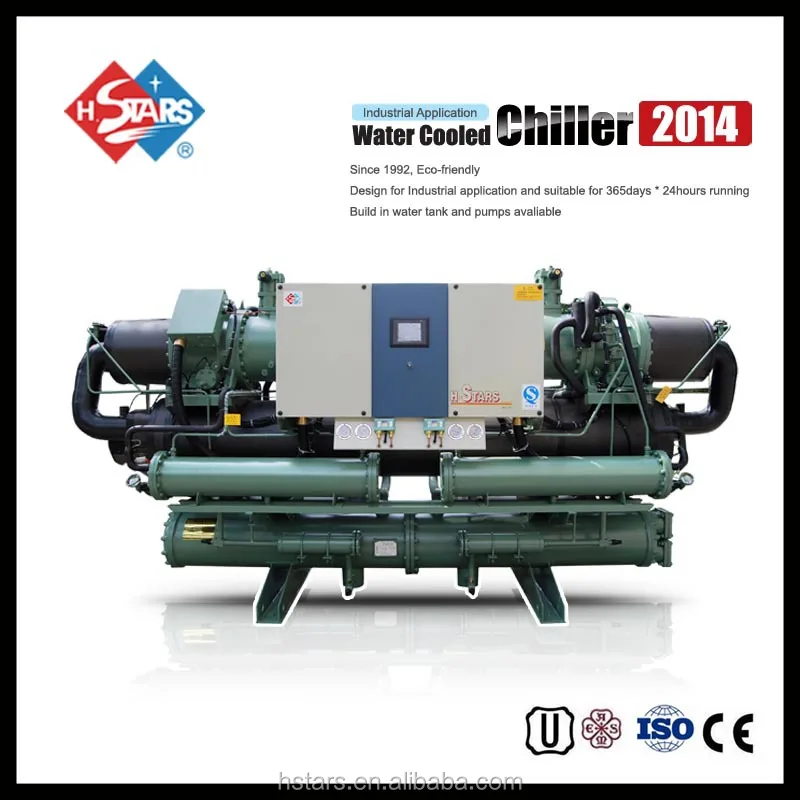

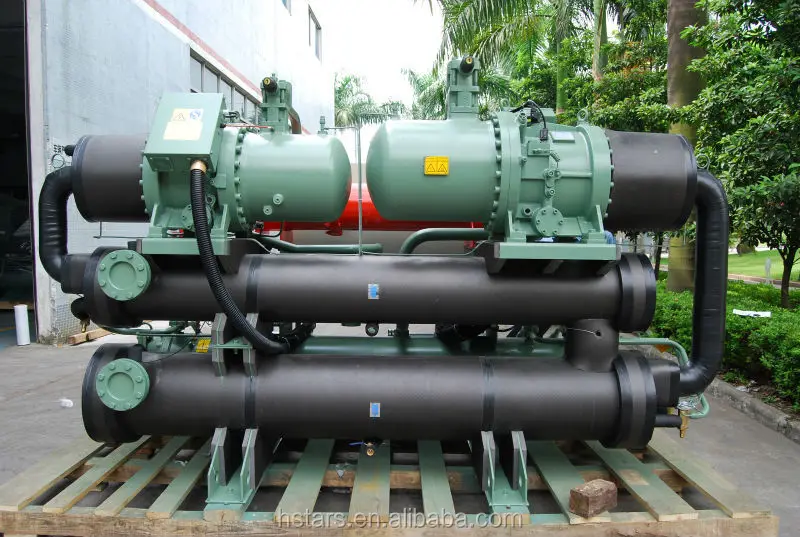

Hanbell twin-screw type compressor water chiller

suitable for those application below:

Product Description

Compressor

Our water chiller adoped Hanbell screw type compresso and Danfoss Scroll type compressor mainly, but other brand is avaliable as well.

Heat exchangers

Our water chiller is using our owen heat exchangers UAR, we have pressure vessel production license and we control our product qulity from the raw material.

Control box

Our water chiller provides SIMENS PLC control unit and single chip control unit,We have professional engineer to programing it according to customer's requirement.

Specilization design

We know some times because of the space constraint and gate limitation, we have to build a new room or break wall. Now we can change our design to settle your probelem.

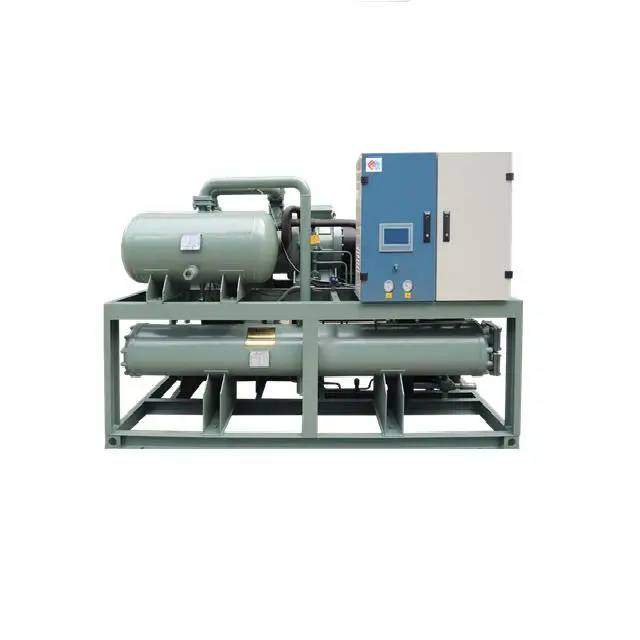

Built-in water tank and water pumps, We provide whole solution(compact all conponnets in one base , customer only need to connet water pipe and electric wire )

Refrigerant

R22 R407C R134a R404a avaliable for our water chiller, Please consult with me if you want other type refrigerant.

Performance data

Screw type water chiller general data

Model : 40STED		090WS3		130WS3		160WS3		...	2680		3060
Refrigerant		R22	R407C	R22	R407C	R22	R407C		R22	R407C	R22	R407C
Capacity	kW	92	90	125	119	164	154		2671	2589	3052	2889
Capacity	Tons	26.1	25.4	35.6	33.9	46.7	43.8		759.5	746.1	867.9	821.5
General Unit	Power input kW	22.1	21.2	29.2	27.8	36.6	34.4		541.5	542.3	612.8	598.9
	Refrigerant charge kg	18		25		32			512		584
	Circuit	1	1	1	1	1	1		2	2	2	2
	Loading/unloading stage %	0,66,100							0,25,37.5,50,62.5,75,87.5,100
	Power supply	380V/50HZ/3P
	Protection	Phase/Voltage Protection-High Dis charge Gas Thermostat- High&low Pressure Custouts-flow switch, Freeze Protection
Condenser	Type	Shell & Tube Type
	Dia.of condenser in"	2"		2-1/2"		3"		...	8"*2
	Max water pressure Mpa	1	1	1	1	1	1		1	1	1	1
	Cooling water flow m³/h	19.6	19	26.5	25.3	34.5	32.4		552.5	538.5	630.3	699.9
	Water pressure drop KPa	41		47		45			88		94
												94

Evaporator	Type	Shell-and Tube Type
	Dia.of condenser in"	2 "		2-1/2"		3"			10"
	Max water pressure Mpa	1	1	1	1	1	1		1	1	1	1
	Cooling water flow m³/h	15.8	15.4	21.5	20.5	28.2	26.5		93.8	93.8	94.2	94.2
Running noise dB(A)		73.1	73.1	73.7	73.7	74.8	74.8		77	77	84	84
Shipping Weight kg		980		1010		1200			8900		9500
Operating Weight kg		1080		1120		1360			10200		10800

Air Cooled Screw Water Chiller - Performance Data

(((((((((((((((((Contact me to get latest price and full version of cataloge))))))))))))))))))))

Remark:
Water Chiller - Performance Data
1.Rated capacity based on:Chilled water in/outlet 12°C/7°C (54F/45F);Cooling water in/outlet 30°C/35°C;Fouling factor 0.088m²·°C/kW;
2.Chilled water range: 5°C-20°C(41F-68F) ;
3.Heat recovery mode for chose; Can design for special inquiry; Changes for improvement can be done without early notice.
