Спектрограф частоты анализатор спектра транзисторов ктов

Цена:*

Количество:

Specifications

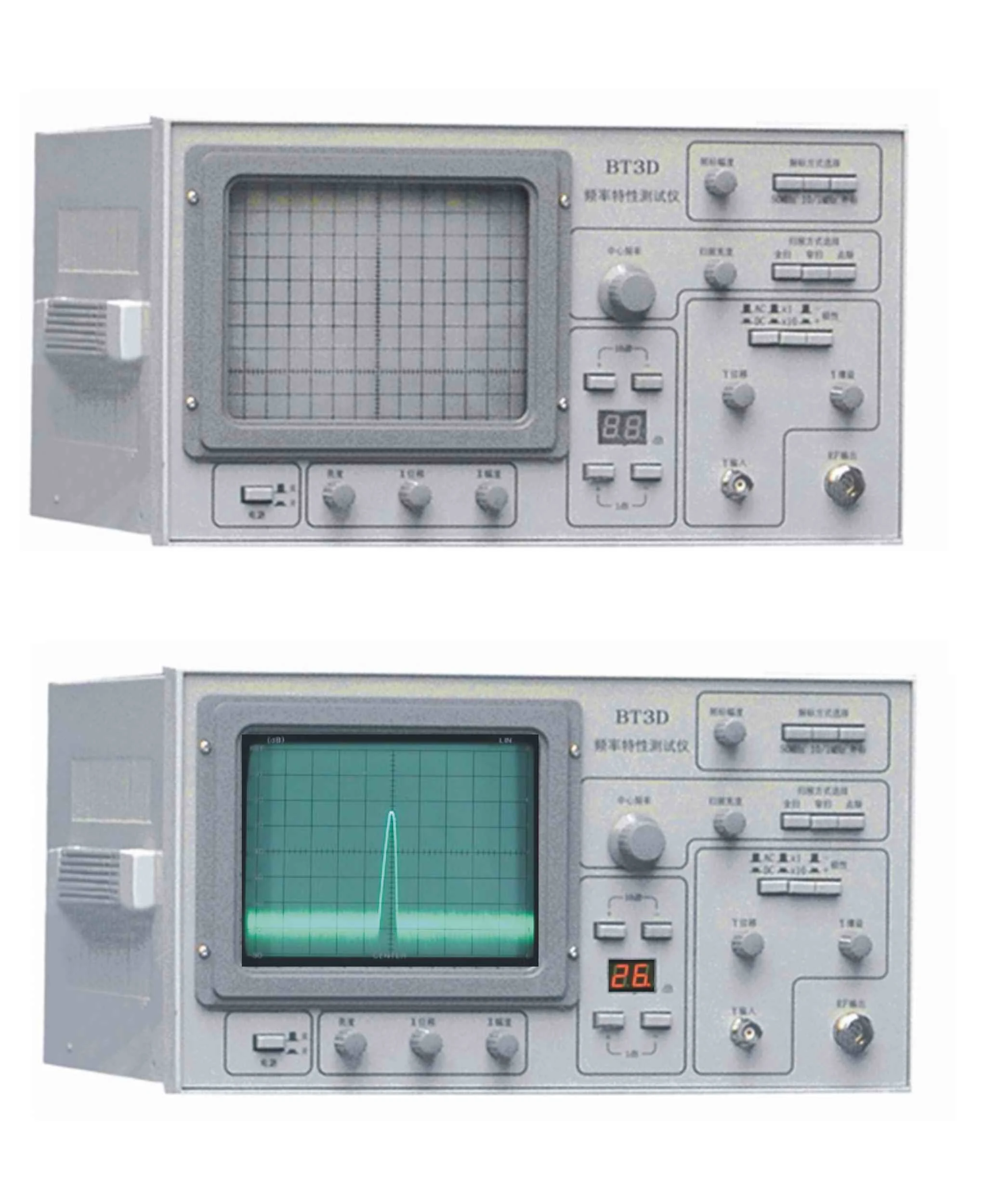

Model	NW1256	BT-3D
Item	Technical indicators
Frequency range	1-1000MHz	1-500MHz
Sweep mode	fullnarrow1narrow2single frequency	Full Narrow Point
Frequency show	3 1/2-bit display
Sweep width	1-300MHz/Narrow±1-20M Hzarbitrary regulation
Sweeping linear	interval rate exceed 1:1.3 between 100MHz border sweeping
Flatness output	±0.35DB,±0.25DB,outgo±0.35dB typical value±0.25dB	d±0.5dB

Flatness output compensation	not less than 1dB in full band
Frequeency marker	1/10/100MHz

Electrical level output	13dBm/50©;116dBuv/75©
Attenuator	gross attenuation 10dB×7 stepping,fine,attenuation 1dB×10 stepping	10dB×71dB×9


Relative resonance wave content	outgo-30dBc,typical value-35dBc

RF tumoff output	e80dB

Logarithm display mode	channel A,channel B channel A/B simul taneousiy display

Electricallevel reference line	Two electrical level reference lines , full screen modulationup and down


Power	65W	d50W
Size	450mm(W) 230mm(H) 320mm(D)	380mm(W 200mm(H) 360mm(D)
Weight	12Kg	8Kg
