Аппарат для спекания металлического порошкового фильтра шестеренка

Описание и отзывы

Трекер стоимости

Характеристики

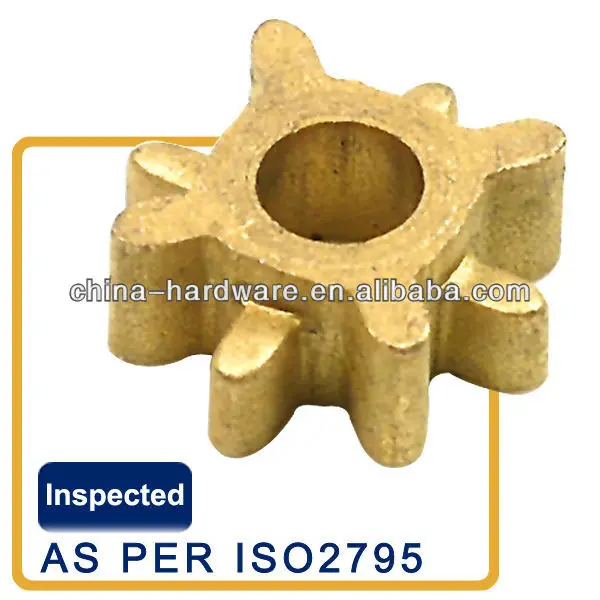

  sinter metal powder filter,sintering gear wheel,sintering machine made



This bushing is made of high pressure mold pressed brass or iron powder and then sintered under high temperature, the lubricating oil is soaked into the homogeneously tiny pores of the metal in vacuum processing.


The products are mainly used in house electric appliances, power tools, textiles machinery, chemical industry, and auto industry



• Features:

1. Able to withstand dry condition in medium speed and low load for short time

2. It is cheap and stable in dimension.

3. Working temperature range: -40^oC~+250^oC



• Specifications:



Material	Bronze	Bronze(CuSn6Zn6Pb3/CuSn10) + 12~18%Oil
	Iron	Fe + 12~18%Oil
	Cu-Fe	Cu20Fe80 + 12~18%Oil
		Customized is available
Load capacity		35~45N/mm2
Speed limit		2.5m/s
PV value limit		2.45N/mm2.m/s
Yeild Strength		147~294N/mm2
Hardness		20~60HB
Friction coef		0.12~0.2
Working temperature max.		-80~160°C



• Standard Types:

• Production line

• Plant

• Production Line

• Inspection

• Packings:

• Other bearings avialable:



oil sintered bushing / graphite bronze bushing / wrapped bronze bushing / DX composit bushing / bimetal bushing



Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
