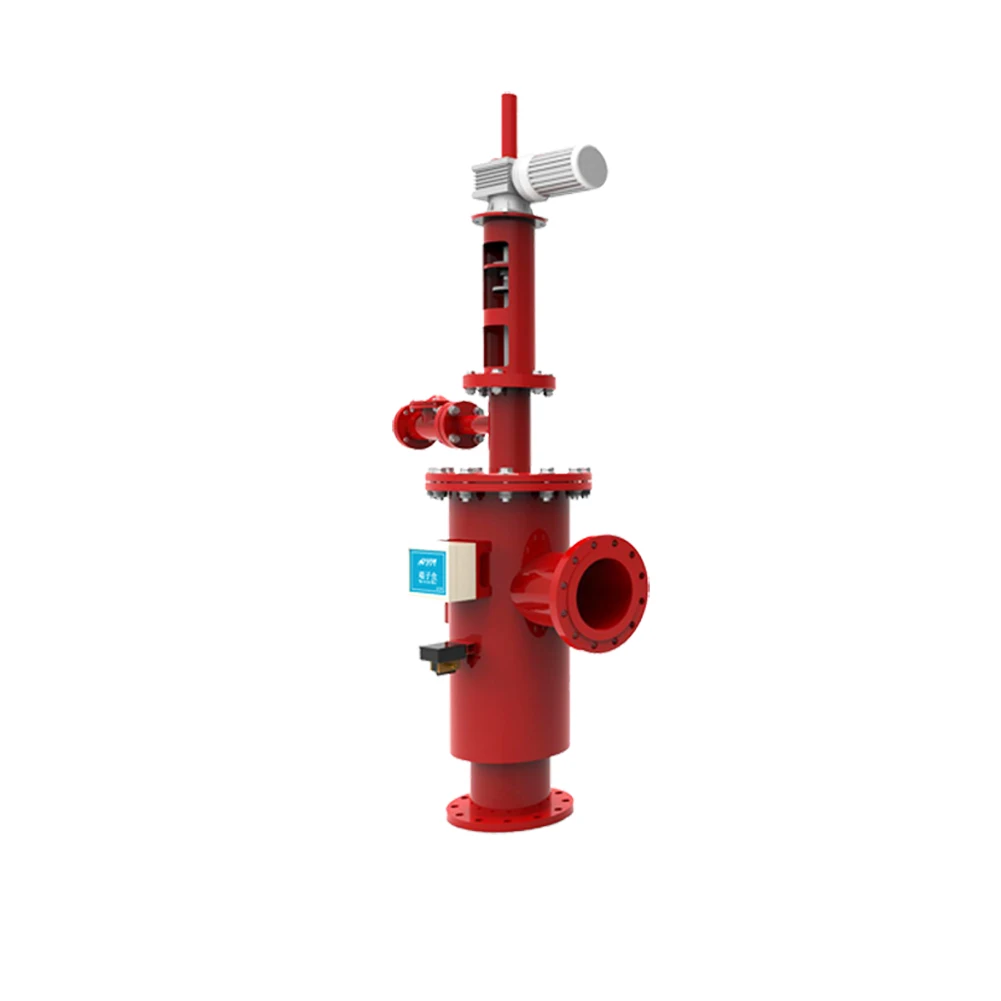

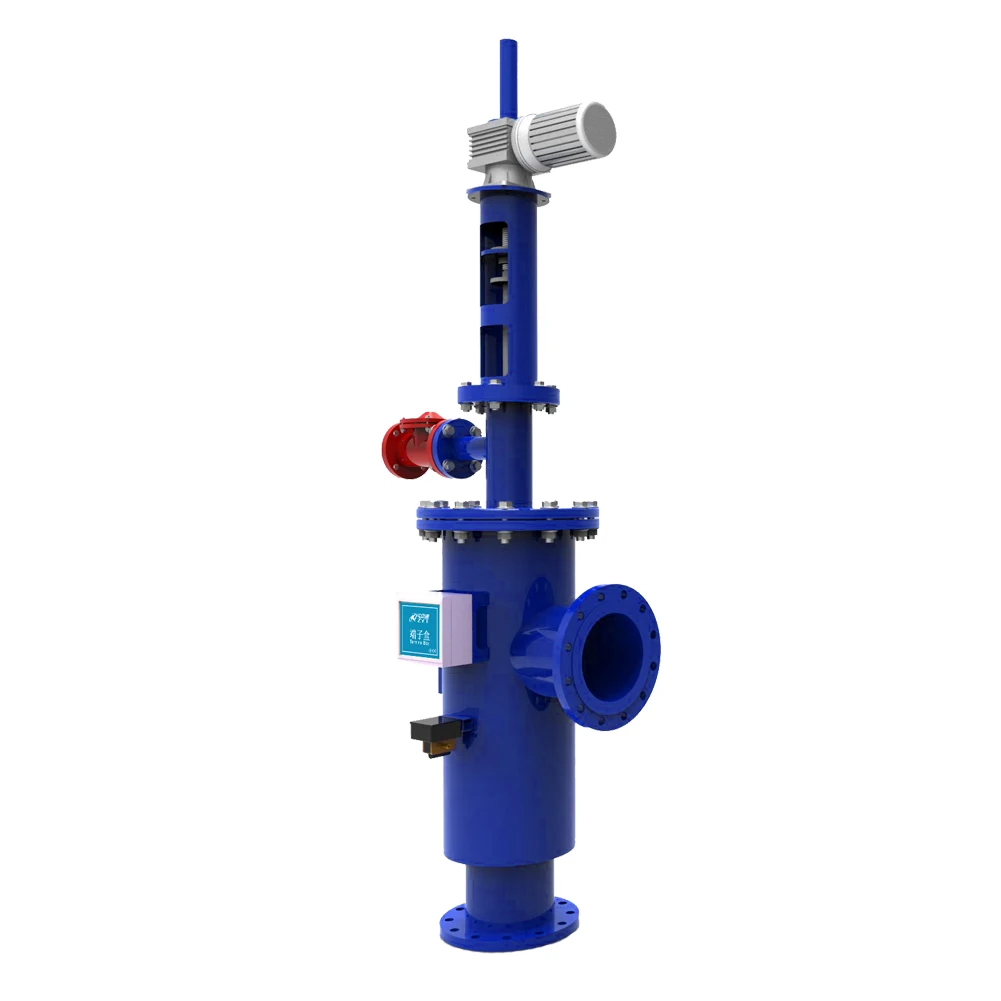

Self cleaning irrigation water

This Self cleaning irrigation water filter, combine the advantages of high quality filtration from different water sources (sewage, reservoirs, rivers, lakes, etc.) with self-cleaning feature, offering the customer a continuous water supply.
The filters are designed for use in a wide range of industrial, municipal and irrigation applications.
Cleaning of the screen is performed once the pressure loss (ΔP) across the filter has reached the preset value [up to 0.5 bar (7psi)].

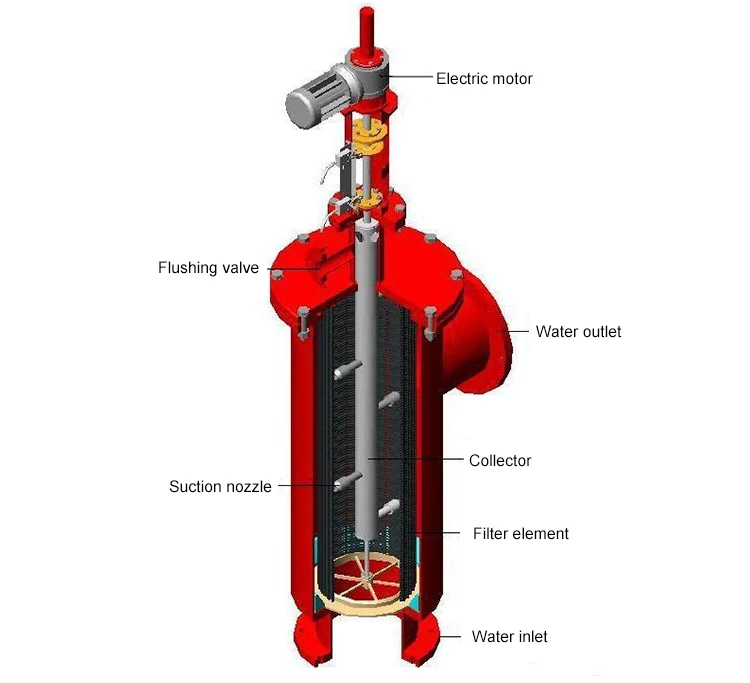

The flushing valve opens and pressure in the flushing chamber and the dirt collector is significantly lowered resulting in a suction process via the suction nozzles to the dirt collector and from there through the flushing valve outside. The electric motor simultaneously rotates the dirt collector and moves it along its axis. The combination of the vertical movement and rotation guarantees that the suction nozzles will cover the entire internal screen surface, efficiently cleaning the screen. The whole process takes 12-18 seconds.
During the whole process water supply is uninterrupted.

Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

Self cleaning irrigation water filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.

 Packing :

Self cleaning irrigation water filter is wrapped in plastic film and then loaded into the wooden box.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 25 days, and it is also according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Sorry, we could not offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
