Tuodi starts with RF systerm products,during the last 10 years,tuodi always think about how to make people's life more intelligent ,more convenient,more confortable also more energy-saving. we want to develop products which can really bring people the convenience,and conforts and enjoy life after long time working when back to home. make a little change of people's life style, do something for our our earth mom by making energy-saving products.
Let's enjoy Life! make all your wonderful life in tuodi electronics!
.

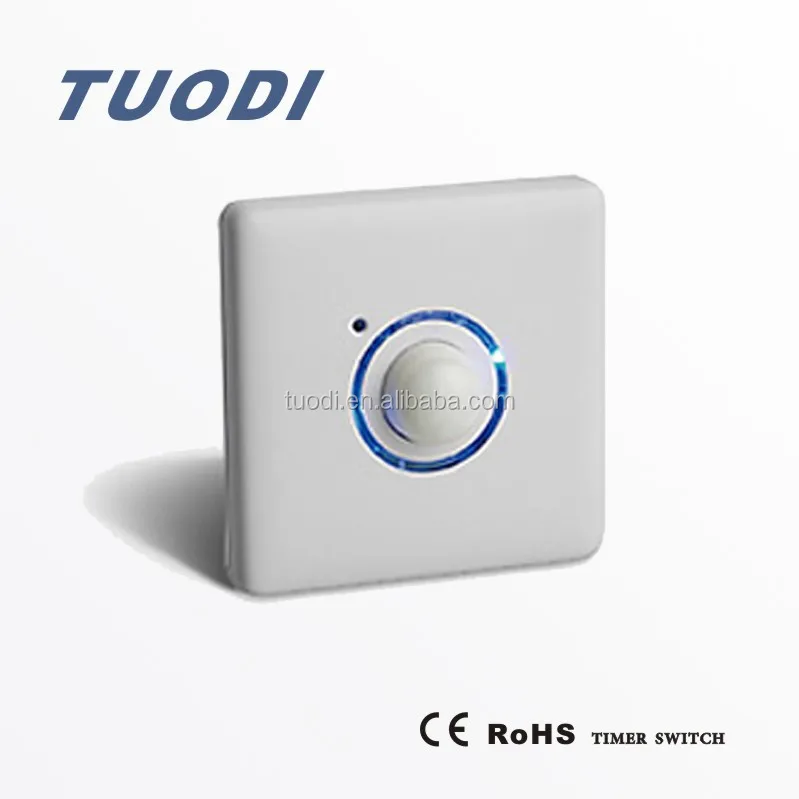

The pir timer is a fully automatic device which controls various power loads through the detection of body heat.
Activated by the detection of moving body heat, the lighting or power load will then stay on for a preset period of time. If body heat is no longer detected, the time period will elapse and the load will be switched off.
An internal light sensor will keep the lighting switched off when sufficient ambient light is available, further increasing the energy saving potential of the pirtimer. The unit also has an override switch on the faceplate.
By removing user interaction, the pirtimer has ultimate
reliability, resulting in a “fit and forget” way of introducing active energy management.
It is also suitable for multi-way applications thanks to 2 wire, 3 wire and slave switch options.The product has time ranges from 2 minutes to 2 hours.
Please read our Product Guidance before making your purchase.
Application : The push button/Touch sensor are general purpose time controls. It’s widely used in lighting ,heating and ventilation. The time can be used independently or as a master unit when using slaver trigger switches.
TDL-2115 TDL-2117
Usage :
The pir timer has been designed to replace a single gang light switch to control lighting,heating and ventilation.the unit is switched on by the detection of moving body heat within a specified range.when body heat is no longer detected,the unit will switch off after the adjustable time period has elapsed.if moving body heat us detected again during the timing period,the timing sequence will restart.the unit has a lux level adjustment,which measures the ambient light level and prevents lighting being switched on when there is sufficient light in the room.
This pir timer has the added benefit of a manual override facility.This allows the lights to be turned on for the set period of time when the ambient light level is such that the lights would not usually come on.in dark conditions the manual override disable the pir allowing the lights to be turned off indefinitely or when the override switch id re-pressed.
Positioning
Use the detection range to determine a suitable location of the sensor.when locating the position of unit avoid subjecting the sensor to direct sunlight.ensure that the sensor is not adjacent to the load.do not sire the unit on a vibrating surface,or near a forced air heating or ventilation(see diagram 2)
Mounting and installation
please note that it’s essential that the live In wire and switch Live Out is identified prior to commencing installation. Turn off mains supply for installation. This unit is compatible with a single gang,25mm deep,British Standard Accessory plate. Please ensure that the top and bottom lugs are removed,if fitted,from metal wall boxes prior to fitting.Ensure that there is adequate apace for wiring .
Step 1
Place the Live In wire,As per Diagram,into the left hand position of the connector, the switched Live Out wire into the second from left position of the connector and neutral into right hand position of connector.(see diagram 1)
Step 2
To set time,as per timing table ,use switches one though four,Depending one required time available from 2 minutes to 2 hours.E.G 10 minutes=switch one -off.switch two-on,switch three-off,switch four-off.(see diagram 3)
Step 3
To adjust Lux level(i.e the ambient light level at which you would like your light to be activated via the PIR timer)please refer to the lux level rotary adjuster diagram.rotate the lux level adjustment clockwise decrease the level of light required to turn on the light on and anticlockwise to increase the level of light required to turn the lights on.see diagram 1 for position of lux level adjustment
Step 4
Re-apply mains supply. The blue locator ring will light up around the push button/touch pad
Your light source or appliance,will now be switched off .please refer to operation section.
Installation notes
N.B after installation the PIR require approximately 5 minutes to initialize.
Turn off mains supply before proceeding with installation-install as per previous timer instructions-Mount unit onto surface mount box using the fixing screws at all four corners-place screw hole seals over left and right screw cavities-Clip on front fascia plate-re-instate mains supply.
Operation :
1.In standard operation. The PIR will now sensor body heat when passing through the detection zone.Each time the PIR is triggered the red led will light and resert the timer back to the start of the timing period.the unit will then wait 20 seconds approximately before allowing the PIR unit to sense and re-trigger the timing period again.
2.if no one is present in the room or the detection zone is not passed through .during its set tine period the timer will tine out,turn off the lights or appliance and the blue indicator ring will light up.
3.the PIR unit will only trigger the lights or appliance if the ambient light level is below that set on the lux level adjustment.
When the ambient light level is light through so the lights would not normally come on with PIR use,the override switch can be used turn on the lights for the set period time. This can be used in times where additional light i s required in a room.to operate press the PIR lens,the red indicator led will light to show it has been pressed and the timing will begin,in the last minute of timing the red led will flash
5.when the ambient light level is dark enough that the PIR is in normal operation, the override switch can be used to disable the PIR and the lights turned off indefinitely or until the override switch is pressed.this can be done by press the PIR lens.the red LED will flash rapidly to indicate the pir has been disabled and can be re-enabled simply by pressing the lens again N.B the PIR will require approximately 1 minute to initialize
Important notice:
All wiring should carried out by a competent person or a qualified electrician.if unit faulty return to place of purchase
Shipping:
white inner box
5pcs/white box
200pcs/outerbox
size of outer box: 490*265*410 mm
Gross weight of outerbox:15.5KG
1.Your inquiry related to our products or prices will be replied in 12 hours
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.Strong OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.strong engineering team, can help you resolve any problem in time.
Management concept --- customer oriented, constant creativity, steady progress
Technology concept --- strict supervision, professional production and a strong R&D group
Corporation concept--- win-win principle, welcome OEM
Objective concept- - -make all your wonderful life in tuodi electronics.
industrial park(front gate) industrial park(back gate)
production line strorage office
SMT workshop SMT workshop
sale shop in hangzhou sale office
Q1.what' is the MOQ for order?
A1:100PCS,also accpt trial order like samples order
Q2.What is the warranty for order?
A2: we have 2 years warranty.If any quality problems on our side occured in 2 years we will send customer new products for replacement .
Q3.what's the standerd of teh switch
A3:British standerd 86*86mm
Q4:Does the delay time can be adjusted?
A4.yes,it can be adjusted from 2mins to 120mins
Send your Inquiry Details in the Below,Click "Send" Now! Free samples of led down light are waiting for you.
