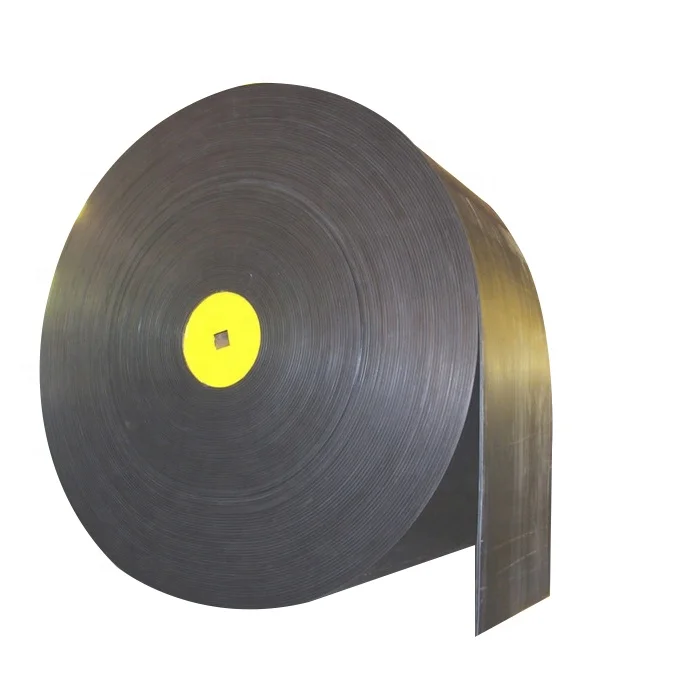

Конвейерная лента NN типа 315/3 500/3 500/4 600/4
- Категория: Rubber Belts >>>
- Поставщик: Zhejiang,Fuda,Rubber,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.26 $* | 0.44 $* |
| Aug-18-2025 | 0.24 $* | 0.22 $* |
| Jul-18-2025 | 0.14 $* | 0.17 $* |
| Jun-18-2025 | 0.81 $* | 0.47 $* |
| May-18-2025 | 0.30 $* | 0.44 $* |
| Apr-18-2025 | 0.76 $* | 0.99 $* |
| Mar-18-2025 | 0.65 $* | 0.9 $* |
| Feb-18-2025 | 0.29 $* | 0.96 $* |
| Jan-18-2025 | 0.29 $* | 0.66 $* |
Характеристики
Conveyor belt Specification and technical index
Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | ||
warp | weft | Upper | Lower | |||||
EP | EP | EP | EP-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
EP-150 | 0.80 | |||||||
EP-200 | 0.90
| 500-2500 | ||||||
EP-250 | 1.15 | |||||||
EP-300 | 1.25 | |||||||
EP-400 | 1.45 | 800-2500 | ||||||
EP-500 | 1.55 | |||||||
Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | |||
warp | weft | Upper | Lower | ||||||
NN | NN | NN | NN-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 | |
NN-150 | 0.8 | ||||||||
NN-200 | 0.9 | 500-2500 | |||||||
NN-250 | 1.15 | ||||||||
NN-300 | 1.25 | ||||||||
NN-400 | 1.45 | 800-2500 | |||||||
NN-500 | 1.55 | ||||||||
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |

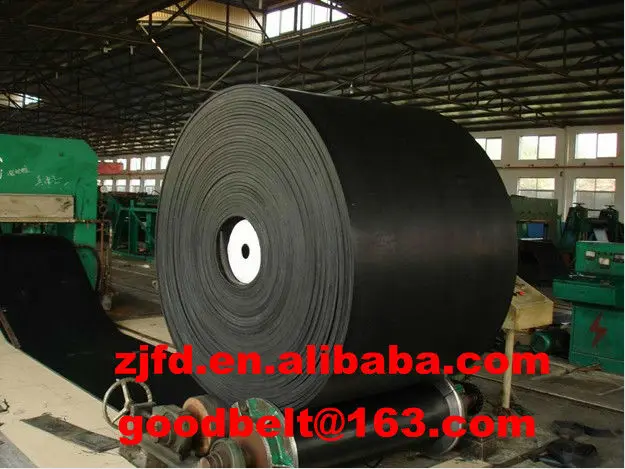

Conveyor belt production process
