Product Description

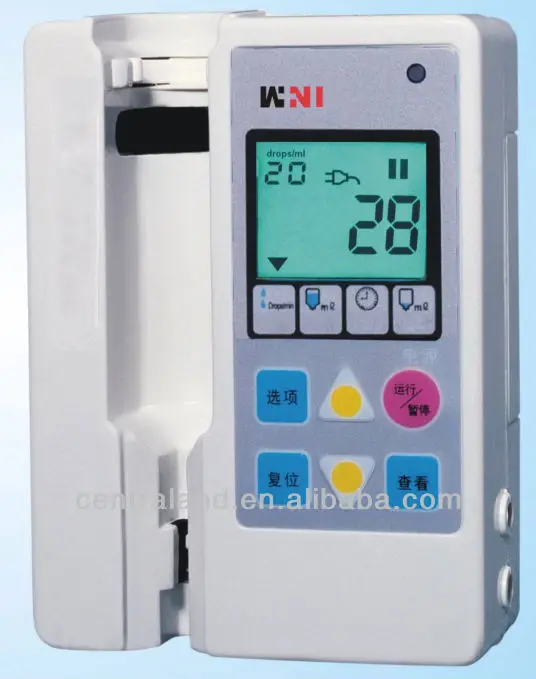

Drip controller-a patented product of our latest development is mainly used to control the dripping speed in clinical intravenous infusion. It functions to accurately complete various preset requirements for infusion.



To give alarms for emptiness of fluid and infusion error, as well as the memorization and presention of information and so on, By controling dripping speed to an inch, liquor can enter human body rightly to pharmacosystematics, thus to enhance the remedial effect of medicine. It is especially suitable for pediatrics, cardiovascular diseases, obstetrics and gynecology, tumor chemotherapy and patients treated with entire parenteral intravenous nutrition fluid infusion.





Technical indexes



1.Product name: infusion controller

2.Infusion Method: Free Drop Method

3.Setting Range:

   Speed: (1----120)drop/min

   Volume: 1ml--5000ml

   Time: 1min-24hr

   Alam: 5ml--500ml

   Infusion-set types:(10,15,16,17,18,19,20,21,22,45,60) drops/min

4.Accuracy: +/-2%

5.Control Mode: Infrared monitoring and automatic electronic valve control.

6.Alarm Function: LCD and indicator lamp will light and send out alarming sound upon obstruction, abnormal dive, completion of infusion or unwonted occurrence in the process of infusion.

7.Power Consumption: 15VA.

8.Power Supply: AC-DC current. AC 220V 50HZ DC 4.8V/800mAH

9.Overall Dimension: L110*W82*H37mm

10.Weight: 200g(Battery included)





Packing: box size: 7x17x23cm GW: 500g

carton size: 25x36x38cm GW: 5kg

10sets/carton







                                                  Welcome Inquiry Drip Controller!
