Характеристики
Product Description

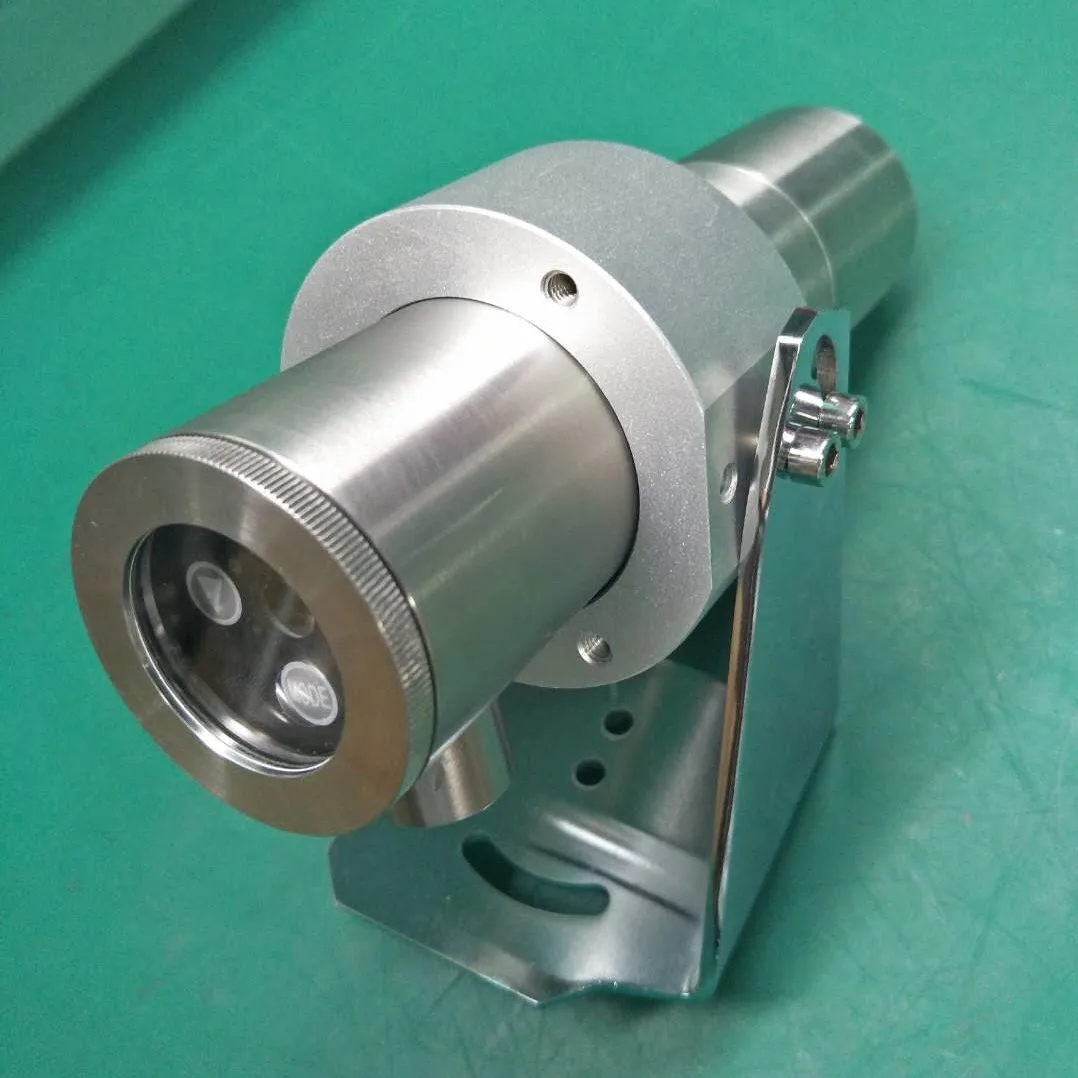

Non contact Industrial infrared pyrometer
Model: MPT600
Category: infrared temperature sensor
Range: -20c to 3000c
Sensor: 0.85~1.1um/0.95um
Signal output: CPI,mv, 0-5vdc, 0-10vdc, 4-20mA
Application: Nor-contact solidity, melt temperature measure
Characteristic: Infrared temperature sensor, Nor-contact temperature sensor
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Capability range: | -50c ~0c~350c~750c~1200c~2000c~3000c | ||||
Measurement wavelength | 0.85~1.1um/0.95um | ||||
Distance coefficient | 100:1 (Optional microwave special type) | ||||
System accuracy | ±0.5% or ±1centigrade | ||||
Repeat accuracy | ±0.2% or ±1centigrade ) | ||||
Temperature resolution | 1 centigrade | ||||
Response time | 20ms (95%) | ||||
Environmental Class | IP65 (NEMA-4) | ||||
Ambient temperature | 0-60centigrade | ||||
Storage Temperature | -20-80centigrade | ||||
Relative humidity | 10-95%, No condensation | ||||
Weight | 120g | ||||
Analog output | 4-20Ma (Can be customer-made 0-5V) | ||||
Maximum loop impedance | 750Ω (24VDC) | ||||
Power supply: | 12-24VDC (100mA) | ||||
Product Assembly Structure
Blow force structure is for reference.
Product Process
Product Application
Delivery and Shipment
Related Products
Company Introduction
MANYYEAR Technology was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
We have established the following product system:
