Шпионские гонки евро 5 0 Электрический для взрослых ATV ZONGSHEN 350cc гоночный квадроцикл горячая

Описание и отзывы

Трекер стоимости

Характеристики

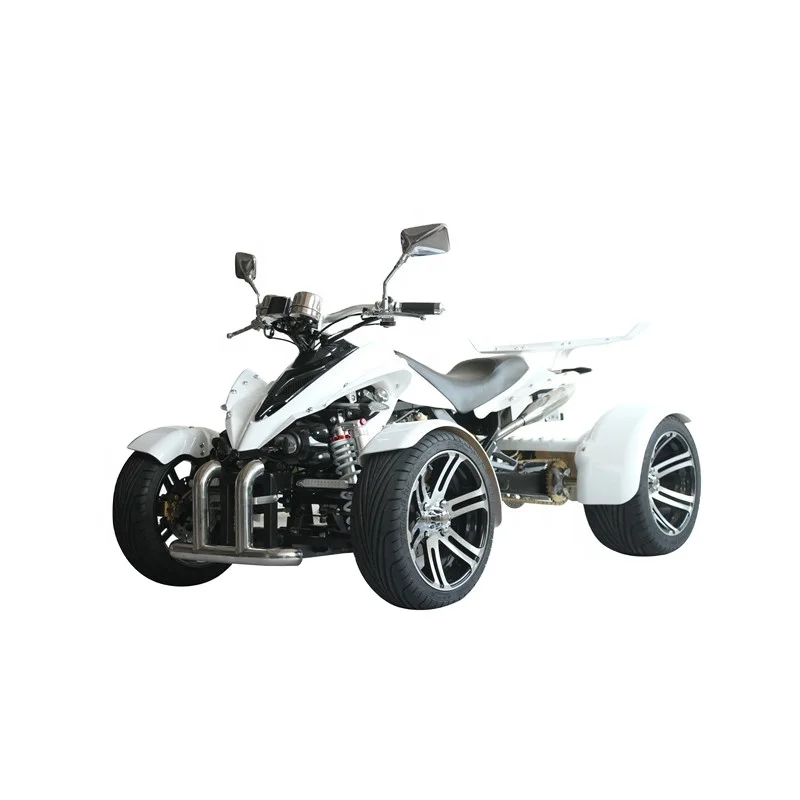

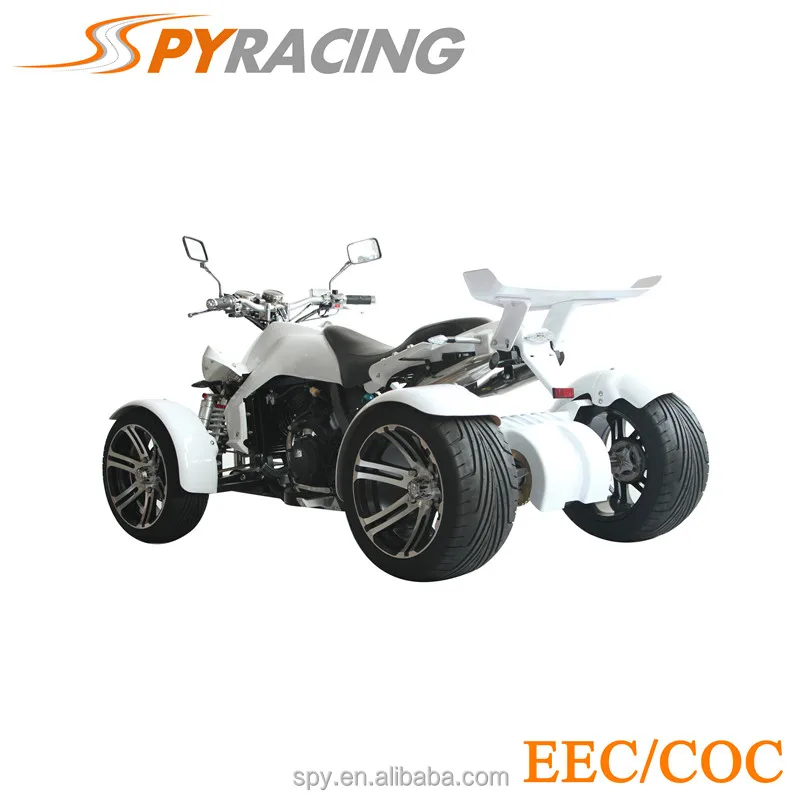

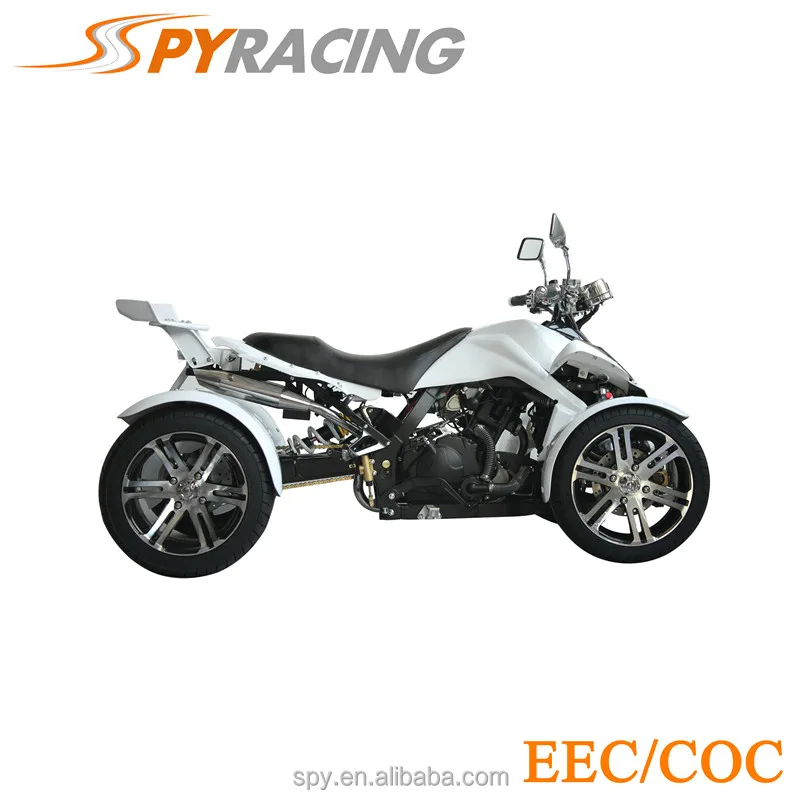

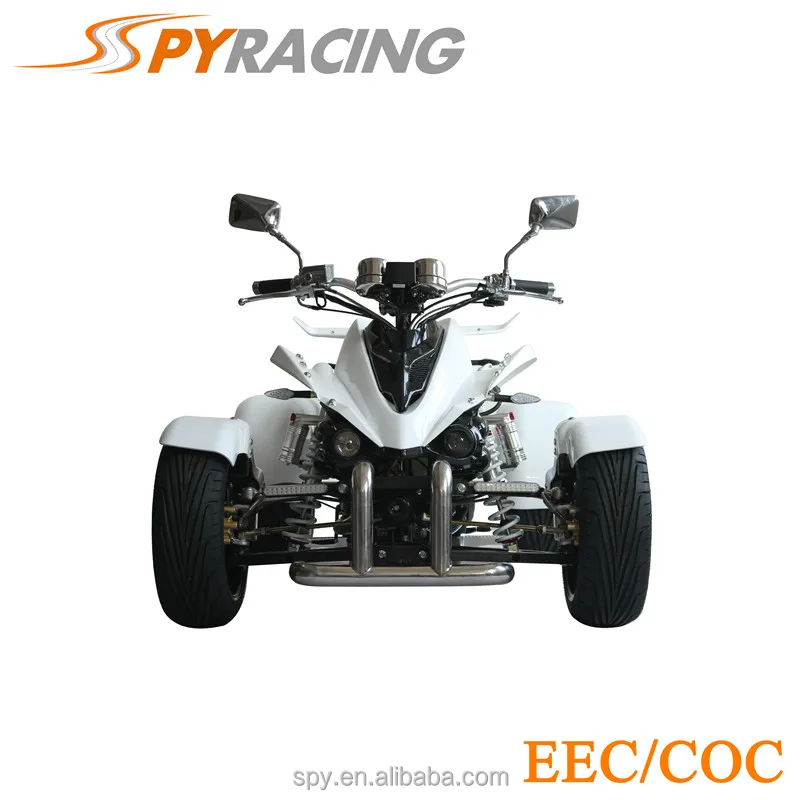

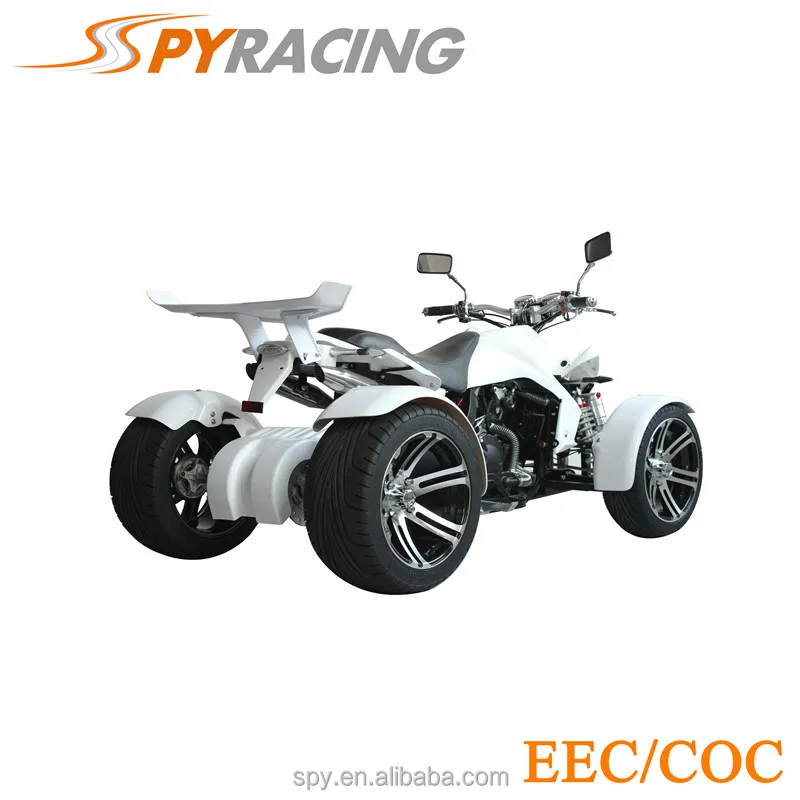

350cc RACING QUAD BIKE FOR HOT SALE



Model NO.: SPY350F1

♦Overview:

    Spy Racing top quality model, with fast speed of 130km/h (78mph) , and fashionable style, comfortable ride feeling and used for not only transportation tool but also for your full enjoyment.

(colors available: red, blue, black, orange, yellow, green, white,  and all colors in spider net )





♦Advantages:

1. Certificate: EEC/COC/ISO9001 approved



2. Engine: 350cc water-cooled(ZONGSHEN with reverse gear)



3. Chain: KMC golden



4. Top speed: 130km/h(78mph)



5. Seat: a new long seat (20cm longer than common seat) for 2 person (comfortable & humanised)



6. Packaging: 7 layers shipping carton with strong iron frame



7. Alloy handlebar & Lever & stainless steel front bump



8. Steel board Incise Upper & Lower swing arms



9. Top quality aluminium multi-function switch



10. Optional speed meter available, 3 Light Connect digital speedometer



11. Alloy footpedal CNC ready for 2 passengers to use comfortably



12. High performance CNC parts: brake pedal, foot-rest, speed-meter block, handlebar balance

                                                          block

13. Hot pipe with double layer steel, no hotness directly to the outside



14. Frame sole designed by us,and made by our-self metal-workshop, fully controlled quality



15. Colors painting same finishing as car's, painted by our own paint-workshop, fully controled

      quality. and each color has color code for reference.





♦Product specifications:

Engine

Manufaturer	ZONG SHEN
Max.power(kw/r/min) :	22.0/7500
Max.torque (N.m/r/min):	28.0/6000
Bore and troke(mm×mm):	83.0×64.5
Displacement:	350cc
Transmissions:	6-speed manual gearshift and 1 reverse gear
Battery:	12V, 14Ah
Start mode:	electric start
Type of cooling:	water-cooled(1cylinder, 4 stroke, camshaft upwards)
Fuel consumption:	4L/100km

Chassis

Frame dimension (L*W*H):	198x115x94(cm)
Frame thickness:	2.5mm
Suspension:	hydraulic air-cell damp
Front tire:	185/30-14
Rear tire:	270/30-14
Length of rear fork:	63cm
Braking method:	front /rear disc brake
Parking brake system:	disc hydraulic with independent handle-brake for front wheels

 Vehicles dimension & weight

Seat height:	70cm
Wheelbase:	140cm
Ground clearance:	11cm
G.W/N.W:	285kgs/255kgs
Packing size(L*W*H):	1790mm*1120mm*720mm
Container loading capacity:	18pcs/20GP container; 39pcs/40GP/40HQ container
Rims:	14"/14" aluminium car rims

Features

Muffler & Exhaust :	double-stainless steel
Meter:	digital
Drive trainsmission:	chain drive
Ignition:	CDI





♦Warranty terms:

Engine & Frame:	quality guarantee period is 1 year or 5000km
Atv parts:	3 to 6 months





♦Note:

1. All the products will be guaranteed on condition that they are in normal use under the instruction of our specifications. If you have any questions,  pls do not hesitate to enquiry us.

2. Trade key point: our company supply all the ATV parts of the vehicles you have bought.
