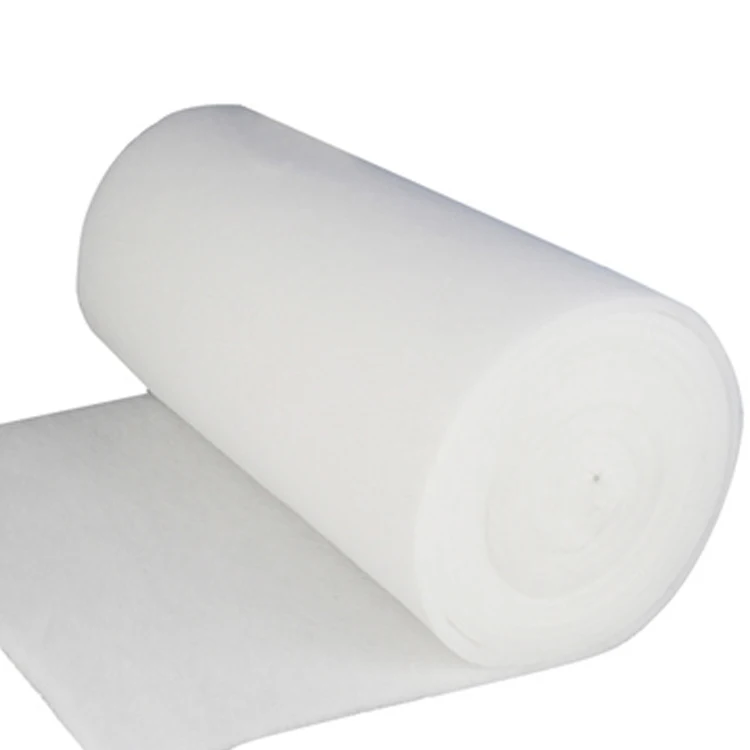

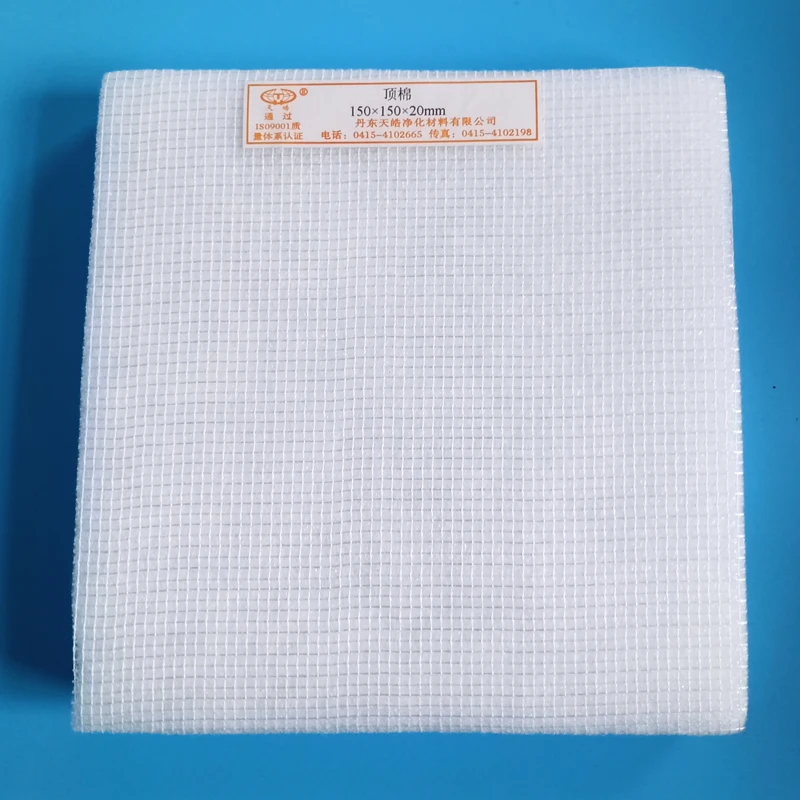

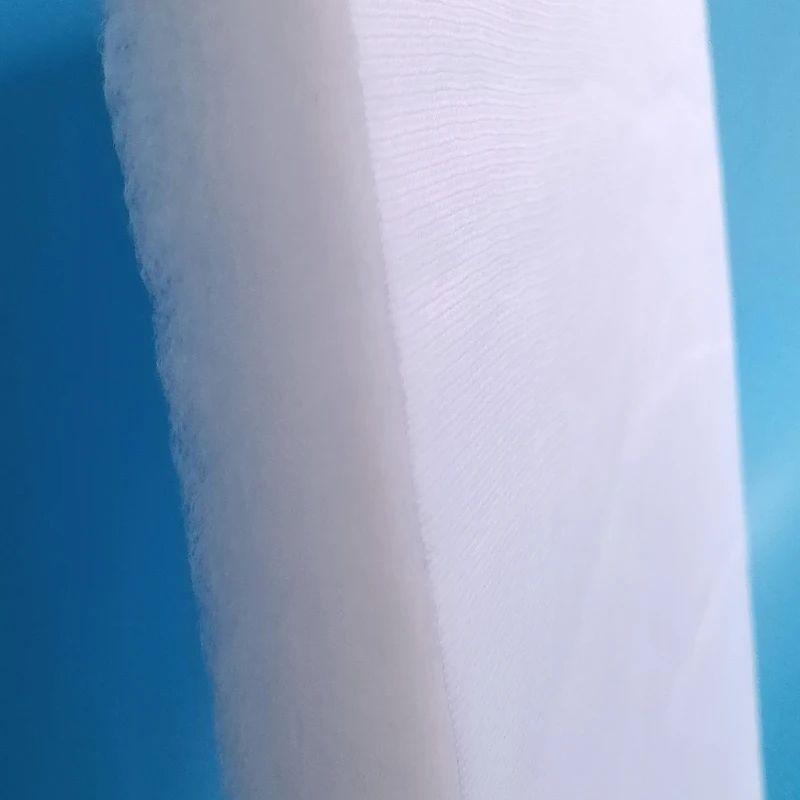

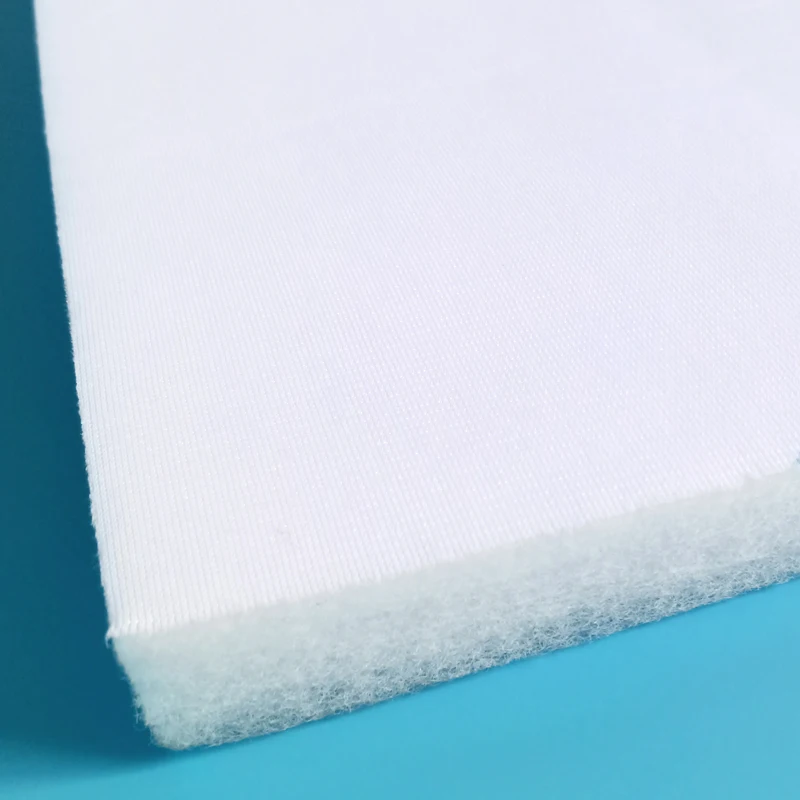

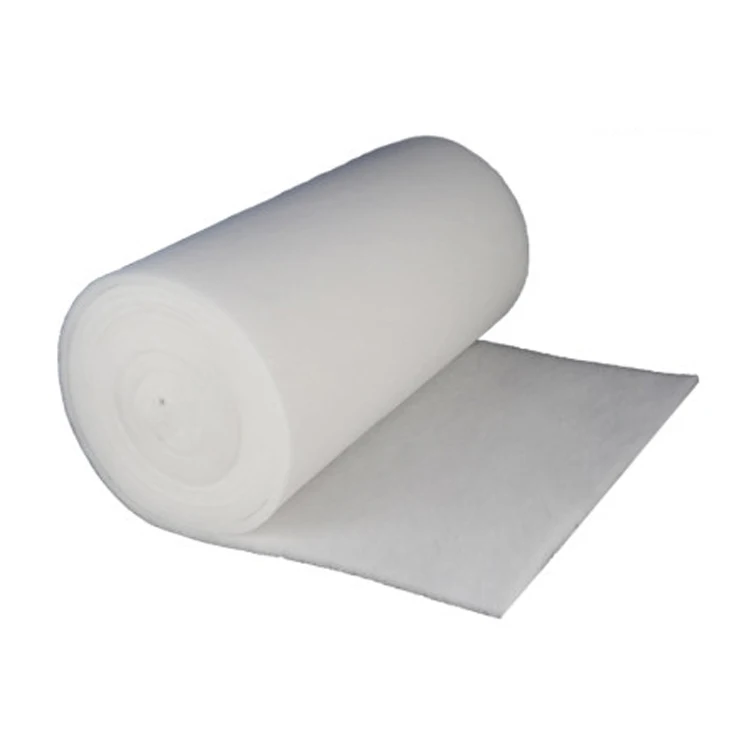

Detail Pictures of Polyester Fabric Air Filter Cloth





Introduction

Polyester Fabric Air Filter Cloth for Industry select different thickness three-dimensional hollow fiber and imported low melting point fiber to layer fill at different filling degrees of the rate thus form steps filter manner which has the performance of high tensile strength, low resistance, compact and durable. This type filter material mainly be used to clean air dust from 1μ to 5 μ. It normally can be made into rolling type, flat, and bag filter which are widely used for ventilation and dust removal system of electronic, medicine, automobile, food processing and central air- conditioning device.

 Specification Table of Polyester Fabric Air Filter Cloth

Model	Thickness mm	Filtrate Speed m/s	Resistance		Efficiency %		Capacity g/m2
			Initial	Terminal	Arrestance	count
G4	10-20	2.5	30-45	150-250	80-90		450-650
F5	10	2	44-55	150-250	97.5	41/1.0μm	650
F6	10	2	50-65	200-300	98.6	62/1.0μm	600
F7	10	2	85-100	250-350		85/1.0μm	550
F8	10	1.5	100-150	300-400		91/1.0μm	500
F9	10	1.5	120-180	400-450		96/1.0μm	400

Operating Instructions

• Filter efficiency effect and performance can't be affected when working under temperature -40 °C to 120 °C.


• It can be repeated use of renewable, namely back blowing method and washing method.


• When using in saturate steam or water condition, please specify when ordering.
