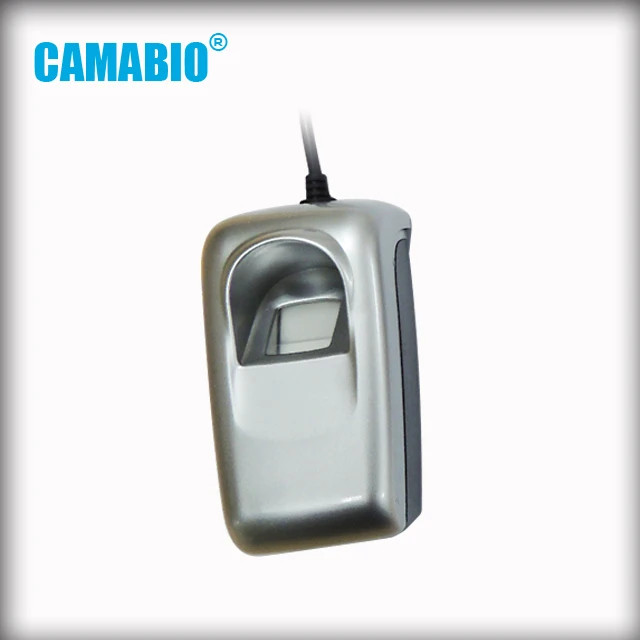

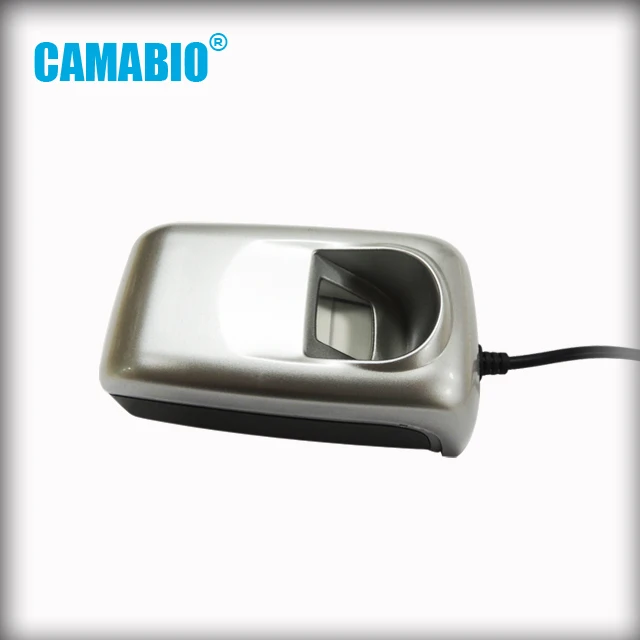

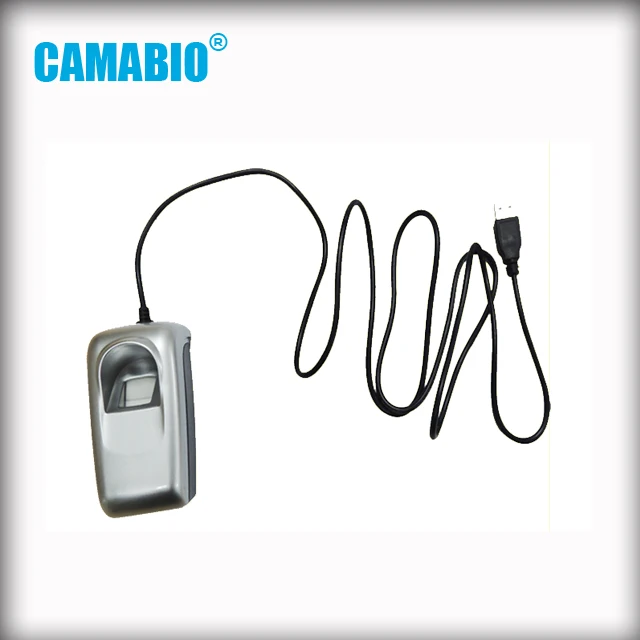

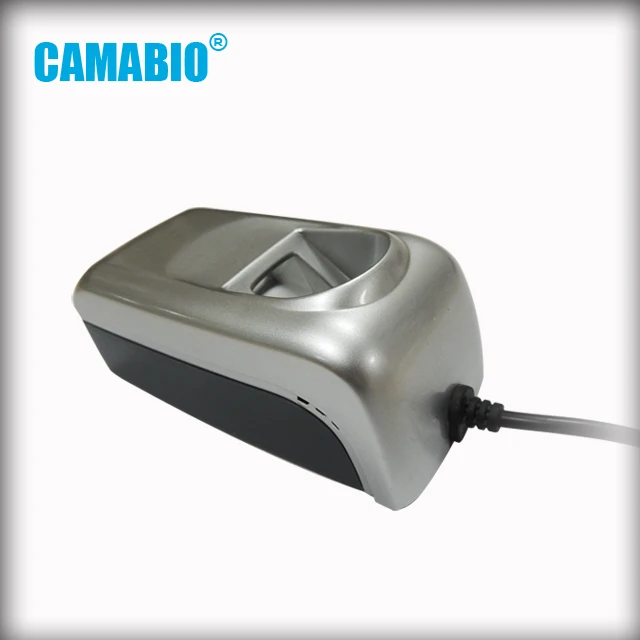

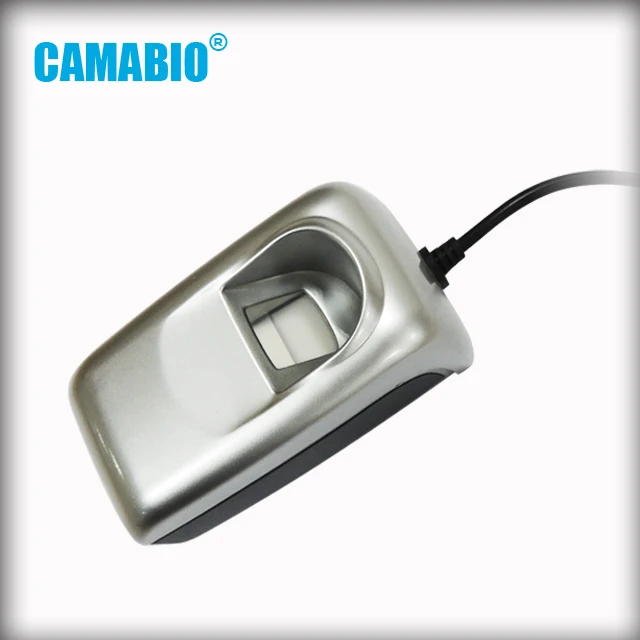

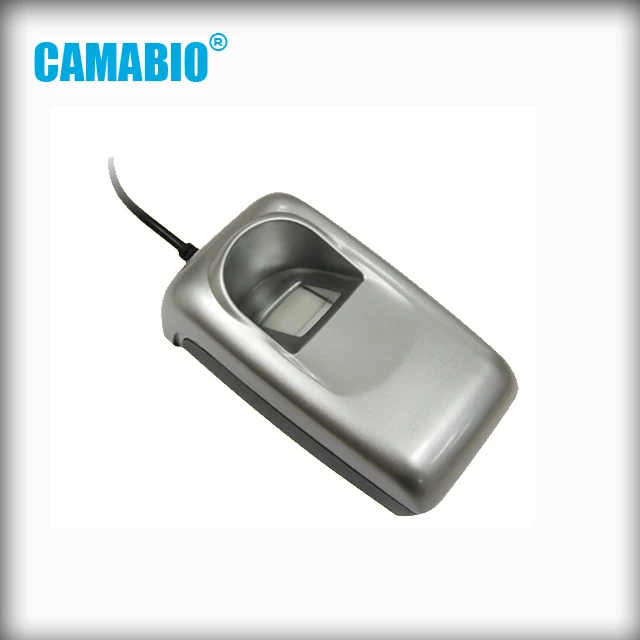

CAMA-2000 USB biometrics fingerprint scanner



Description

CAMA- 2000 USB fingerprint reader is specially designed for secondary development application projects with fingerprint verification algorithm, application ports. With some accessional application software, it can be integrated as social fingerprint collecting system, online fingerprint device, online fingerprint time and attendance machine, fingerprint local protection system and fingerprint network logon system. In order to make more convenient for secondary developers in the application field, we provide corresponding development kits.



Features:

1. USB port, compact, lightweight and portable

2. eveloping generality: conveniently and easily develop with OCX , supporting multi-development tools, and internet development

3. Identification mode:1:1, 1:N

4.  High speed identification time: 1:10000(10000 fingerprints/second)

5.  Support Windows XP, Windows98, Windows 95 USB2.0

6.  Strong extended capacity(can be extended to 100000 fingerprints)



Parameters:

Sensor	optical fingerprint sensor
Area	16mm *14mm
Fingerprint Capacity	3000
FRR	≤ 0.01%
FAR	≤ 0.0001%
Identification speed	100000 fingerprints/second
Resolution	500 dpi
Port	USB 2.0
Identification model	1:N, 1:1
Work humidity	10% - 90%
Storage temperature	10°C - 80°C
Storage humidity	10% - 90%
Work temperature	0°C-60°C
Life time	>1500000 times
Static current	<10μA
Acceptable fingerprint angle	± 45 °
Systems	Windows98/98se/me/2000/xp



Applications:

Factory, institutes, military, government, home, office, flat, etc.
