Серия AIGER A600 сельскохозяйственный самоочищающийся фильтр сточных
- Категория: Water Filter >>>
- Поставщик: Beijing,ZhongYuanTong,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.46 $* | 0.1 $* |
| Aug-18-2025 | 0.88 $* | 0.27 $* |
| Jul-18-2025 | 0.54 $* | 0.77 $* |
| Jun-18-2025 | 0.14 $* | 0.67 $* |
| May-18-2025 | 0.76 $* | 0.54 $* |
| Apr-18-2025 | 0.20 $* | 0.59 $* |
| Mar-18-2025 | 0.10 $* | 0.86 $* |
| Feb-18-2025 | 0.80 $* | 0.53 $* |
| Jan-18-2025 | 0.69 $* | 0.11 $* |
Характеристики
Product Model | A600 | MOQ | 1 PC |
Recommended products
Products Show
AIGER 600 SeriesIndustry Self Cleaning Water Filter
Brief Introduction：

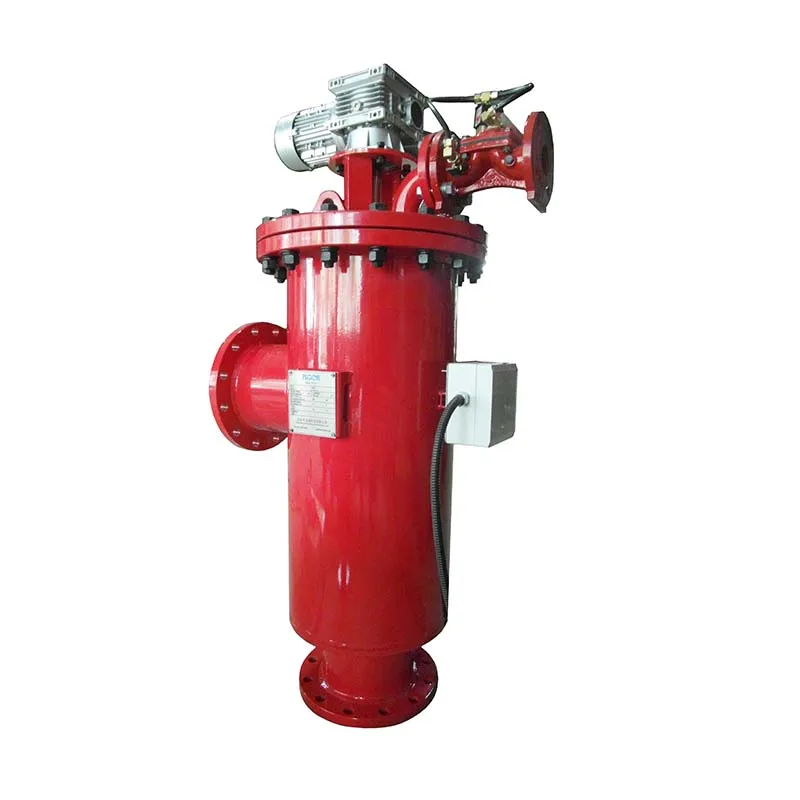

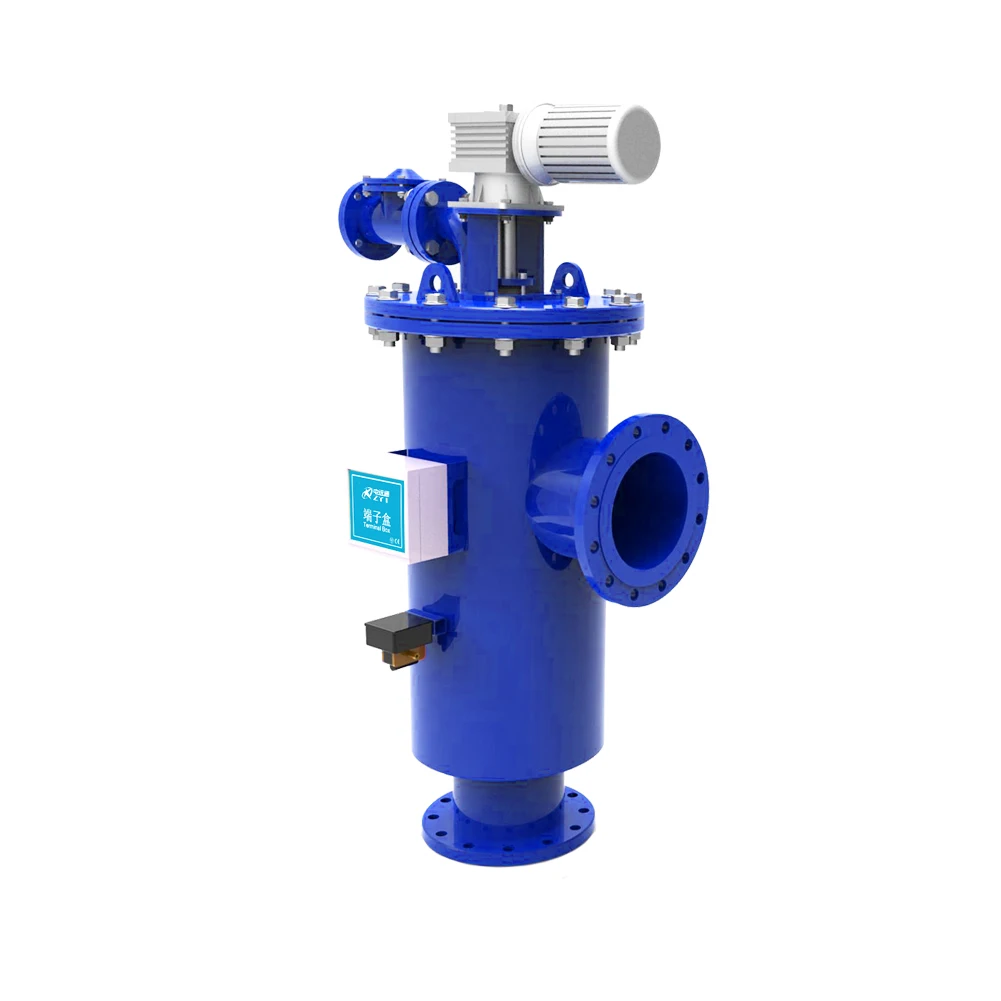

AIGER 600 Series Irrigation/Industry Self Cleaning Water Filter/Automatic Back Washing Filter is vertical electric brush type filter ,the screen is 304 or 316 stainless steel ,It is suitable for harsh environment ,High oil content ,large dirt load in water,the motor drives the stainless steel brush to rptate in the water ,cleaning dirt,and the dirt outlet from the drain valve .
Technical Parameters:
Model and Specification
Operation
The Filtering Process：
Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet.The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen. A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.
The Self Cleaning Process:
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.
The Control System：
Two types of control boards are available for AIGER A600 Series Automatic Backwash Filter: PLC/TIMER/MANUAL. The self cleaning cycle begins under any one of the following conditions:
1.Receiving a signal from the Pressure Differential Switch
2.Time interval parameter set at the control board
3.Manual Start
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.
The Control System：
Two types of control boards are available for AIGER A600 Series Automatic Backwash Filter: PLC/TIMER/MANUAL. The self cleaning cycle begins under any one of the following conditions:
1.Receiving a signal from the Pressure Differential Switch
2.Time interval parameter set at the control board
3.Manual Start
Filter Parts
Feature：
AIGER Farm Irrigation System Self Cleaning Water Filter adopts Israeli advanced and specialized filter technology with
characteristics of large flow, auto back flushing, saving water, can fully improve the utilization rate of water. More over it can
achieve the advantages:
1)Highest cleaning efficiency
2)Reliable and Compact filter element
3)Super big flowrate ,and best preformance .
characteristics of large flow, auto back flushing, saving water, can fully improve the utilization rate of water. More over it can
achieve the advantages:
1)Highest cleaning efficiency
2)Reliable and Compact filter element
3)Super big flowrate ,and best preformance .
APPLICATION AREA
Packaging & Shipping
About Us
Why Choose Us
Q:Are you trading company or manufacturer?
A:We are factory.
Q: How long is your delivery time?
A: Generally A100 series automatic self-cleaning filter for environmental water treatment is 2 sdays, and A100 series automatic self-cleaning filter for environmental water treatment is alsoaccording to quantity.
Q: Do youprovide samples ? is A100 series automatic self-cleaning filter forenvironmental water treatment free or extra?
A: Sorry, we couldnot offer the sample for free charge.
Q: What is your terms of payment?
A: Payment100ouSD, 100% in advance. Payment100ouSD, 30% TT in advancebalance before shipment.
Customers' Feedback
