Характеристики
Product Description

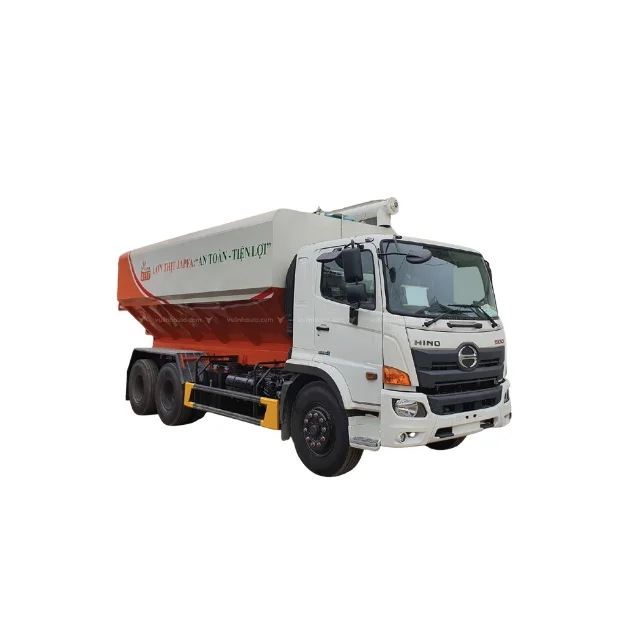

HINO FM 22M3 . FEED TRUCK
The HINO FM 22m3 animal feed truck is directly manufactured by Vu Linh Automobile Joint Stock Company based on the HINO FM truck platform . Vehicles ensure all inspection standards of the Vietnam Registry Department. Vehicles using a screw system are operated by pneumatic motors to make bran discharge faster and more efficient.
1. General introduction of the HINO FM 22m3 . animal feed truck
Animal feed truck (or bran tank truck) is a specialized vehicle with an import and discharge structure, containing tens of tons of bran per shipment, an indispensable product in feed factories. breed.
In the current context, livestock and poultry are often raised industrially on a large livestock farm system of thousands of hectares. The large amount of livestock entails the consumption of a large amount of feed as well as feeding activities. To facilitate feeding operations on large farms, automatic feeding systems are often chosen by farm owners. This system requires a large amount of feed (bran) to operate, so just by manually loading from the traditional bag system will take a lot of time. From there, the feed truck was born. Feed suppliers (bran suppliers) use feed trucks to directly transport finished bran from the factory to the farm without having to go through the bagging stage.
Reasons to use feed trucks:
* Saving packaging costs, reducing directly into the product wall, thereby benefiting both manufacturers and consumers. In
addition, contributing to environmental protection due to traditional bags made of nylon.
* No need to use labor for transportation, loading and unloading compared to the old transport.
* Save cost, storage area at the farm.
* Minimize loss caused by external factors.
* Synchronous, integrated automatic feeding system, accurate.
Classification of feed trucks:
Animal feed trucks are classified in a variety of ways depending on the requirements of customers. Basically, there are two main types of vehicles that classify feed pumps (bran trucks) as screw-type bran tank trucks and pneumatic-blown bran tank trucks .
The HINO FM 22m3 animal feed truck is directly manufactured by Vu Linh Automobile Joint Stock Company, based on the HINO FM truck platform . The vehicle ensures all inspection standards of the Vietnam Registry Department. Vehicles using a screw system are operated by pneumatic motors to make bran discharge quickly and efficiently
Animal feed truck (or bran tank truck) is a specialized vehicle with an import and discharge structure, containing tens of tons of bran per shipment, an indispensable product in feed factories. breed.
In the current context, livestock and poultry are often raised industrially on a large livestock farm system of thousands of hectares. The large amount of livestock entails the consumption of a large amount of feed as well as feeding activities. To facilitate feeding operations on large farms, automatic feeding systems are often chosen by farm owners. This system requires a large amount of feed (bran) to operate, so just by manually loading from the traditional bag system will take a lot of time. From there, the feed truck was born. Feed suppliers (bran suppliers) use feed trucks to directly transport finished bran from the factory to the farm without having to go through the bagging stage.
Reasons to use feed trucks:
* Saving packaging costs, reducing directly into the product wall, thereby benefiting both manufacturers and consumers. In
addition, contributing to environmental protection due to traditional bags made of nylon.
* No need to use labor for transportation, loading and unloading compared to the old transport.
* Save cost, storage area at the farm.
* Minimize loss caused by external factors.
* Synchronous, integrated automatic feeding system, accurate.
Classification of feed trucks:
Animal feed trucks are classified in a variety of ways depending on the requirements of customers. Basically, there are two main types of vehicles that classify feed pumps (bran trucks) as screw-type bran tank trucks and pneumatic-blown bran tank trucks .
The HINO FM 22m3 animal feed truck is directly manufactured by Vu Linh Automobile Joint Stock Company, based on the HINO FM truck platform . The vehicle ensures all inspection standards of the Vietnam Registry Department. Vehicles using a screw system are operated by pneumatic motors to make bran discharge quickly and efficiently
2. Details of HINO FM animal feed truck 22m3
2.1. Overview of the outside of the HINO FM animal feed truck 22m3
HINO FM 22m3 animal feed truck is developed on the basis of high quality HINO FM heavy truck. The vehicle is directly designed and manufactured by a team of engineers with more than 10 years of experience in manufacturing specialized vehicles at Vu Linh Automobile Joint Stock Company.
The HINO FM 22m3 animal feed truck inherits the strength from the design of the Hino family. The car stands out with 2 white and orange colors that are coordinated according to the brand identity of the user unit.
2.2. Interior
The interior of the car is designed to be spacious and fully equipped, including an adjustable driver's seat, air conditioning system and sound system.
HINO FM 22m3 animal feed truck is developed on the basis of high quality HINO FM heavy truck. The vehicle is directly designed and manufactured by a team of engineers with more than 10 years of experience in manufacturing specialized vehicles at Vu Linh Automobile Joint Stock Company.
The HINO FM 22m3 animal feed truck inherits the strength from the design of the Hino family. The car stands out with 2 white and orange colors that are coordinated according to the brand identity of the user unit.
2.2. Interior
The interior of the car is designed to be spacious and fully equipped, including an adjustable driver's seat, air conditioning system and sound system.

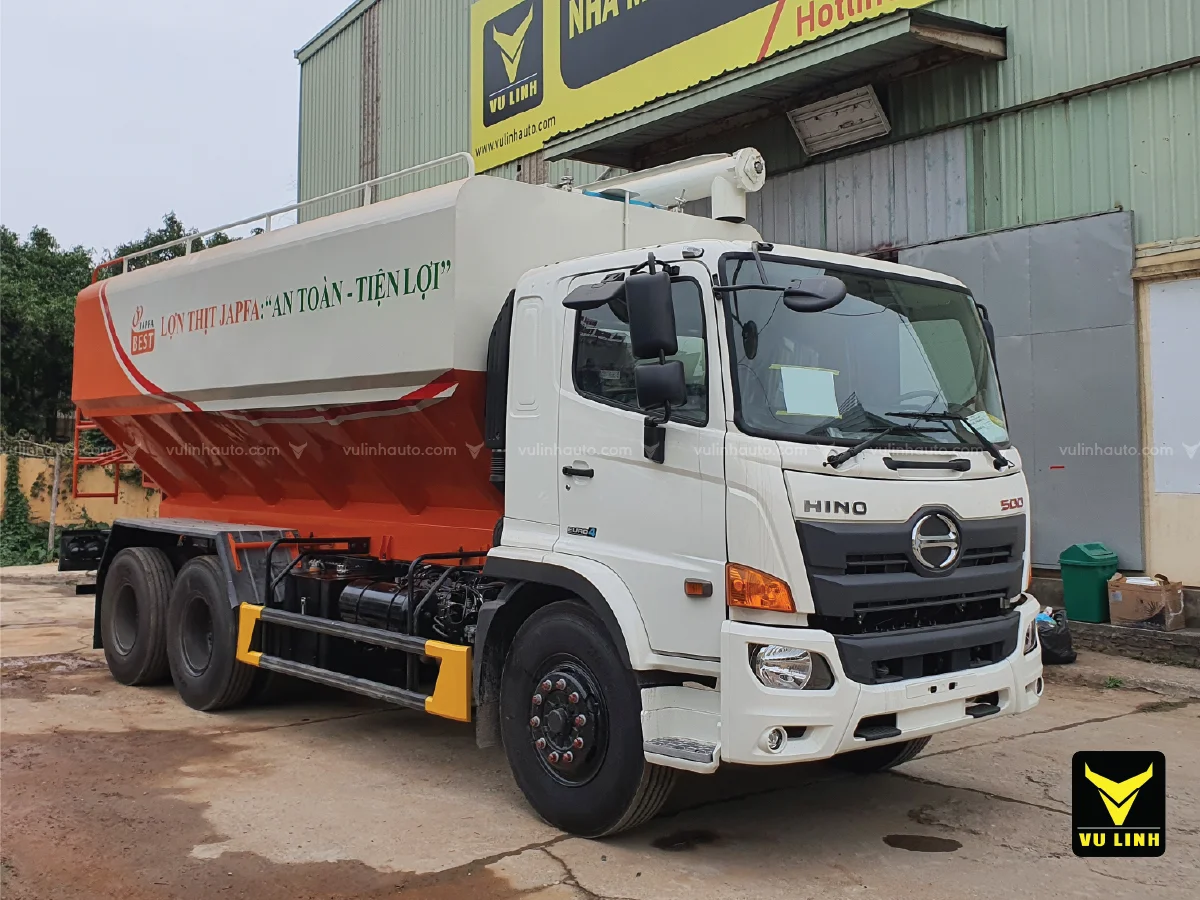

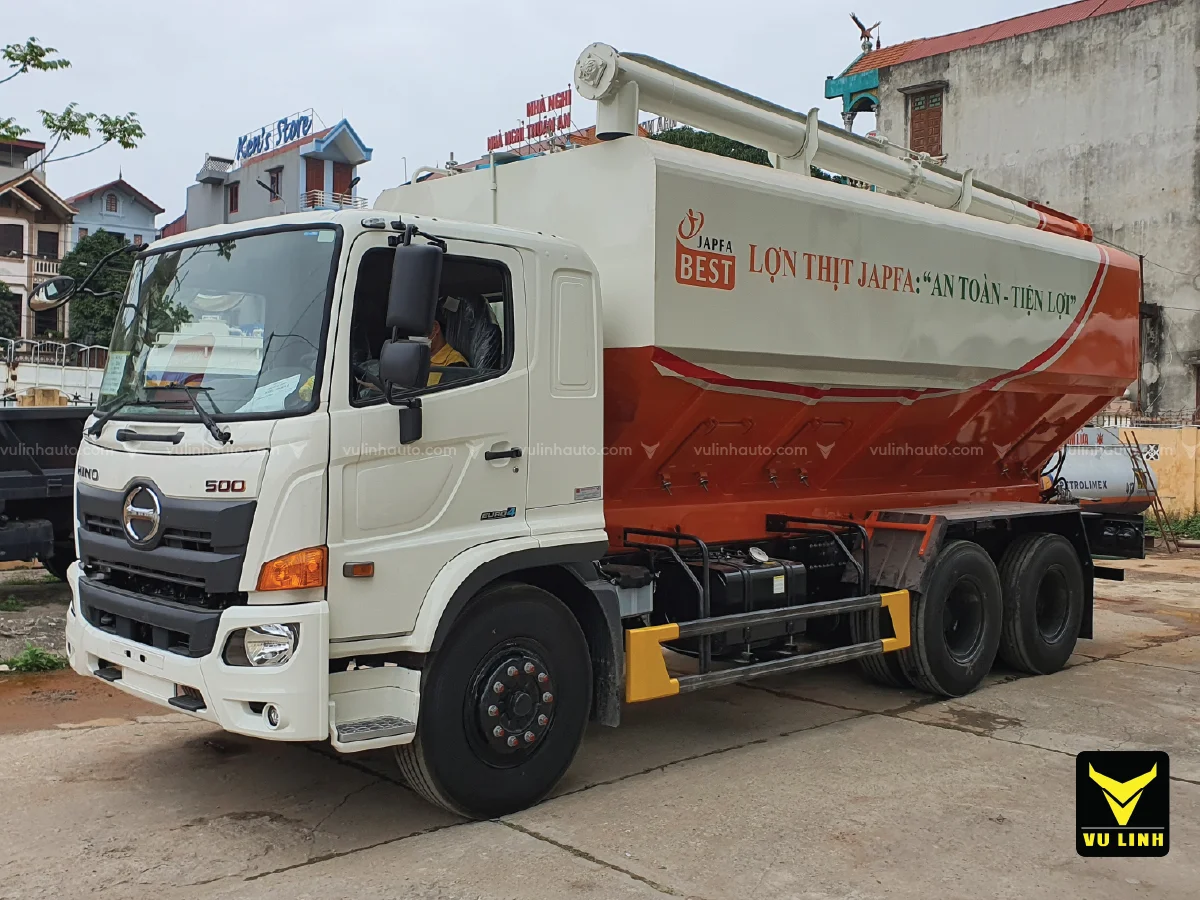

HINO FM feed truck 22m3
HINO FM feed truck 22m3
2.3. Engine:
The vehicle is equipped with a J08E-WD model engine with high performance, fuel economy, environmental friendliness, high durability and stable performance. Therefore, this type of engine is highly appreciated in the transportation industry.
2.4. Details of the dedicated tank of the HINO FM animal feed truck 22m3
The cistern (tank) uses a screw-type discharge mechanism with a hydraulic propulsion motor. Feed is discharged in independent chambers via the screw and loaded into feeding systems on farms.
The mobile boom system is controlled by a hydraulic motor capable of lifting and lowering, rotating in flexible directions to make the vehicle more convenient in the process of discharging into the food storage compartments on the farm. VU LINH AUTO offers an additional option for customers who have a need for remote control devices for this mobile screw system.
The tank system is made of thick, sturdy steel, which is separated independently and can be discharged separately in each compartment.
The vehicle is equipped with a J08E-WD model engine with high performance, fuel economy, environmental friendliness, high durability and stable performance. Therefore, this type of engine is highly appreciated in the transportation industry.
2.4. Details of the dedicated tank of the HINO FM animal feed truck 22m3
The cistern (tank) uses a screw-type discharge mechanism with a hydraulic propulsion motor. Feed is discharged in independent chambers via the screw and loaded into feeding systems on farms.
The mobile boom system is controlled by a hydraulic motor capable of lifting and lowering, rotating in flexible directions to make the vehicle more convenient in the process of discharging into the food storage compartments on the farm. VU LINH AUTO offers an additional option for customers who have a need for remote control devices for this mobile screw system.
The tank system is made of thick, sturdy steel, which is separated independently and can be discharged separately in each compartment.

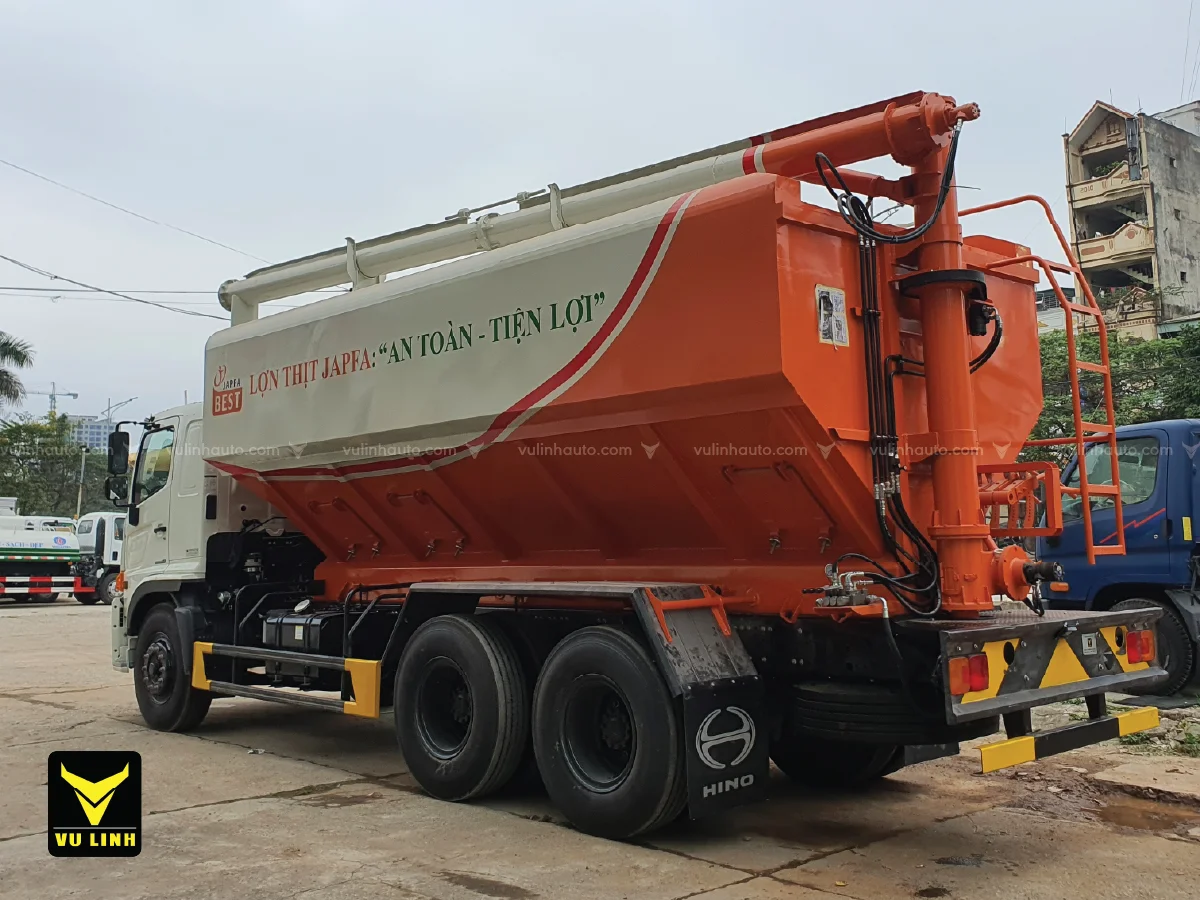

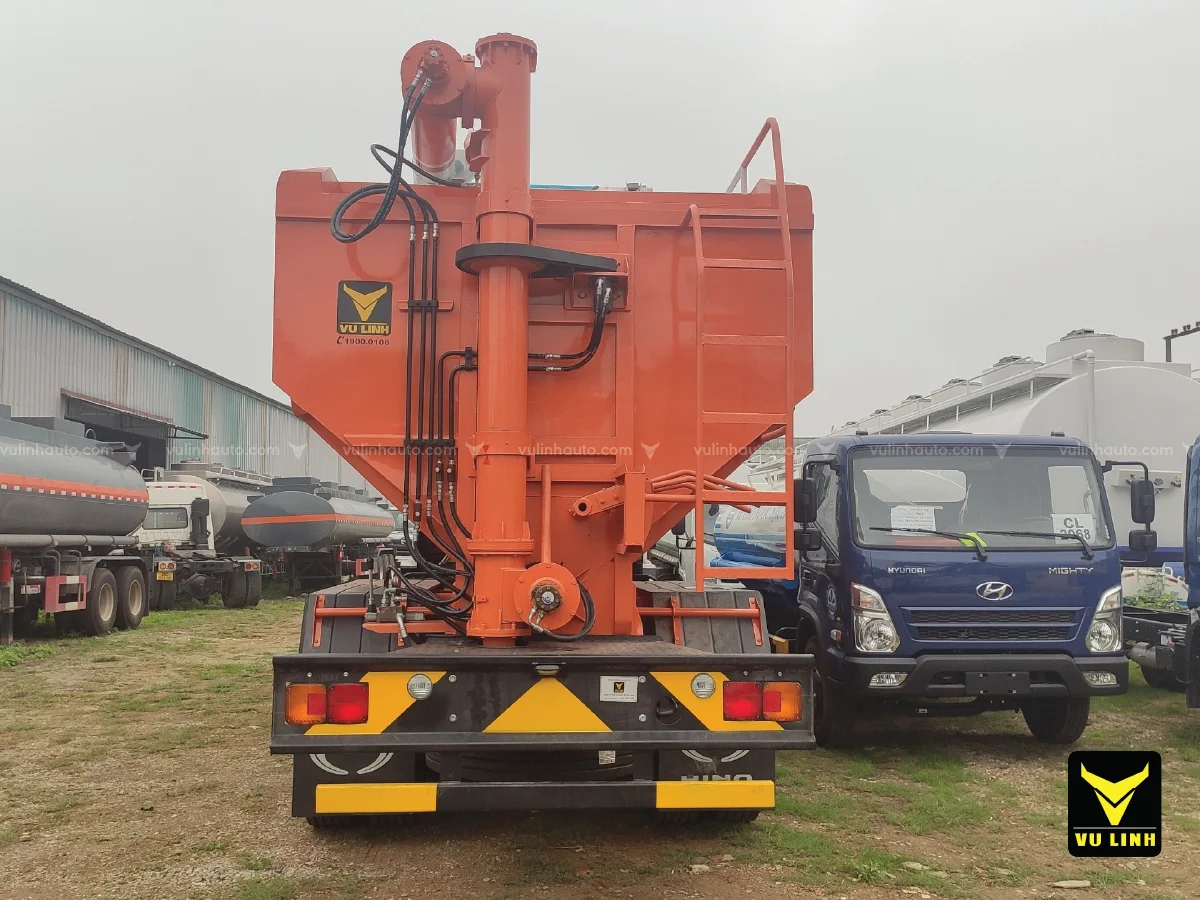

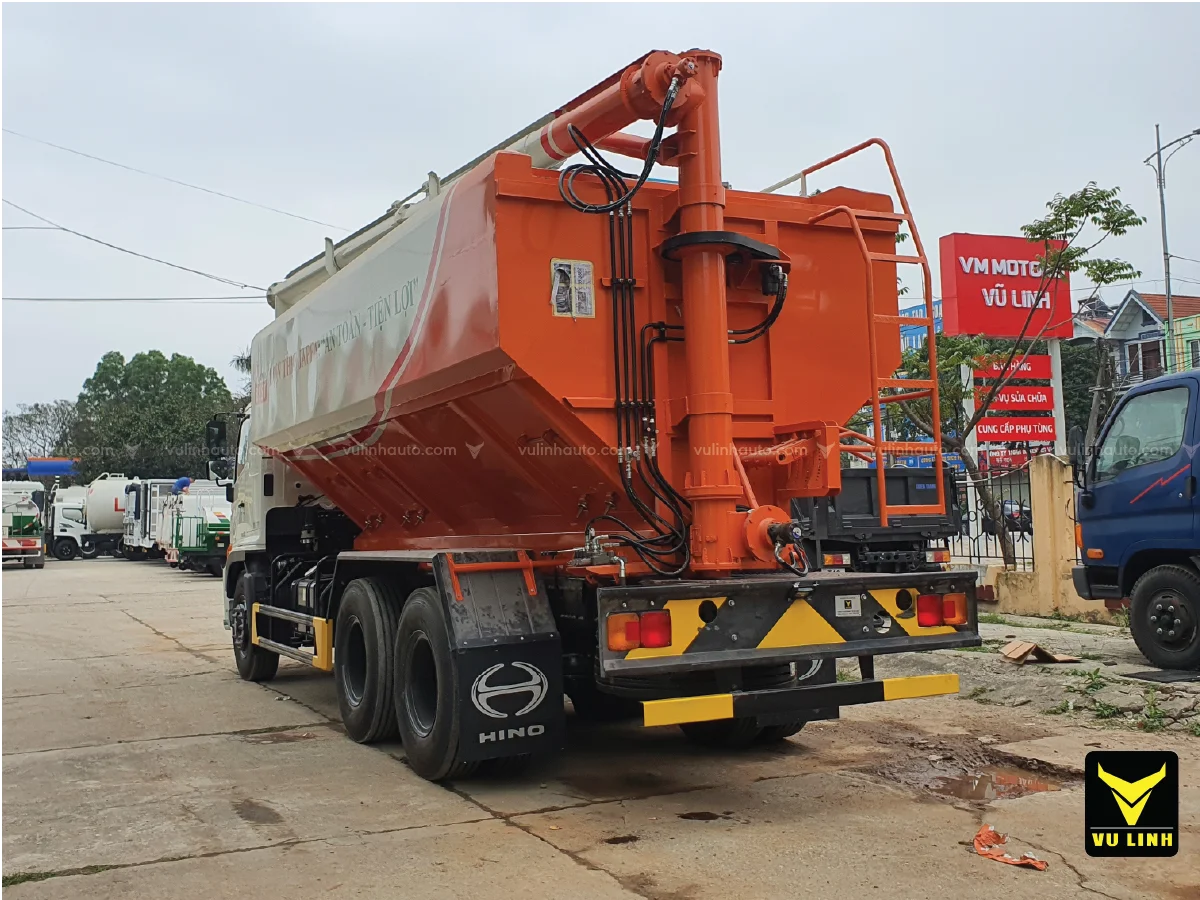

HINO FM feed truck 22m3
HINO FM feed truck 22m3
HINO FM feed truck 22m3
Specification
Weight | Design load (kg) | 12.66 | ||||
Unladen weight (kg) | 11.145 | |||||
Total weight (kg) | 24 | |||||
Length (mm) | 8.75 | |||||
Width (mm) | 2.5 | |||||
Height (mm) | 3.85 | |||||
Wheelbase (mm) | 4030+1350 | |||||
Speed | Top speed (km/h) | 90 | ||||
Cabin type | Standard cabin | |||||
Air-conditioner | Have | |||||
Engine | Model | J08E-WD | ||||
Cylinder capacity/capacity (kw/cm 3 ) | 206/7,684 | |||||
Emission standards | Euro IV | |||||
Chassis | Gear | 9 forward gears 1 reverse gear | ||||
Tire specifications | 11.00 R20 | |||||
Tire number | 10 +1 (spare tire) | |||||
Technical parameters of tanks carrying bran and animal feed | ||||||
Capacity (expected) | About 22m 3 | |||||
Number of compartments | 3 compartments, with 03 inlet covers (on the roof) and 03 outlets (on the side) | |||||
Materials for making cement | SS400 steel, 3mm . thick | |||||
Length x WIDTH X HEIGHT | 6.500×2.490×2.000 mm | |||||
Dedicated system | Discharge system | Hydraulic drive screw | ||||
6040xØ220 | ||||||
Driven by hydraulic motor, origin: MS Bulgaria | ||||||
6500xØ220 | ||||||
6500xØ220 | ||||||
Driven by hydraulic motor, origin: MS Bulgaria | ||||||
2540xØ220 | ||||||
Driven by hydraulic motor, origin: MS Bulgaria | ||||||
Materials for making screws, blades + tubes | Steel, manufacturing Vietnam | |||||
Rotary mechanism | Vertical screw rotary mechanism + horizontal screw rotary mechanism made of CT3 steel, wear-resistant heat treatment | |||||
Lifting system needs to be done by hydraulic, cylinder stroke 600 mm, made in Vietnam | ||||||
Hydraulic pump 90cc/min, origin: Ronzio- Italy; PTO drive through the posts | ||||||
Swing system | Driven by hydraulic motor, origin: MS Bulgaria with chain transmission | |||||
Control valve | 3 hands, origin BLB – Italy | |||||
Paint technology | Standard surface cleaning ball bowl SA 2.5. | |||||
Anti-rust paint + safe PU-based paint color | ||||||
