Высокое качество Заводская цена L20BH шкив тип

Категория: Other Power Transmission Parts >>>
Поставщик: Yancheng,Goodlark,International,Trade,Corp.,Ltd.

Цена:40,00 $ - 45,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	48.85 $*	50.34 $*
Aug-18-2025	47.75 $*	49.11 $*
Jul-18-2025	40.51 $*	42.35 $*
Jun-18-2025	46.16 $*	48.63 $*
May-18-2025	40.7 $*	42.13 $*
Apr-18-2025	46.34 $*	48.23 $*
Mar-18-2025	45.37 $*	47.12 $*
Feb-18-2025	45.77 $*	47.65 $*
Jan-18-2025	44.36 $*	46.95 $*

Характеристики

Products Description

Centrifugal clutch is mainly used in power transmission of general machinery, and is widely used in construction machinery and railway maintenance machinery.

Centrifugal clutch has some characteristics that other clutch does not have, and is widely used in industry, especially in some field work machinery. Mainly used in: small construction machinery, garden machinery, construction machinery, railway maintenance machinery, small drilling machinery, fans, compressors and other occasions.

The centrifugal clutch is motivated by prime motor's own rotating speed to achieve the engagement and separation of the clutch between active part and driven part and it has following features:

1. The torque of clutch depends on centrifugal force, so it can not transmit the load bigger than the rated torque. If the driven side is overloaded, the clutch will be slipping. It should not be installed in the low speed shaft to use, because at the low speed, in order to reach the enough centrifugal force, the structure size should be enlarged, which will increase its cost.

2. Due to the centrifugal force of centrifugal clutch is proportional to the square of the rotating speed, while the output power changes with the cube of the working speed, it should not be used in the transmission system and apply to the occasions of frequent startup or starting up with too long time.

3.For the working machinery which is directly started up, using centrifugal clutch can reduce the start-up load and get the
stable start-up effect, and when it is used in the motor, it can significantly reduce the start-up current.

Parameters and structure Size

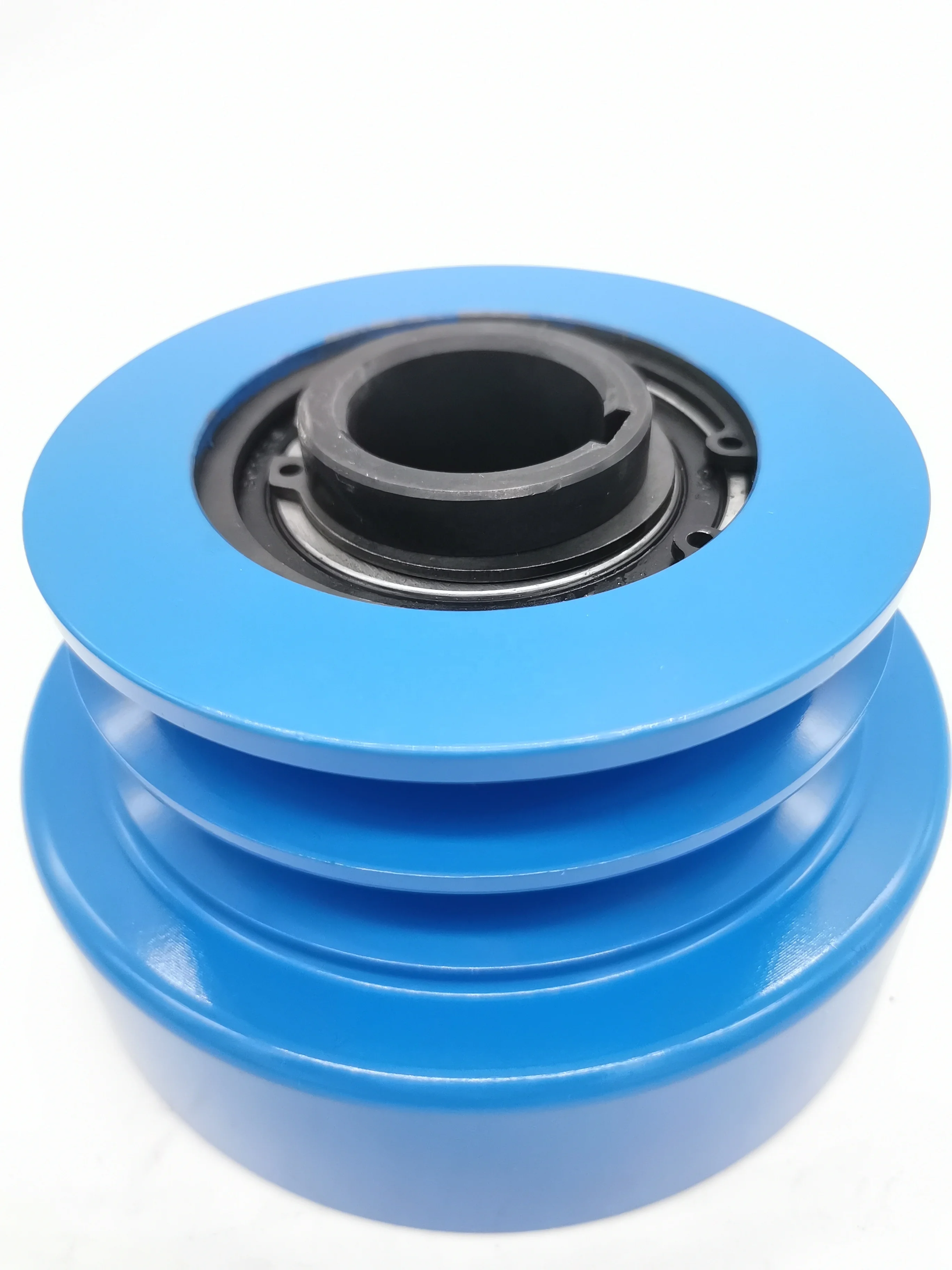

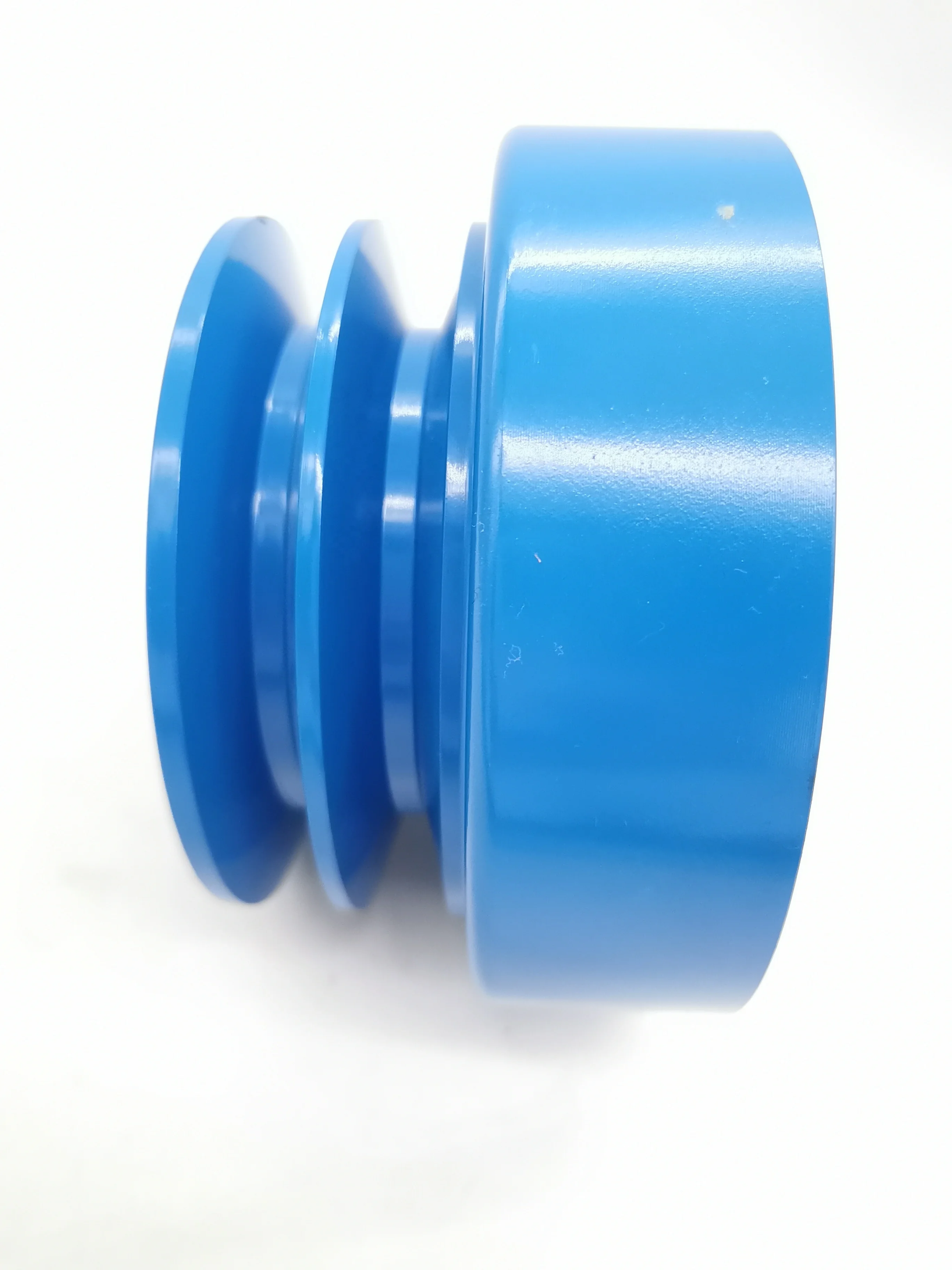

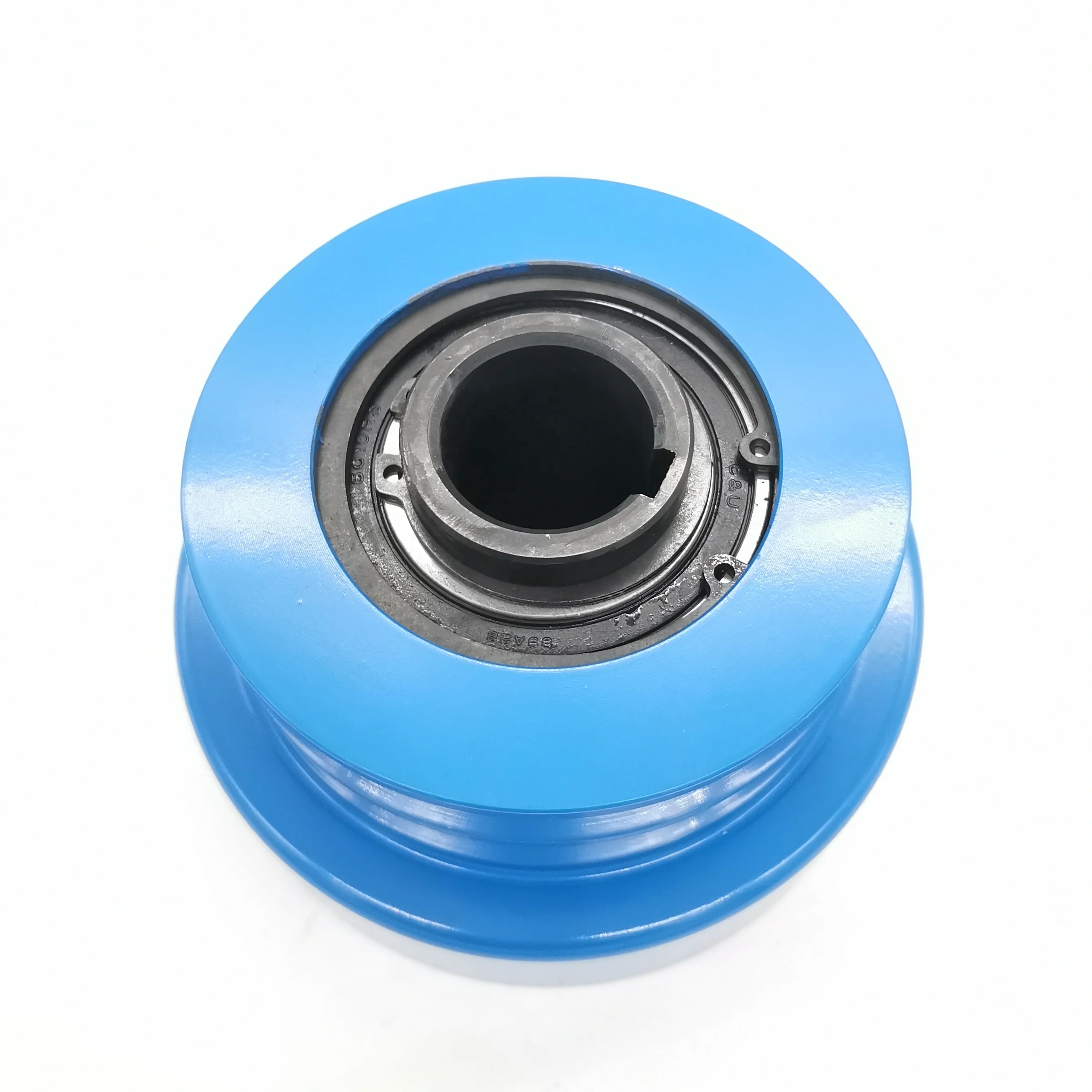

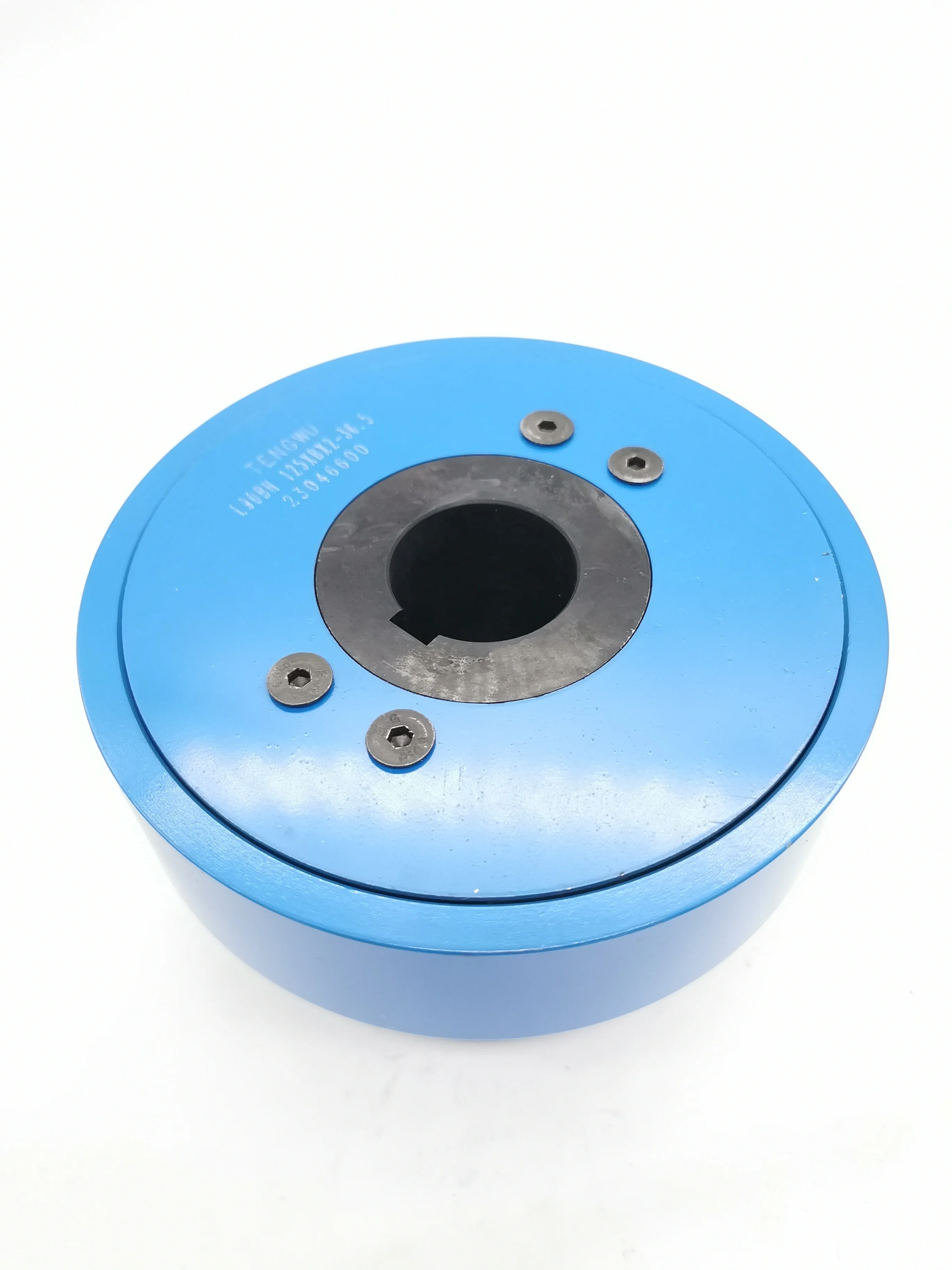

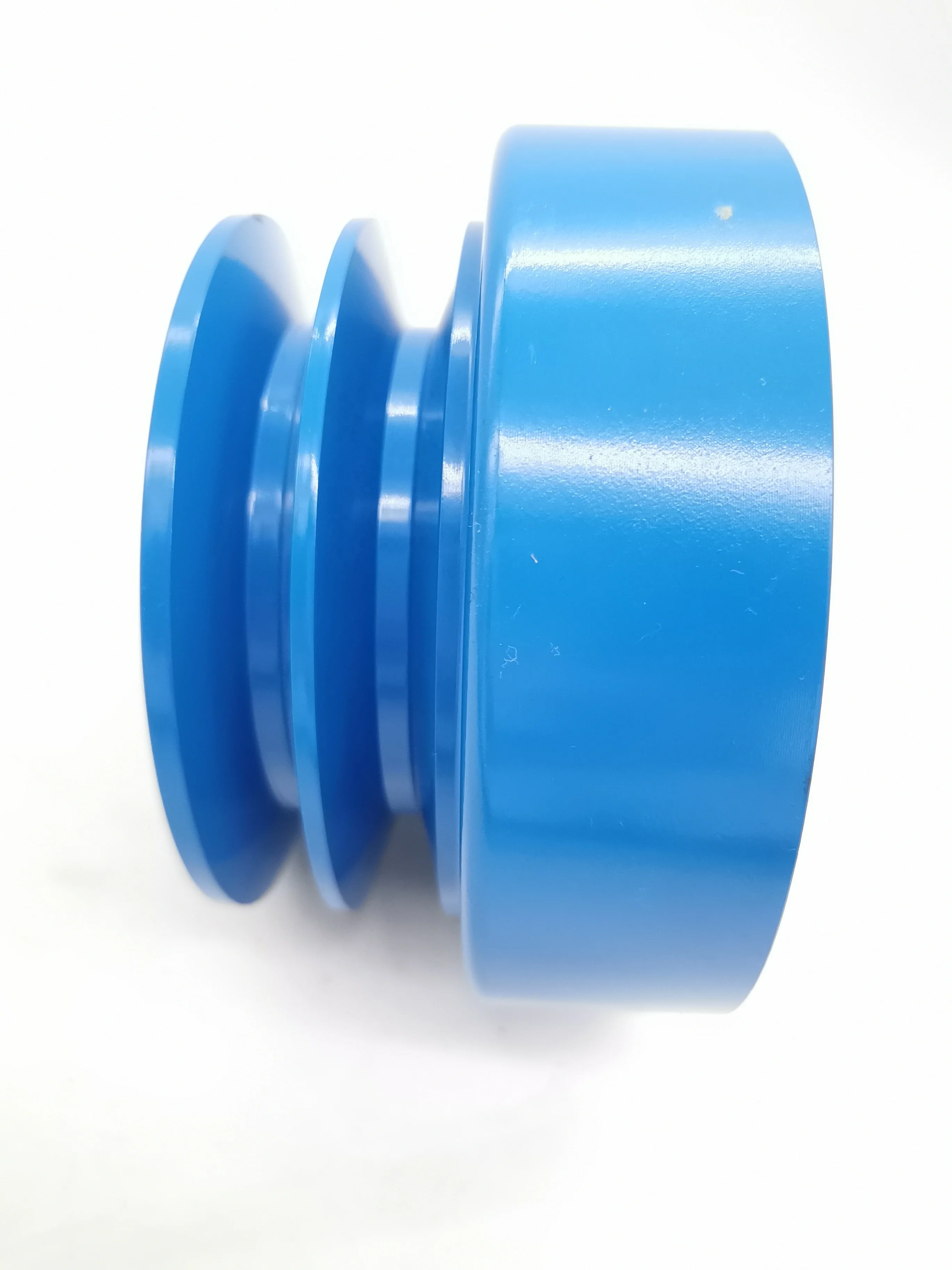

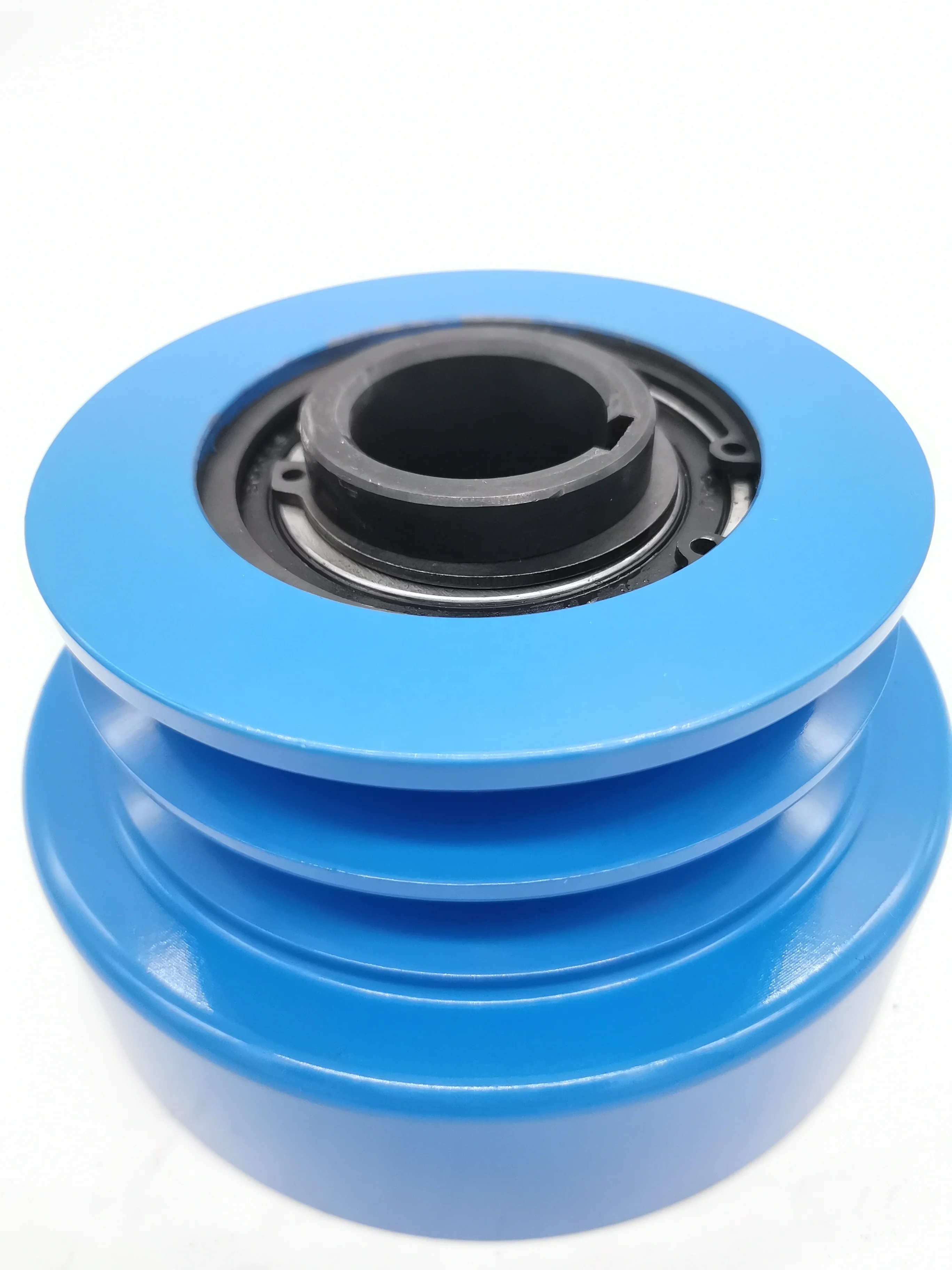

In terms of the structure of centrifugal clutch, it can be divided into two types, belt pulley type and coupling type.

Remarks:1) bores and belt pulley can be manufactured on request.

2) Motor power is calculated using a safety factor of 2.0.

Remarks:1) the proper alignment for input and output is less than ±0.1 .

2) F、H1、H2 can be manufactured on request.
