Характеристики
SURELINK outdoor duct underground loose tube 12 24 36 48 core
armored single mode GYTA fibra optica cable
PRODUCT SPECIFICATIONS
1.Product Structure
2.Technical specification

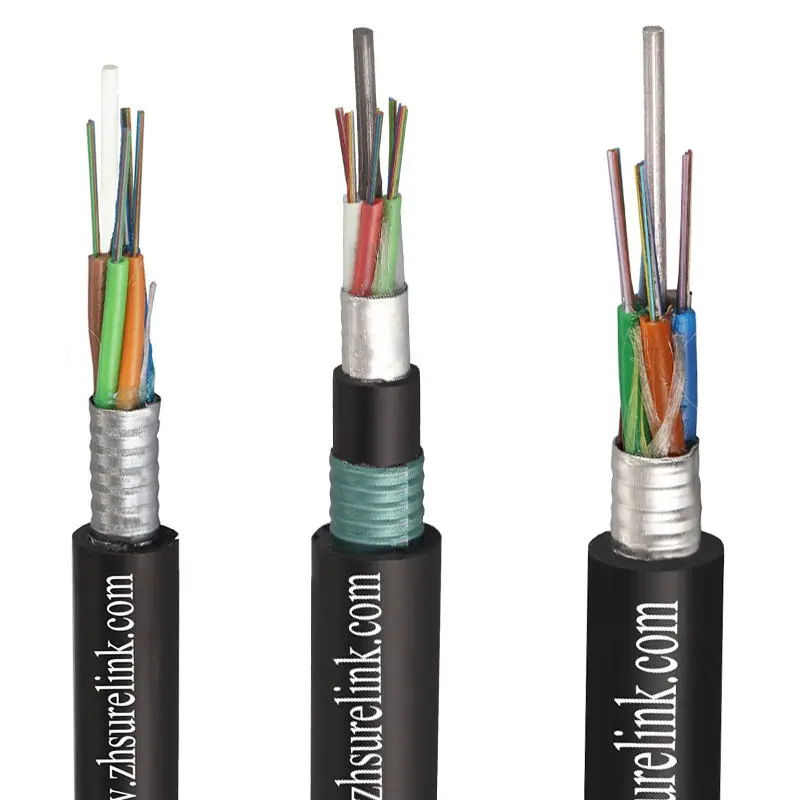

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
Product Construction:
1. Fiber:
2-288 fiber
Multi-loose tube gel-filled
2. Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
3. Armor:
Aluminum Tape Armor
4. Outer Jacket:
Black UV Polyethylene(PE)
Features:
•Up to 288 fibers.
•Loose tube gel-filled construction for superior fiber protection.
•Aluminum tape armor to protect cable from mechanical damage.
•UV and waterproof design.
Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.
Product Construction:
1. Fiber:
2-288 fiber
Multi-loose tube gel-filled
2. Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
3. Armor:
Aluminum Tape Armor
4. Outer Jacket:
Black UV Polyethylene(PE)
Features:
•Up to 288 fibers.
•Loose tube gel-filled construction for superior fiber protection.
•Aluminum tape armor to protect cable from mechanical damage.
•UV and waterproof design.
Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.
3.Optical Characteristics:
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | ||
Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | |||
1300 nm | <1.0 dB/km | <1.0 dB/km | ||||
1310 nm | <0.36 dB/km | <0.40 dB/km | ||||
1550 nm | <0.22 dB/km | <0.23 dB/km | ||||
Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | |||
1300 nm | >500 MHz-km | >500 Mhz-km | ||||
Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | ||||
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | ||||
Structure and Technical Specifications:
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of(Tubes+ fillers) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) | ||||
Short Term | Long Term | Short Term | Long Term | |||||||
2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 | ||
38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 | ||
74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 | ||
98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 | ||
122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 | ||
146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 | ||
218~288 | 19.0 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 | ||
