Лидер продаж фиксирующее блокирующее

Категория: Other Power Transmission Parts >>>
Поставщик: Hangzhou,Ever-Power,Transmission,Co.,Ltd.

Цена:45,00 $ - 50,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	57.34 $*	58.50 $*
Jul-18-2025	46.65 $*	47.30 $*
Jun-18-2025	56.51 $*	57.57 $*
May-18-2025	56.27 $*	57.46 $*
Apr-18-2025	45.49 $*	46.64 $*
Mar-18-2025	55.62 $*	56.74 $*
Feb-18-2025	54.46 $*	55.3 $*
Jan-18-2025	54.22 $*	55.52 $*

Характеристики

Product Effects

Product Description

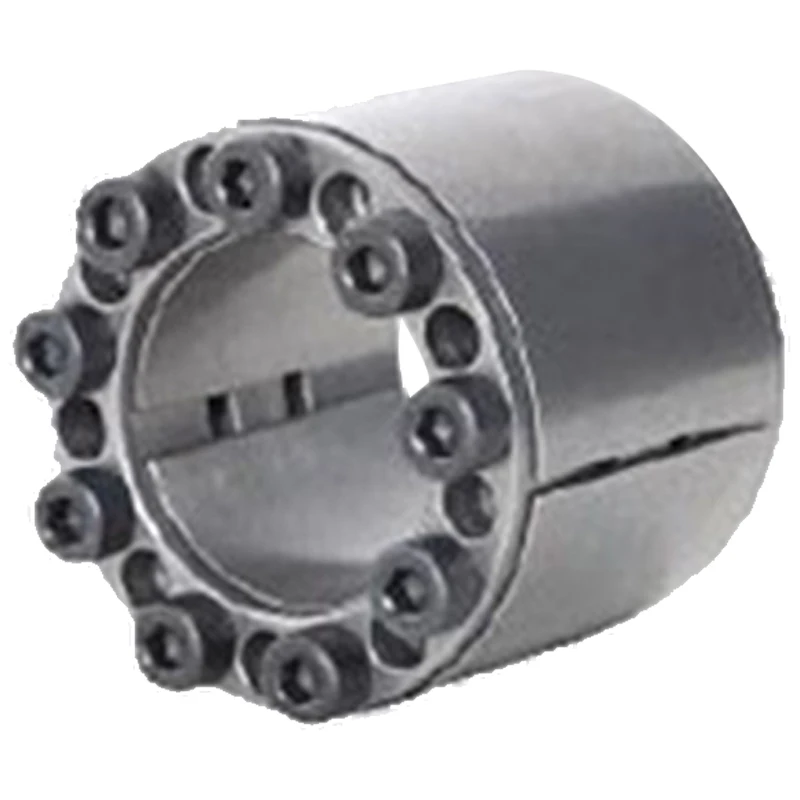

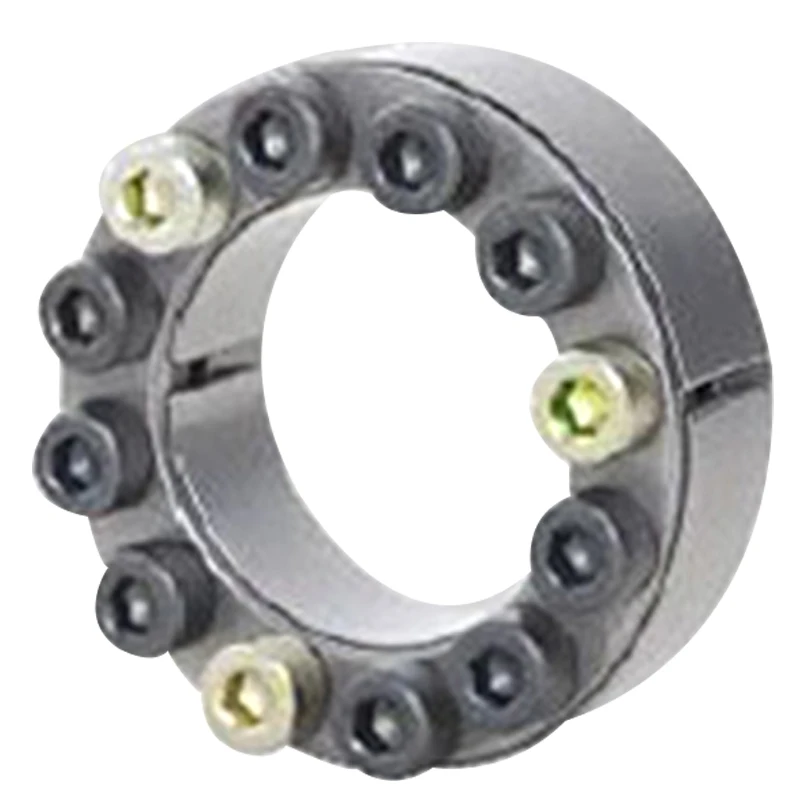

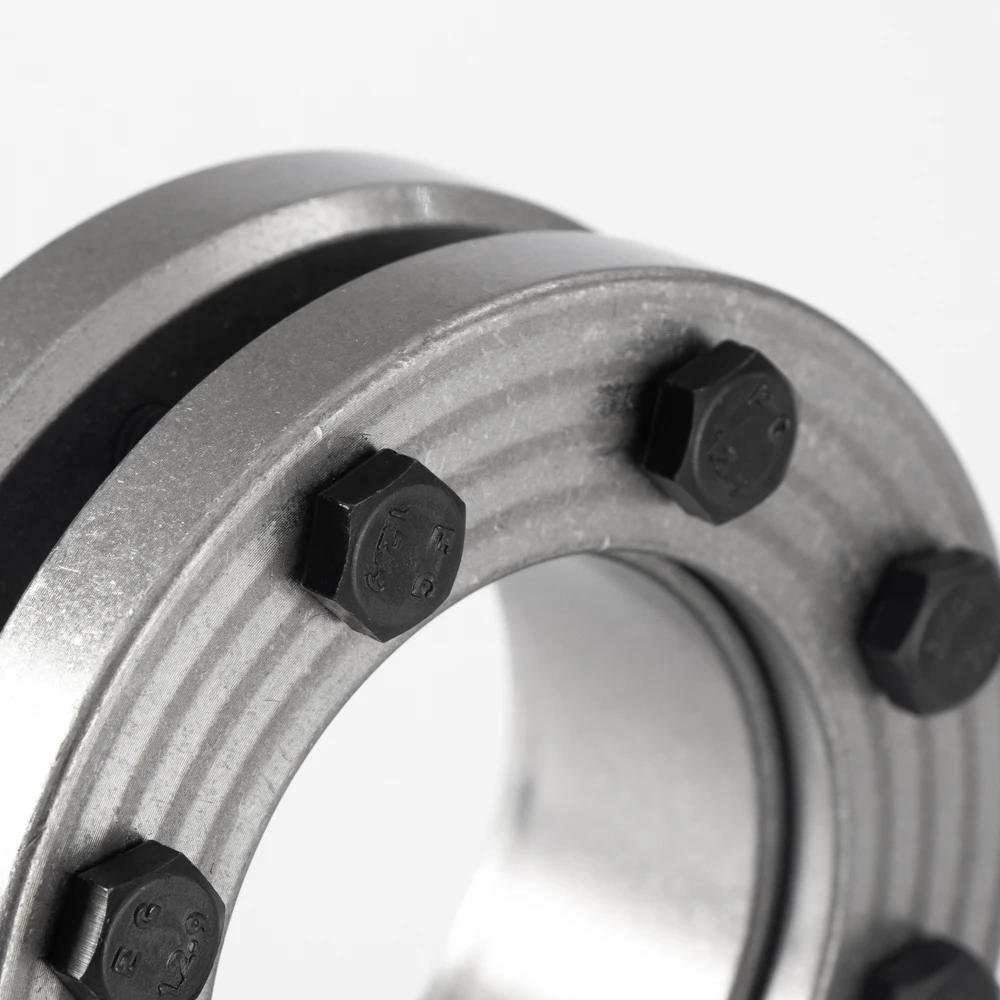

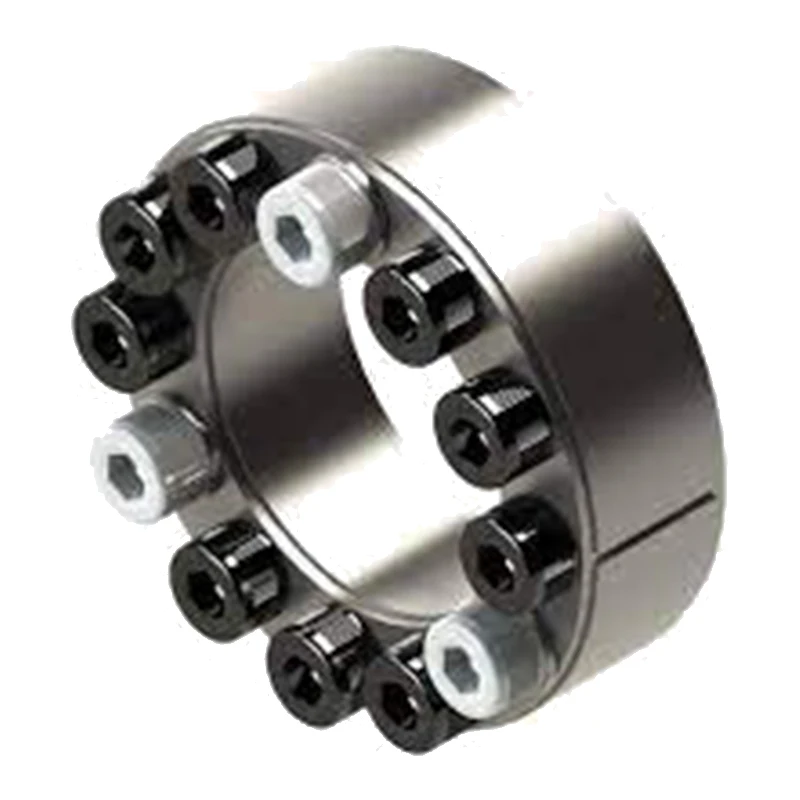

Description of Locking Device Assembly Z7 Power Transmission Component Cone Clamping Elements

It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

Data sheet of Locking Device Assembly Z7 Power Transmission Component Cone Clamping Elements

Model		Z7 Cone Clamping Elements
Pressure on Shaft (N/mm²)		120
Pressure on Hub (N/mm²)		92-108
Rated Load (kN.m)	Force	15-666
	Torque	162-45000
Inner Race Size (mm)		24-175
Outer Race Size (mm)		50-300
Thickness (mm)		23-81
Weight (Kg)		0.2-22
