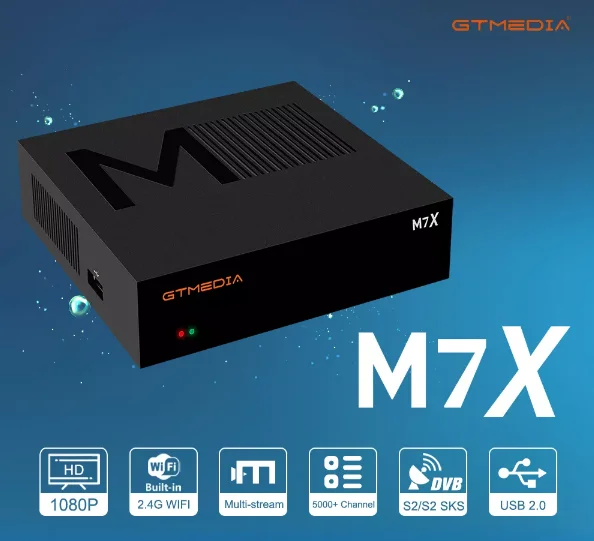

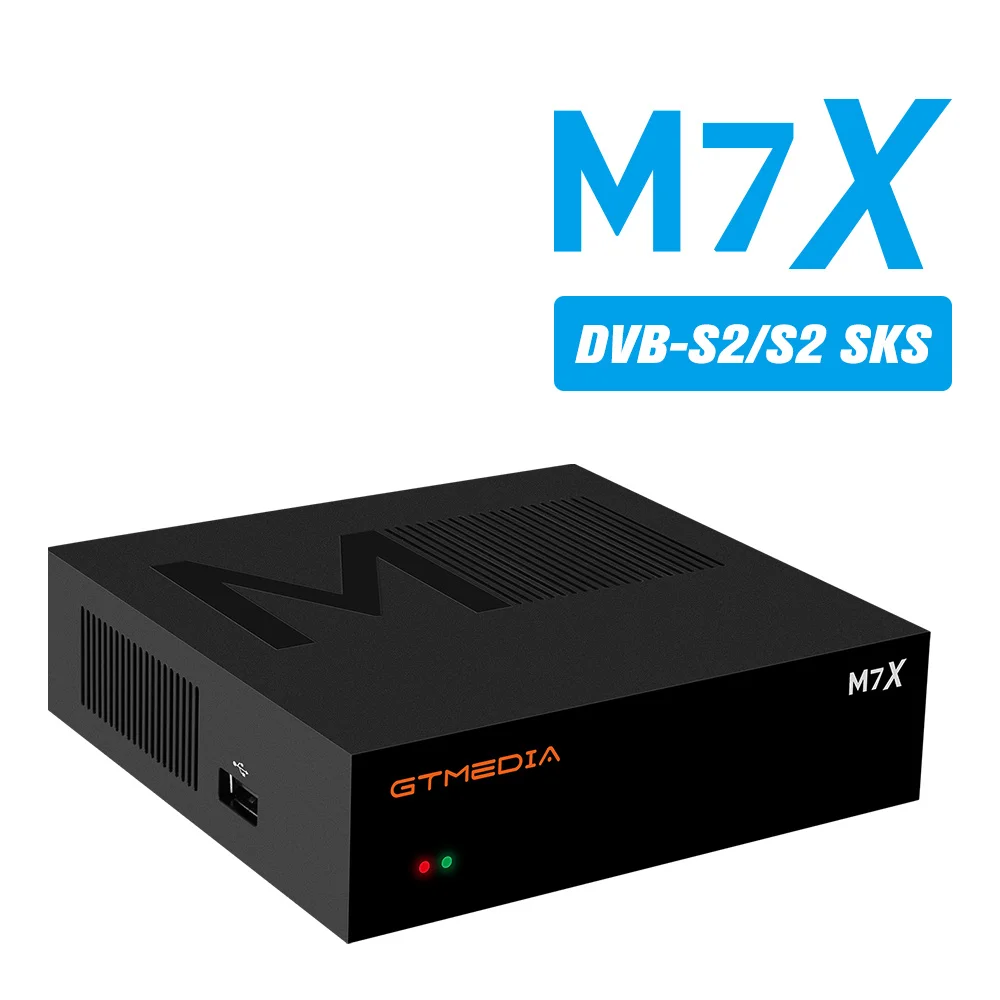

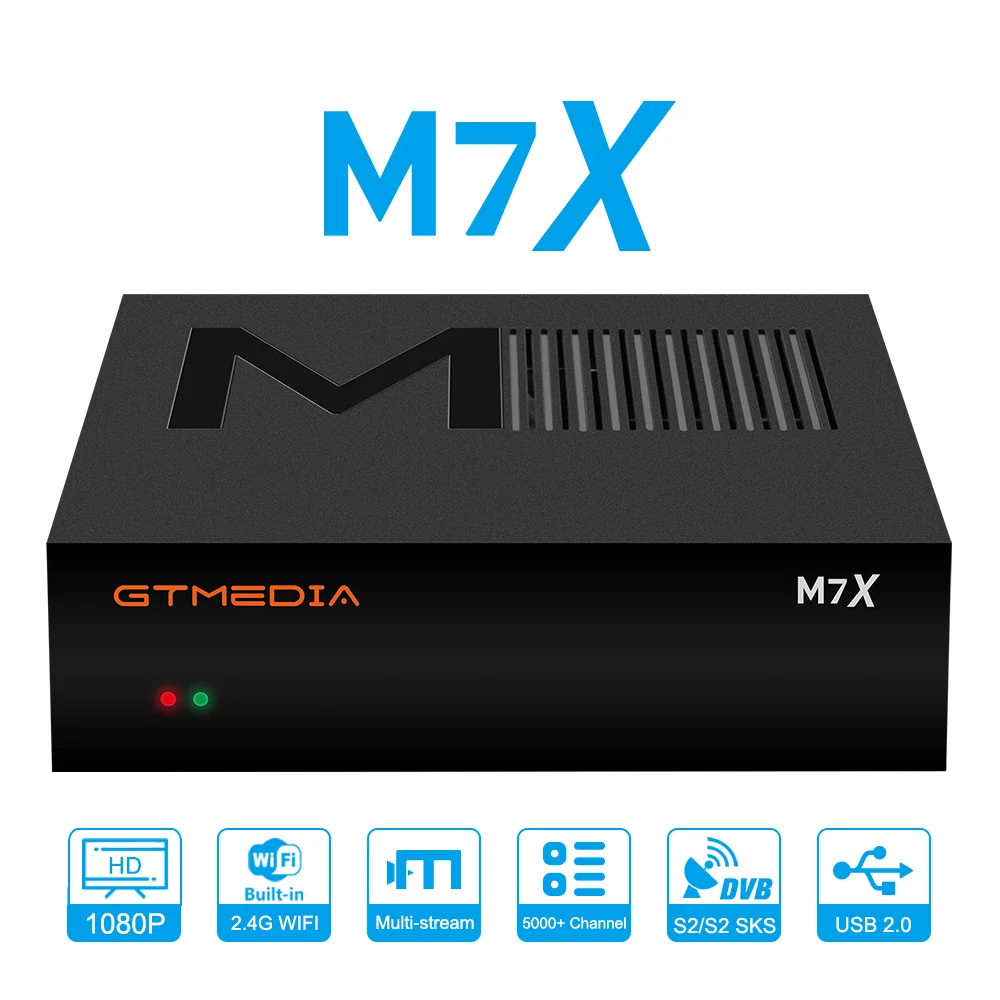

Новинка 2022 GTMEDIA M7X поддержка SKS DVBS2 VCM/ACM/многопотоковый HEVC Main 8 профильная кабина Twin

Highlight

1.Support DVB-S2 VCM/ACM/multi-s tream, HEVC main 8 profile, AVS+

2.Support Biss key;

3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;

4.Support DLNA;

5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;

6.Support Online Movie (Youtube), Weather

7.Support IPTV (Freesat LIVE Feesat SERIES Feesat FILMES);

8.Twin tuner lKS &SKS receiver

9.Support Network Sharing IKS,C ccam,Newcam

10.Support IKS keys 63W,75W and many more

11.Support SKS Satellite 70W and many more

Note: We reserve the right to change the design and OEM/ODM supported

Main Chip Sets

CPU

ALI M3526

Flash Memory

8MB SPI Flash

DDR3 Memory

256M DDR3

TS Demux

Demultiplexer

ISO/IEC 13818-1

Input Bit Rate

Max 100Mbit/s

Video Decode

Video Decode

HEVC main profile@level 4.1 and main 8 profile@L4.1,High tier
MPEG-2 MP@ML
H.264 BP,MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder

TV System

Automatic PAL/NTSC conversion

Aspect Mode

Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

Video Resolution

1080P, 1080I, 720P, 576P, 480P, 576I, 480I

Display Setting

Brightrss，Contrast，Saturation，Hue，Sharpeness

Audio Decode

Audio Decode

MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
Dolby AC3/AC3+,

Sound Mode

LEFT/RIGHT/STEREO/MONO

Sampling Frequency

32KHz,44.1KHz,48KHz

Audio Out

LPCM Out, BS Out

LED Indicator

Lock:Green; Standby :Red

Button

Not

Wifi

Built in 2.4G WiFi Support IEEE 802.1.1b/g/n

IR

Exit IR for 38KHz,Infra Remote control

Rear Panel

LNB1 IN (Frequency Range950MHz to 2150MHz)

LNB2 IN (Frequency Range950MHz to 2150MHz)

HD OUT (up to 1080P)

2*USB HOST

1*RJ45

DC IN (DC12V/2.2A)

DVB-S 2+S2 specificati-ons

System standard

ETS 302 307

Frequency Range

950~2150MHz for DVB-S/S2 baseband demodulator

LNB Power and Polarization

DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection

Input Level Range

-80dBm ~ -20dBm (average power)

Symbol Rates

DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,

Forward error correction rate

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range

±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Symbol Rates

2 ~ 90MSPS(Code Rate 1/2)

Roll-off factors

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Code Rates

1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,

ANT. Connector

Connector:IEC TYPE F Input Impedance:75 Ω

Sortware Features

Standard

Fully comply with DVB-S/S2 (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard

Channel Search

Support automatic network search for new added transponders

Channels Number

5000+ channels TV and Radio programmable

Channel

Recording one channel, can view another channel under the same TP,Various channel editing
function(favorite,move,lock,skip,delete,rename,find,sort)

Favorites

10 different favorite groups selection

OSD Language

English,Français,Español,Português

OSD Color

16-bits OSD with anti-flickering

OSD Setting

Support OSD Timeout and Transparency,

Other Setting

LNB Power on/off, Channel Play Type,Beeper, Auto standby, TS Delay

Parental Ctrl

Parental control for channels

Easy Menu

Plug and Play installation, with an easy to use Menu System

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Subtitle

support DVB EN300743 and EBU

Teletext

support DVB ETS300472 by VBI

SoftUpgrade

Software upgrades through USB port

Time Set

Time set by GMT offset automatic and manual,Summer Time support

Timer

8 event timers,off/Once/Daily/ Mode

USB Decode

USB 2.0

Support FAT/FAT32/NTFS big capacity hard disk

PVR Option

USB 2.0 for PVR,TIMESHIFT,media files playback

Media Codec

TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files

Audio Codec

WMA,MP3

Photo Codec

JPG, BMP, PNG, GIF
