Хорошее качество Прямая поставка с завода товары для двоих душевая кабина
- Категория: Air Cleaning Equipment >>>
- Поставщик: Henan,Chuangqin,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.2 $* |
| Aug-19-2025 | 0.75 $* | 0.52 $* |
| Jul-19-2025 | 0.72 $* | 0.49 $* |
| Jun-19-2025 | 0.53 $* | 0.41 $* |
| May-19-2025 | 0.70 $* | 0.88 $* |
| Apr-19-2025 | 0.34 $* | 0.0 $* |
| Mar-19-2025 | 0.98 $* | 0.7 $* |
| Feb-19-2025 | 0.72 $* | 0.9 $* |
| Jan-19-2025 | 0.83 $* | 0.11 $* |
Характеристики
Good quality factory directly Double People goods air shower room for clean room
Product Description:
Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the Air Shower Cleaning Equipment while particulate contaminants are blew off by the clean high speed air. So the duct cannot be brought into clean area
Good quality factory directly Double People goods air shower room for clean room
Technical Parameter:
| Model | CQ-AS-01 | CQ-AS-02 | CQ-AS-03 | |
| Type | Single person Double blow | Double person Double blow | Three person Double blow | |
| Operator number | 1-2 | 3-4 | 3-6 | |
| Body material (external) | : 1.2mm cold rolled steel plate (Electrostatic paint) : 304/316# stainless steel (mirror/sanding) | |||
| Internal material | 304/316# stainless steel (mirror/sanding) | |||
| Channel bottom plate | 304/316# stainless steel | |||
| Door | 5mm tempered glass window | |||
| Interlocking function | Adopts fully automatic control operation, double-door electronic interlocking, induction automatic blowing. | |||
| Filter purification efficiency | ≥0.5um at ≥99.99% | |||
| HEPA Filter Size&Qty | 610*610*100x1 | 610*610*100x2 | 610*610*100x3 | |
| Nozzle wind speed | 23-25m/s | |||
| Nozzle | 304/316# stainless steel | |||
| Number of nozzle | 12 | 24 | 36 | |
| Air shower time | 0~99 seconds (adjustable) | |||
| Circulating air volume | 800~1000m³/h | |||
| Power | 3φ 380V-50Hz | |||
| Maximum power | 0.75KW | 0.75KW*2 | 0.75KW*3 | |
| Outside size (W*D*H) | 1100*1000*2080mm | 1100*2000*2080mm | 1240*3000*2180mm | |
| Working size (W*D*H) | 730*900*1930mm | 730*1900*1930mm | 790*2900*1950mm | |

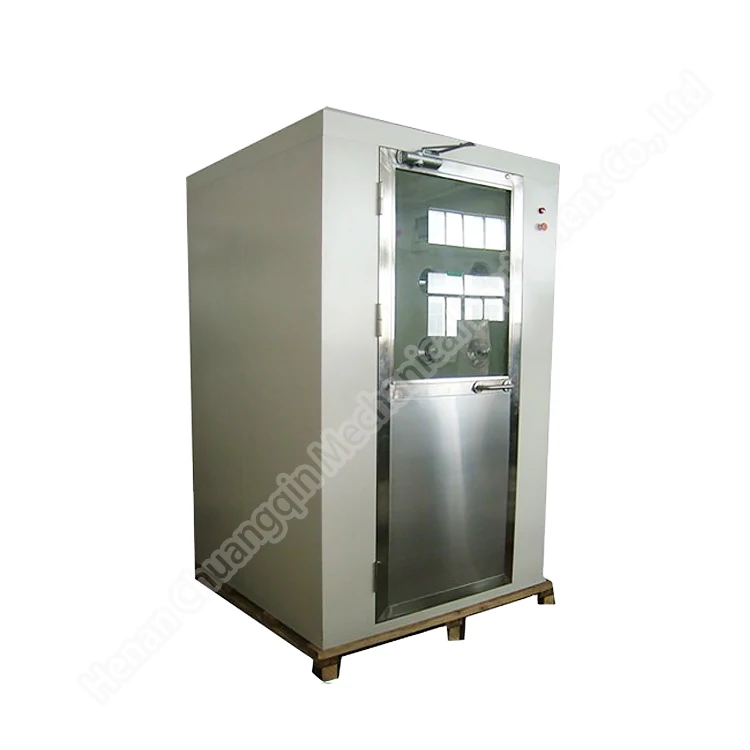

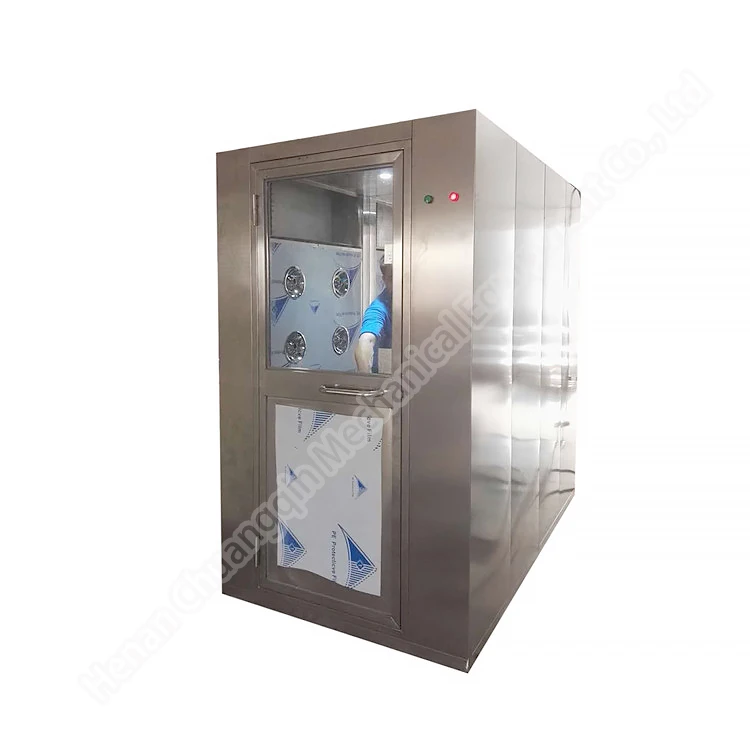

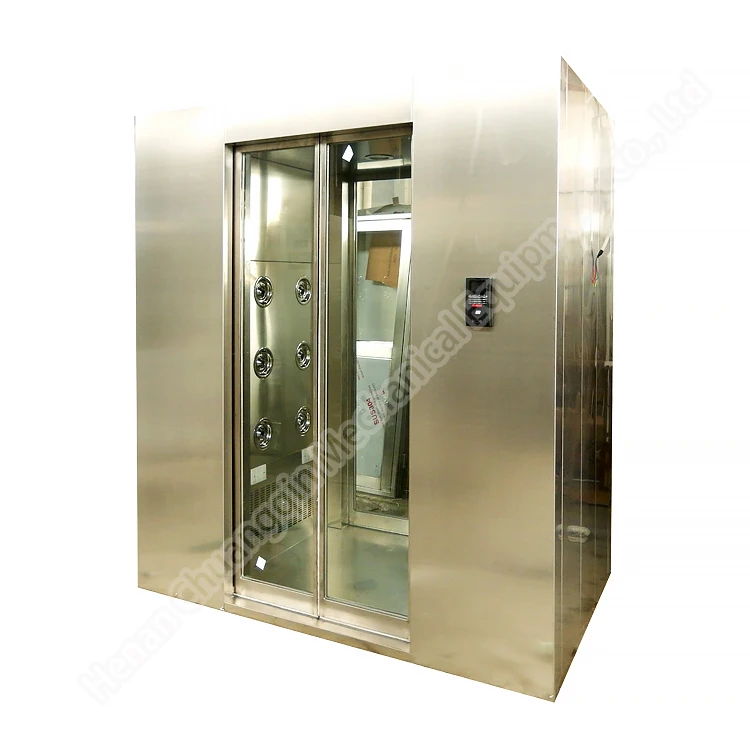

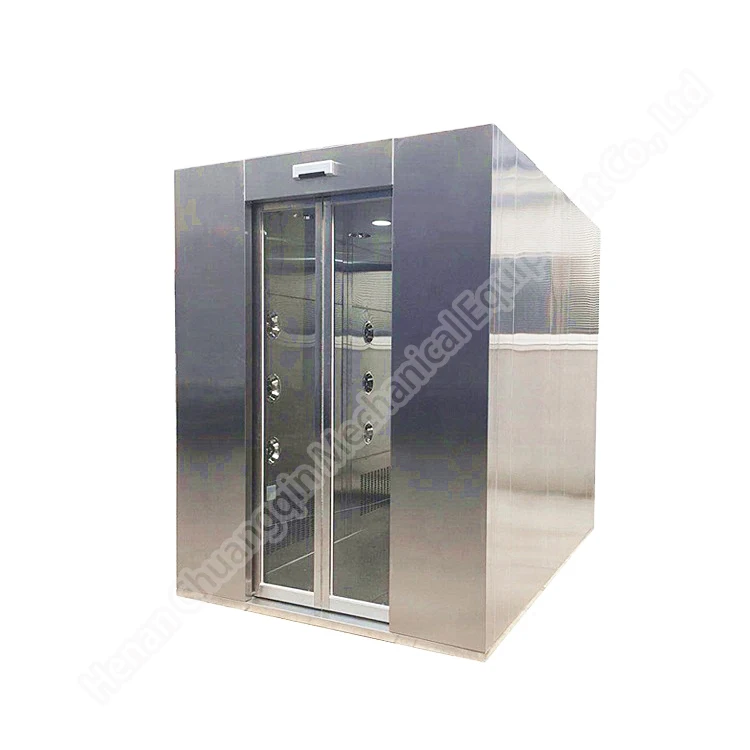

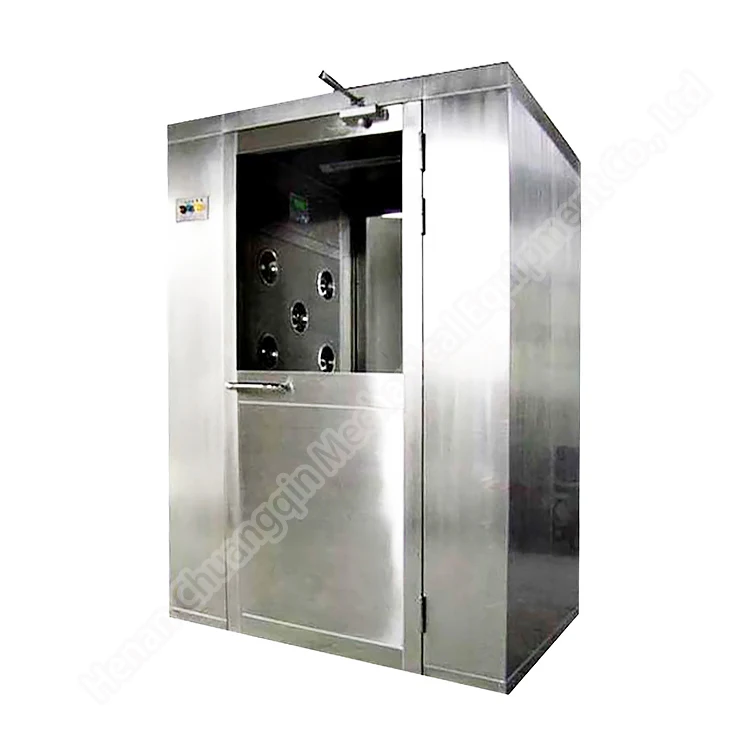

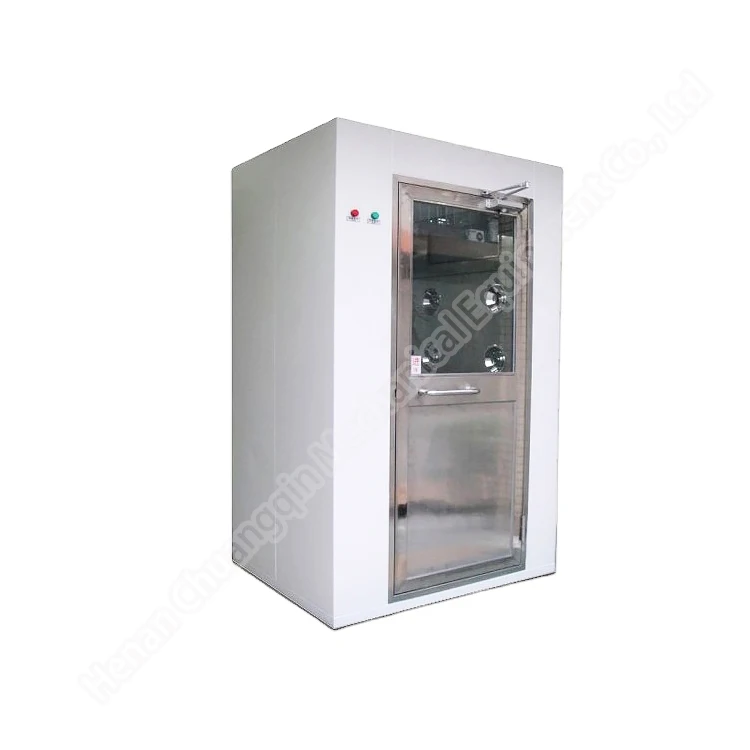

Products Details :
Good quality factory directly Double People goods air shower room for clean room
Product features:
1. Photoelectricity control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding Air Shower Cleaning Equipment according to users requirement.
5. Equipped with the device to remove static.
6. Carry on air brake, cushion type and other particular design, manufacturing.
Scope of application:
Good quality factory directly Double People goods air shower room for clean room
