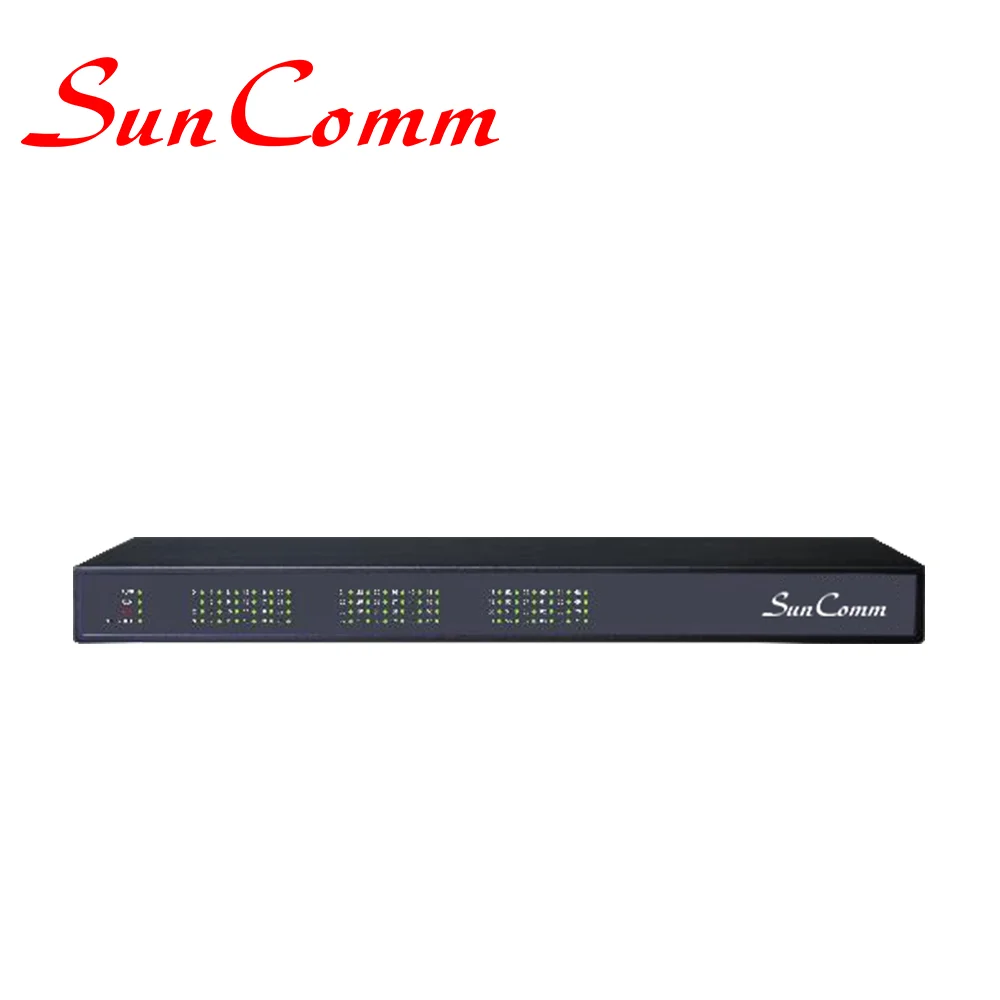

SC-072-S VoIP шлюз с 72 port FXS (72

SC-072-S is a functional analog gateway offering seamless connectivity between VoIP and traditional phone system. It's a highly-integrated gateway which provides 72 FXS ports with standard R21 interface in 1U size. Users can easily connect their analog phone, fax, PBX via standard voice interface.

SC-072-S supports the standard SIP protocol and it‘s compatible with leading IMS/NGN platform and SIP-based IP telephony system. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Key Features: Analog VoIP Gateway

²   High density gateway, 72 FXS in 1U size

²   Open-standard SIP support

²   Support IPv4 and IPv6

²   5KM Maximum Cabling Length

²   Multiple codecs: G.711A/U,G.723.1,G.729A/B, iLBC

²   Fully compatible with leading IMS/NGN, SIP based IP telephony system

Maintenance:

²   SNMP

²   TR069

²   Auto Provisioning

²   Web/Telnet

²   Configuration Backup/Restore

²   Firmware Upgrade via Web

²   CDR

²   Syslog

²   Ping/Tracert Test

²   Network Capture

²   Outward Test(GR909)

²   NTP/Daylight Saving Time

²   IVR local Maintenance

²   Cloud-based Management

Voice & FXS:

²   G.711A/U law, G.723.1, G.729A/B, G.726,iLBC

²   Silence Suppression

²   Comfort Noise Generation(CNG)

²   Voice Activity Detection(VAD)

²   Echo Cancellation(G.168), with up to 128ms

²   Adaptive (Dynamic) Jitter Buffer

²   Hook Flash

²   Programmable Gain Control

²   T.38/Pass-through

²   Modem/POS

²   DTMF mode: Signal/RFC2833/INBAND

²   VLAN 802.1P/802.1Q

²   Layer3 QoS and DiffServ

VoIP:

Protocol:

²   SIP v2.0 (UDP/TCP),RFC3261

²   SDP,RTP(RFC2833), RFC3262,

²   3263,3264,3265,3515,2976,3311

²   SIP TLS

²   RTP/RTCP, RFC2198, 1889

²   RFC4028 Session Timer

²   RFC3266 IPv6 in SDP

²   RFC2806 TEL URI

²   RFC3581 NAT,rport

²   Outbound Proxy

²   DNS SRV/ A Query/NATPR Query

²   SIP Trunk

²   Early Media/Early Answer

²   NAT:STUN, Static/Dynamic NAT

Software Features:

²   Hunting Group

²   Web ACL

²   Telnet ACL

²   Action URL

²   PPPoE/IPv4/IPv6

²   Digitmap

²   Bandwidth Optimization

²   Routing Rules based Prefixes

²   Caller/Called Number Manipulation

Supplement Service:

²   Call Waiting

²   Blind Transfer

²   Attend Transfer

²   Call Pickup

²   Call Forward on Busy

²   Call Forward on No Reply

²   Unconditional Call Forward

²   Warm/Immediately Hotline

²   Call Hold

²   Do-not-disturb

²   3-Way Conference

²   Message Waiting Indicator

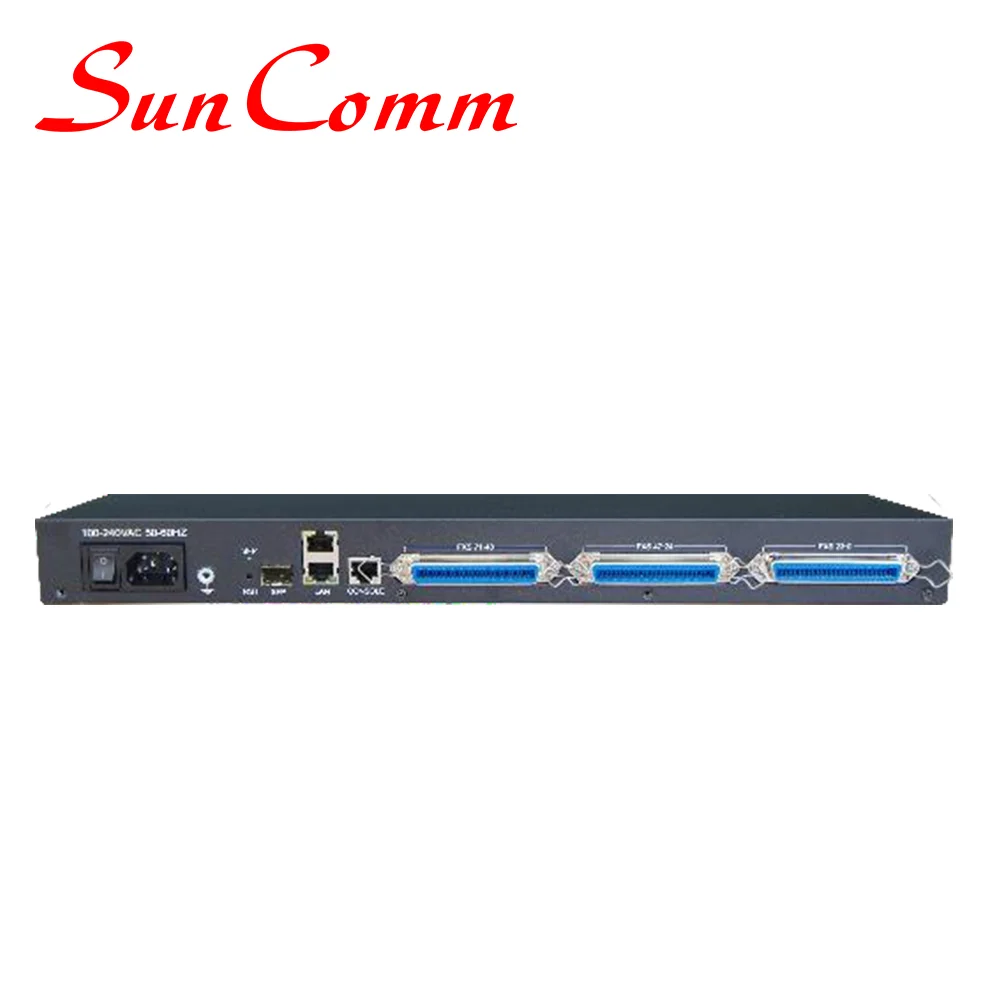

Physical Interfaces:

²   Phone Connector

72 FXS with RJ21, 50 PIN

²   Console:

1* RS232, 115200bps

²   Network Interfaces:

2* 10/100 BaseT

Environmental:

²   Power Supply: 100-240VAC, 50-60 Hz

²   Power Consumption:75W

²   Operating Temperature:0 ℃~ 45 ℃

²   Storage Temperature: -20 ℃~80 ℃

²   Humidity:10%-90% Non-Condensing

²   Dimensions(W/D/H): 440*280*44mm(1U)

²   Unit Weight: 4.0kg

We also have CE Certifications for SC-368W,  SC-9039-3G,  SC-396-GP3G/ SC-393-GP3G,    SC-9068-GH3G,  SCG-31/SCG-31P,  SCG-4Qe/ SCG-8Qe, SC-9029-RA,SC-9079-3G,  SC-9010-GP/GP2, SC-9029-RA -RoHS certificate ,Reach
