Фабрика электромагнитных сточных вод жидкости расходомер
US $240.00-$320.00

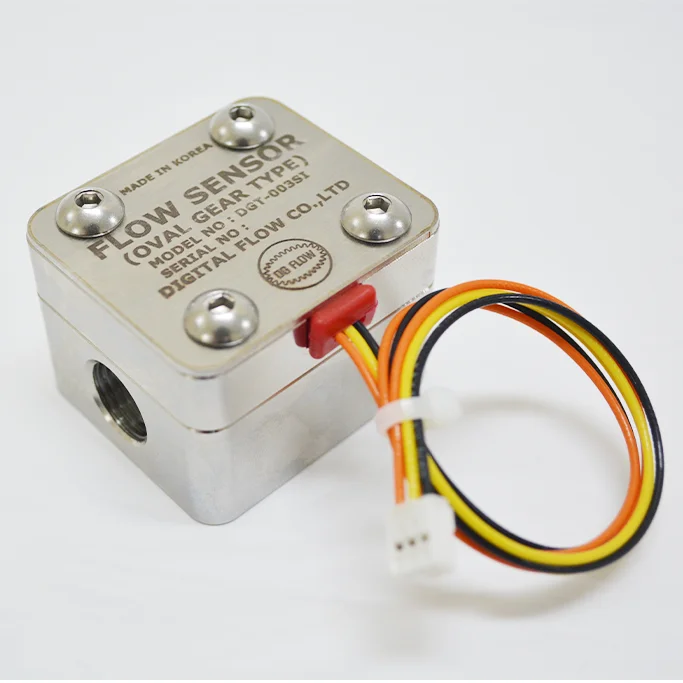

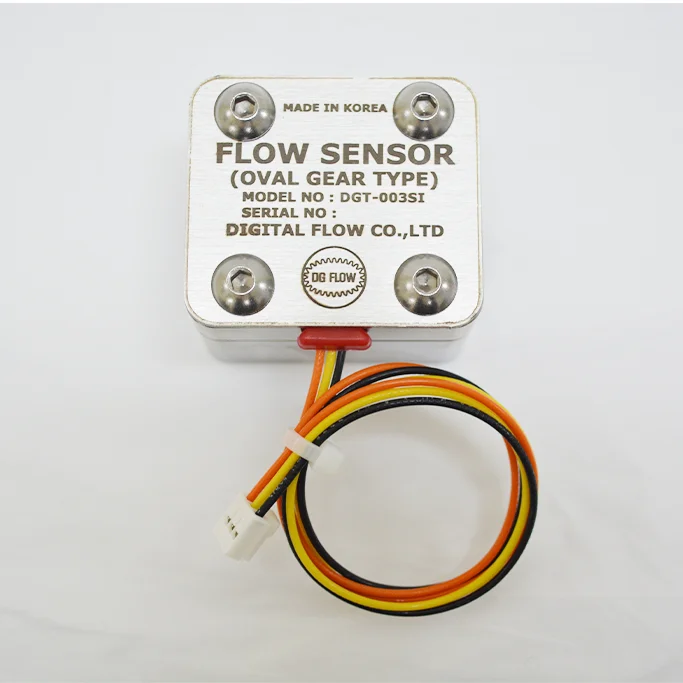

DGT-003SI расходомер/датчик ультра-микро расходомер овальной шестерни Тип Прямой соединитель с внутренней
- Категория: Flow Sensors >>>
- Поставщик: DIGITAL,FLOW,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.45 $* |
| Aug-17-2025 | 0.64 $* | 0.77 $* |
| Jul-17-2025 | 0.51 $* | 0.78 $* |
| Jun-17-2025 | 0.80 $* | 0.73 $* |
| May-17-2025 | 0.54 $* | 0.51 $* |
| Apr-17-2025 | 0.74 $* | 0.67 $* |
| Mar-17-2025 | 0.41 $* | 0.3 $* |
| Feb-17-2025 | 0.15 $* | 0.2 $* |
| Jan-17-2025 | 0.78 $* | 0.93 $* |
Характеристики
Product Description
Specification
item | value |
Warranty | 12 months |
Customized support | OEM |
Place of Origin | Republic of Korea |
Brand Name | Digital flow co.,LTD |
Model Number | DGT-003SI |
Type | Positive-displacement flow meter, Oval gear flow meter |
Major Fluids | ALL Fluids (Some special chemical products are exception.) |
Accuracy (Standard Installation Position) | ±0.5% |
Maximum Working Pressure | 5MPa |
Fluid & Ambient Temperature | -40 to 150°C |
Flow-Rate Range (±1%) | 0.5 - 50L/h |
Pulse Unit | 7812P/L(0.000128L/P) |
Power Voltage | 3-24V DC, Max 60mA |
Output Signal | NPN Open Collector |
Connection | PT 1/4" (Internal Thread) |
Main Materials | Rotor & Casing : 316L Stainless Steel O-ring : Viton Shaft : 316L Stainless Steel |
WIRE | BLACK(-) GROUND ORANGE(+) POWER YELLOW(-) SIGNAL |
REMARK | Please install the strainer (above #80) at the inlet of the flow-sensor. |
Packing & Delivery
PACKAGE : Plastic (PE) bag + INBOX + OUT BOX
INBOX size : 8cm * 8cm * 8cm
Net weight : 0.4kg (Per unit)
Gross weight : 0.45kg (Per unit)
Carton dimensions : 42cm * 36cm * 19cm
Qty/G. weight/ Ctn : 40EA / 18kg /ctn
INBOX size : 8cm * 8cm * 8cm
Net weight : 0.4kg (Per unit)
Gross weight : 0.45kg (Per unit)
Carton dimensions : 42cm * 36cm * 19cm
Qty/G. weight/ Ctn : 40EA / 18kg /ctn
Delivery Method
1. Available courier service : DHL / FedEx / TNT / UPS / EMS
2. It's also possible to send the goods via sea transportation.
2. It's also possible to send the goods via sea transportation.
Remark
1. Our basic transaction is T/T in advance 100% before the production.
2. The unit price of the goods term is based on EXW FACTORY, S. KOREA.
It means excluded all kinds of delivery charge and surcharges.
3. Please note that the inventory status may be changed depending on the point of
order acknowledgement.
2. The unit price of the goods term is based on EXW FACTORY, S. KOREA.
It means excluded all kinds of delivery charge and surcharges.
3. Please note that the inventory status may be changed depending on the point of
order acknowledgement.
Company Profile
FAQ
1. What's your MOQ?
: MOQ varies depending on the product. Please let me know the product name (model number) and the quantity you need first.
2.How long is your delivery time?
: Generally, It takes about 5~10 work days if goods are in stock. Or it is 15~20 work days if the goods are not in stock.
For large order, we inform the buyer(customer) of the schedule first.
Please noted that the inventory status & delivery time may be changed depending on the point of order acknowledgement.
3. What kind of certification do you have of the goods?
: We have ISO9001, CE, RoHS and UL certifications (UL certifications : DGT-010 UL model only)
4. What is your terms of payment?
: Our basic transaction is T/T in advance 100% before the production.
I'm sorry but it's hard to supply the other payment method like PayPal, credit card and L/C.
5. What is your terms of shipment?
: We're using EXW terms of the incoterms 2020.
It means that the unit price excluded all kinds of delivery of charge and surcharges.
6. How long is your warranty period ?
: The warranty period for the product shall be 12 months from the date of purchase and the warranty period of the product sold under a separate contract is
in accordance with the terms set in the sales contract.
Even if it is a warranty period, the below are eligible for paid repairs. (Free repair is not possible.)
1) Failure caused by customer’s intention or negligence
2) Failure caused by foreign matter entering the product
3) Failure caused by improper use voltage
4) Damages and functional failures caused by dropping or impacting the product
Even though during warranty period, the all freight cost incurred is customer's responsibility.
7. Is there any remark contents for the trading?
: A small order fee of USD 30.00 will be surcharged for an order under USD5,000.00.
: MOQ varies depending on the product. Please let me know the product name (model number) and the quantity you need first.
2.How long is your delivery time?
: Generally, It takes about 5~10 work days if goods are in stock. Or it is 15~20 work days if the goods are not in stock.
For large order, we inform the buyer(customer) of the schedule first.
Please noted that the inventory status & delivery time may be changed depending on the point of order acknowledgement.
3. What kind of certification do you have of the goods?
: We have ISO9001, CE, RoHS and UL certifications (UL certifications : DGT-010 UL model only)
4. What is your terms of payment?
: Our basic transaction is T/T in advance 100% before the production.
I'm sorry but it's hard to supply the other payment method like PayPal, credit card and L/C.
5. What is your terms of shipment?
: We're using EXW terms of the incoterms 2020.
It means that the unit price excluded all kinds of delivery of charge and surcharges.
6. How long is your warranty period ?
: The warranty period for the product shall be 12 months from the date of purchase and the warranty period of the product sold under a separate contract is
in accordance with the terms set in the sales contract.
Even if it is a warranty period, the below are eligible for paid repairs. (Free repair is not possible.)
1) Failure caused by customer’s intention or negligence
2) Failure caused by foreign matter entering the product
3) Failure caused by improper use voltage
4) Damages and functional failures caused by dropping or impacting the product
Even though during warranty period, the all freight cost incurred is customer's responsibility.
7. Is there any remark contents for the trading?
: A small order fee of USD 30.00 will be surcharged for an order under USD5,000.00.
