Стальные фрезерные станки Remax 6060 3 оси 4 5 металлический фрезерный станок с ЧПУ для мини-гравировки
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Remax,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4760.90 $* | 4998.64 $* |
| Aug-19-2025 | 4720.46 $* | 4956.10 $* |
| Jul-19-2025 | 3960.20 $* | 4158.77 $* |
| Jun-19-2025 | 4640.87 $* | 4872.19 $* |
| May-19-2025 | 4040.95 $* | 4242.87 $* |
| Apr-19-2025 | 4560.19 $* | 4788.77 $* |
| Mar-19-2025 | 4520.54 $* | 4746.38 $* |
| Feb-19-2025 | 4480.29 $* | 4704.23 $* |
| Jan-19-2025 | 4440.95 $* | 4662.3 $* |
Характеристики

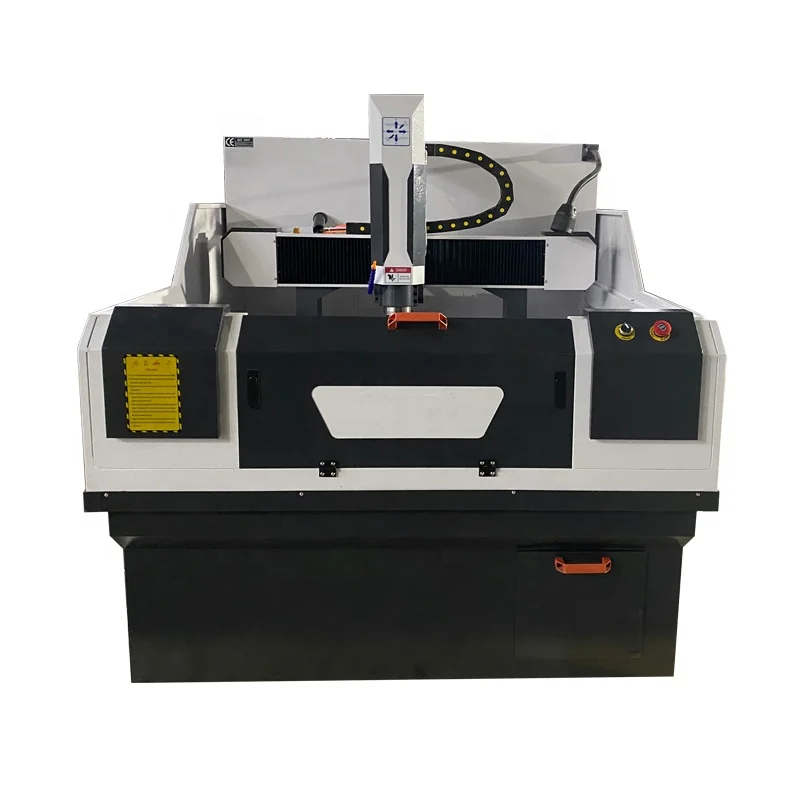

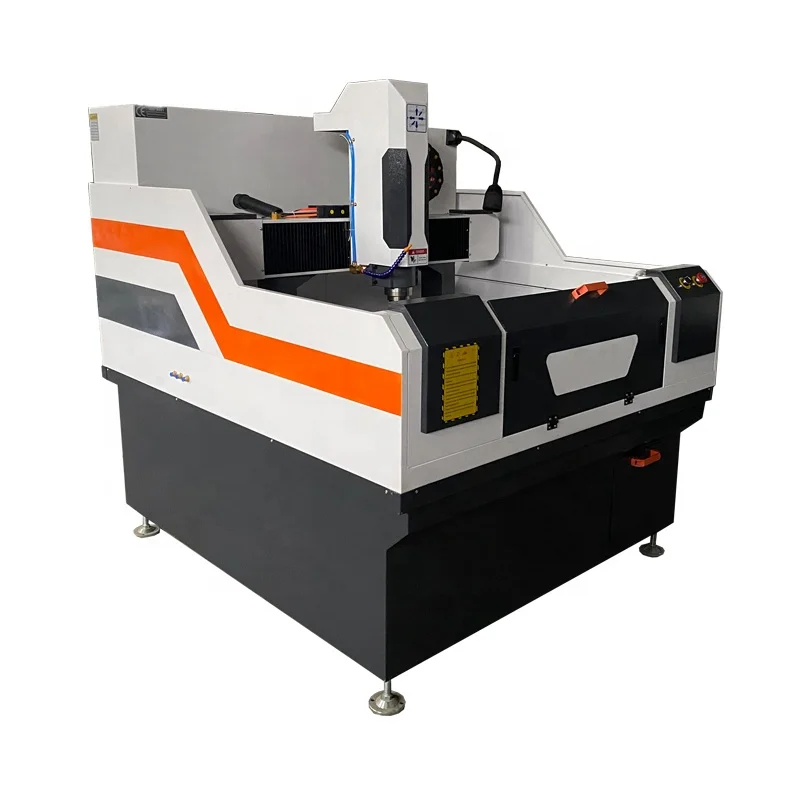

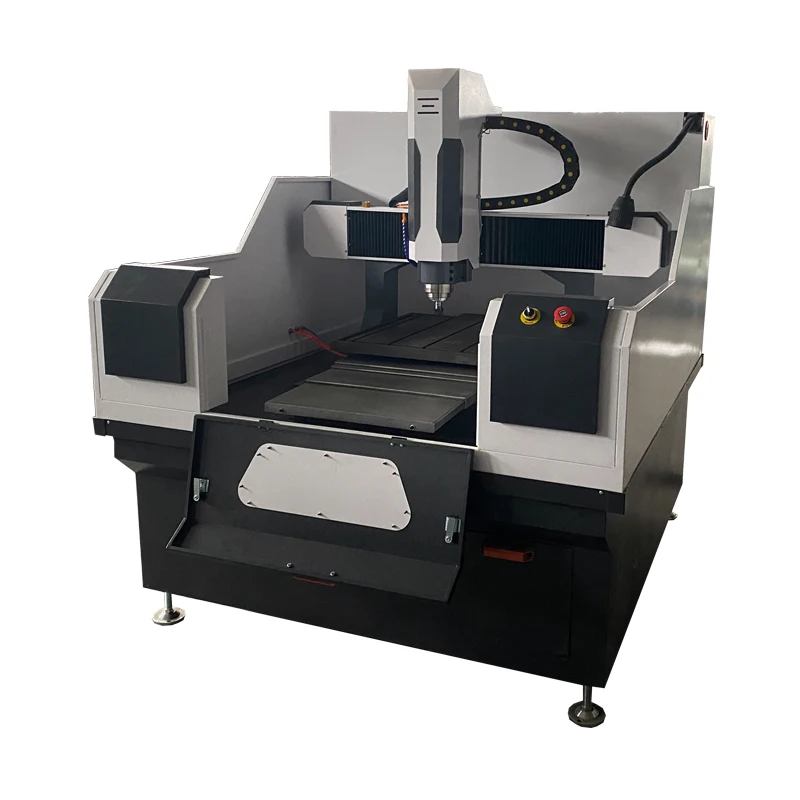

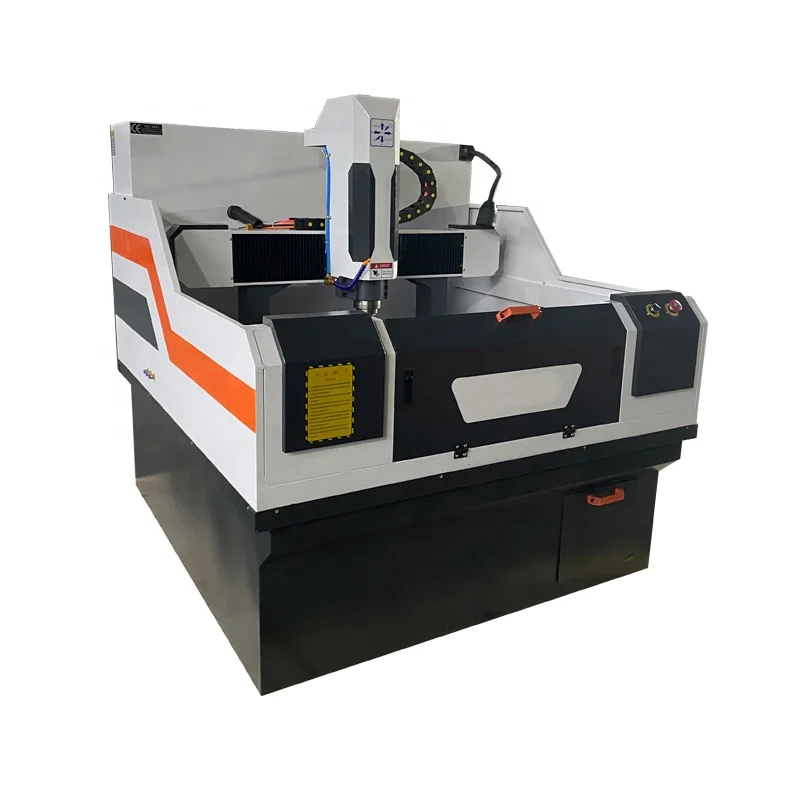

Remax 6060 Metal CNC Router Machine
Product Description
Features:
1. Iron T-slot and moving table, ideal for machining metal or wooden molds.2. Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity.
3. TBI ball screw transmission improves positioning accuracy and fast speed.
4. Selection of high speed 3.0kw water cooling spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With DSP A11/Mach3/Nc studio control system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workmoments.
Product parameter:
Description | Parameter of cnc milling machines |
X,Y,Z Working Area | 600*600*200mm |
Control system | DSP A11/Mach3/NC studio control system |
Table Surface | Iron T-slot work table |
Spindle Power | 3.0kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Working Voltage | AC220/380V, 50/60HZ |
Inverter | Fuling |
Electrical components | Schneider |
Limit switch | OMRON |
Motor | Leadshine hybrid servo motor and driver |
Computer Interface | USB |
Command language | G code |
X, Y, Z Structure | Hiwin square rail and TBI Ball Screw |
Detailed Photos
3.2kw water cooling spindle
Spindle with water spary,speed is 0-24000rpm/min,powerful in cutting and carving,using well-known domestic brands of water-cooled brushless spindle,low noise,strong cutting ability, to ensure the long time working.
Tool sensor

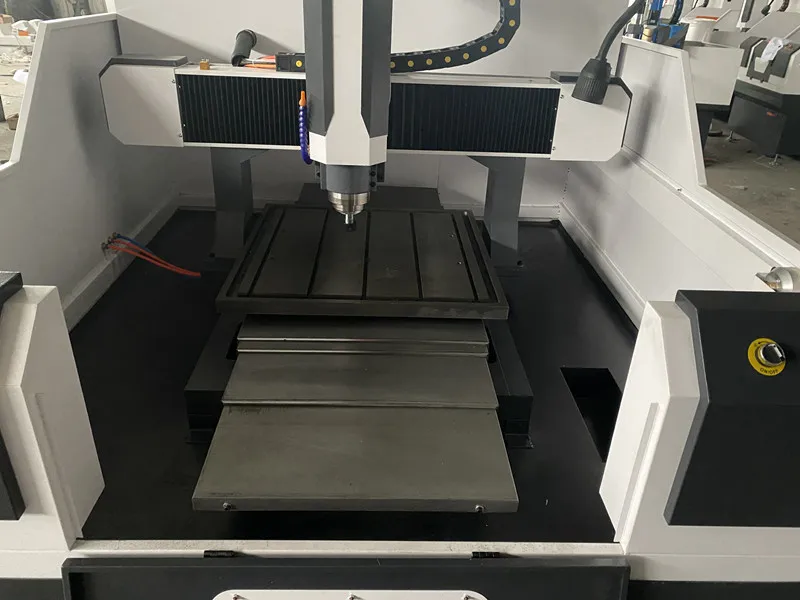

Iron T-slot work table
Iron T-slot work table,can load heavy sample.
Steel dust proof
Steel dust proof prevent swarf liquid or water and processed debris fall on the guide rail and ball screw,make them rusting,protect the ball screw and guide rail,make the maintenance operation easily.
Automatic lubrication system
Automatic oil lubrication system is easy to operate,equiped with dust proof and water proof for XY axis, make the maintenance operation easily.
Leadshine hybrid servo motor and driver
Effectively reduce the motor heating,
greatly improve the high-speed performance of the motor,motor running more stable,higher precision.
Fuling inverter
Fuling inverter can control the spindle rotate speed from 1-24000 rpm/min,
different work use different rotate,easy to operate.

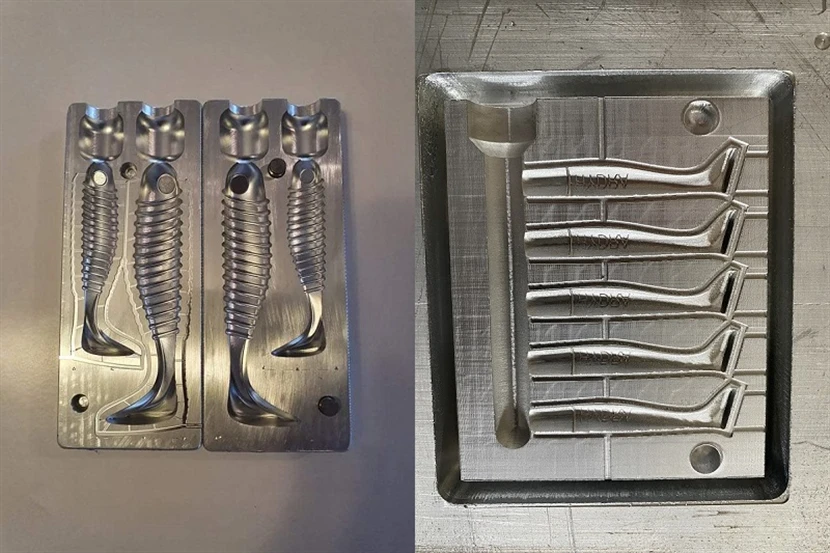

Samples
Customer feedback
Company Profile
Packing & Delivery
Our Service
FAQ
Q1.Manufacturer or trader?
We are CNC ROUTER machine factory.
Q2.Deliver time of cnc router machine?
For standard size and configuration CNC router machine, the delivery time is about 20-25 days.
We are CNC ROUTER machine factory.
Q2.Deliver time of cnc router machine?
For standard size and configuration CNC router machine, the delivery time is about 20-25 days.
Q3.What kind of 4axis you can provide?
Hot Tags: cnc milling machines, China, manufacturers, suppliers, factory, price, for sale, Mixed Laser Cutting Machine, Leather Laser Cutting Machine, CNC Plasma Cutting Machine 1530, 3 Axis CNC Router, 4 Axis CNC Router Machine, RF Laser Marking Machine
We can provide diameter is 100mm/150mm/200mm rotary axis.
