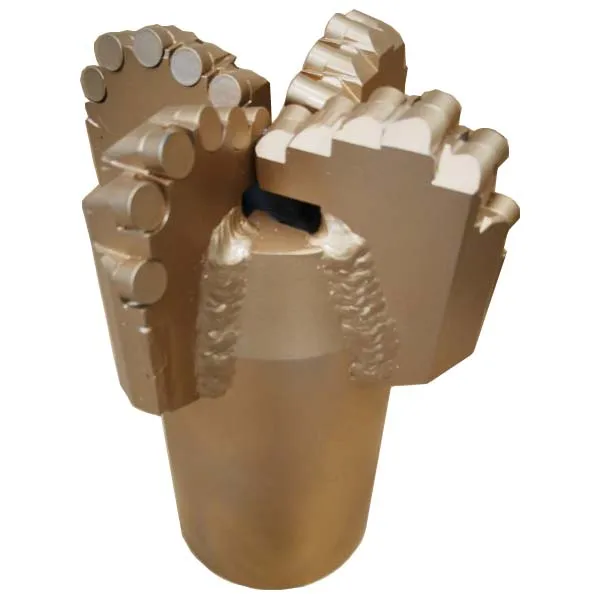

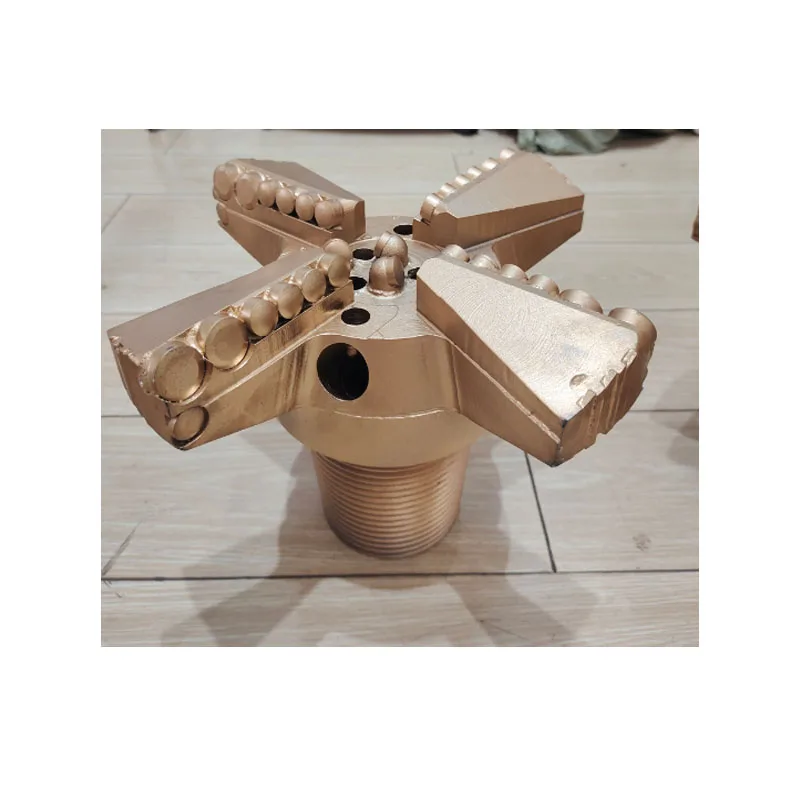

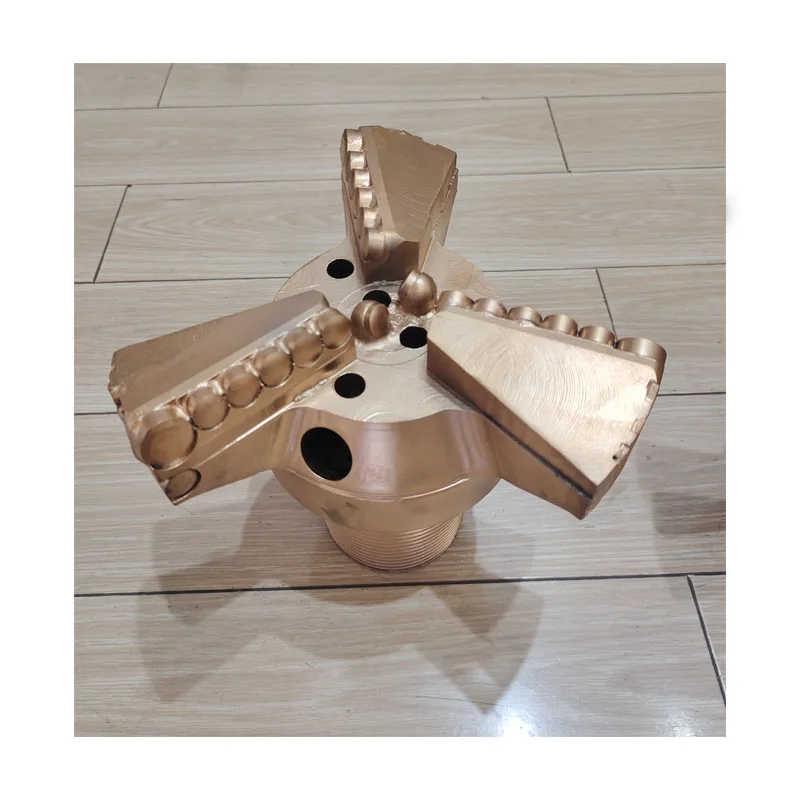

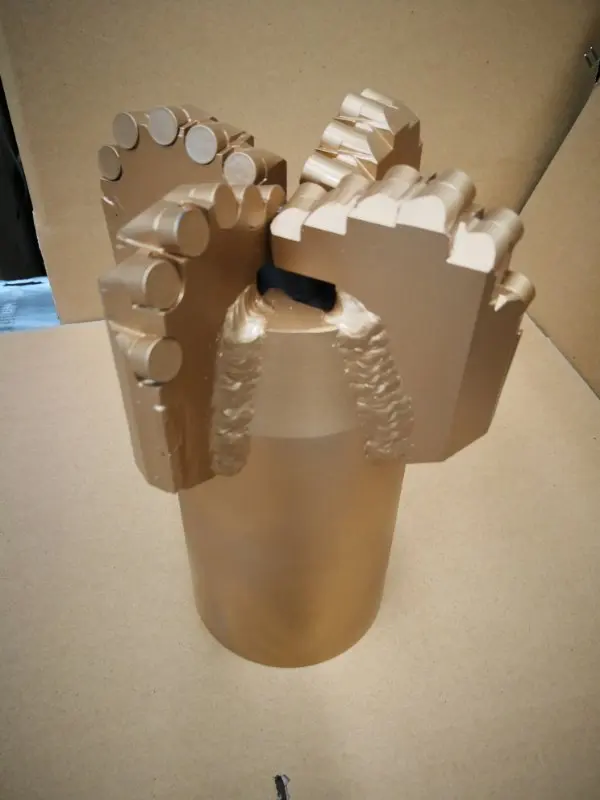

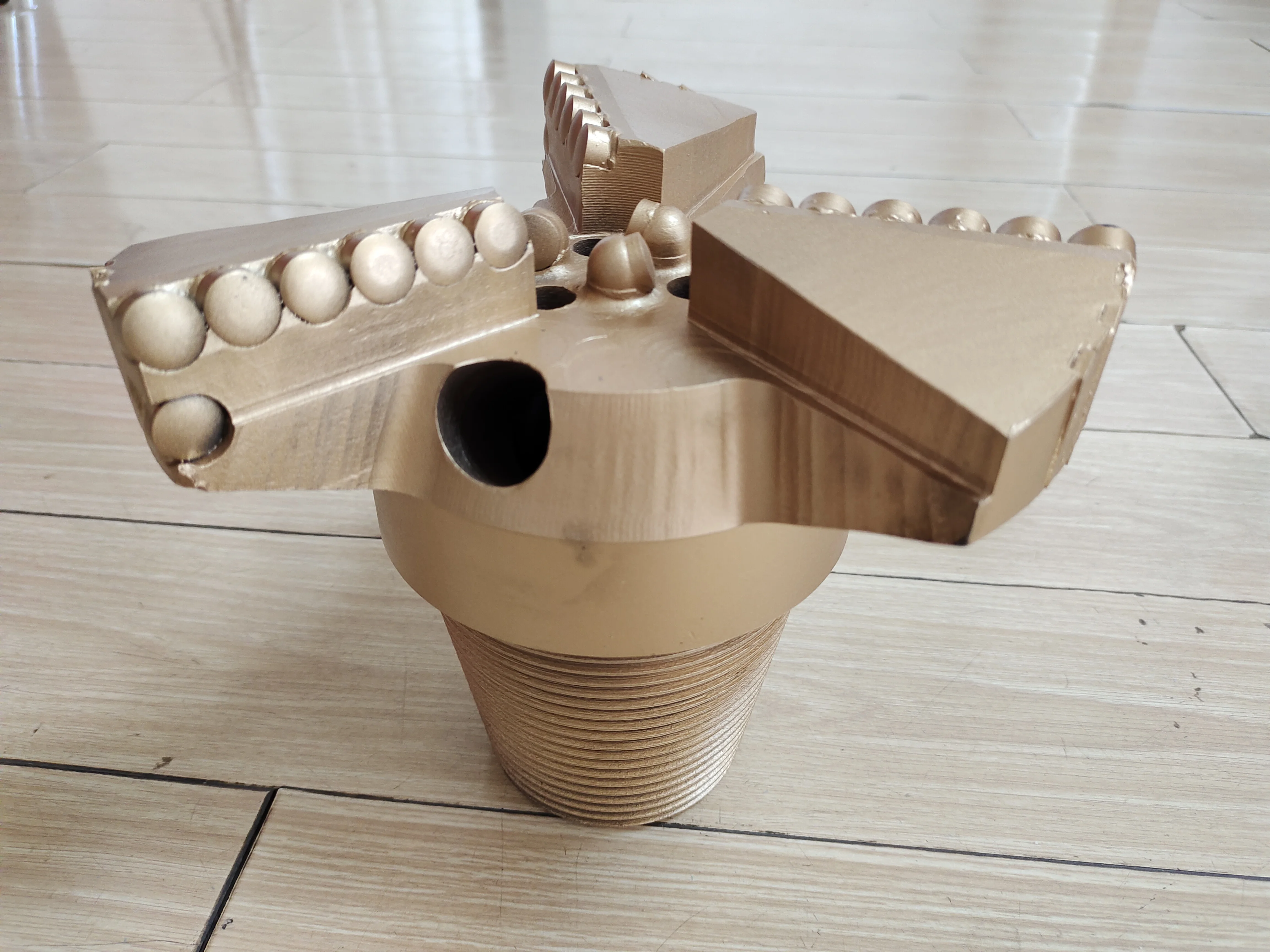

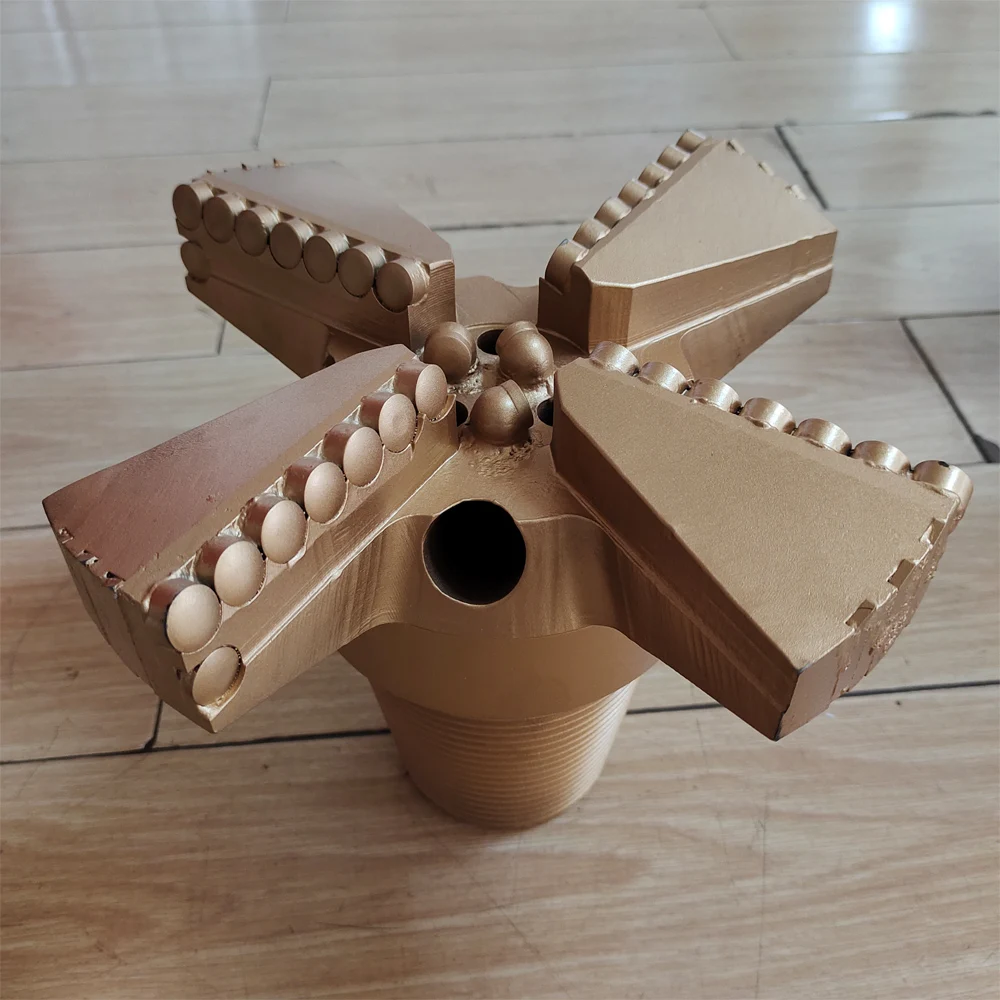

Customize PDC drill bit 7" 178mm PDC cutter water well drill bit

Details of PDC drill bit:
1. Size: 55mm, 65mm, 75mm, 94mm, 108mm, 113mm, 133mm,145mm,153mm,175mm,185mm,193mm
2. Bit type : Pillar type, concave , three wings, four wings,five wings,six wings
3. PDC cutter size : 1303, 1304,1308,1603
4. Body materials: Steel, Tungsten Carbide matrix.Hard rock PDC drill bit 7" 178mm PDC cutter water well drill bit
5. Suitable rock: mud stone, limestone, shale, sandstone and granite etc.
6. Color: Grey, Gold, Blue ,or as customer's request

Customize PDC drill bit 7" 178mm PDC cutter water well drill bit

Parameters

Drilling Diameter	Blade  Count	Cutter Size	Nozzle Number	Bit Slot	Pin Size
5-5/8''143mm	3	1308	3	2.7''*1.5''	2-7/8''
5-5/8''143mm	5	1308	5	2.7''*1.5''	2-7/8''
6''152mm	4	1308	4	4''*1.5''	3-1/2''
6''152mm	5	1308	5	4''*1.5''	3-1/2''
8-1/2''216mm	4	1308	4	5''*2"	4-1/2''
8-1/2''216mm	5	1308	5	5''*2"	4-1/2''
8-1/2''216mm	6	1308	6	5''*2"	4-1/2''
9-1/2''241mm	5	1308	5	5''*2"	4-1/2''
9-1/2''241mm	6	1308	6	5''*2"	4-1/2''
12-1/4''311mm	5	1308	5	6''*2"	6-5/8''



Water well drill bit 4 blade 178mm four wings pdc drill bit hard stone

More photos







Customize PDC drill bit 7" 178mm PDC cutter water well drill bit













Customize  - provide below information , customize as per your request



Factory own design new style steel body pdc drill bit
