Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Большие комбинированные бетононасосы высокого давления бетономешалка с дизельным двигателем и насосом
- Категория: Concrete Pumps >>>
- Поставщик: Zhengzhou,Yuandong,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3403.76 $* | 3573.97 $* |
| Aug-16-2025 | 3375.9 $* | 3544.5 $* |
| Jul-16-2025 | 2831.63 $* | 2973.88 $* |
| Jun-16-2025 | 3318.82 $* | 3484.8 $* |
| May-16-2025 | 2889.59 $* | 3033.64 $* |
| Apr-16-2025 | 3260.46 $* | 3423.99 $* |
| Mar-16-2025 | 3232.87 $* | 3394.75 $* |
| Feb-16-2025 | 3203.64 $* | 3363.63 $* |
| Jan-16-2025 | 3175.20 $* | 3334.43 $* |
Характеристики
Product Overview

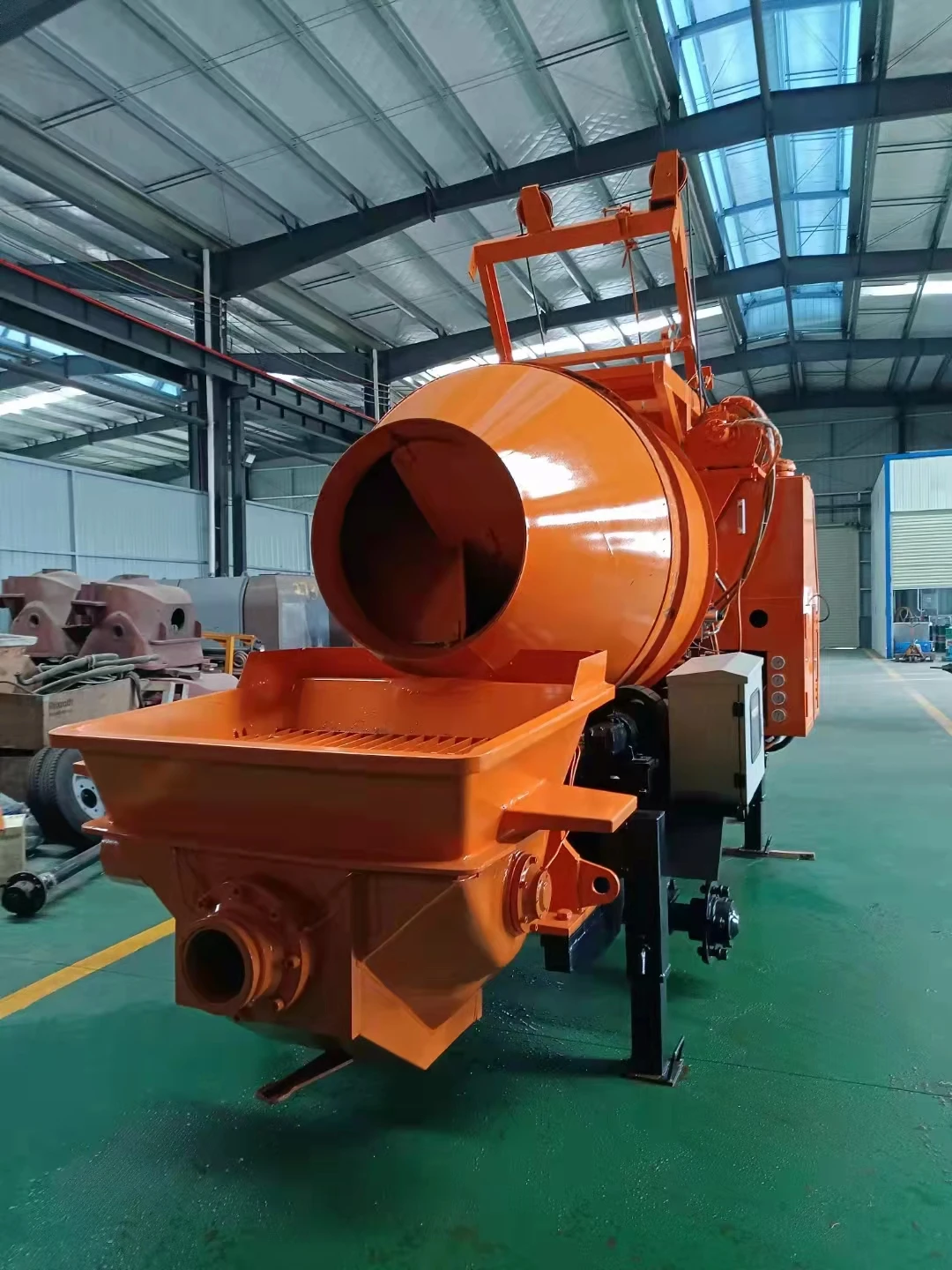

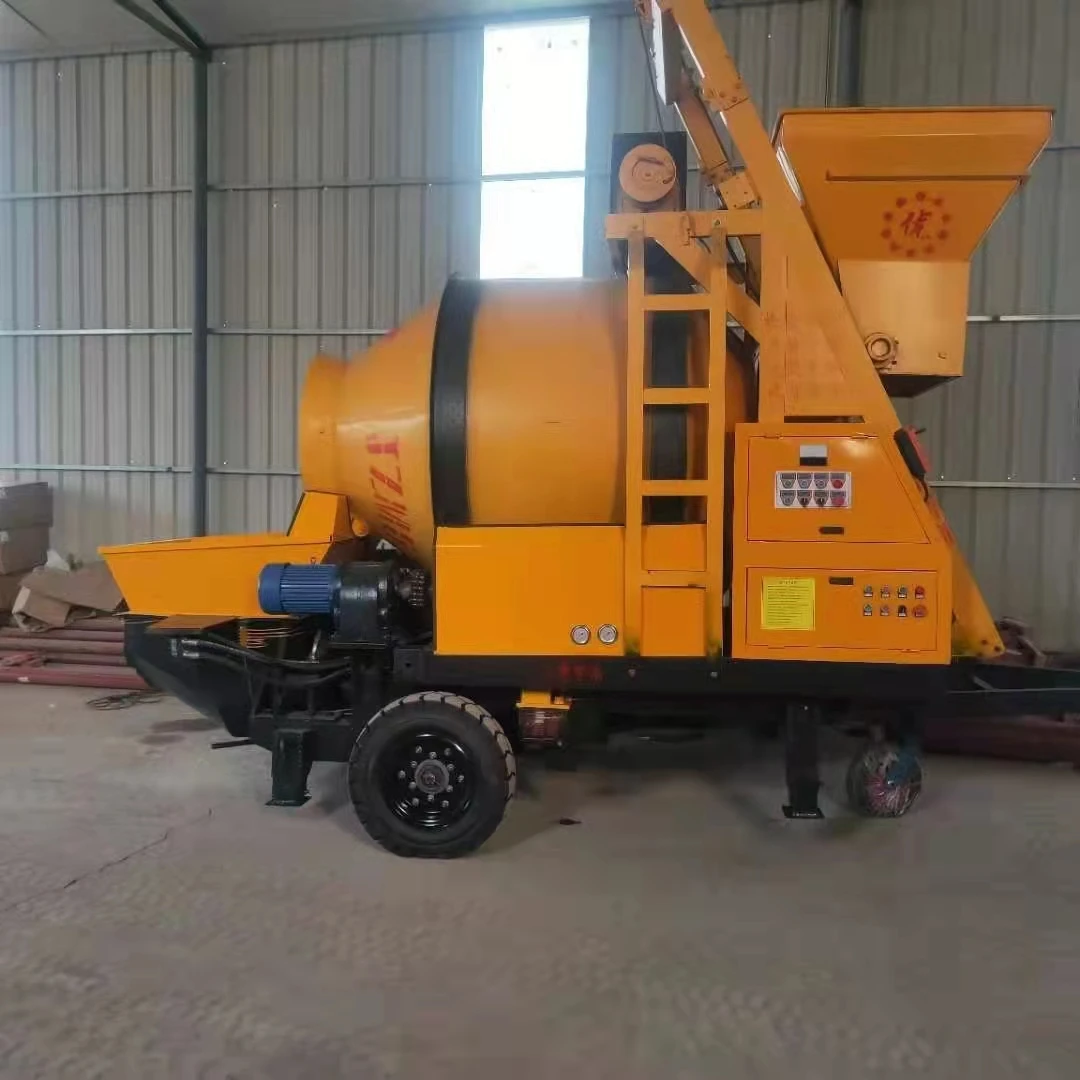

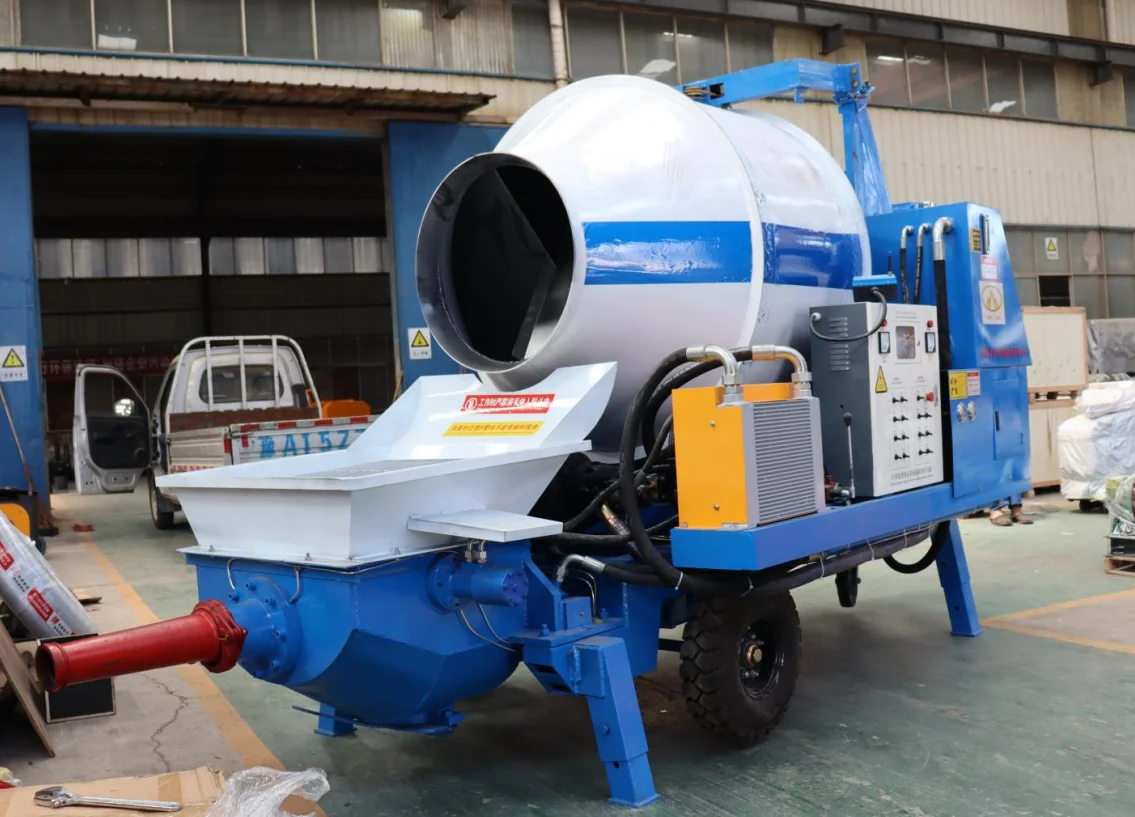

High Pressure Large Aggregate Concrete Pumps Diesel Engine Concrete Mixer With Pump For Building Use
Concrete delivery pump, also known as concrete pump, consists of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline.Concrete pumps are divided into electric and diesel models.Concrete pump is one of large-scale construction equipment, especially the core construction machinery for large-scale construction of high-rise buildings. It is used in railways, bridges, buildings, road tunnels, etc. High Pressure Large Aggregate Concrete Pumps Diesel Engine Concrete Mixer With Pump For Building Use
Product Structure
Advantage: High Pressure Large Aggregate Concrete Pumps Diesel Engine Concrete Mixer With Pump For Building Use
1. The three-pump open system is adopted, and the hydraulic circuit does not interfere with each other, and the system runs.
2.The optimally designed hopper is easy to clean and has better suction performance.Mini Concrete Pump.
3. With remote control function, the operation is safer and more convenient.
4. All parts and components adopt the national standard, and the interchange ability is good.Diesel Engine Concrete Mixer With Pump
1. The three-pump open system is adopted, and the hydraulic circuit does not interfere with each other, and the system runs.
2.The optimally designed hopper is easy to clean and has better suction performance.Mini Concrete Pump.
3. With remote control function, the operation is safer and more convenient.
4. All parts and components adopt the national standard, and the interchange ability is good.Diesel Engine Concrete Mixer With Pump
Item | value |
Produce name | concrete pump |
Place of orgian | china |
Place of province | zhengzhou,henan |
Brand name | yuan dong |
Condition | new |
Marketing type | hot product 2022 |
Warranty of core components | 1 year |
Feature | high quality,high efficiency,High security,favored abroad |
Application | roads, railways, tall buildings, bridges, tunnels |
Hot country | philippines,canada,australia,saudi arabia,argentina,ecuador,thailand,indonesia,salvador,u.k.,kazakhstan,ukbekistan |
Metric dimensions specifications | ||||||||
Model | XK-15 | XK-20 | XK-30 | XK-37 | ||||
Weight (KG) | 600 | 1000 | 1300 | 1400 | ||||
Aggregate size (MM) | ＜20 | ＜20 | ＜30 | ＜30 | ||||
Conveying pipe diameter (MM) | Φ80 | Φ80 | Φ100/Φ80 | Φ100/Φ80 | ||||
Dimension (M) | 1.8*0.7*1.1 | 2.7*1.1*1.2 | 3.0*1.2*1.3 | 3.0*1.2*1.3 | ||||
Conveying height (M) | 15-20 | 25-40 | 40-80 | 50-100 | ||||
Conveying distance (M) | 40-50 | 50-80 | 80-160 | 100-200 | ||||
Power (KW) | 15 | 22 | 30 | 37 | ||||
Theoretical efficiency (M³/H) | 6-8 | 8-12 | 10-15 | 15-20 | ||||
Metric dimensions specifications | ||||||||
Model | XK-45 | XK-50 | ZS-45 Diesel | ZS-50Diesel | ||||
Weight (KG) | 2300 | 2500 | 2200 | 2980 | ||||
Aggregate size (MM) | ＜30 | ＜40 | ＜30 | ＜40 | ||||
Conveying pipe diameter (MM) | Φ100/Φ80 | Φ100/Φ80 | Φ100/Φ80 | Φ100/Φ120 | ||||
Dimension (M) | 4.7*1.5*1.6 | 4.2*1.5*1.6 | 3.6*1.2*1.5 | 4.2*1.4*1.5 | ||||
Conveying height (M) | 80-150 | 100-180 | 80-120 | 100-150 | ||||
Conveying distance (M) | 180-250 | 200-300 | 150-250 | 200-300 | ||||

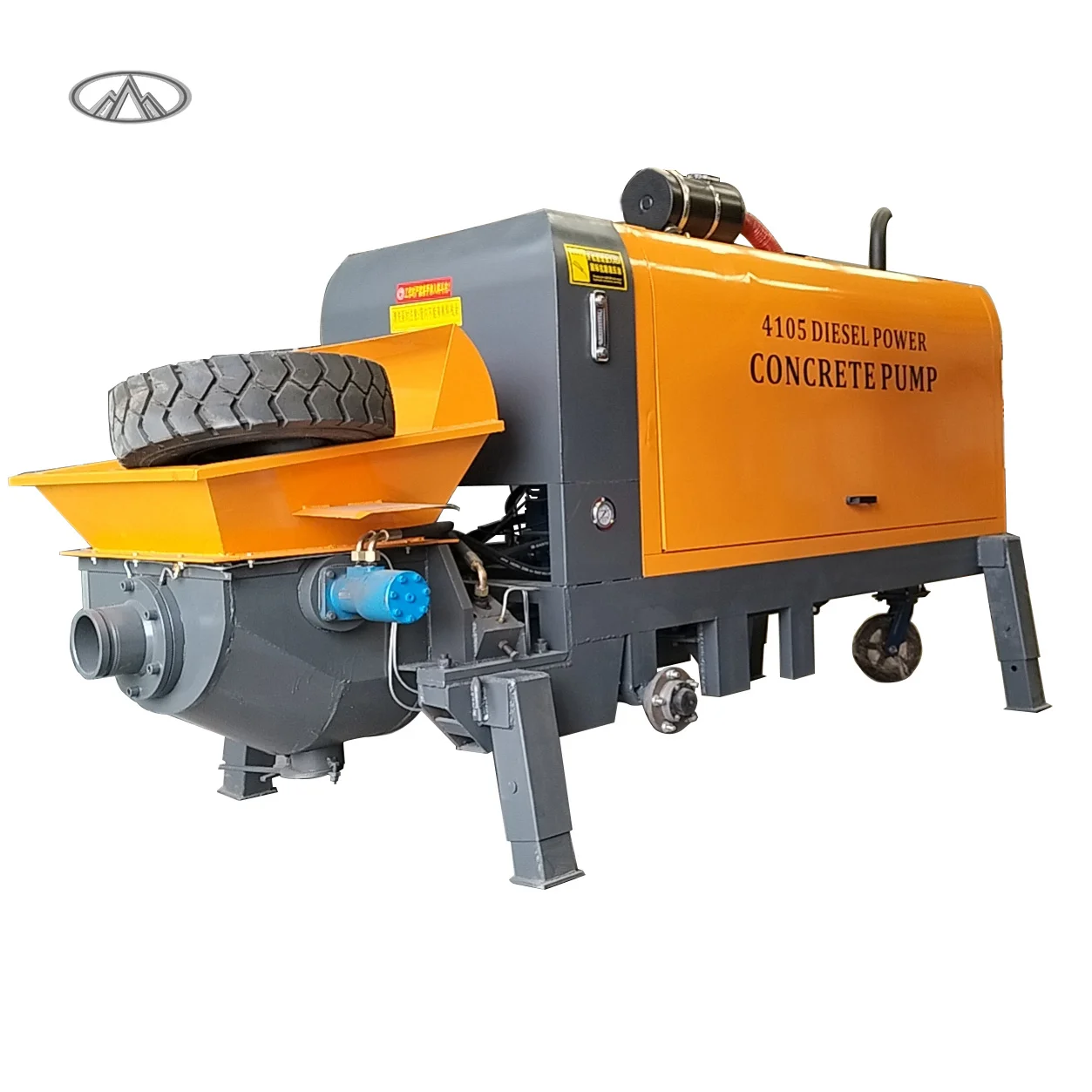

Power (KW) | 45 | 55 | Diesel 4108 72KW | Diesel 6105 130KW | ||||
Theoretical efficiency (M³/H) | 20-25 | 30-40 | 18-25 | 30-40 | ||||
