Factory Price 1D 2D Orbit Barcode Reader 1D 2D Handsfree Desktop Scanner for XB-802D







Features

Compatible with Linux,Android,Windows XP,7,8,10,MAC OS1D barcodes read mode avoid misreading adjacent 2D symbologies Fast and Accurate read most common 1D & 2D symbologies

Excellent at reading symbologies with transparent film

Soft Supplementary light friendly to eyes

Wide scan angle and long scan distance

Motion tolerance up to 3.8m/s  Three tones are optional

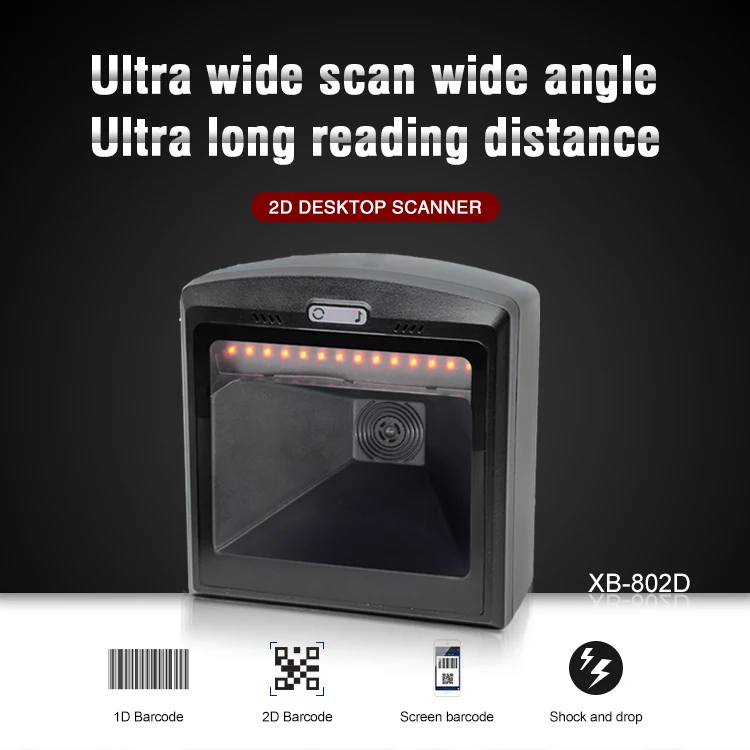

Model: 802D

Specification
Performance Parameters
Light Sources	SXGA-W(Width1280*high1024) Ratio(5:4)

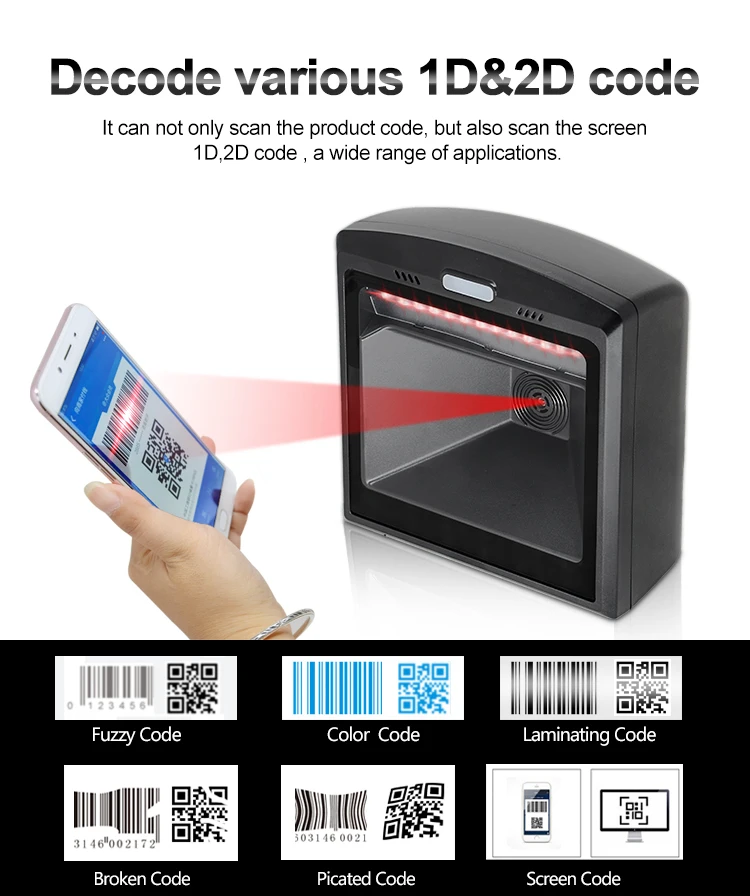

Supported symbologies	1D:  EAN-8, EAN-13, EAN-132 add-on, EAN-135 add-on, ISSN, ISBN, UPC-A, UPC-E, Code11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, ISBT-128, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 DataBar(RSS14),GS1 Data BarLimited, GS1 DataBar Expanded. 2D: PDF417, Data Matrix,QR Code,Hanxin.
Scan Range	5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm
System compatibility	Linux,Android,Windows XP,7,8,10,MAC
Minimum recognition accuracy	Code 39 4mil
Motion tolerance	3.8meters/second

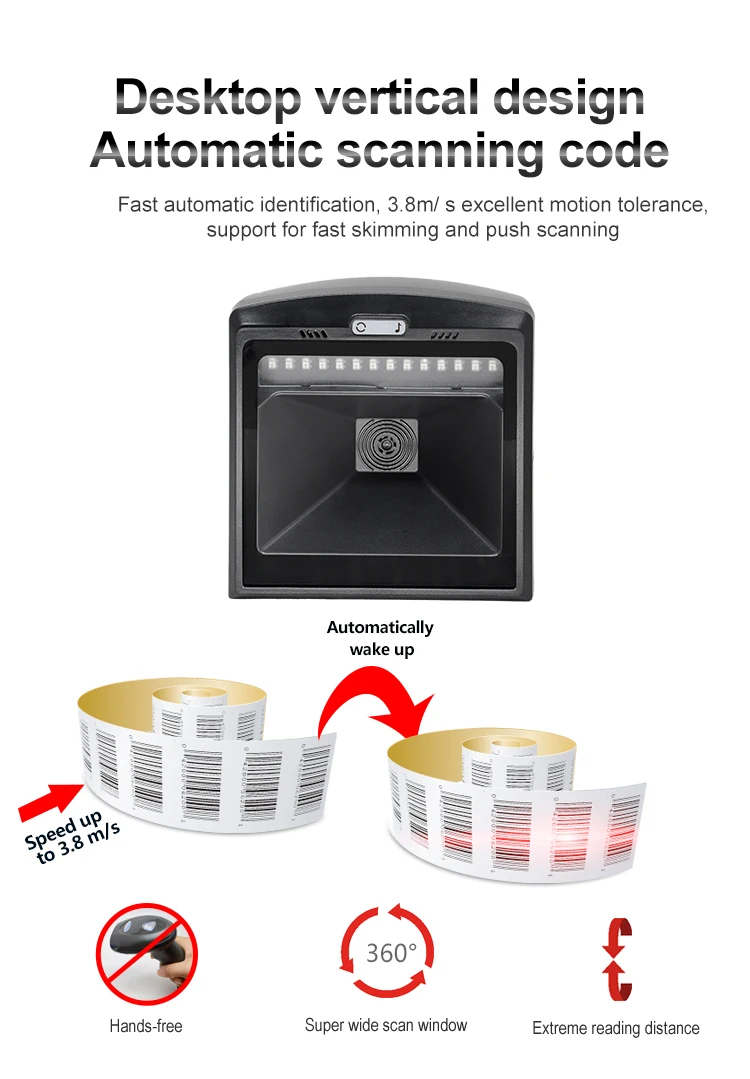

Scan Mode	Automatic inductive scanning
Print contrast	20%
Recognition angle range	Turn ±360°, Elevation ±60°, Declination ±70°
Mutual Move	Indicator light: Red and blue dual color indicator light: Blue light flashing code reading prompt, blue light power indicator; Red light: turn off QR code reading. Buzzer: start prompt, read code prompt;Key: switch three tones; 1D code switch.

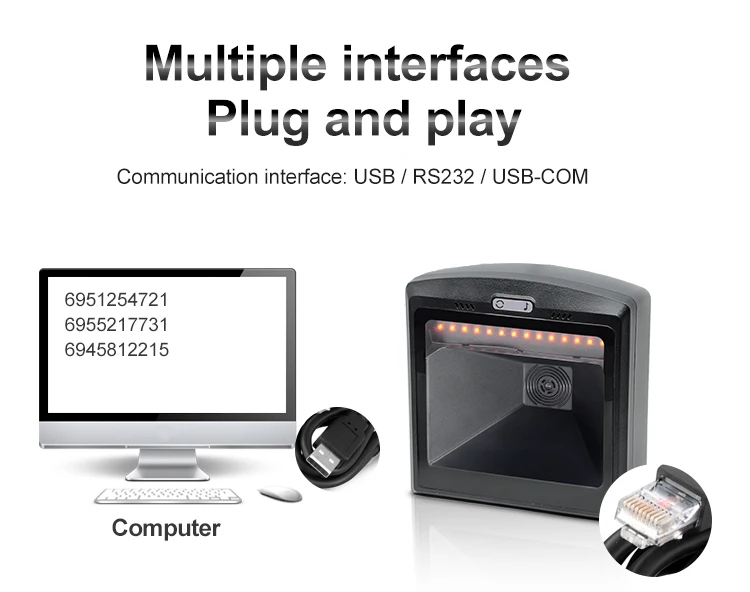

Interface	USB(Drive-Free), RS232, USB-COM
Physical  Parameters
Dimensions	150mm*75mm*155mm
Weight	456.3g
Material	ABS+PC
Cable length	1.8m
Environmental Parameters
Operating Temperature	-20℃ - 55℃
Storage Temperature	-20℃ - 60℃
Humidity	0% to 95% RH.Non-condensing
Shock Resistance	1.5m drops to concrete
Ambient Ligh	0-70000LUX
Electrical Parameters
Voltage	DC5V±5%
Current	Standby current 180mA; Working current 210mA



Application





1. Self-induction charging & RF receiver in one.

2. Max. storage reaches 32000 codes; Max. scan 128 bit barcode, memory 32M.

3. Easy & simple settings & quick paired installation device.

4. Long communication distance; 50m indoor and 500m outdoor.

5. 433MHz wireless wifi receiver, high anti-interference.

6. Free of charging trouble; battery charging time 3-5 hours & constant working time over 6hours

7. Long lifespan & rechargeble 550mAH lithium battery. 9. Turn on and off automatically, improve working efficiency.



Packaging and shipping



 Packaging :

SYBLE Barcode Scanner Standard Package
1 x 2D Desktop barcode scanner

1 x Connection cable
1 x English Manual
1 x Warranty card

Port:

GUANGZHOU ( by sea, air, or express, FEDEX, UPS, DHL, ARAMEX...)

Lead Time : 7~15 working days according order quantity.



 Trade Show





Q1:Do you have CE FCC certificates for this 2D Imager Presentation Scanner ?

Yes ,we applied CE,FCC,Rohs etc certificates for all our Barcode Scanners



Q2:What is your quality policy about this 2D Omni Scanner ?

the warranty on the Barcode Scanner is 2years and cable 6months





Q3:Are you a trading company ?

No ,we are professional Barcode Scanner Manufacturer from China



Q4: what is the working frequency of this Wireless Barcode Scanner?

Its working frequency is 2.Ghz



Q5: Dose this Wireless Laser  Barcode Scanner has off-line function ?

yes , this Wireless Laser Scanner with off-line function



Q6: Do your company is a trading company ?

We are professional manufacturer  of Barcode Scanner



Q7: what is your quality policy after sale ?

the warranty on Wireless Barcode Scanner is 2 years ,and cable is 6 months
