JQLAER HWC лазерная сварка и очистка 3 в 1 поставщик портативный ручной лазерный
- Категория: Laser Welders >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5950.13 $* | 6248.99 $* |
| Aug-19-2025 | 5900.95 $* | 6195.98 $* |
| Jul-19-2025 | 4950.35 $* | 5198.32 $* |
| Jun-19-2025 | 5800.81 $* | 6090.8 $* |
| May-19-2025 | 5050.95 $* | 5303.64 $* |
| Apr-19-2025 | 5700.0 $* | 5985.73 $* |
| Mar-19-2025 | 5650.81 $* | 5933.11 $* |
| Feb-19-2025 | 5600.64 $* | 5880.81 $* |
| Jan-19-2025 | 5550.98 $* | 5828.23 $* |
Характеристики
Product Description
JQLAER HWC laser welding and cleaning machine 3 in1 supplier Portable Hand-held laser cleaning machine price
JQLAER Portable Hand-held laser rust removal, laser paint removal, laser dust removal automatic fiber laser cleaning machine.
JQ-1000HC can be cleaned quickly, brightly and accurately to remove surface paint, coating and oxidation layer; the equipment processing has no damage to the substrate; it can be used for a long time with low running cost; the equipment can be operated automatically and is easy to operate; it is environmentally friendly and has no secondary pollution. Widely used for metal surfaces and tire rubber composite surfaces, application in laser rust removal, laser paint removal, laser
dust removal surface laser degreasing , laser removal of zinc, laser film removal, laser cleaning, such as coating, etc.
JQ-1000HC can be cleaned quickly, brightly and accurately to remove surface paint, coating and oxidation layer; the equipment processing has no damage to the substrate; it can be used for a long time with low running cost; the equipment can be operated automatically and is easy to operate; it is environmentally friendly and has no secondary pollution. Widely used for metal surfaces and tire rubber composite surfaces, application in laser rust removal, laser paint removal, laser
dust removal surface laser degreasing , laser removal of zinc, laser film removal, laser cleaning, such as coating, etc.

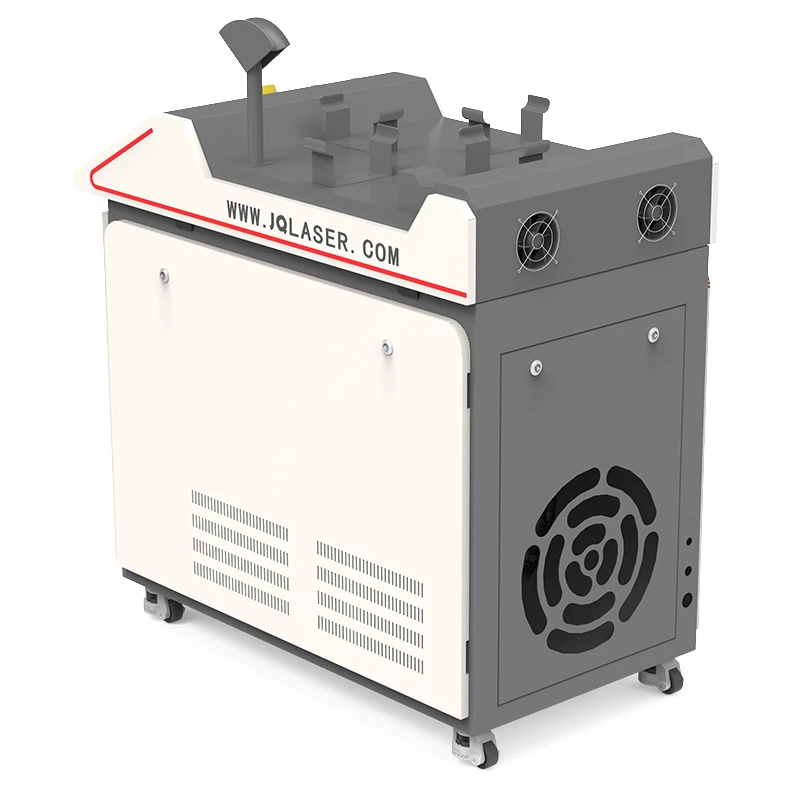

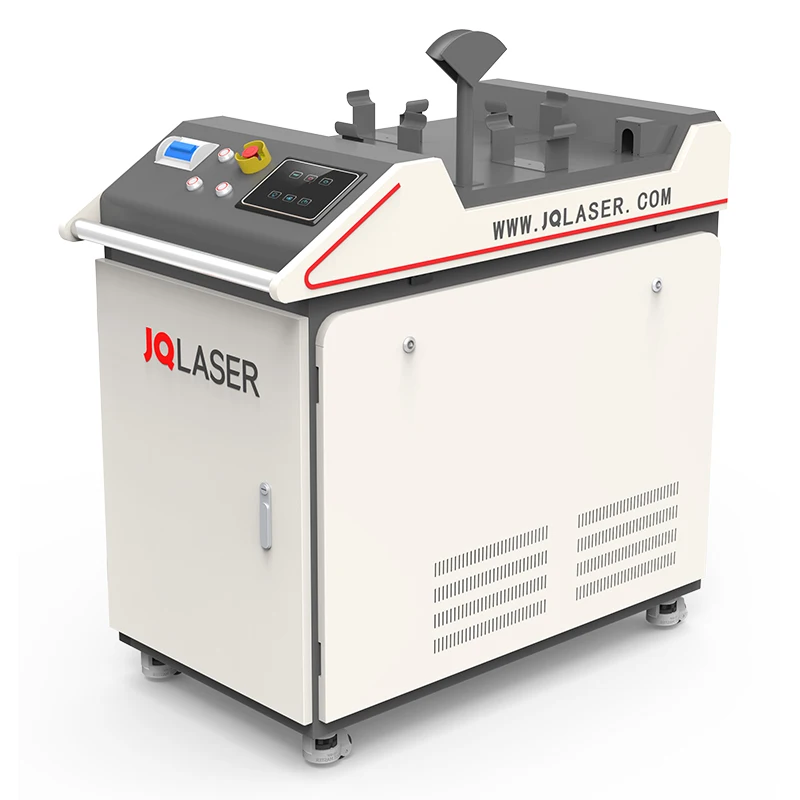

Product Show
M model handheld welding machine | ||||
model | Source and power | Control system and laser head | ||
JQ1000HCM | 1000w raycus | Option: WSX Galvo cleaning head | ||
1000w JQ | ||||
1000w BWT | ||||
JQ1500HCM | 1500w raycus | |||
1500w JQ | ||||
1500W bwt | ||||
JQ2000HCM | 2000w raycus | standard： SUP Option: WSX Galvo cleaning head | ||
2000w bwt | ||||
Machine Details
Laser Power | 1000W/1500w/2000w |
Laser working mode | Continuous |
Application | Laser dust removal, paint removal, rust removal |
Laser wavelength | 1064nm |
Laser type | Optical fiber |
Fiber length | 10m |
Scan amplitude | 60mm |
Way of working | Handheld/Automated |
Refrigeration unit | Intelligent dual temperature chiller |
Total power | 6KW |
Cleaning Speed | 10-50 m²/hour |
The distance between cleaning head to cleaning material | 300-500mm (400mm is better) |
Working time | It can work continuously for 24 hours |
Working environment temperature range | 15-35℃ |
Humidity range of working environment | <70% non-condensing |

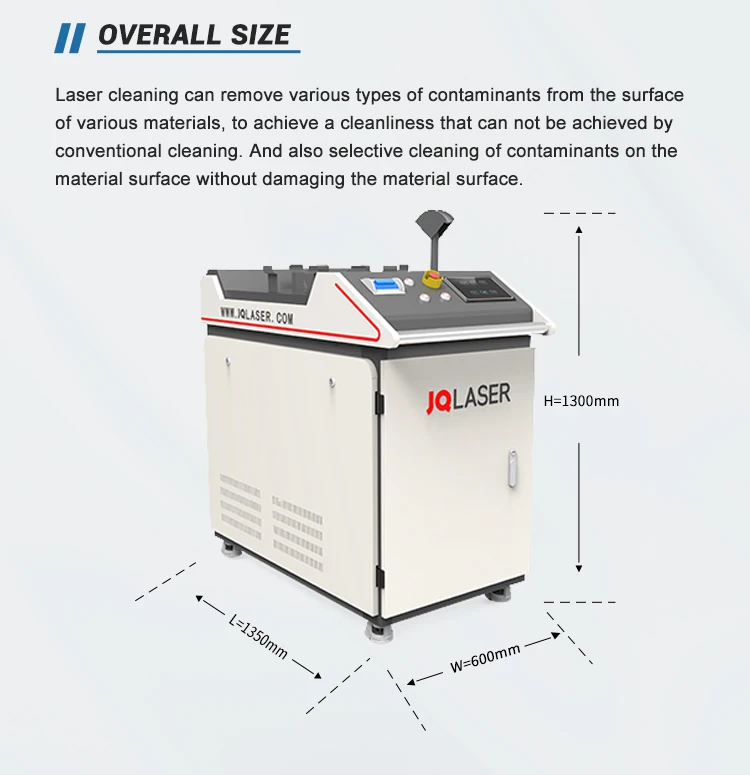

Machine size（length x width x height） | 350mm*600mm*1300mm |
Voltage requirement | AC220±10%VAC,50/60HZ |
JQLAER HWC laser welding and cleaning machine 3 in1 supplier Portable Hand-held laser cleaning machine price
Model M handheld cleaning machine is optimized in product design and configuration in model J and model A,This products are more stable and scientific, flexible and cost-effective.
Minimalist style + large LOGO appearance design clarifies our design concept: Less is more! Every detail is in line with the user's wishes, and every cleaning action is smooth!
Minimalist style + large LOGO appearance design clarifies our design concept: Less is more! Every detail is in line with the user's wishes, and every cleaning action is smooth!
Optional mini size ,you could carry your cleaner with a car trunk . Acceptable air freight, let your cleaning machine fly to you!
Details&Parts
Fiber laser
High single pulse energy
High beam homogenization
Universal control interface with high compatibility
High single pulse energy
High beam homogenization
Universal control interface with high compatibility
Laser head cleaning
Adopt laser descaling, high production efficiency
The protective lens adopts drawer type structure, easy to replace.
Lightweight shape, body engineering design method, comfortable grip.
Adopt laser descaling, high production efficiency
The protective lens adopts drawer type structure, easy to replace.
Lightweight shape, body engineering design method, comfortable grip.
Dual temperature chiller
LED screen, temperature display at all times
Intelligent temperature control, compressor cooling
Simple to operate, stable performance, energy-saving and efficient
LED screen, temperature display at all times
Intelligent temperature control, compressor cooling
Simple to operate, stable performance, energy-saving and efficient
The electric control part adopts the air lift rod and the hinge opening and closing device, also the screws are fastened during transportation, which is durable, safe and reliable.
The electrical layout is reasonable, the lines are neat, the markings are clear, and the trunking is beautiful.
Lasers can be transmitted via fiber optics and easily operated at a distance in conjunction with robots and manipulators.
Adopt three safety devices: general switch, control switch and emergency stop switch.
FAQ
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2. Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox 3.The effect of paint and rust removal Very good, you can refer to our video below
3. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese Spanish Russian Korean and English, and language settings can also be set according to customer needs。
6.lassification of cleaning objects
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2. Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox 3.The effect of paint and rust removal Very good, you can refer to our video below
3. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese Spanish Russian Korean and English, and language settings can also be set according to customer needs。
6.lassification of cleaning objects
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others

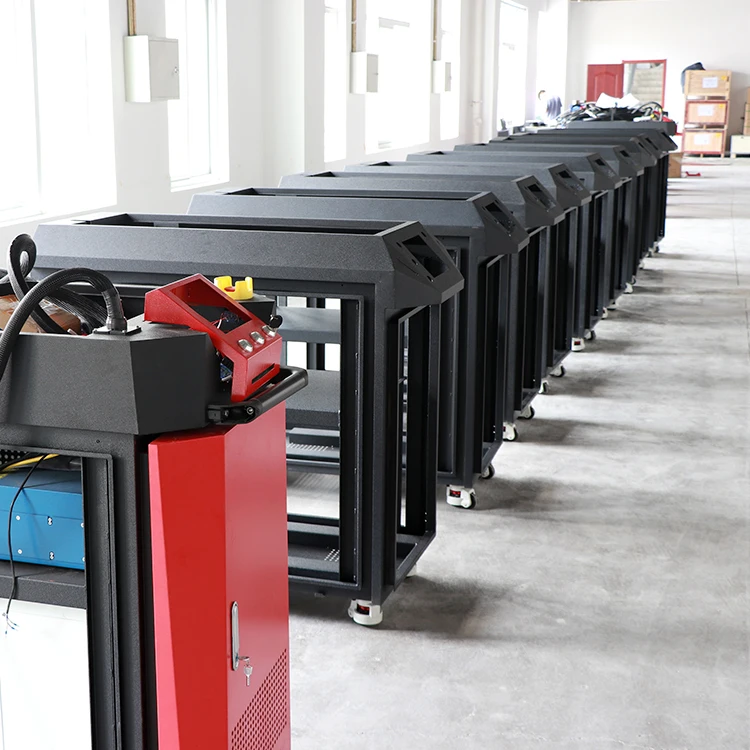

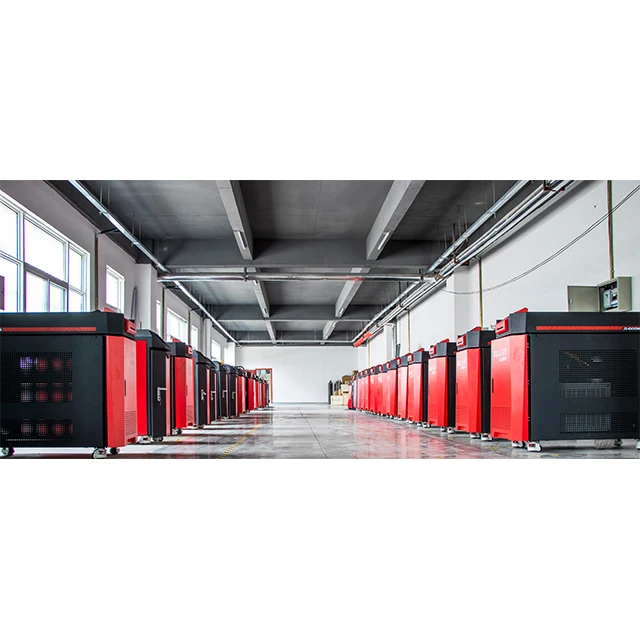

Factory Show
Our Service
Clients' feedback
FAQ about supplier choice,why choose us ?
Our service
Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How can i choose a more suitable machine after i compared many factories ? | JQ laser can customize the accurate cutting scheme for you, reduce the processing cost, you only need to provide the cutting material, the thickness and the number of the material. |
| don't know about these businesses. After talking about a few, I still dare not place an order | JQ laser makes it easier for you to choose the suitable machine for your business. You can send us samples. We will provide you the cutting process via video or live broadcast. |
There is big price difference ,who should i choose after talked with several companies? | Different materials or thickness, different laser configuration, JQ laser, Strength certified professional manufacturer, you will get the right choice. |
What should i do if there is somthing wrong after i bought the machine? | JQ laser has a professional team of after-sales engineers. We have done after-sales certi- fication. We will provide on-site service within 14 days (some countries). More details please contact sales manager. |
