Factory Price Managed L3 8 24 48-Port with 10G Gigabit Uplink Port Layer 2 Layer 3 Data Center Core Switch







OFS-MXF4GT24-3 is a powerful three-layer managed 10-Gigabit core Ethernet fast switch independently developed by our company, supporting 4 1000/10000M SFP/SFP+ adaptive optical ports + 24 10/100/1000Base-T self-adaptive Adapt to RJ45 port. Fully follow the design and materials of industrial products, the shell adopts a 19-inch rack design, a wide range of working environment temperature, DC37-75V/AC100-240V dual power redundancy and other technologies, providing excellent industrial products such as high/low temperature resistance, lightning protection, etc. Class quality; supports powerful management functions, including system management, comprehensive two-layer management functions, three-layer routing management, QOS queue management, comprehensive network security management and monitoring and maintenance management; industrial-grade three-level ESD protection is suitable for a variety of occasions , Such as deployment requirements in intelligent transportation, outdoor surveillance, industrial networks, safe cities and other harsh environments.



Features





 Support WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM diversified management and maintenance methods v

 Support IPV4/IPV6 network management interface and network neighbor management v

 Support DHCP server, DHCPL2/L3 relay agent, DHCPV6 service v

 Support DNS host and client configuration management

 Support SNMP V1/V2C/V3 and Trap message configuration management v

 Support LLDP and LLDP-MED configuration management, ISDP configuration management

 Support switch timing plan management v

 Support port mode, port bandwidth speed limit, rate control, flow control and other management, port status panel information display

 Support 8 groups of static and dynamic lacp aggregation v

 Support unicast/multicast/broadcast storm suppression v

 Support STP/RSTP/MSTP production tree protocol and loop protection protocol, support CST and MST configuration, eliminate the second layer loop, and realize link backup

 Support port VLAN, IEEE 802.1Q VLAN, Voice VLAN, VLAN double tag QinQ configuration.

 Support MAC address aging and static MAC address configuration



Technical parameter list

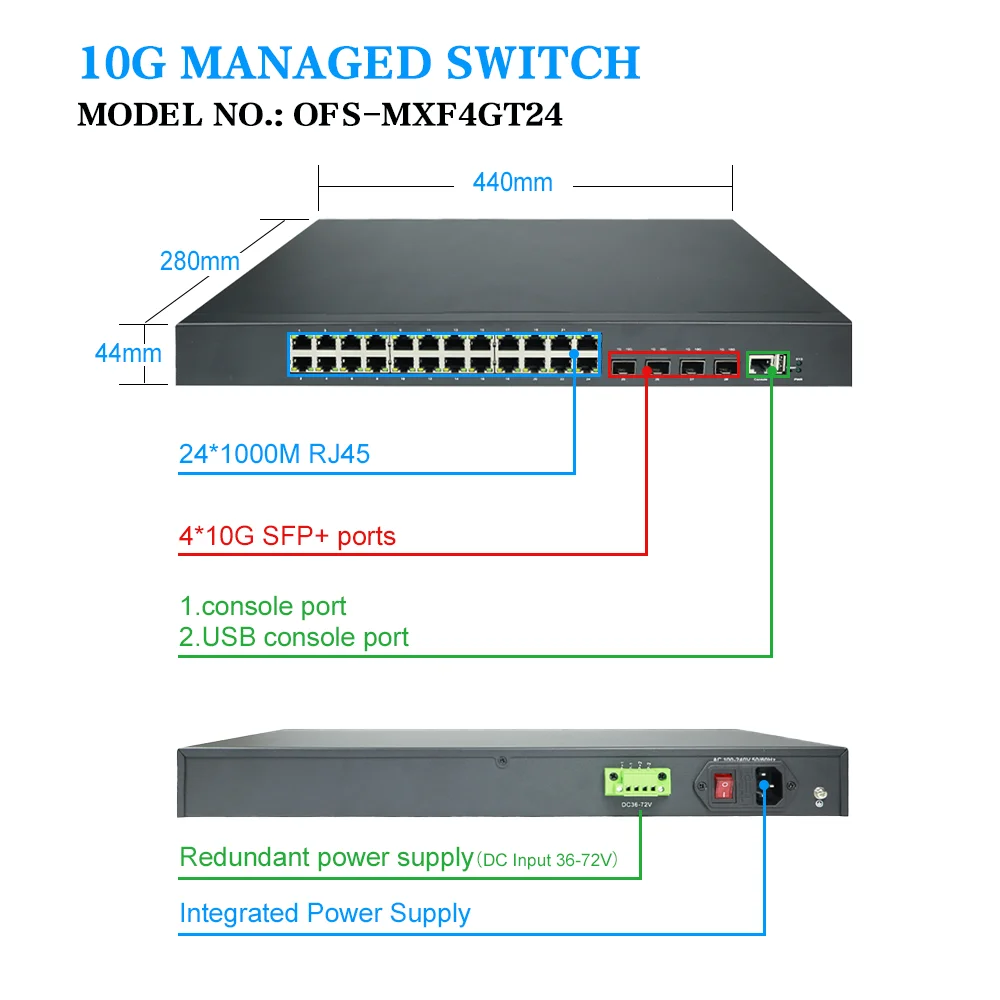

Business interface	4*1000/10G Base-X SFP/SFP+ adaptive, 24*10/100/1000 Base-T
Management interface	1 Console RJ45 control port/USB port

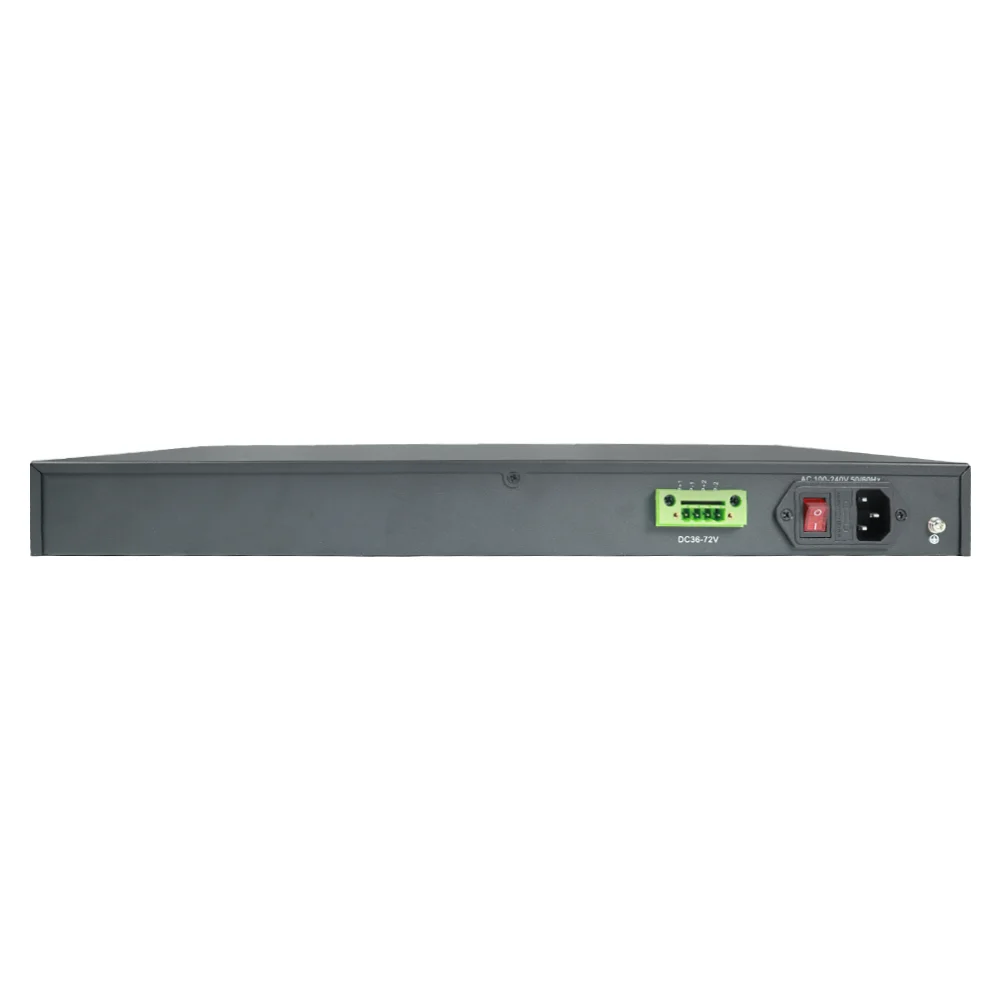

Power connector	4P Phoenix terminal and AC tripod with switch, dual power supply redundancy
LED lights	Power indicator: PWR (green); system indicator: SYS (green); network port indicator: yellow (1000) green (Link); optical port indicator: 1G (100M)/10G green
Twisted pair	0-100m(CAT5e,CAT6)
Single mode fiber	20/40/60/80/100KM
Multimode fiber	550m/2KM
Optical fiber interface	SFP slot (dual fiber LC, single fiber LC/SC)
Ring topology Star	support
topology Bus	support
topology Tree	support
topology Hybrid	support



topology	support
Input voltage	DC37-75V/AC100-240V 50-60HZ dual power
Power consumption	Full load (Total power) <50W
PoE port	without
PoE protocol	without
PoE pin assignment	without
PoE management mode	without
Exchange capacity	128G
Packet forwarding rate	95.3Mpps
MAC address table	16K
VLAN support number	Support 4K
Report buffer	4M
Exchange mode	Store and forward
Forwarding delay	<10us
Port characteristics	Cross-connect and auto-flip
Flow control	support
Jumbo frame	Support 10Kbytes
Spanning Tree Protocol	Support STP/RSTP/MSTP
server configuration	Radius/DHCP/ TACACS+
Link aggregation	Support 8 groups
Multicast	Support IGMP /MVR
Port mirroring	support
Storm suppression	Support unicast/multicast/broadcast
Port traffic statistics	support
QINQ	support
LLDP	support
DHCP	support
