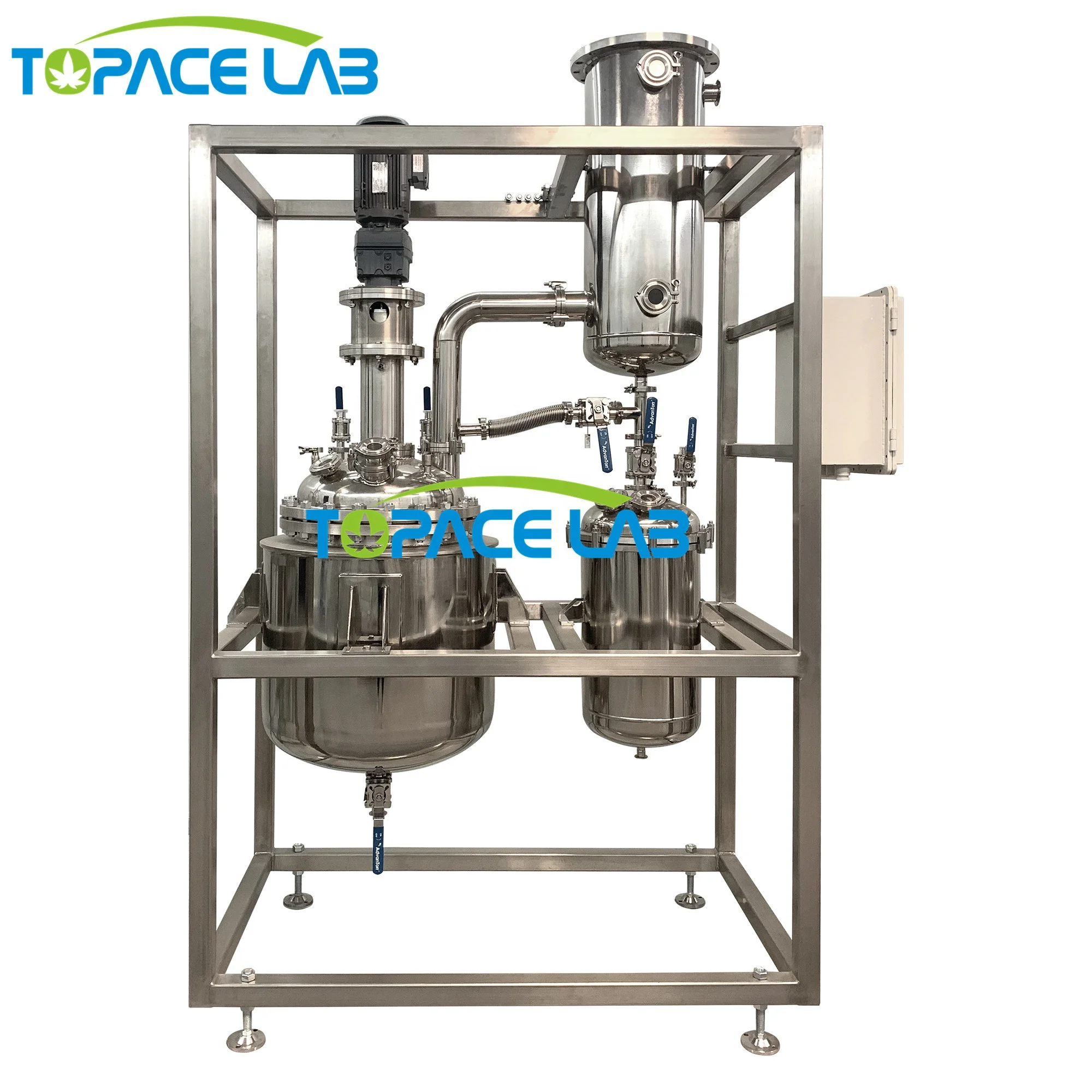

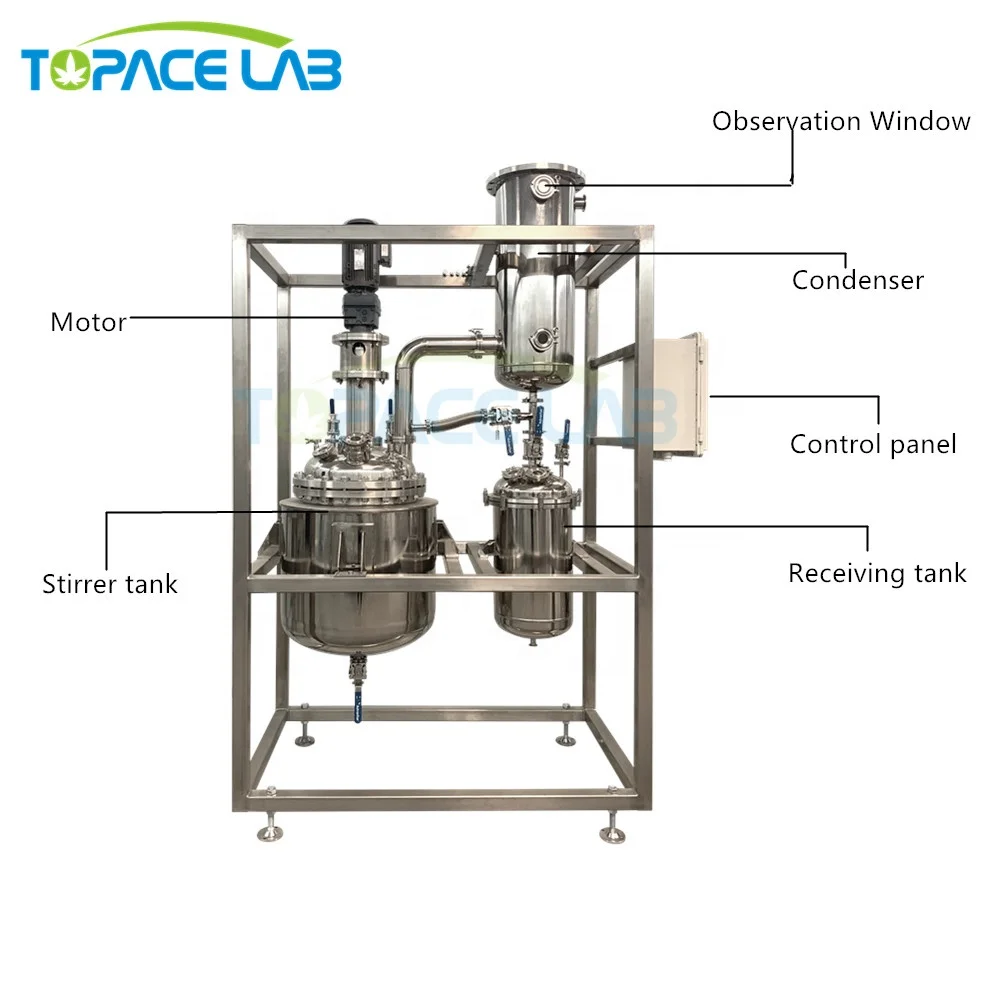

 Topacelab stainless steel 50l 100l 200l 300l mixing device stirring equipment jacketed stainless steel reactor vessel











It is mainly used for the process of crystallization, combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, finechemical, biopharmaceuticals, and the synthesis, test and production of new materials.



The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump, chiller /low temperature circulator, heater and heating and cooling circulating device.



1. Modular design, easy to repair and maintain.

2. Ex control panel, it's very safe to use.

3. Continuously running.

4. Multiple observation window, easy to observe the material condition.





Model	SSR-50L	SSR-100L	SSR-200L
Stirring tank	Net volume 50L	Net volume 100L	Net volume 200L
	Parts in contact with the materialis SS316; The rest is SS304
	Static seal/mechanical seal
	Stirring power: 750W, frequency conversion speed regulation;	Stirring power: 1.5KW, frequency conversion speed regulation;	Stirring power: 1.5KW, frequency conversion speed regulation;
	Circulating heating of jacket, 40mm heat insulation layer outside the jacket;
	One pressure gauge and temp sensor
	One inlet, KF16, with one ball valve;	One inlet, KF25, with one ball valve;	One inlet, KF25, with one ball valve;
	One gas proctection port, KF16, with one ball valve;	One gas proctection port, KF25, with one ball valve;	One gas proctection port, KF25, with one ball valve;
	Inlet and outlet of jacket DN25.	Inlet and outlet of jacket DN25.	Inlet and outlet of jacket DN25.
Condenser	Heat exchange area 1M2	Heat exchange area 2M2	Heat exchange area 3M2
	Materia: SS316
	With observation window
Receiving tank	Volume:30L	Volume:50L	Volume:100L
	Materia: SS316
	With observation window



Customized packaging can be available.





The damage caused by the transportation problem shall be borne by the seller.



We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.



The supporting equipments:



1. Circulating heater&chiller

2. Circulating chiller

3. Vacuum pump



 when you receive them,you can use this system at once,it is very convenient.
