Цифровой 2 канала ШИМ генератор 1Hz-150Khz 3 V-30V прямоугольную волну частота импульсов рабочий


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.59 $* 0.47 $*
Aug-18-2025 0.66 $* 0.3 $*
Jul-18-2025 0.22 $* 0.67 $*
Jun-18-2025 0.56 $* 0.8 $*
May-18-2025 0.2 $* 0.91 $*
Apr-18-2025 0.91 $* 0.4 $*
Mar-18-2025 0.58 $* 0.40 $*
Feb-18-2025 0.0 $* 0.14 $*
Jan-18-2025 0.7 $* 0.79 $*

Характеристики





Product Description

Product Description

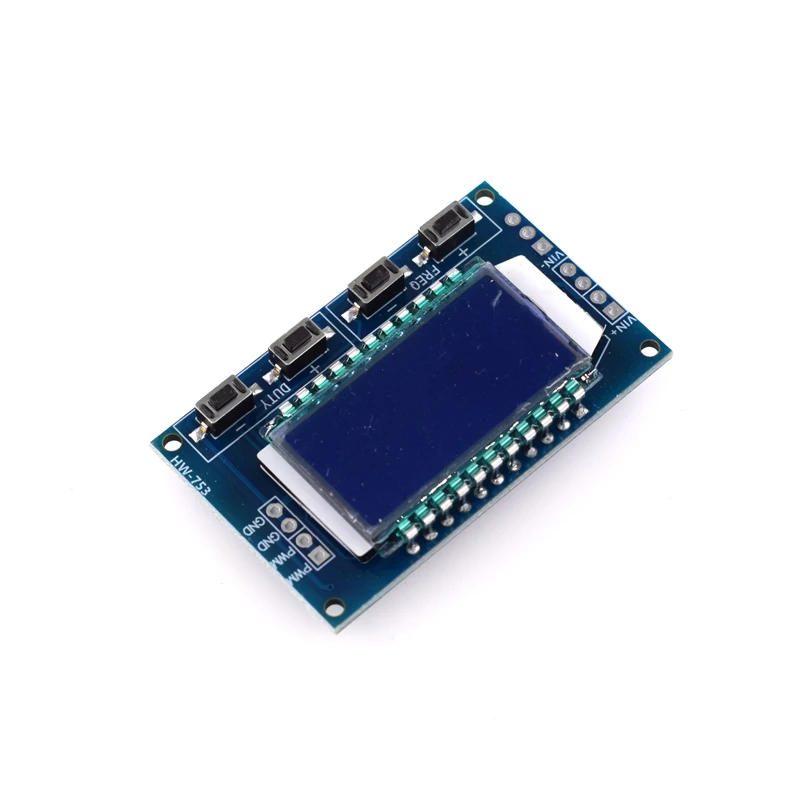

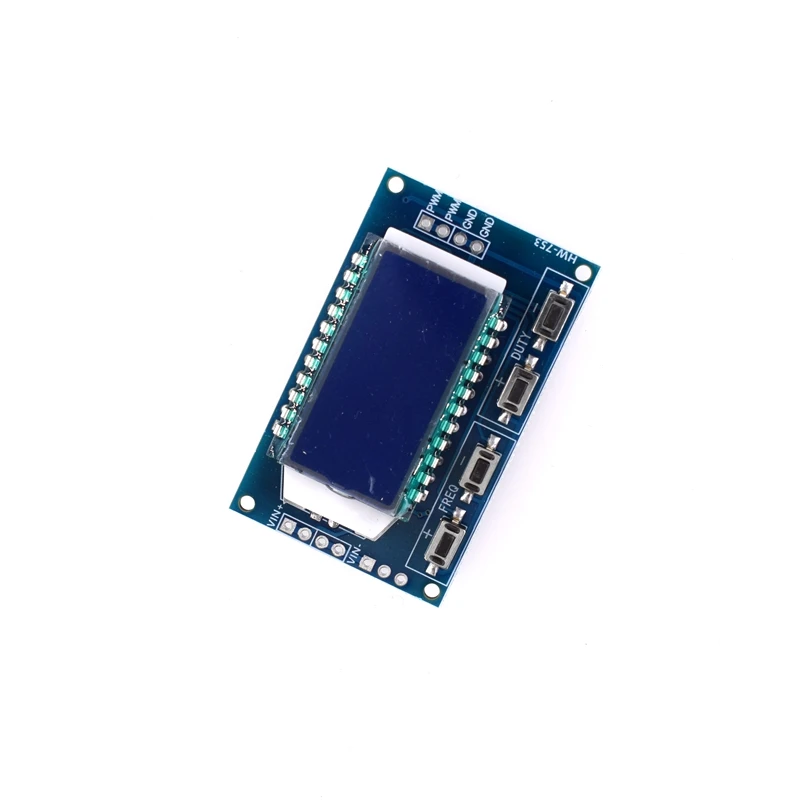

Module description:
PWM output, frequency and duty can be set separately;
The frequency is divided into four ranges, which are automatically switched:
1.  (no decimal point): the minimum unit is 1Hz, and the value range is 1Hz ~ 999Hz;
2. The minimum unit of X.XX (decimal point is in the hundreds place) is 0.01Khz, the value range is 1.00Khz ~ 9.99Khz
3.  (decimal point is in ten digits): the smallest unit is 0.1Khz; the value range is 10.0KHz ~ 99.9KHz
4.  (decimal point is in tens and hundreds): the minimum unit is 1Khz; the value range is 100KHz ~ 150KHz e.g. Frequency display: 100 means PWM outputs 100Hz pulse; 1.01 means PWM outputs 1.01K pulse
54.1 means that the PWM outputs a pulse of 54.1KHz;
 1.2.4 indicates that the PWM outputs a pulse of 124KHz; the duty cycle value range: 0 ~ 100%;
All setting parameters are saved after power off.

Parameter settings:
The module has 4 independent buttons for setting the frequency and duty cycle. It supports short press (increase or decrease a unit) and long press (rapid increase or decrease). It is very simple. The parameters are automatically saved after setting, and the Lost.

Scope of application:
1. Used as a square wave signal generator to generate square wave signals for experimental development;
2. Used to generate a square wave signal to control the motor driver;
3. Generate adjustable pulses for MCU use;
4. Generate adjustable pulses and control related circuits (applications such as PWM dimming and speed regulation).
