Новый дизайн поставки свежего воздуха отличный материал Лучшая цена потолочный слот вентиляционная система ОВКВ линейный

item

value

Warranty

1 Year

After-sale Service

Other

Project Solution Capability

Others

Application

Air grilles are products designed and manufactured to be installed in ventilation piping systems with the function of providing
clean air, pushing dirty, dusty and hot air out. Finally bring us a clean space, beneficial to human health.

Design Style

Modern

Place of Origin

Vietnam

Province

Hanoi

Brand Name

P69

Type

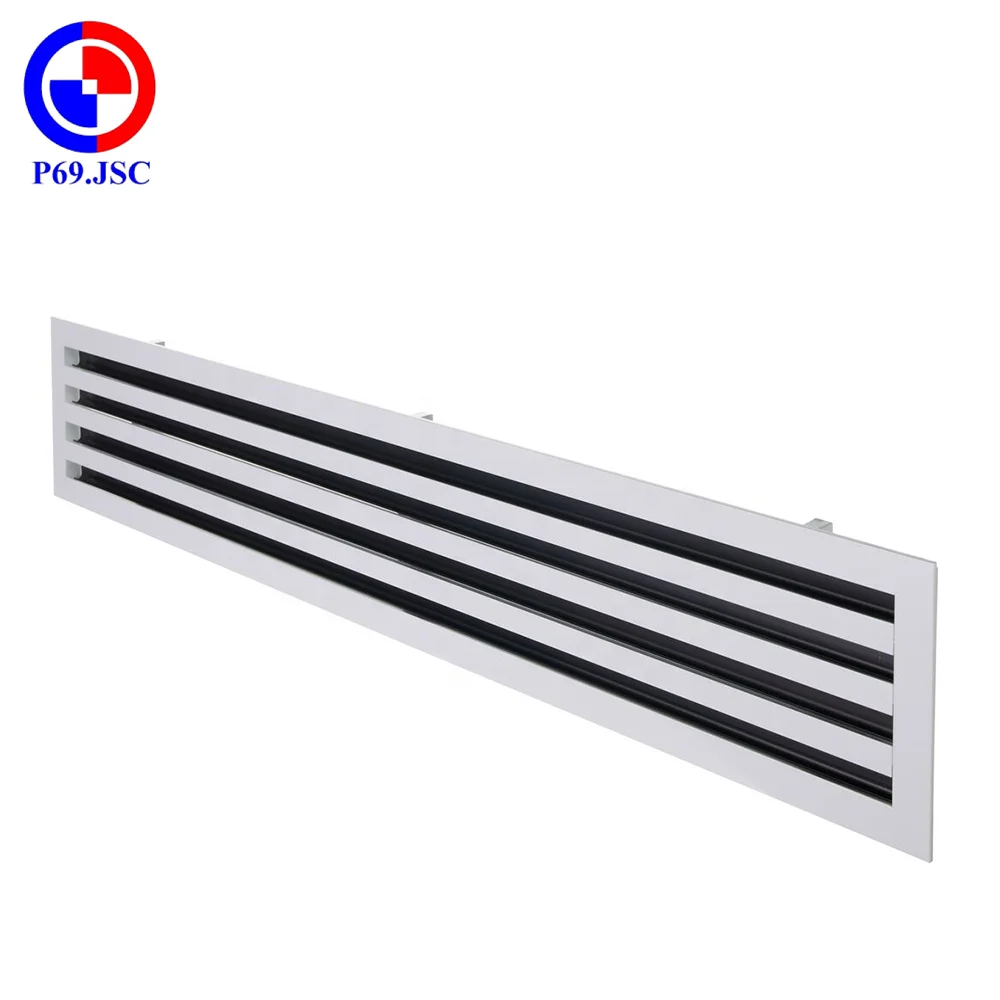

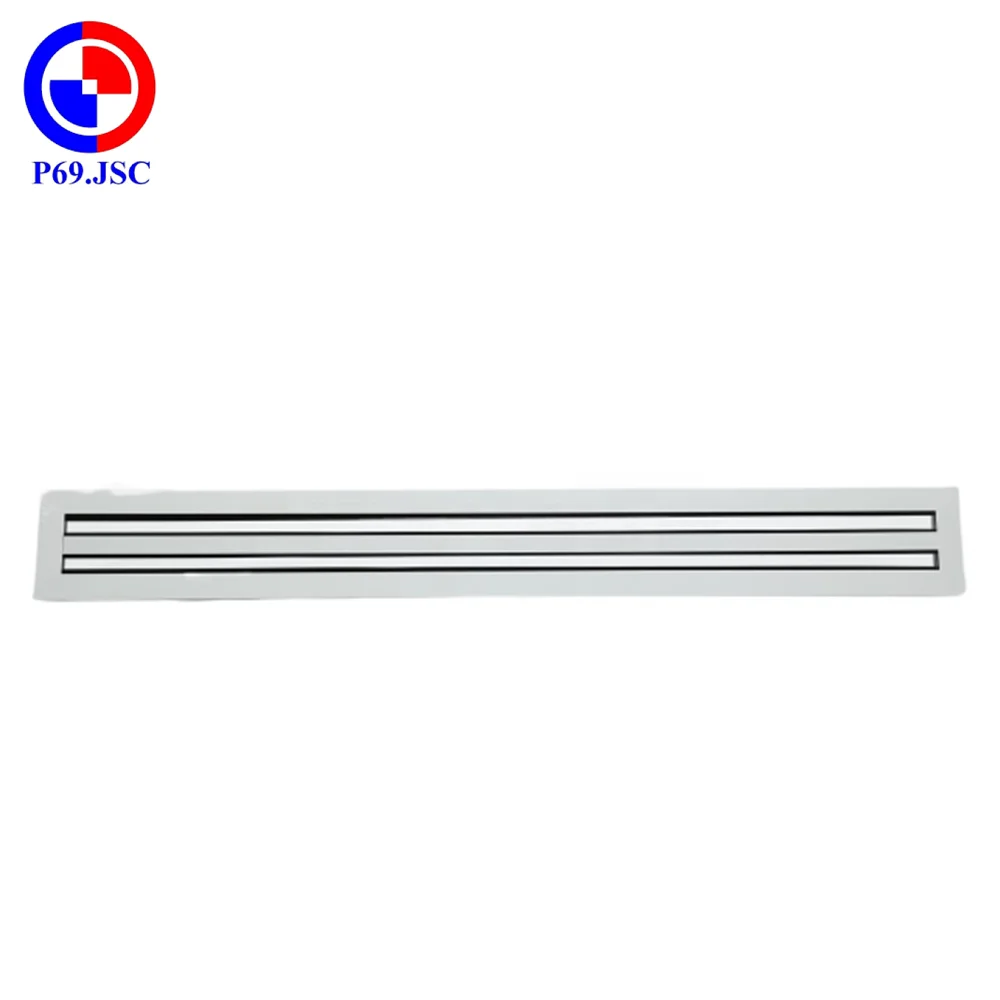

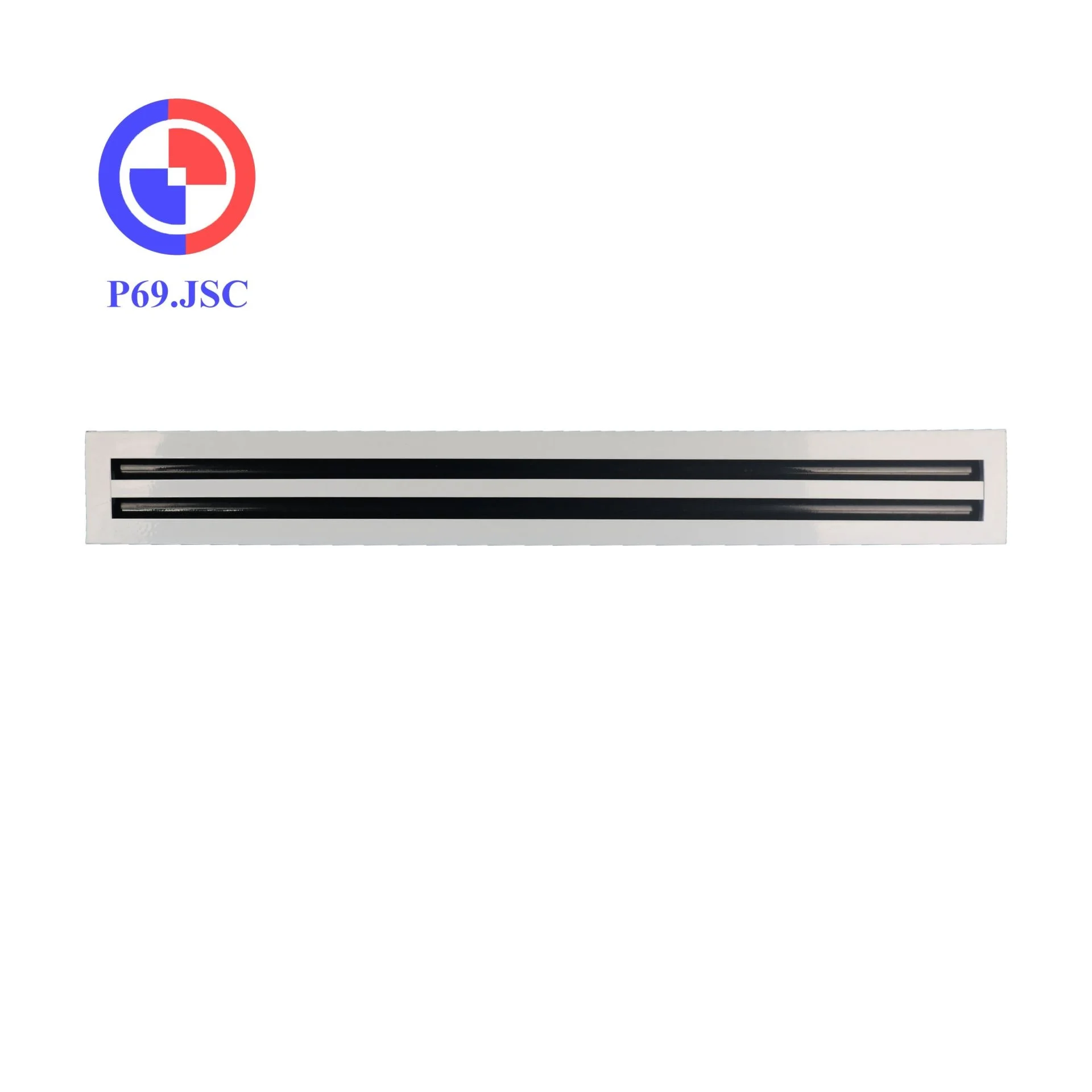

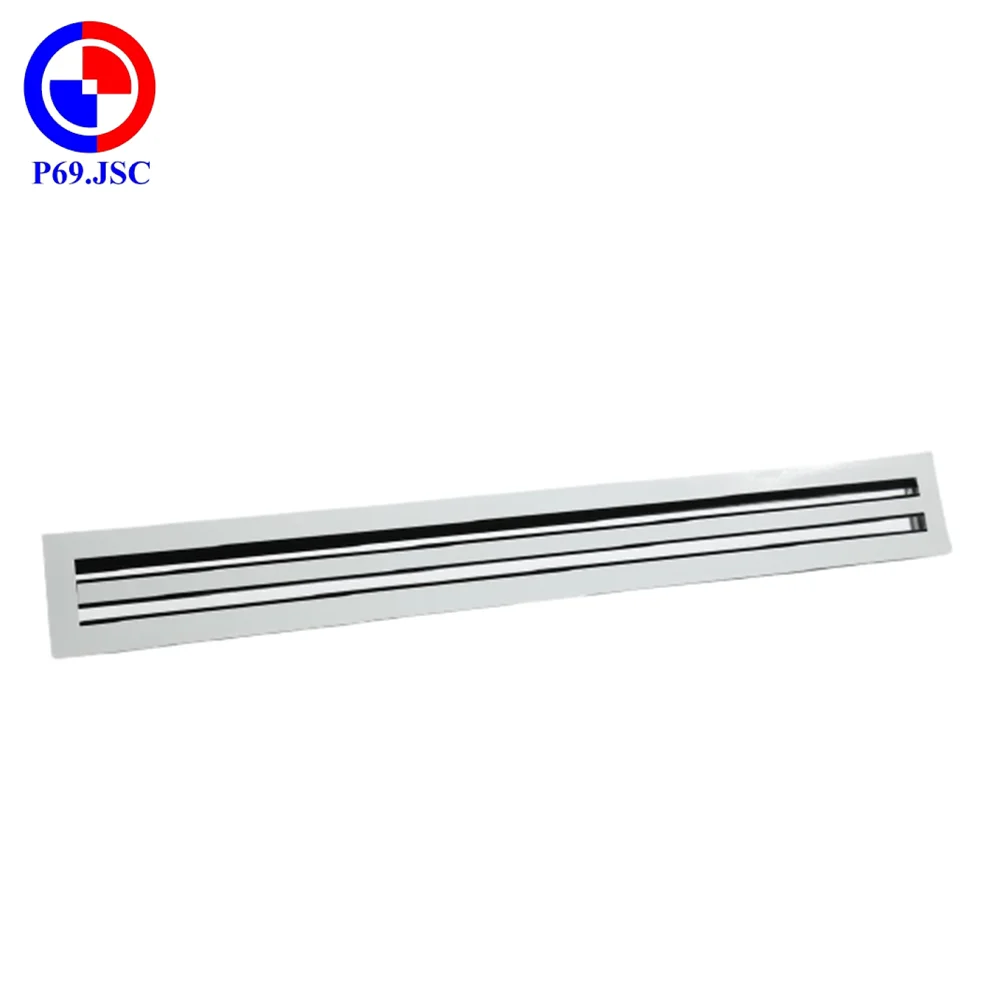

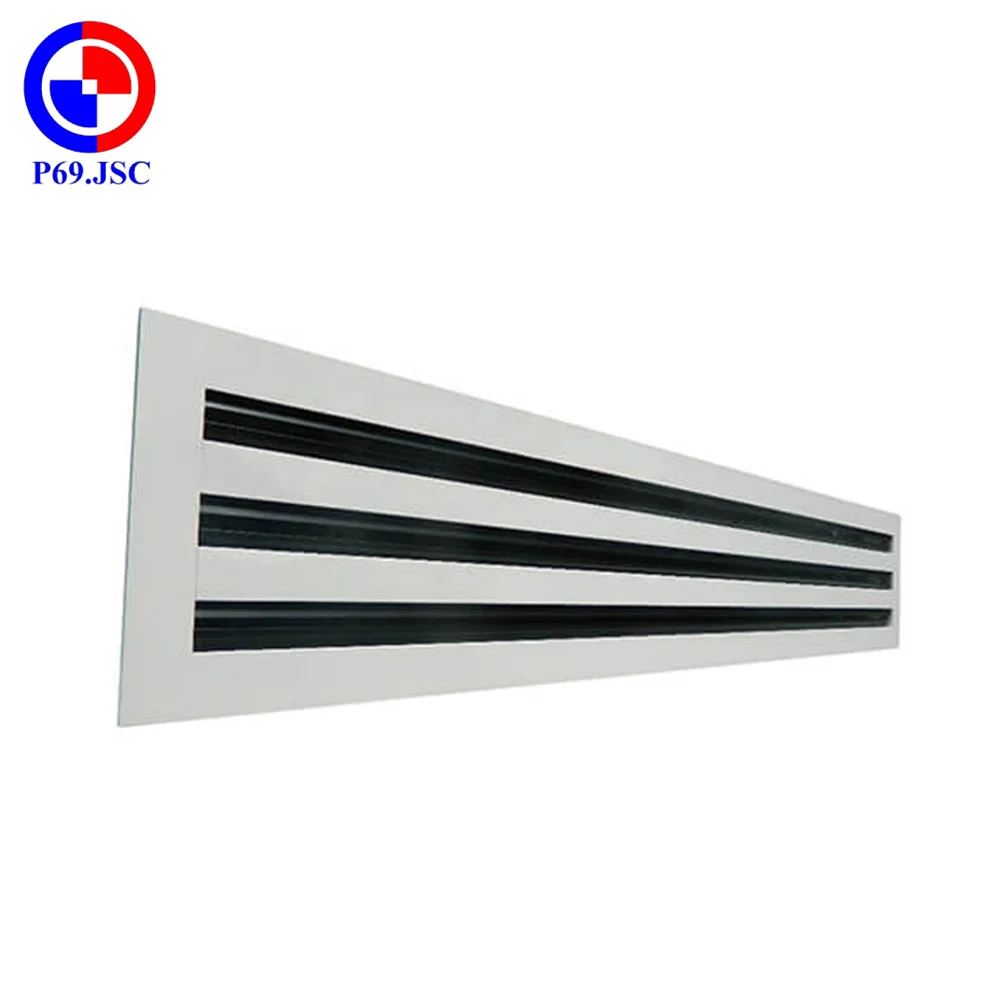

Linear Slot Diffuser

Description

- The air grille is designed with a mouth that connects to a soft air duct, the body is used to store the amount of wind, adjust the amount of wind before pushing it out.
- Products including frames and wings are made from high-grade aluminum, lightweight but certain, very convenient for long-distance transportation.
- The surface of the air grille is finished with electrostatic paint, creating a bright shine, and the color and size are designed according to the needs of the customer's project.
- The raw materials for the production of louvers are mainly made of high-strength and stainless-steel galvanised aluminium.
- Air grilles are installed on the ceiling, wall, connecting ducts with different shapes such as squares, rectangles. In addition, the mouth of the wind box can be made of round, oval, etc., depending on the intended use of the user to help the product become stable and the wings are made of straight spokes or curved spokes, angles and angles. for ease of adjustment according to user requirements.

Advantages

- The air grille has the effect of helping to control the temperature, adjust the amount of wind to be flexible, filter impurities and dust out of the working environment, bringing fresh air in.
- In addition, it also has the effect of circulating air, bringing the breeze to spread throughout the space, going deep into the corners, helping to regulate the air inside and outside.
- Another advantage that the air grilles bring is to eliminate air stagnation, because now industrial parks and commercial centers are built in a closed environment.

Details

· Product Code: SD (Slot Linear Diffuser)
· Material: Shaped Aluminum code A6063T5
· Surface coating: powder coating
· Standard colors: porcelain white and other standard colors

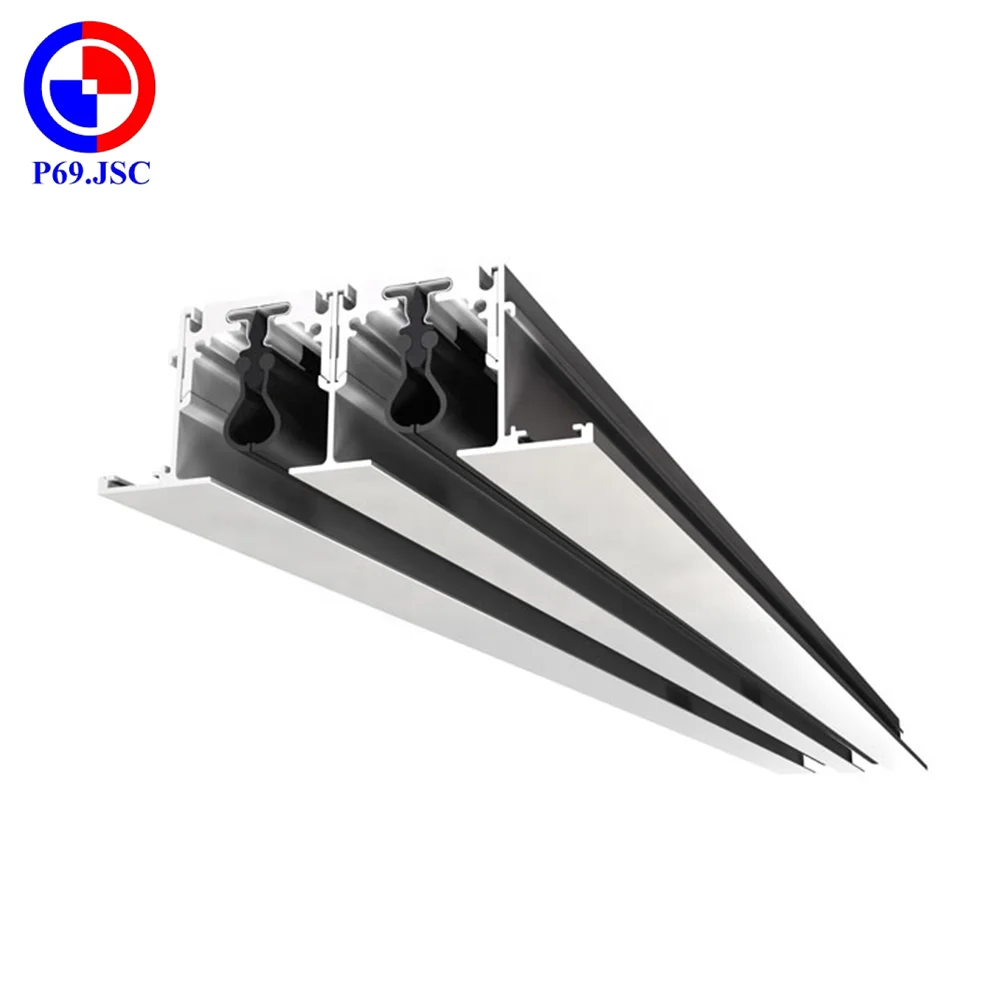

· Product structure:
     o Frame: Shaped Aluminum thickness: 0.8mm
     o Vanes: Shaped Aluminum thickness: 0.7mm, wings can control wind flow
· Optional Accessories:
     o Dust Filter Plate
· Size: according to design requirements
     o Standard width size, depending on the number of slots: 1 slot, 2 slots and 3 slots
     o Standard length size: 800mm, 1,000mm and 1,200mm
     o Size is 2 or more pieces when the size is greater than 1,200mm
