Product Description

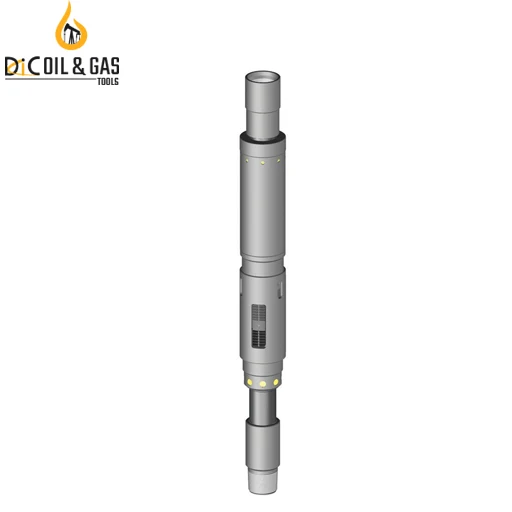

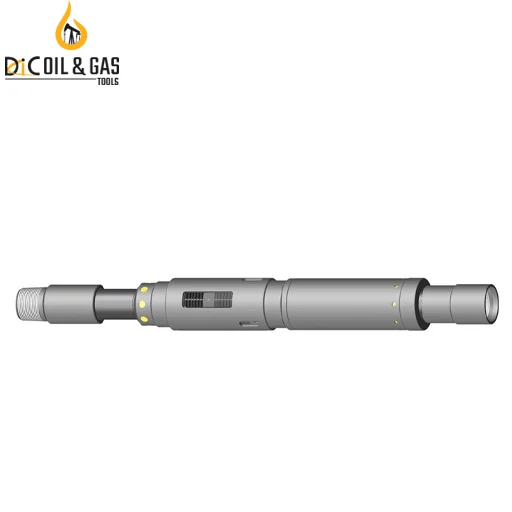

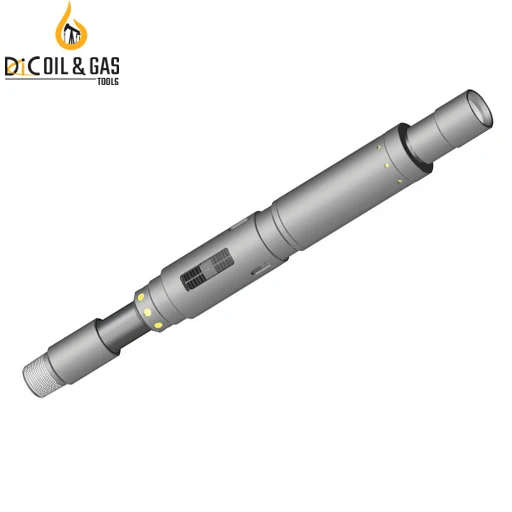

Hydraulic Tubing Anchor
The Hydraulic Tubing Anchor is a hydraulically-activated retrievable anchor designed to hold the tubing string in tension or compression. The Hydraulic Tubing Anchor catcher prevents movement of the tubing during pumping strokes and holds it stationary if it should part. The use of a tubing anchor increase pump effciency, reduces rod and tubing wear, and keeps tubing and rods from falling into the well in case of a part. The Hydraulic Tubing Anchor is operated by applying pressure to the tubing. This pressure shears screws that hold the anchor
unset. A setting piston drives the slips set while locking the setting force in place. The Hydraulic Tubing Anchor utilizes specially designed slips - heat-treated steel alloy double-acting slips for maximum holding power in tension or compression. Slips are fully enclosed for extra breakage resistance and will be retained if slips break. The Hydraulic Tubing Anchor is retrieved by shearing screws with tension. Shear pins are added in 5,000 lb increments to achieve the desired shear value necessary to release
unset. A setting piston drives the slips set while locking the setting force in place. The Hydraulic Tubing Anchor utilizes specially designed slips - heat-treated steel alloy double-acting slips for maximum holding power in tension or compression. Slips are fully enclosed for extra breakage resistance and will be retained if slips break. The Hydraulic Tubing Anchor is retrieved by shearing screws with tension. Shear pins are added in 5,000 lb increments to achieve the desired shear value necessary to release
Details Images
Specification
Casing | Casing Range (inches) | Tool OD (inches) | Tool ID (inches) | Thread Connections Box Up / Pin Down | ||||
Size (inches) | Weight (lbs/ft) | |||||||
4-1/2 | 9.5 - 13.5 | 3.920 - 4.090 | 3.750 | 1.94 | 2-3/8 EUE | |||
5 | 11.5 - 15.0 | 4.408 - 4.560 | 4.125 | 1.94 | 2-3/8 EUE | |||
18.0 - 21.0 | 4.154 - 4.276 | 4.000 | 1.94 | 2-3/8 EUE | ||||
5-1/2 | 13.0 - 23.0 | 4.670 - 5.044 | 4.500 | 2.44 | 2-7/8 EUE | |||
7 | 17.0 - 32.0 | 6.094 - 6.538 | 5.750 | 3.00 | 3-1/2 EUE | |||
3.88 | 4-1/2 EUE | |||||||
