Product Description

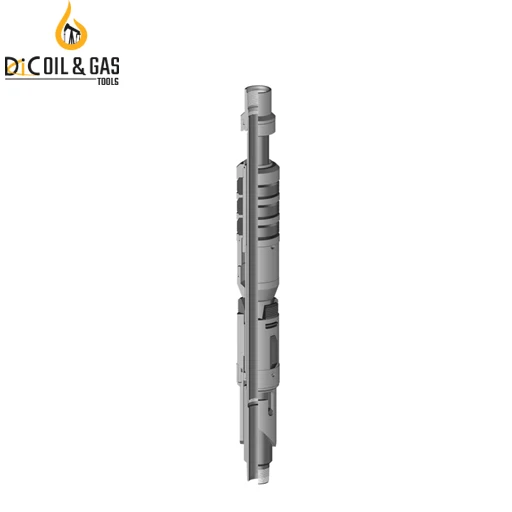

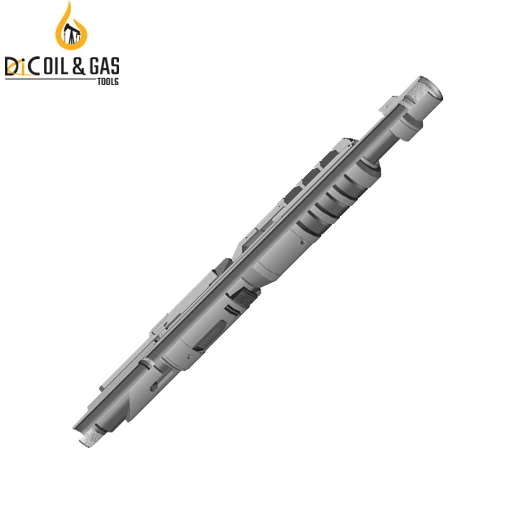

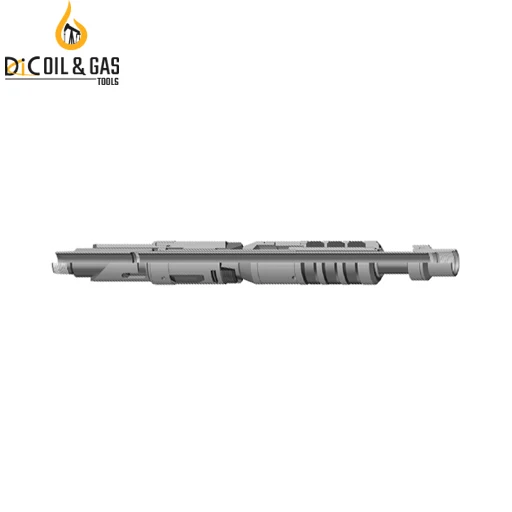

AS-III Packer

The AS-III Packer is a single-grip packer with no upper hold-down for use where no differential pressure from below is present. From the packing elements down, this packer operates identically to the AS-II Packer. This packer also features a large by-pass area to prevent swabbing when running or retrieving. This packer is ideal for isolating casing holes or perforations when used as the lower packer in conjunction with the Snapset Packer as the upper packer.
Special Features
Large internal by-pass
1/4 turn set / straight pick-up release Additional J-slot arrangements available

Details Images

Specification

Casing			Casing Range (inches)	Gage OD (inches)	Max OD (inches)	Thread Connections Box Up / Pin Down
Size (inches)	Weight (lbs/ft)		Casing Range (inches)	Gage OD (inches)	Max OD (inches)	Thread Connections Box Up / Pin Down
5-1/2	14.0 - 20.0	4.778 - 5.012	4.625	-	2-3/8 EUE
	14.0 - 20.0	4.778 - 5.012	4.625					-	2-7/8 EUE
		20.0 - 23.0	4.670 - 4.778	4.500	-	2-3/8 EUE
		20.0 - 23.0	4.670 - 4.778	4.500	-					2-7/8 EUE
6-5/8	17.0 - 24.0	5.921 - 6.135	5.750	-	2-7/8 EUE
6-5/8		24.0 - 32.0	5.675 - 5.921	5.500	-	2-7/8 EUE
7	17.0 - 26.0	6.276 - 6.538	6.000	6.0621	2-7/8 EUE
	17.0 - 26.0	6.276 - 6.538				6.000	6.1251	3-1/2 EUE
		26.0 - 32.0	6.094 - 6.276	5.875	-	2-7/8 EUE
		26.0 - 32.0	6.094 - 6.276	5.875				5.9361	3-1/2 EUE
7-5/8	24.0 - 29.7	6.875 - 7.025	6.672	-	2-7/8 EUE
8-5/8	28.0 - 40.0	7.725 - 8.017	7.500	-	3-1/2 EUE
9-5/8	32.3 - 43.5	8.755 - 9.001	8.500	-	3-1/2 EUE
		43.5 - 53.5	8.535 - 8.755	8.250	-	2-7/8 EUE
		43.5 - 53.5	8.535 - 8.755	8.250				-	4-1/2 EUE
