Набор с защелкой I

Категория: Packer >>>
Поставщик: DEDICATED,IMPEX,COMPANY

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.30 $*	0.46 $*
Aug-16-2025	0.59 $*	0.29 $*
Jul-16-2025	0.61 $*	0.8 $*
Jun-16-2025	0.56 $*	0.54 $*
May-16-2025	0.38 $*	0.98 $*
Apr-16-2025	0.65 $*	0.48 $*
Mar-16-2025	0.44 $*	0.34 $*
Feb-16-2025	0.78 $*	0.30 $*
Jan-16-2025	0.30 $*	0.5 $*

Характеристики

Product Description

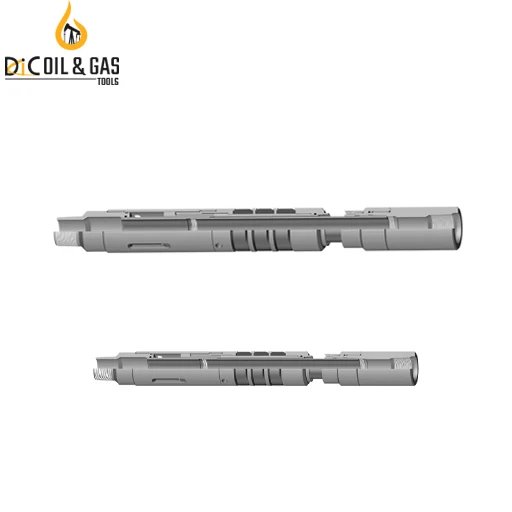

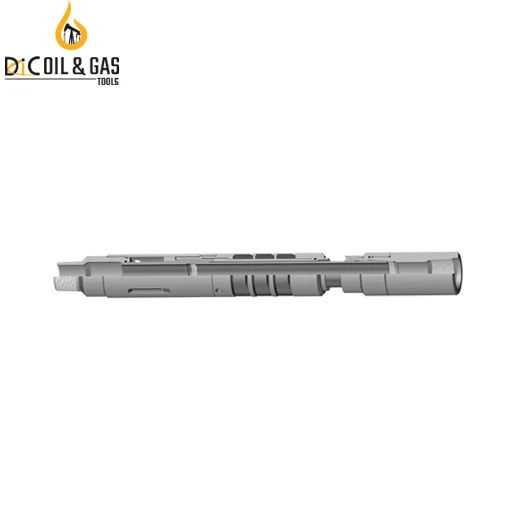

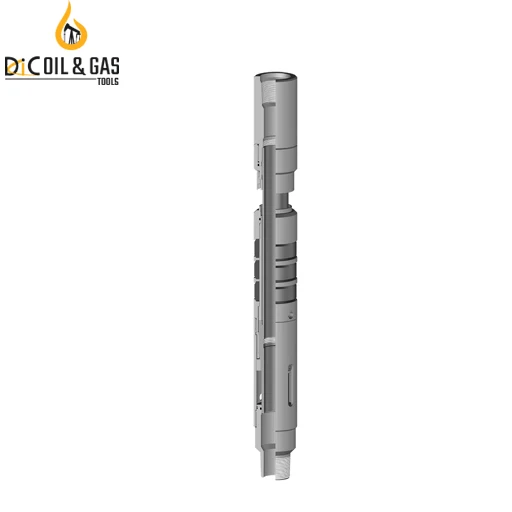

Snap Set I Packer

The Snapset I Packer is a compression set packer requiring only straight set down weight to pack-off. This packer is run above other packers (such as the ASI-X Packer, AS-II Packer or AS-III Packer) for selective production to isolate casing holes and perforations. This packer has no upper or lower slips and should be used only where intermediate differential pressures from below are expected. This packer has an internal latch to prevent the packer from setting prematurely when running down the hole. When releasing, the latch re-engages to allow movement downhole and re-setting.

Special Features

> Large internal by-pass

> Set down to pack off, pick up to release

> Compact design

Details Images

Specification

Casing			Casing Range (inches)	Tool OD (inches)	Tool ID (inches)	Thread Connections Box Up / Pin Down
Size (inches)	Weight (lbs/ft)		Casing Range (inches)	Tool OD (inches)	Tool ID (inches)	Thread Connections Box Up / Pin Down
4-1/2	9.5 - 13.5	3.920 - 4.090	3.750	1.94	2-3/8 EUE
5-1/2	14.0 - 20.0	4.778 - 5.012	4.625	2.00	2-3/8 EUE
	14.0 - 20.0	4.778 - 5.012	4.625				2.38	2-7/8 EUE
		20.0 - 23.0	4.670 - 4.778	4.500	2.00	2-3/8 EUE
		20.0 - 23.0	4.670 - 4.778	4.500			2.38	2-7/8 EUE
7	17.0 - 26.0	6.276 - 6.538	6.000	2.50	2-7/8 EUE
7		26.0 - 32.0	6.094 - 6.276	5.875	2.50	2-7/8 EUE
7-5/8	24.0 - 29.7	6.875 - 7.025	6.672	2.50	2-7/8 EUE
9-5/8	43.5 - 53.5	8.535 - 8.755	8.250	3.00	3-1/2 EUE

Packing & Delivery

Company Profile

Dedicated Impex Company is well-reputed manufacturer and exporter of Oil and Gas Equipment. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.

DIC Oil and Gas Tools consider quality as an integral aspect of our process as it's not only for satisfies customers but also imparts us with a feeling of contentment. Quality is our mission. We maintain a strict quality management policy, which is religiously practiced within the organization.

Certifications

FAQ

Q1: Are you Manufacturer & Exporter?
A1: Yes, we are Manufacturer & Exporter.

Q2: What is your Core Products?
A2: Our Main Product is Oil and Gas Equipment.

Q3: What's Warranty of your product?
A3: One year Warranty for all products

Q4: How long is your delivery time?
A4: 15 days to 20 days for normal order, Delivery time depends on order qty.

Q5: free of cost sample?
A5: Depending on your order quantity, after confirmed order.
