Product Description

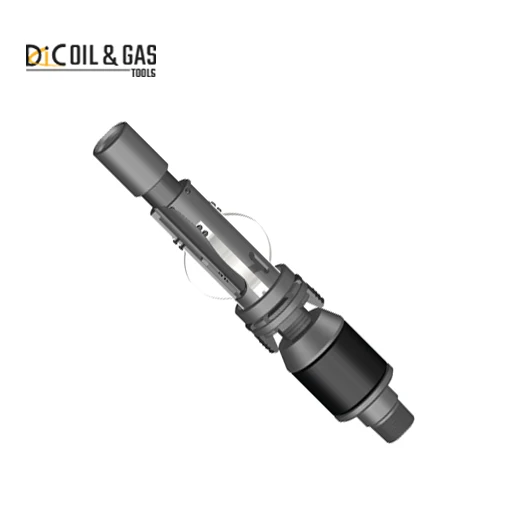

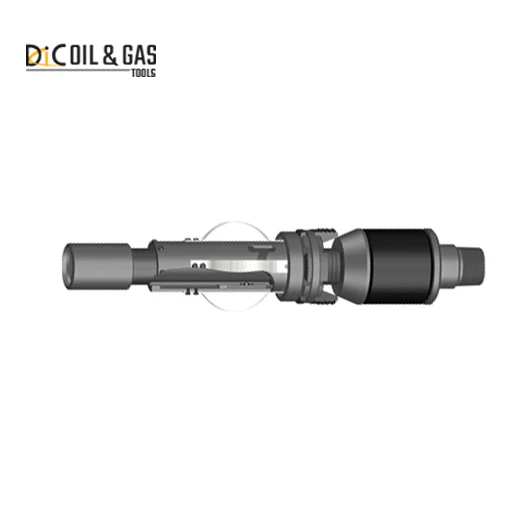

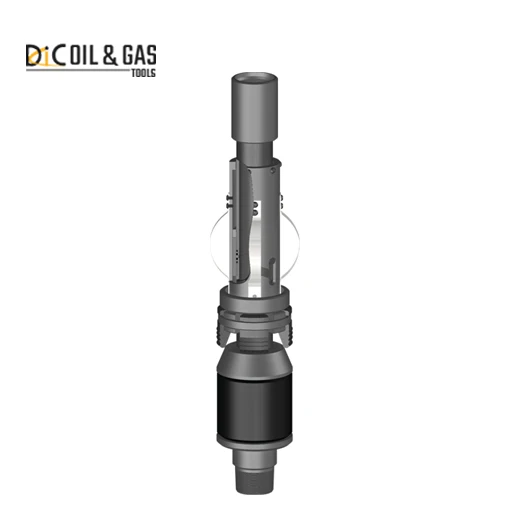

D-H TENSION PACKER
The D-H Tension Packer is for use in water flood, injection or producing wells. This tension packer has a built-in safety system to eliminate problems should conventional retrieval methods fail. Right-hand rotation releases the first safety joint allowing the slips to pull off the cone and release the packer. Should the packer fail to release, a second safety joint can be broken to release the packer. This safety feature allows for circulation down the tubing to remove debris.
In addition, the D-H Tension Packer is available for open-hole applications and incorporates dual elongated packing elements and deep wickered slips for better bite into the formation.

SPECIAL FEATURES:
1. Full opening.
2. Built-in safety joint.
3. Stainless steel drag springs.

4. Available to set in open hole.
5. Long packing element to give maximum sealing area.


Details Images






Specification


Casing
Casing Range (inches)
Tool OD (inches)
Tool ID (inches)
Thread Connections Box Up / Pin Down
Size (inches)
Weight (lbs/ft)
4-1/2
9.5 - 13.5
3.920 - 4.090
3.750
1.94
2-3/8 EUE
5
11.5 - 15.0
4.408 - 4.560
4.125
1.94
2-3/8 EUE
15.0 - 20.8
4.156 - 4.408
4.000
1.94
2-3/8 EUE
5-1/2
13.0 - 20.0
4.778 - 5.044
4.625
1.94
2-3/8 EUE
2.44
2-7/8 EUE
20.0 - 23.0
4.670 - 4.778
4.500
1.94
2-3/8 EUE
2.44
2-7/8 EUE
6
15.0 - 20.0
5.352 - 5.524
5.188
2.44
2-7/8 EUE
6-5/8
24.0 - 32.0
5.675 - 5.921
5.500
2.44
2-7/8 EUE
7
17.0 - 29.0
6.184 - 6.538
6.000
2.44
2-7/8 EUE
3.00
3-1/2 EUE
7-5/8
20.0 - 33.7
6.765 - 7.125
6.625
2.44
2-7/8 EUE
3.00
3-1/2 EUE
8-5/8
24.0 - 40.0
7.725 - 8.097
7.500
2.50
2-7/8 EUE
3.00
3-1/2 EUE
9-5/8
29.3 - 43.5
8.755 - 9.063
8.500
2.50
2-7/8 EUE
3.00
3-1/2 EUE
10-3/4
32.75 - 55.5
9.760 - 10.192
9.500
3.00
3-1/2 EUE
13-3/8
48.0 - 72.0
12.347 - 12.715
12.000
3.00
3-1/2 EUE
