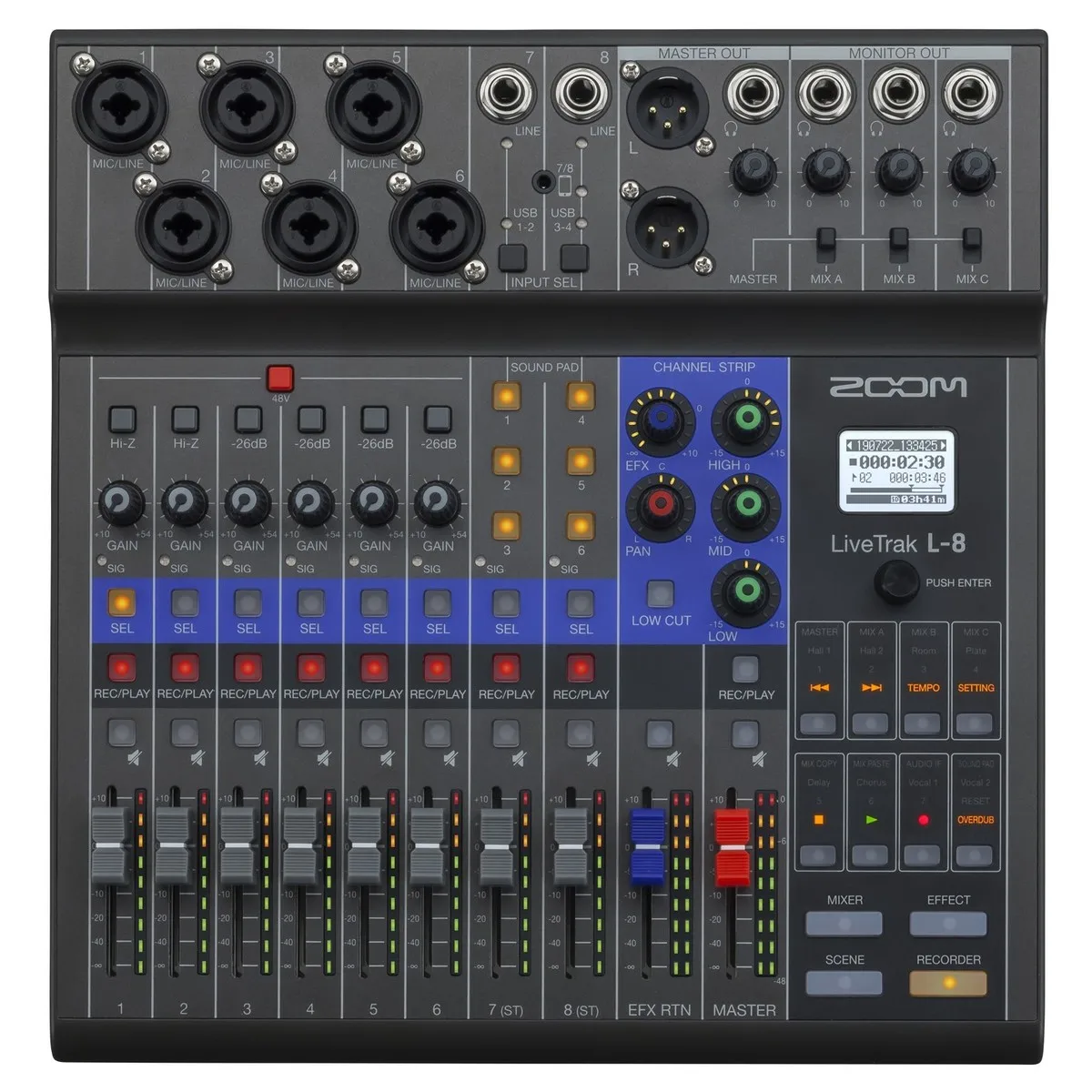

100% с переменным фокусным расстоянием livetrak L-8 смеситель для подкастеров и

Описание и отзывы

Трекер стоимости

Характеристики

Features
8-channel mixer (6 combo, plus 2 TS)
12-track simultaneous recording, 10-track playback
Mix-Minus function preventing audio feedback from dial-in guests
TRRS connection and included TRRS cable for phone connectivity
6 assignable Sound Pads, with 13 preset sounds
4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
3-band EQ and a low-cut function
7 scene memories for storing mixes
12-in / 4-out USB audio interface
Class-compliant mode (for iOS compatibility)
Battery operated with four AA batteries or a USB power supply
Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously
Specifications
Inputs and Outputs / Number of Channels

Inputs:
Mic/Line: 6
Line: 2
Output:
Master Out: 1
Master Out (Phones): 1
Monitor Out (Phones): 3
Inputs
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input Gain: +10 – +54 dB
Input Impedance: XLR: 3 kΩ
TRS: 3 kΩ/510 kΩ (when Hi-Z ON)
Maximum Input Level:
–2 dBu when –26dB switch OFF (at 0 dBFS)
+24 dBu when –26dB switch ON (at 0 dBFS)
Phantom Power: +48 V
Line
Specs: TS phone jack/TRRS mini jack (4-pole/TIP: L, RING: R, RING: GND, SLEEVE: MIC?
Input Impedance: 3 kΩ
Maximum Input Level: +4 dBu
Output
Type: XLR jacks (balanced)
Maximum Output Level: +14.5 dBu
Output Impedance: 100 Ω
Master Out (Phones)
Type: Standard stereo phone jack
Maximum Output Level: 10 mW + 10 mW (60Ω load)
Output Impedance: 10 Ω
Recorder
Maximum Simultaneous Recording Tracks: 12 at 44.1/48/96 kHz
Recording Format: WAV 44.1/48/96 kHz,?16/24-bit,?mono/stereo
Recording Media: 4GB–32GB SDHC-compliant cards (Class 10 or higher) 64GB–512GB SDXC-compliant cards (Class 10 or higher)
Audio Interface
44.1/48 kHz: Recording: 12 channels Playback: 4 channels
Bit Depth: 24-bit
Interface: USB 2.0
General
Sampling Frequency: 44.1/48/96 kHz
Frequency Response: 20 Hz – 20 kHz: –1 dB at 44.1 kHz 20 Hz – 40 kHz: –3 dB at 96 kHz (when +48 dB)
Equivalent Input Noise: Actual measurements: 121dB EIN (IHF-A) at +54dB/150Ω input
Display: LCD with backlight (96×64 resolution)
Power:
4 AA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power
Estimated Continuous Operation Times Using Batteries: 2 hours for alkaline or 3 hours for NiMH when battery saving mode on/48V off
Power Consumption: 5 W
External Dimensions: 268 mm (W) × 282 mm (D) × 74 mm (H)
Weight (main unit only): 1.56 kg
Product Code: LIVETRACK-L8
