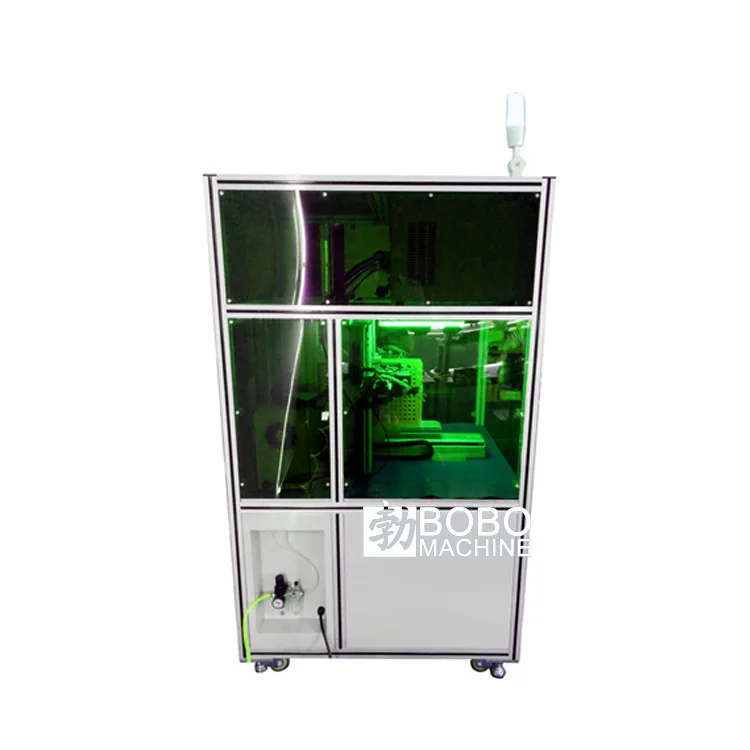

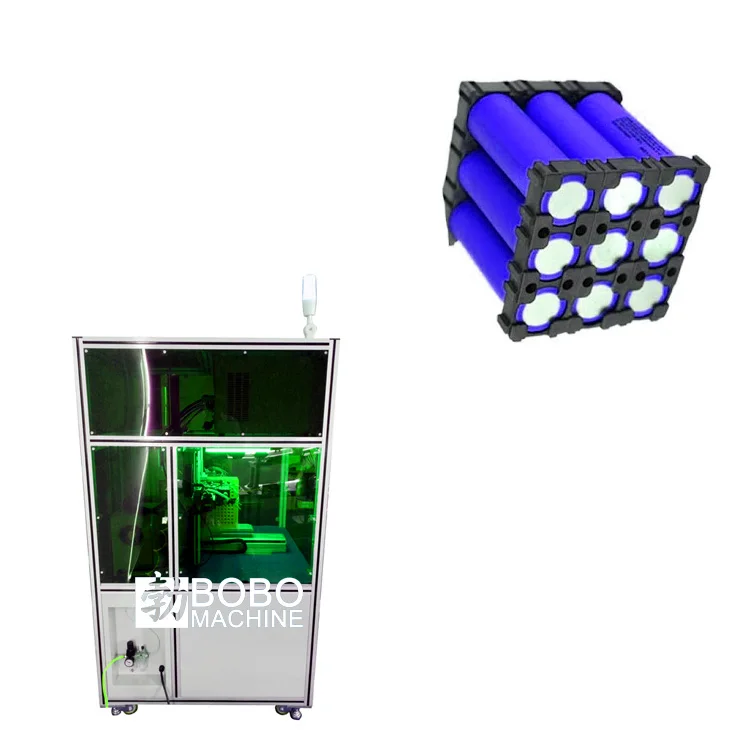

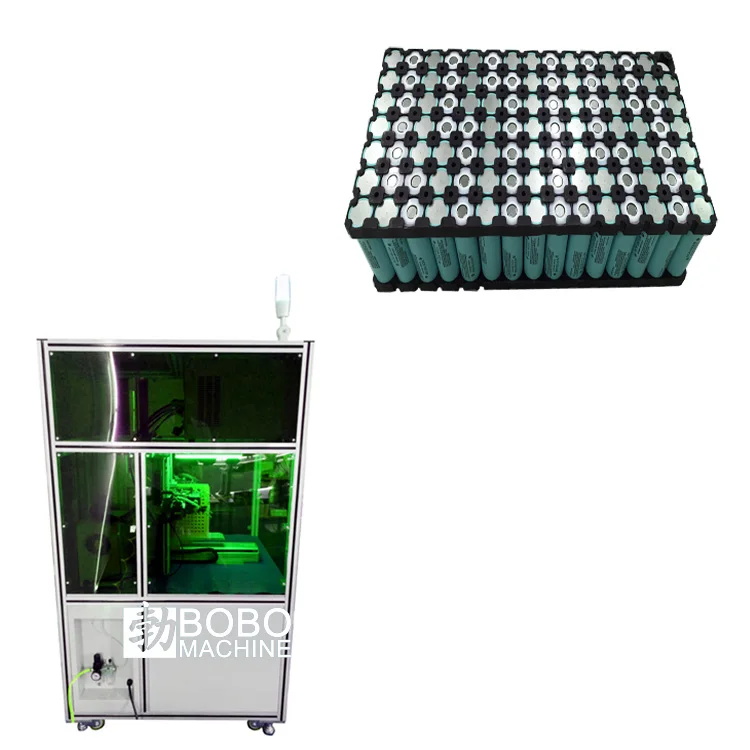

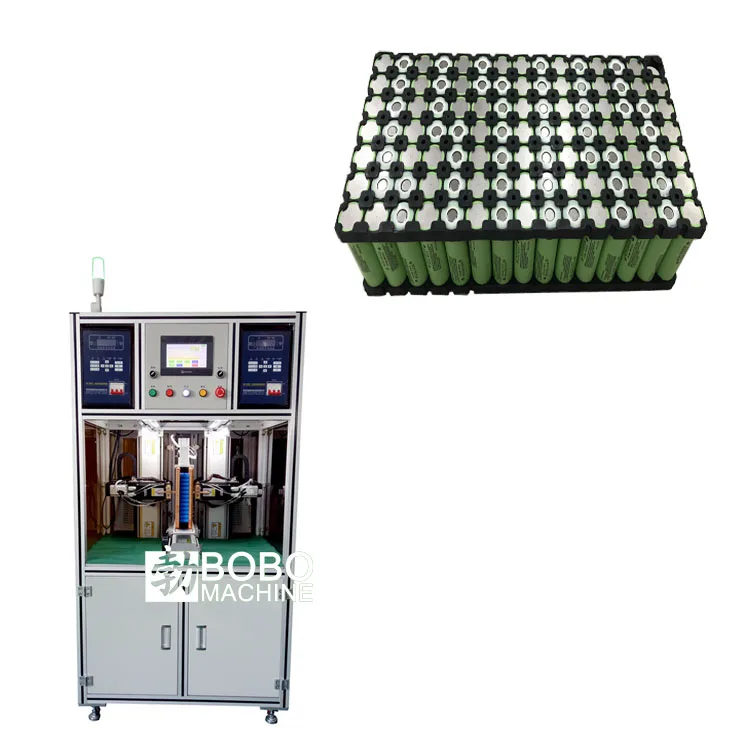

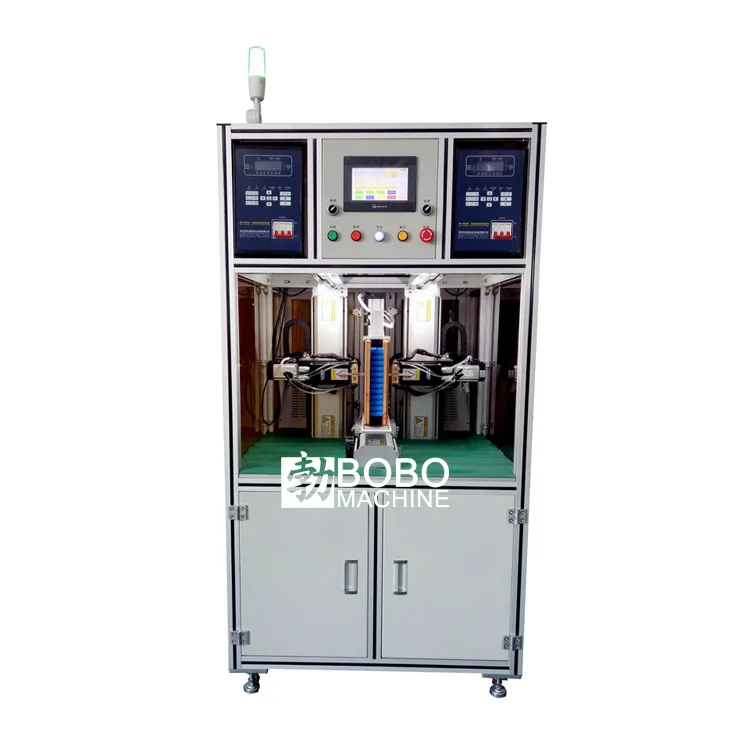

Автоматическая двухсторонняя литиевая батарея точечная сварочная машина
- Категория: Spot Welders >>>
- Поставщик: Bobo,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11900.32 $* | 12495.79 $* |
| Aug-15-2025 | 11800.85 $* | 12390.26 $* |
| Jul-15-2025 | 9900.60 $* | 10395.50 $* |
| Jun-15-2025 | 11600.0 $* | 12180.20 $* |
| May-15-2025 | 10100.98 $* | 10605.60 $* |
| Apr-15-2025 | 11400.3 $* | 11970.95 $* |
| Mar-15-2025 | 11300.40 $* | 11865.35 $* |
| Feb-15-2025 | 11200.45 $* | 11760.72 $* |
| Jan-15-2025 | 11100.87 $* | 11655.19 $* |
Характеристики
Product Description
Summary
1.High-performance CPU control, fast welding speed, 1.5-2 times faster than the standard capacitor discharge welder, LCD display, graphic display of the current working status, Chinese commentary
2. The latest IGBT discharge control, adjustable welding pulse width (discharge time), the standard capacitor discharge welder width is fixed
3. Adjustable welding pulse width, small welding spatter, no discoloration of the welded joint
4. High-speed polarity switching function, adjustable welding pulse width. Consistent energy output for each weld. Ensures that both weld joints are consistent. Can be realized with (single) double pulse energy storage welding, reduce welding spatter
5.Highly stable output, with welding voltage locking technology, electronic voltage stabilization function. Prevents fluctuations in network voltage from affecting welding current. Not affected by line voltage (grid) fluctuations.
6. Can monitor the welding current, current abnormal sound and light alarm
7. 10 custom welding specifications, can be flexibly called
8. With a 5-digit counter, counting the number of successful welding, can set the count alarm, prompting the repair of the welding pin.
9. Self radio (RFI) and electromagnetic dry (EMI) protection.
10. Power head split design, pneumatic and foot pedal can be flexible with.
2. The latest IGBT discharge control, adjustable welding pulse width (discharge time), the standard capacitor discharge welder width is fixed
3. Adjustable welding pulse width, small welding spatter, no discoloration of the welded joint
4. High-speed polarity switching function, adjustable welding pulse width. Consistent energy output for each weld. Ensures that both weld joints are consistent. Can be realized with (single) double pulse energy storage welding, reduce welding spatter
5.Highly stable output, with welding voltage locking technology, electronic voltage stabilization function. Prevents fluctuations in network voltage from affecting welding current. Not affected by line voltage (grid) fluctuations.
6. Can monitor the welding current, current abnormal sound and light alarm
7. 10 custom welding specifications, can be flexibly called
8. With a 5-digit counter, counting the number of successful welding, can set the count alarm, prompting the repair of the welding pin.
9. Self radio (RFI) and electromagnetic dry (EMI) protection.
10. Power head split design, pneumatic and foot pedal can be flexible with.
Specification
Power supply | AC 220V±10% 50Hz±2Hz |
Energy storage capacitors | 6600uf |
Maximum output power | 3000W |
Maximum output short-circuit current | 5000A |
Pre-soldering voltage | 80.0V-330V adjustable, accuracy 0.5V |
Welding Voltage | 80.0V-330V adjustable, accuracy 0.5V |
Welding time | 1.0ms-20.0ms adjustable, accuracy 0.1ms |
Weight | 60kg |
Dimension | 330L*180W*280H |
Parallel welding maximum thickness | 0.03mm~0.2mm |
Maximum thickness of upper and lower butt weld | 0.6mm +0.6mm |
Packing and Shipping
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
About Us
