MTH серии Регулируемый алюминиевый титановый сплав храповик гидравлический динамометрический ключ
- Категория: Other Hydraulic Tools >>>
- Поставщик: Zhengzhou,Gaode,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.33 $* | 0.24 $* |
| Aug-16-2025 | 0.60 $* | 0.47 $* |
| Jul-16-2025 | 0.46 $* | 0.73 $* |
| Jun-16-2025 | 0.83 $* | 0.93 $* |
| May-16-2025 | 0.92 $* | 0.87 $* |
| Apr-16-2025 | 0.46 $* | 0.17 $* |
| Mar-16-2025 | 0.78 $* | 0.45 $* |
| Feb-16-2025 | 0.37 $* | 0.71 $* |
| Jan-16-2025 | 0.49 $* | 0.23 $* |
Характеристики
Description
Description of Adjustable Aluminum Titanium Alloy Ratchet Hydraulic Torque Wrench Tools
The hydraulic wrench is composed of a power head and a working head. It adopts aluminum-titanium alloy material and integrally molded body to comprehensively strengthen the strength and toughness of the fuselage. It can be used for multiple purposes in one machine. One power head can be equipped with multiple working heads, and the working range is wide.
Product application
Adjustable Aluminum Titanium Alloy Ratchet Hydraulic Torque Wrench Tools is suitable for the place with narrow space. It is applicable to electric power (nuclear power, wind power, hydropower, thermal power), ships, metallurgy, transportation, cement, construction, aviation and other fields.
Product parameters
Item | MTH02 | MTH05 | MTH08 | MTH10 | MTH16 |
Max. torque(Nm) | 1882 | 4466 | 7451 | 10732 | 15339 |
Min. torque(Nm) | 188 | 447 | 745 | 1073 | 1536 |
Screw Nut(mm) | 16-36 | 22-48 | 27-55 | 30-64 | 36-72 |
Square Drive | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" |
L1(mm) | 130 | 170 | 202 | 228 | 237 |
L2(mm) | 182 | 249 | 286 | 326 | 336 |
H1(mm) | 52 | 70 | 81 | 90 | 100 |
H2(mm) | 77 | 98 | 125 | 134 | 144 |
H3(mm) | 96 | 127 | 149 | 172 | 181 |
H4(mm) | 133 | 165 | 184 | 207 | 216 |
R1(mm) | 25.8 | 34.8 | 39.8 | 16.8 | 50.8 |
R2(mm) | 102 | 140 | 160 | 184 | 192 |
Weight | 1.7 | 3.8 | 6.6 | 9 | 12.9 |
Item | MTH20 | MTH28 | MTH36 | MTH50 | MTH70 |
Max. torque(Nm) | 20108 | 26392 | 35397 | 48740 | 70660 |
Min. torque(Nm) | 2011 | 2639 | 3540 | 4874 | 7066 |
Screw Nut(mm) | 42-90 | 42-90 | 48-100 | 64-120 | 90 |
Square Drive | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
L1(mm) | 273 | 287 | 323 | 351 | 376 |
L2(mm) | 391 | 433 | 464 | 494 | 528 |
H1(mm) | 110 | 120 | 138 | 153 | 162 |
H2(mm) | 134 | 187 | 206 | 279 | 291 |
H3(mm) | 206 | 221 | 258 | 279 | 291 |
H4(mm) | 241 | 256 | 293 | 315 | 326 |
R1(mm) | 56.8 | 59.8 | 70.8 | 76.8 | 78.9 |
R2(mm) | 223 | 248 | 256 | 271 | 295 |
Weight | 24.5 | 24.5 | 30.7 | 44.8 | 63.2 |
Features
Features of Adjustable Aluminum Titanium Alloy Ratchet Hydraulic Torque Wrench Tools
1.High strengthen aluminium-titanium alloy body.
2.700 bar maximum working pressure, repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
2.700 bar maximum working pressure, repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.

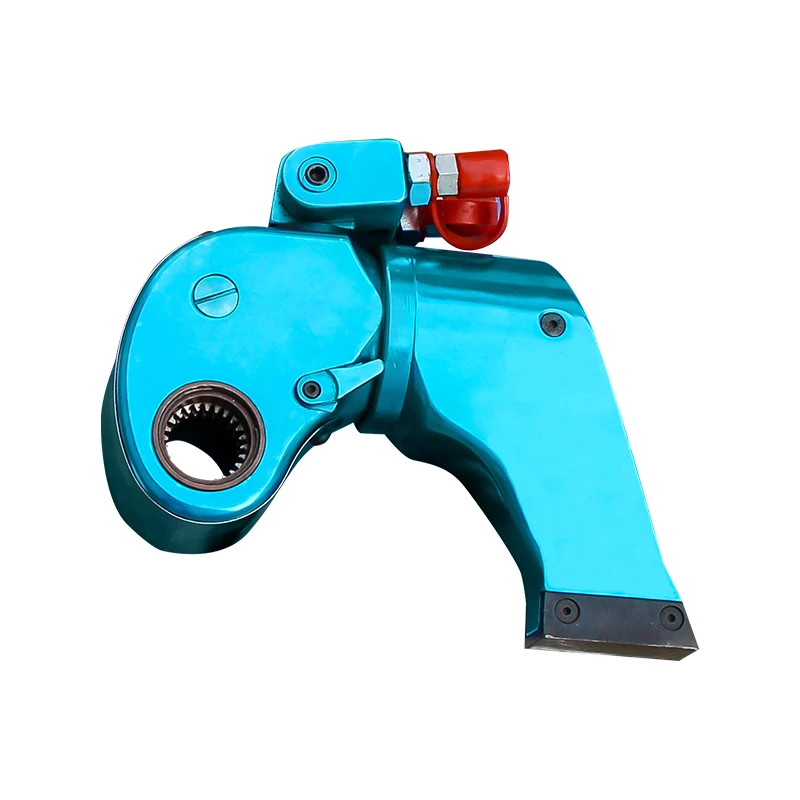

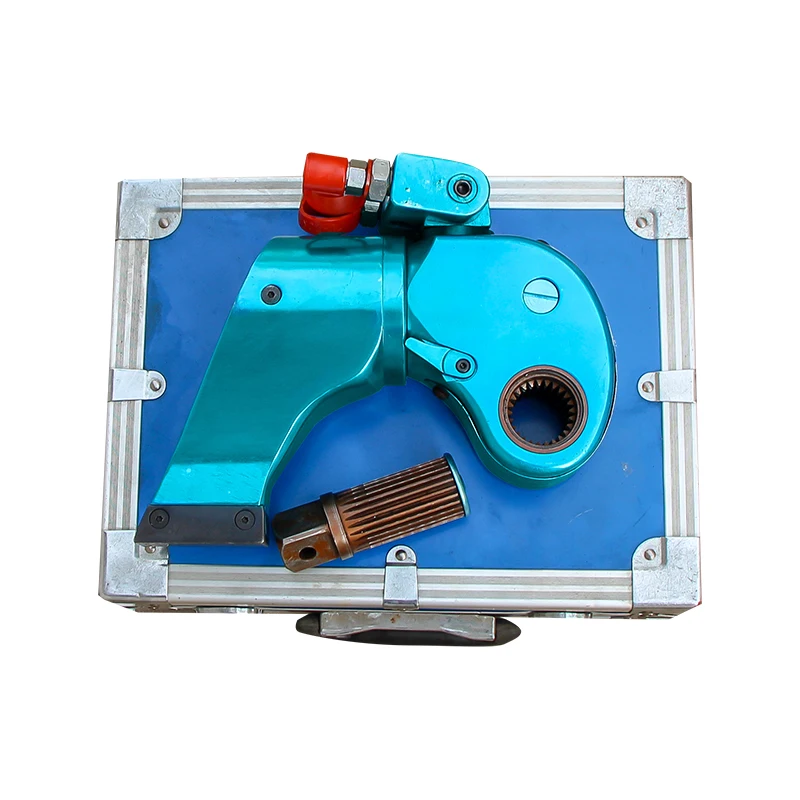

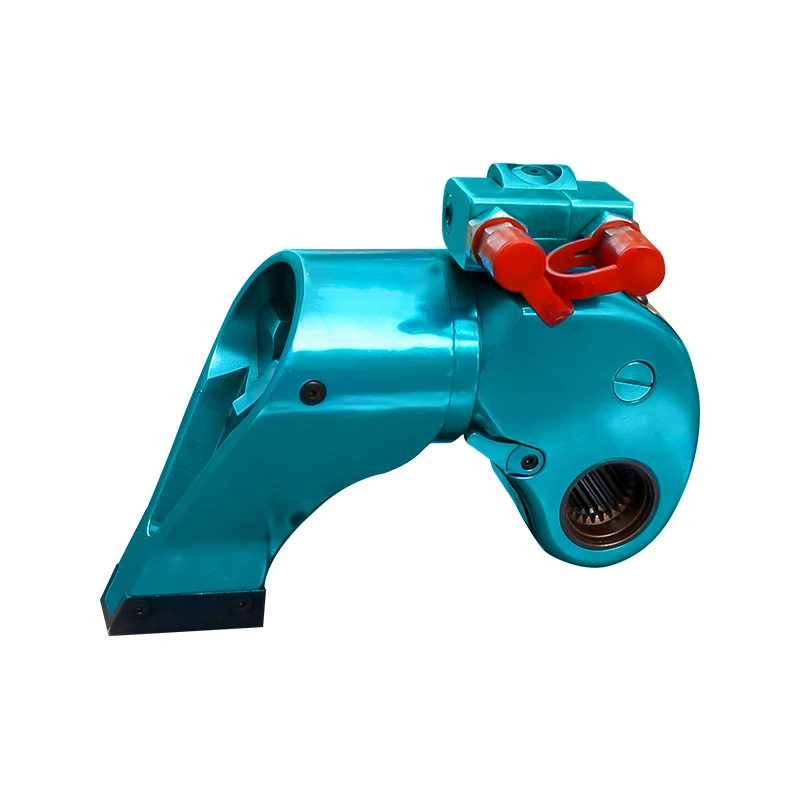

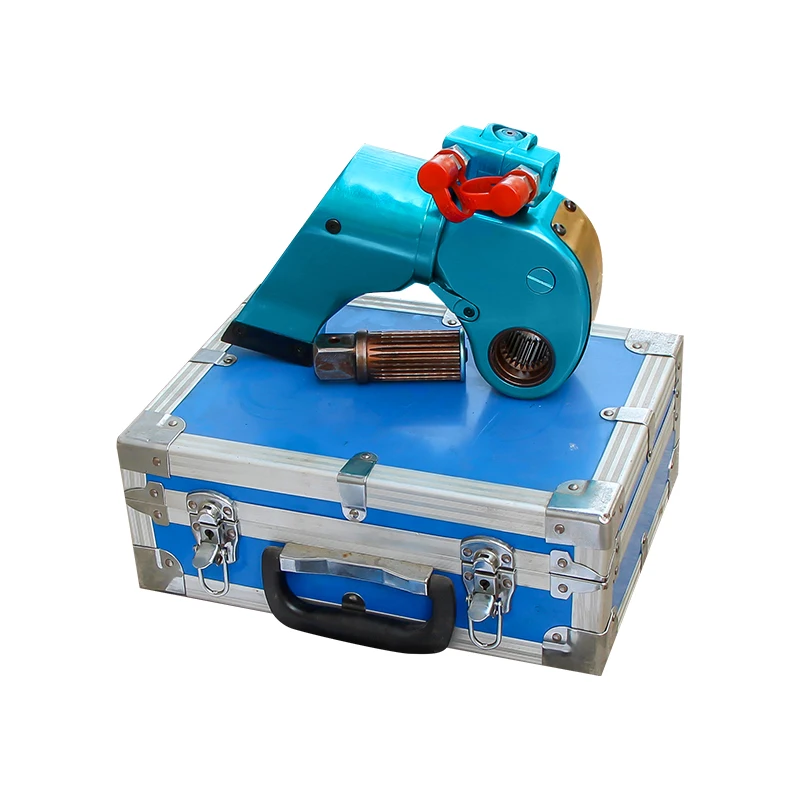

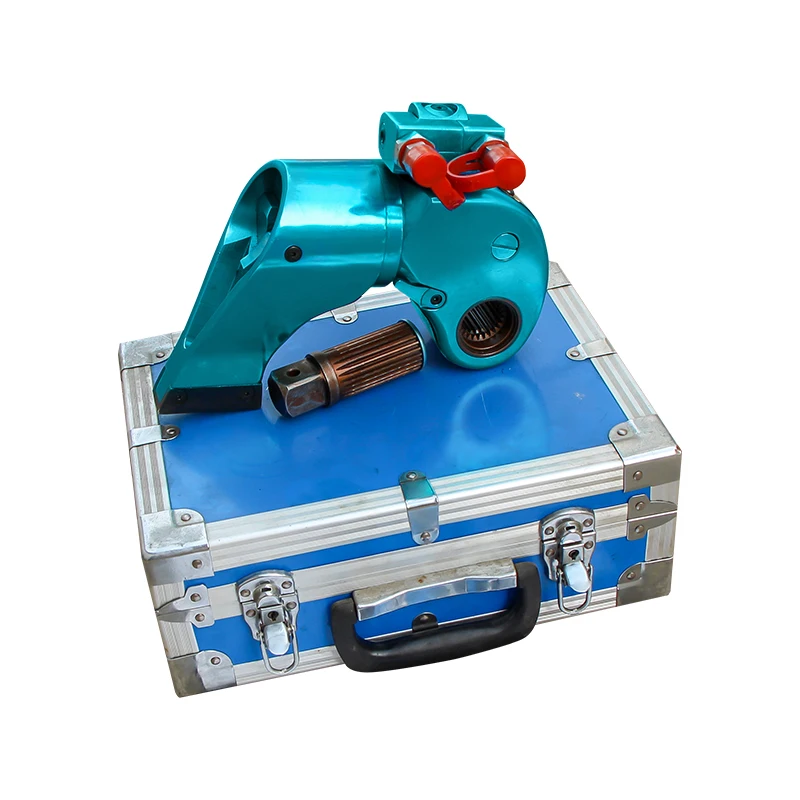

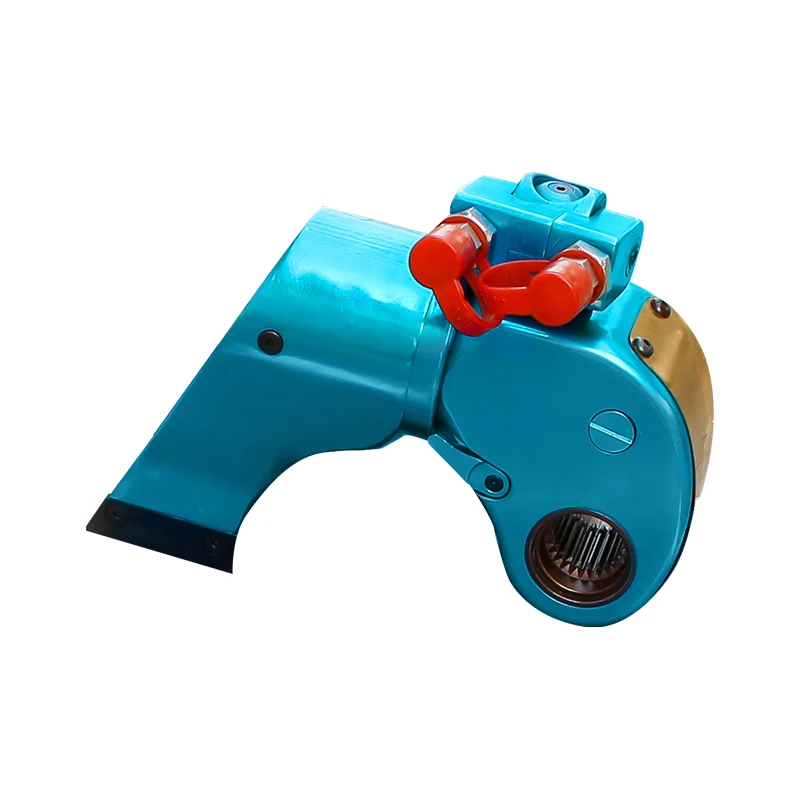

Details Images
Packaging&Shipping
Package | Wooden box |
Shipping | Sea freight, Air freight or International express |
Our warranty | 2 years |
Delivery time | 7-10 days |
MOQ | 1pc |
Recommend Products
FAQ
contact us for price
In order to confirm which type of aluminum titanium alloy drive hydraulic wrench is suitable for your work, please help us to confirm the following information:
1. What is the torque you need?
2. What is the size of sleeves matched?3. What is the size of the nut opposite side?
