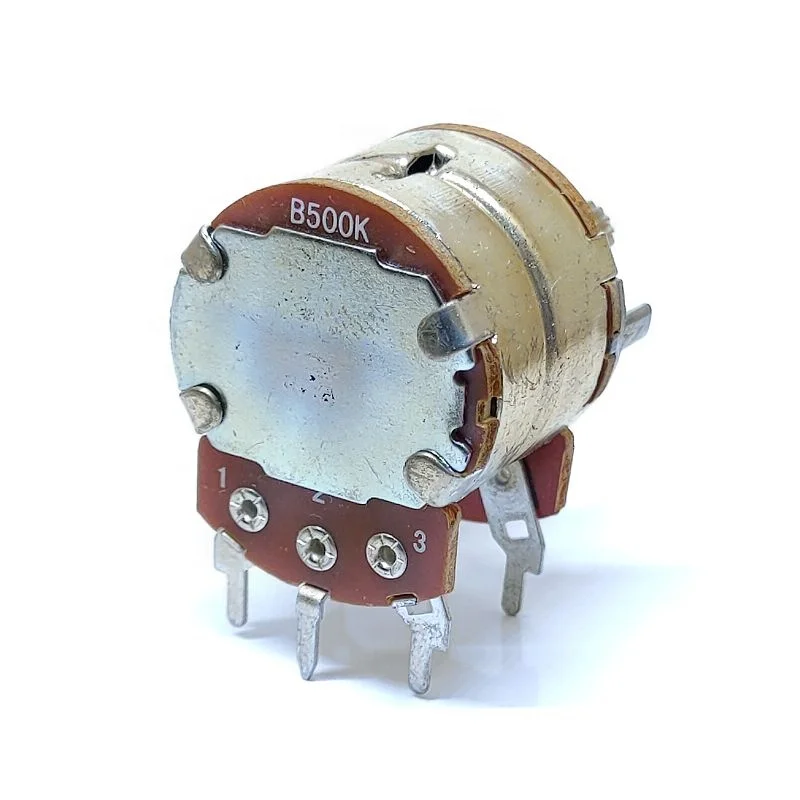

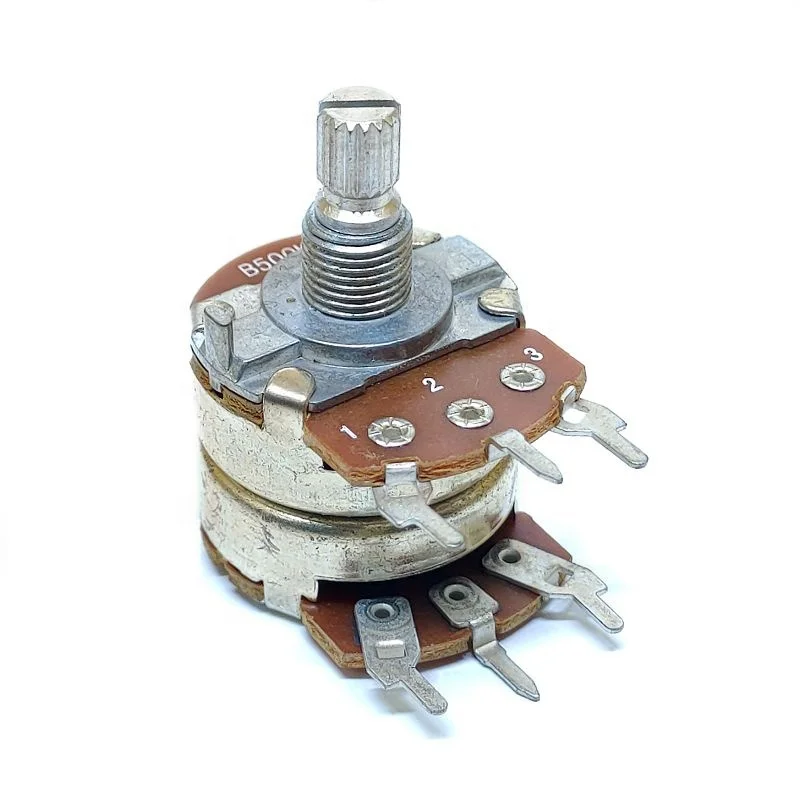

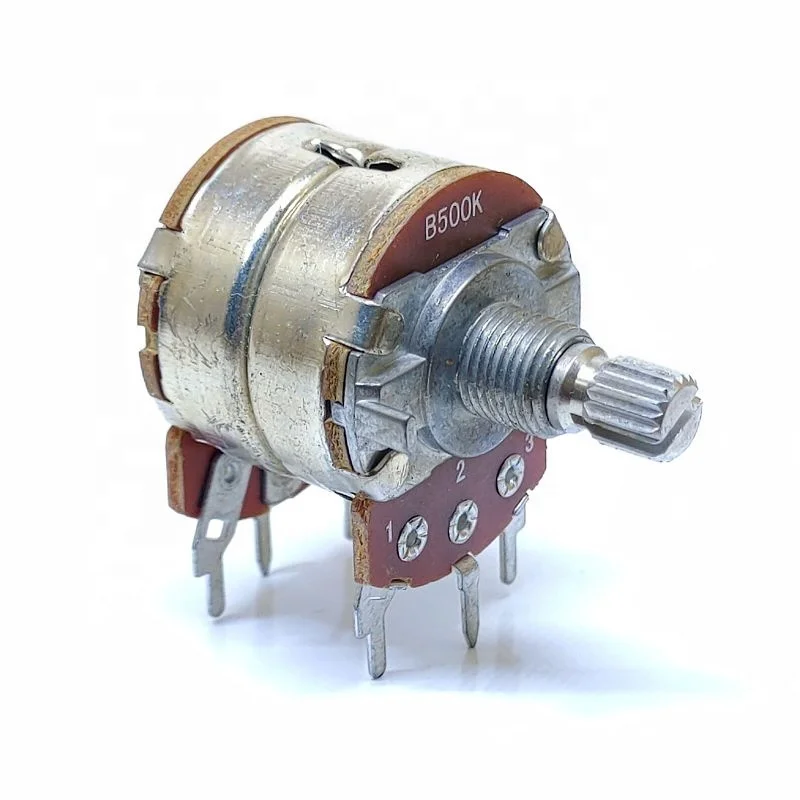

Двойной потенциометр RA24T1 24 мм из углеродной пленки стереодинамики двойной стереоадаптер для
- Категория: >>>
- Поставщик: WORLD,WALK,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.69 $* | 1.11 $* |
| Jul-16-2025 | 1.41 $* | 1.48 $* |
| Jun-16-2025 | 1.18 $* | 1.16 $* |
| May-16-2025 | 1.1 $* | 1.76 $* |
| Apr-16-2025 | 1.68 $* | 1.42 $* |
| Mar-16-2025 | 1.93 $* | 1.51 $* |
| Feb-16-2025 | 1.97 $* | 1.53 $* |
| Jan-16-2025 | 1.46 $* | 1.9 $* |
Характеристики

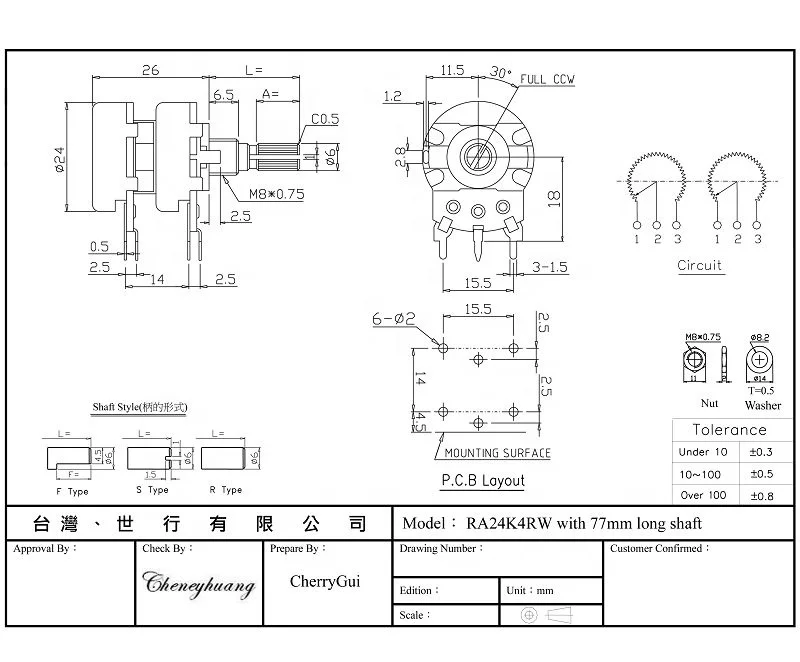

24mm Popular Potentiometer - Carbon film Stereo resistance sheet
RA24T1-B1K ~ 2M ohm, L:15KC dual gang type
Mechanical Data | ||||||||
Total Rotational Angle | 300° ± 5° | |||||||
Rotational Torque | 80 ~ 200gf.cm (could be strong torque only) | |||||||
Rotational Stopper Strength | 5 kgf.cm Min. | |||||||
Push-Pull Strength | 10 kg | |||||||
Rotational Life | 15,000 cycles Min. | |||||||
Electrical Characteristics | ||||||||
Total Resistance | 500 ohm ~ 1 M ohm | |||||||
Resistance Tolerance | ±10% ; ±20% | |||||||
Residual Resistance | < 20 ohm R1-2 < 10 ohm / R2-3 < 20 ohm < 10 ohm | |||||||
Resistance Taper | B (Linear) / A (Log) / C (An-Ti Log) | |||||||
Power Rating | 0.5W (Linear) | |||||||
Max Operating Voltage | AC 250V / DC 20V | |||||||
Slide Noise | Under 100mV | |||||||
Insulation Resistance | 100M ohm Min. at DC250V | |||||||
Voltage Proof | AC 250V at 1 minute | |||||||
