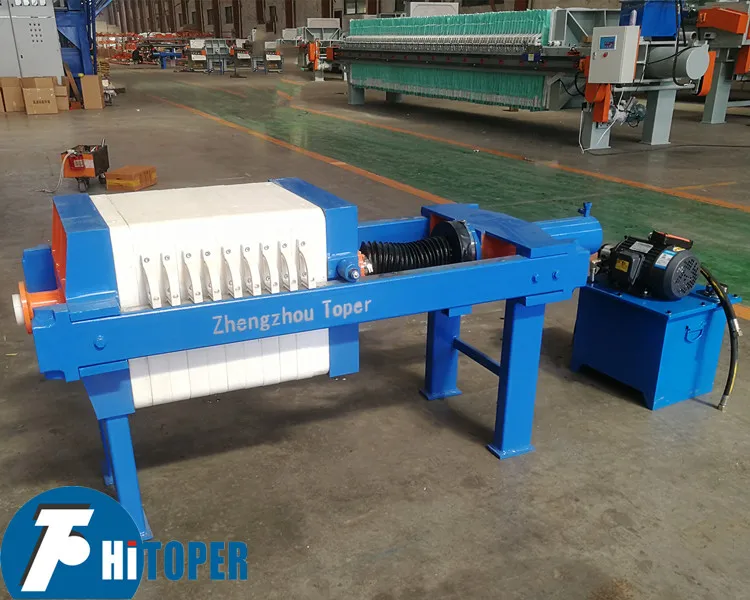

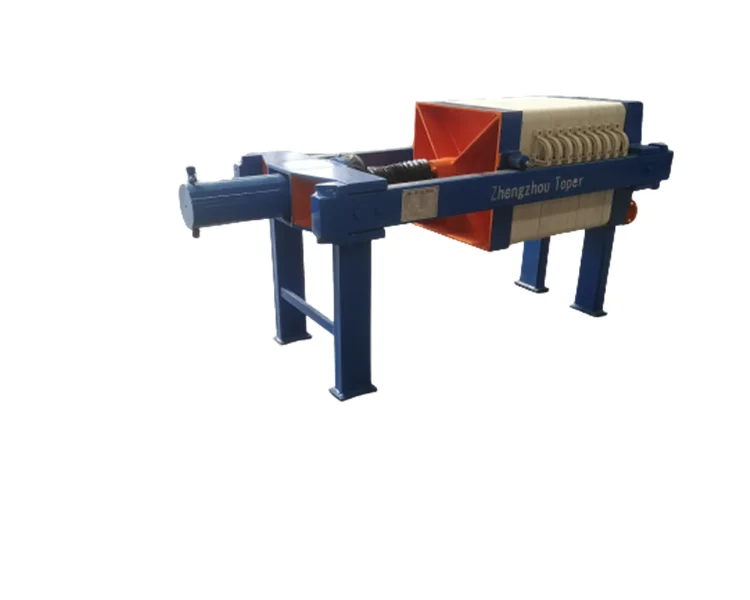

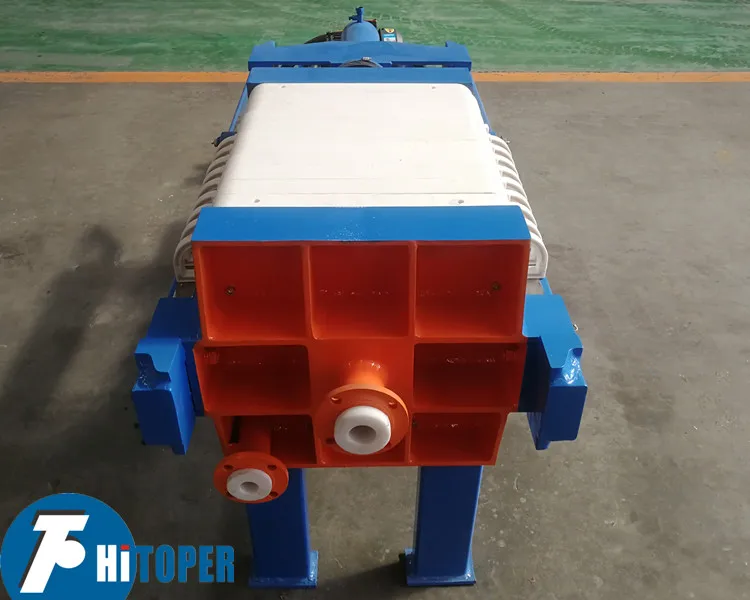

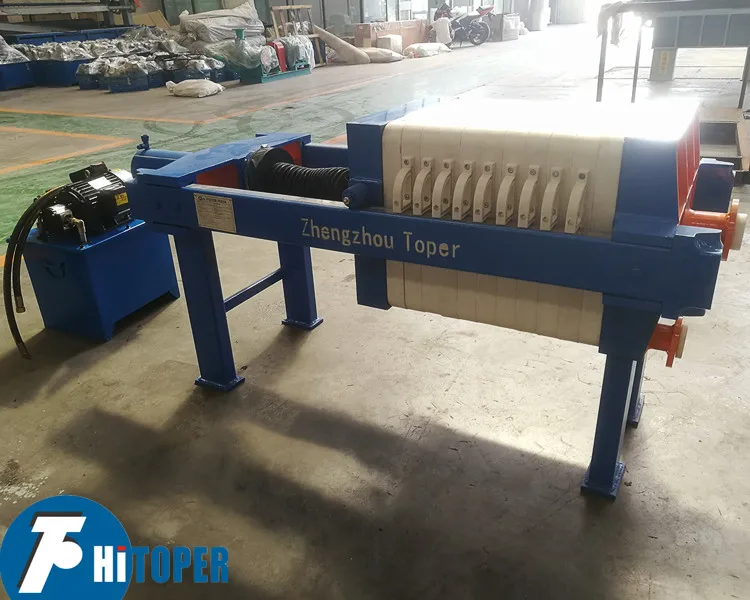

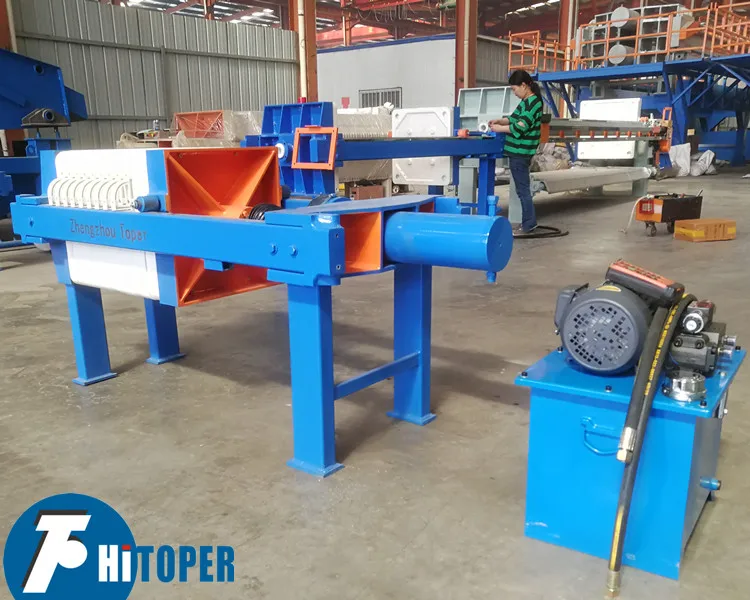

Mini filter press in the process of water treatment,low price press filter machine for sale

Brife introduction of the water treatment  filter press



This type of filter press machine is mainly consist of  frame,filter plate ,hydraulic pressing system .Which has the advantage of  hydraulic pressure, automatic maintain pressure,working stable ,compact structue,easy to use ,PP type durable use filter plate ,variety kinds of models ,large capacity ,energy and labor saving and so on.



The fitler press is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.





Working principle the water treatment  filter press :



When the filter press is suitable installation, you can push the power button ,and the pressing process is start as the machine is automatically controled :

The cylinder piston of hydraulic device drives the push plate to press the filter plate and filter cloth between push plate and tail plate.Filter chamber are formed between pressed filter plates and materials get into the filter chamber through the inlet of tail plate with the help of feeding pump.

Solid particles are remainned in filter chambers forming into cakes ,while liquid is discharged out of the machine through press cake and filter cloth.

To wash the press cakes,washing water can  be introduced through the washing inlet of the tail plate.



Technical parameters of  the  filter press

 01. 450/630/800/870 chamber type hydraulic compress filter press

Type	(m2) Filter  area	(mm) Filter  plate  size	(mm )Filter  cake  thickness	Filter chamber  volume	(pcs) Filter  plate  number	(Mpa )Filtrating  pressure	(kw )Motor  power	(kg) Weight	(mm) Dimension (L×W×H)
XY4/450-30U	4	450×450	30	60	9	0.6	2.2	860	1950×700×900
XY6/450-30U	6			91	14			910	2200×700×900
XY8/450-30U	8			121	19			960	2450×700×900
XY10/450-30U	10			151	24			1010	2700×700×900
XY12/450-30U	12			182	29			1060	2950×700×900
XY15/450-30U	15			225	36			1130	3300×700×900
XY16/450-30U	16			243	39			1160	3450×700×900
XY15/630-30U	15	630×630		226	18			1725	2640×900×1100
XY20/630-30U	20			297	24			1993	3940×900×1100
XY30/630-30U	30			452	37			2360	3590×900×1100
XY40/630-30U	40			595	49			2788	4300×900×1100
XY30/870-30U	30	800×800		460	23			2170	3700×1400×1300
XY40/870-30U	40			595	30			2450	4300×1400×1300
XY50/870-30U	50			748	38			2700	4840×1400×1300
XY60/870-30U	60			902	46			2980	5440×1400×1300
XY70/870-30U	70			1056	54			3250	6040×1400×1300
XY30/870-30U	30	870×870		460	23			2580	3180×1200×1300
XY40/870-30U	40			595	30			2925	3570×1200×1300
XY50/870-30U	50			748	38			3318	4110×1200×1300
XY60/870-30U	60			902	46			3712	4550×1200×1300
XY70/870-30U	70			1056	54			4106	4990×1200×1300
XY80/870-30U	80			1210	62			4561	5430×1200×1300



02. 450/630/800/870 plate and frame type hydraulic compress filter press



Type	(m2) Filter  area	(mm) Filter  plate  size	(mm) Filter cake  thickness	Filter chamber  volume	(pcs) Filter  plate number	(Mpa) Filtrating pressure	(kw) Motor  power	(kg) Weight	(mm) Dimension (L×W×H)
XY4/450-30U	4	450×450	30	60	9	0.6	2.2	860	1950×700×900
XY6/450-30U	6			91	14			910	2200×700×900
XY8/450-30U	8			121	19			960	2450×700×900
XY10/450-30U	10			151	24			1010	2700×700×900
XY12/450-30U	12			182	29			1060	2950×700×900
XY15/450-30U	15			225	36			1130	3300×700×900
XY16/450-30U	16			243	39			1160	3450×700×900
XY15/630-30U	15	630×630		226	18			1725	2640×900×1100
XY20/630-30U	20			297	24			1993	3940×900×1100
XY30/630-30U	30			452	37			2360	3590×900×1100
XY40/630-30U	40			595	49			2788	4300×900×1100
XY30/870-30U	30	800×800		460	23			2170	3700×1400×1300
XY40/870-30U	40			595	30			2450	4300×1400×1300
XY50/870-30U	50			748	38			2700	4840×1400×1300
XY60/870-30U	60			902	46			2980	5440×1400×1300
XY70/870-30U	70			1056	54			3250	6040×1400×1300
XY30/870-30U	30	870×870		460	23			2580	3180×1200×1300
XY40/870-30U	40			595	30			2925	3570×1200×1300
XY50/870-30U	50			748	38			3318	4110×1200×1300
XY60/870-30U	60			902	46			3712	4550×1200×1300
XY70/870-30U	70			1056	54			4106	4990×1200×1300
XY80/870-30U	80			1210	62			4561	5430×1200×1300
